Rehlko Command PRO CH730-0019 Vermeer Replacement Engine

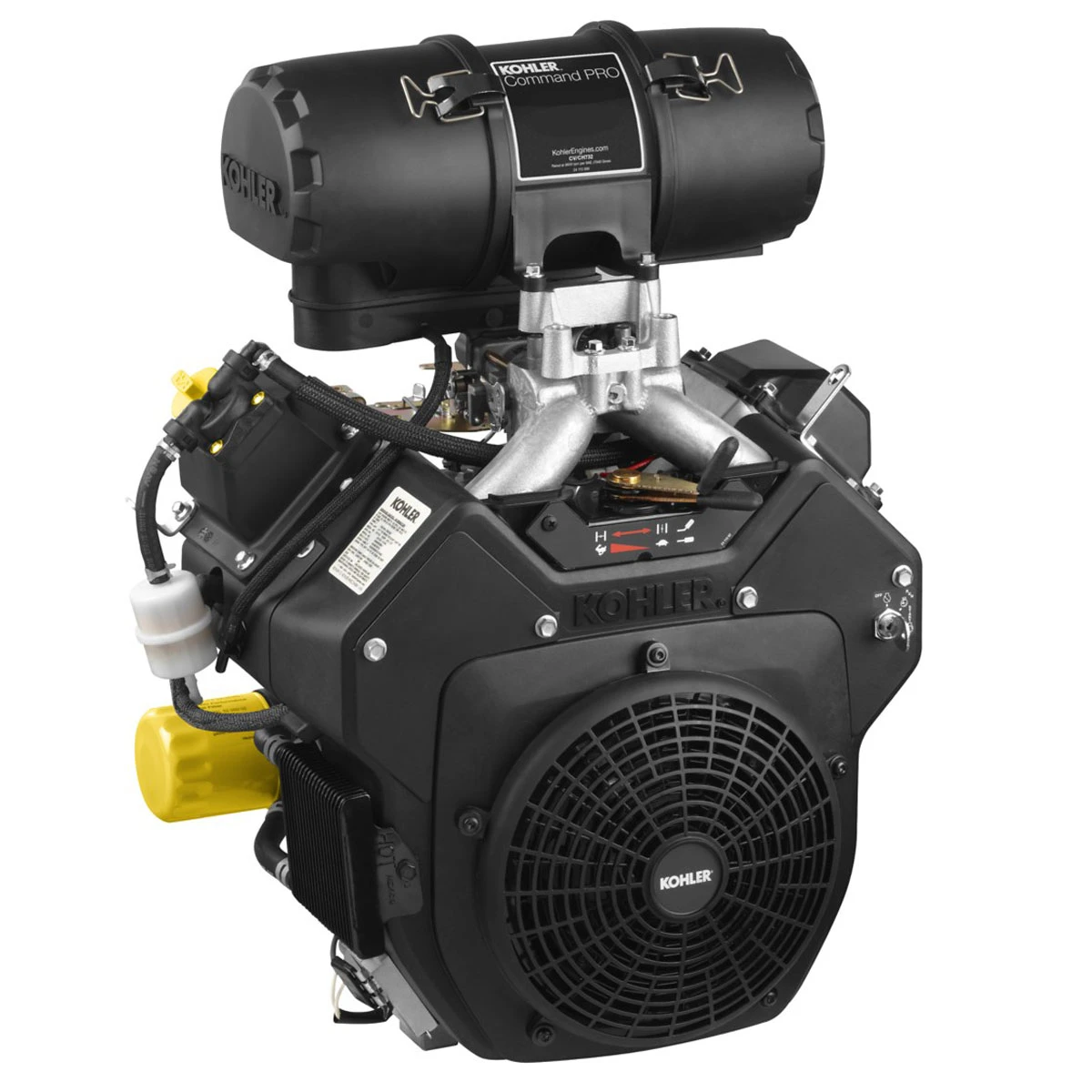

The Rehlko Command PRO CH730-0019, manufacturer part number PA-CH730-0019, is a complete 725cc horizontal-shaft V-Twin engine configured specifically as a replacement engine for select Vermeer equipment.
Formerly sold under the Kohler Engines name, the CH730-0019 produces 23.5 HP and features a large 1-7/16" x 4.453" keyed horizontal crankshaft, 12-volt electric start and a 15-amp regulated charging system.
OEM Part Number: PA-CH730-0019
Engine Specification: CH730-0019
Application: Vermeer replacement engine, including compatible stump grinder applications
Important: This is an application-specific Vermeer replacement engine, not a universal CH730.
Verify the original engine specification plus the Vermeer equipment model and serial number before ordering.
PA-CH730-0019 Engine Specifications
| Rehlko CH730-0019 Specifications | |
|---|---|
| Manufacturer | Rehlko / Formerly Kohler Engines |
| Series | Command PRO |
| Model / Specification | CH730-0019 |
| Manufacturer Part Number | PA-CH730-0019 |
| Application | Vermeer Replacement Engine |
| Engine Type | 4-Cycle OHV V-Twin |
| Shaft Orientation | Horizontal |
| Displacement | 725cc / 44.2 cu. in. |
| Rated Power | 23.5 HP |
| Peak Torque | 38.4 ft-lb |
| Bore x Stroke | 3.3 x 2.6 in. |
| Compression Ratio | 9.0:1 |
| Crankshaft Diameter | 1-7/16 in. |
| Crankshaft Length | 4.453 in. |
| Keyway | 3/8 in. |
| Crankshaft End | Drilled and Tapped 5/8"-18 |
| Starting System | 12-Volt Electric Start |
| Charging System | 15 Amp Regulated |
| Lubrication | Full-Pressure Lubrication With Oil Filter |
| Oil Capacity | Approximately 2.0 qt. / 1.9 L |
| Fuel Pump | Mechanical |
| Air Cleaner | Heavy-Duty Canister Style |
| Oil Cooler | Yes |
| Muffler Included | No |
| Fuel Tank Included | No |
What Is PA-CH730-0019?
PA-CH730-0019 is the manufacturer part number for the CH730-0019 Command PRO engine configuration produced for Vermeer replacement applications.
The specification number matters because Rehlko/Kohler produced numerous CH730 engines with different crankshafts, wiring, controls, air cleaners and application-specific components.
A different CH730 specification should therefore not be assumed to be a direct replacement simply because it has the same displacement or horsepower rating.
Vermeer Engine Replacement Numbers
PA-CH730-0019 supersedes several older Vermeer-specific Kohler Command engine numbers, including:
Older Vermeer equipment or parts information may therefore reference one of these engine numbers instead of PA-CH730-0019.
Replacement for CH25 Vermeer Engines
PA-CH730-0019 is commonly used as the service replacement for older Vermeer-specific Kohler CH25 configurations.
For example, the older CH25-68652 Vermeer engine is superseded by PA-CH730-0019.
Older CH25 engines may have been marketed as 25 HP engines. The replacement CH730-0019 itself carries a current 23.5 HP rating.
CH730-0019 Crankshaft Dimensions

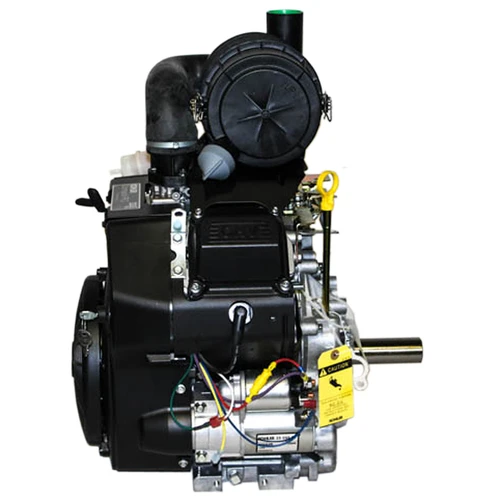

The PA-CH730-0019 uses a 1-7/16-inch diameter x 4.453-inch long horizontal crankshaft.
The shaft has a 3/8-inch keyway and the end is drilled and tapped 5/8"-18.
Do not substitute another CH730 solely by horsepower. The crankshaft diameter, length, keyway, mounting, wiring and controls must match the Vermeer application.
Vermeer Stump Grinder Replacement Engine
Replacement-engine catalogs specifically identify CH730-0019 for compatible Vermeer stump grinder applications.
This configuration includes the heavy-duty air-cleaner system, mechanical fuel pump, oil cooler and engine-mounted control arrangement associated with the Vermeer application.
Does PA-CH730-0019 Include a Muffler?
No. PA-CH730-0019 is specified without a muffler.
It also does not include an equipment fuel tank. Verify whether the existing Vermeer exhaust, fuel-system and installation components will be reused.
Before Ordering PA-CH730-0019
- Verify the original Kohler/Rehlko engine model and specification.
- Check for an older PA-68537, PA-68539, PA-68587, PA-68628, PA-68632 or PA-68652 engine number.
- Verify the Vermeer equipment model and serial number.
- Confirm the 1-7/16" x 4.453" horizontal crankshaft.
- Confirm the 3/8" keyway.
- Confirm the 5/8"-18 drilled and tapped crankshaft end.
- Verify the electrical and control connections.
- Confirm the existing muffler and exhaust arrangement.
Need help confirming your Vermeer replacement engine? Contact Carroll Stream Motor Company at 1-888-208-2088 with the original engine number and Vermeer equipment model and serial number.
PA-CH730-0019 FAQs
What is Rehlko PA-CH730-0019?
PA-CH730-0019 is a complete Rehlko Command PRO CH730 replacement engine configured for select Vermeer equipment.
Is PA-CH730-0019 a complete engine?
Yes. PA-CH730-0019 is a complete CH730 replacement engine, not an individual engine component.
How much horsepower does CH730-0019 have?
CH730-0019 is rated at 23.5 HP.
What does PA-CH730-0019 replace?
PA-CH730-0019 replaces select older Vermeer engine numbers including PA-68537, PA-68539, PA-68587, PA-68628, PA-68632 and PA-68652.
Does PA-CH730-0019 replace PA-68652?
Yes. PA-68652 is superseded by PA-CH730-0019.
Is CH730-0019 made for Vermeer?
Yes. OEM and replacement-engine catalogs specifically identify CH730-0019 as a Vermeer engine configuration.
What size shaft does CH730-0019 have?
It uses a 1-7/16" diameter x 4.453" long horizontal crankshaft with a 3/8" keyway.
What is the crankshaft thread size?
The shaft end is drilled and tapped 5/8"-18.
What charging system does CH730-0019 use?
It uses a 15-amp regulated charging system.
Does PA-CH730-0019 include a muffler?
No. Published replacement-engine specifications identify PA-CH730-0019 as being supplied without a muffler.
Can any CH730 replace CH730-0019?
No. Different CH730 specifications can use different crankshafts, controls, electrical systems and application-specific components.
