GASKET,CASE-ROCKER 11061-1285

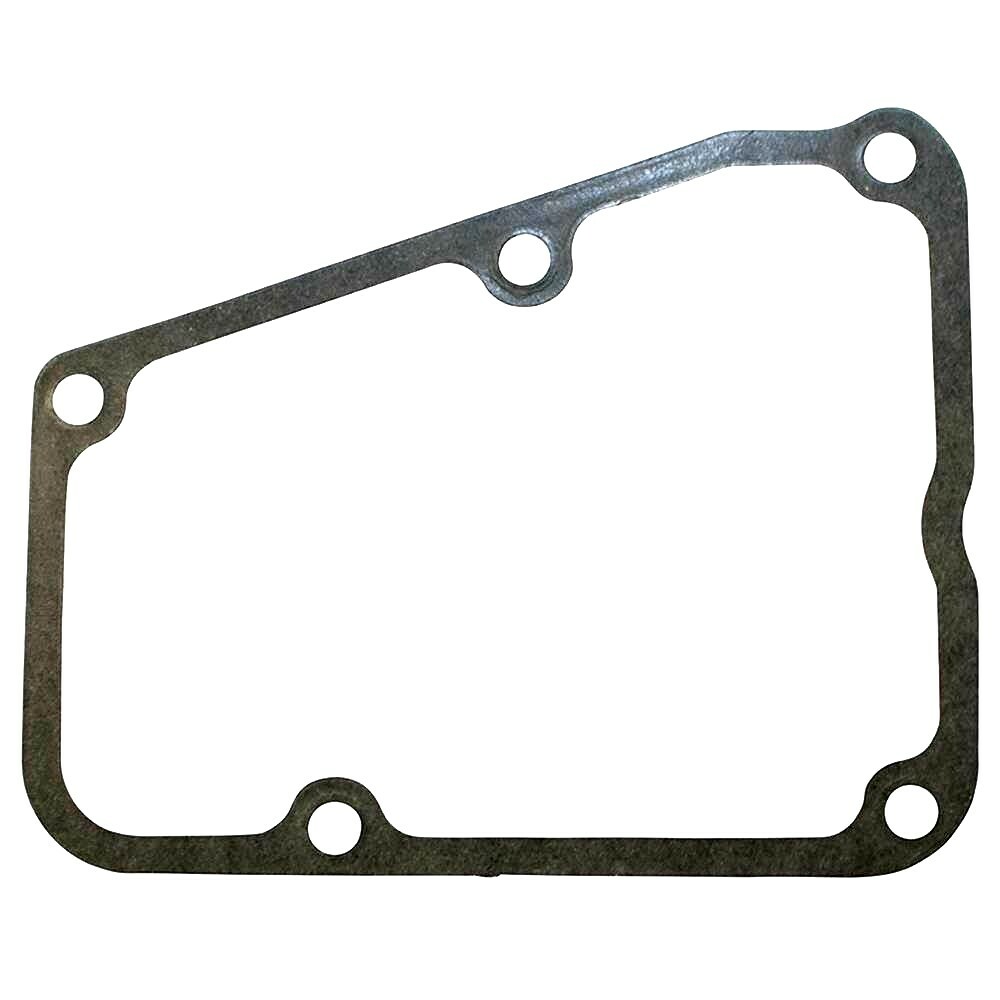

Kawasaki OEM Rocker Case Gasket 11061-1285

The Kawasaki 11061-1285 Rocker Case Gasket is a genuine OEM engine gasket used on a wide range of Kawasaki FR, FS, FT and FX-series V-Twin engines.

Kawasaki identifies part number 11061-1285 as GASKET, CASE-ROCKER. It is also commonly described as a valve cover gasket and replaces older Kawasaki part number 11061-7083.

Kawasaki 11061-1285 Product Details

11061-1285 Replaces Kawasaki 11061-7083

Kawasaki 11061-1285 is the current replacement for older rocker-case gasket 11061-7083.

If an older parts manual or equipment catalog calls for 11061-7083, current service-part information directs that application to 11061-1285.

What Is a Kawasaki Rocker Case Gasket?

The rocker case, often referred to as the valve cover, encloses components of the engine's valve train at the cylinder head.

Kawasaki 11061-1285 provides the sealing surface between the rocker case and cylinder head on compatible engines.

A damaged or deteriorated gasket can allow engine oil to seep from the rocker-case sealing surface.

What Engines Use Kawasaki 11061-1285?

Kawasaki parts catalogs document 11061-1285 across hundreds of engine configurations.

Documented families include select:

• Kawasaki FR541V
• Kawasaki FR600V
• Kawasaki FR651V
• Kawasaki FR691V
• Kawasaki FR730V
• Kawasaki FS481V
• Kawasaki FS541V
• Kawasaki FS600V
• Kawasaki FS651V
• Kawasaki FS691V
• Kawasaki FS730V
• Kawasaki FT651V
• Kawasaki FT691V
• Kawasaki FT730V
• Kawasaki FX651V
• Kawasaki FX691V
• Kawasaki FX730V

Additional specifications may also use this gasket. Always verify the exact Kawasaki engine specification.

Documented Application Examples

Parts catalogs specifically document 11061-1285 on applications such as:

• FR541V-AS09
• FR600V-AS18
• FR651V-AS35
• FR651V-BS43
• FR691V-DS15
• FR730V-AS15
• FR730V-GS05
• FS481V-AS21
• FS730V-CS25
• FT651V-AS00
• FT691V-AS08
• FT730V-BS08
• FX691V-ES24
• FX730V-ES12
• FX730V-KS05

These are examples rather than a complete compatibility list.

How Many 11061-1285 Gaskets Are Required?

Kawasaki V-Twin engines have separate rocker cases for the two cylinders. Many compatible engine diagrams therefore specify quantity 2 of 11061-1285.

For example, Kawasaki FR691V-DS15 documentation lists GASKET, CASE-ROCKER (2) under part number 11061-1285.

11061-1285 and the Rocker Cases

Current Kawasaki parts diagrams often show separate rocker cases for cylinder #1 and cylinder #2 while using the same 11061-1285 gasket at each cover.

For example, applicable diagrams can list:

• 11022-0046 – CASE-ROCKER, #1 CYL
• 11022-0047 – CASE-ROCKER, #2 CYL
• 11061-1285 – GASKET, CASE-ROCKER

The rocker cases themselves are separate service parts and are not included with this gasket.

Rocker Case Gasket vs. Head Gasket

11061-1285 is not a cylinder head gasket.

It seals the rocker case or valve-cover area. The cylinder head gasket sits between the cylinder head and cylinder/crankcase and uses a different Kawasaki part number.

For example, many current FR, FS, FT and FX applications use 11004-0762 as the cylinder head gasket.

When Should a Rocker Case Gasket Be Replaced?

Inspect the gasket whenever the rocker case or valve cover is removed.

Replacement may be appropriate if the gasket is torn, compressed, hardened, damaged or showing evidence of oil leakage.

If oil is leaking around the rocker case, inspect the gasket, cover and mating surface before replacing parts.

Before Ordering Kawasaki 11061-1285

• Locate the complete Kawasaki engine model and specification.
• Confirm 11061-1285 or previous 11061-7083 in the parts diagram.
• Verify how many rocker cases are being serviced.
• Do not confuse this gasket with the cylinder head gasket.
• Inspect the rocker cover and sealing surface for damage.
• Follow Kawasaki service procedures when reinstalling the rocker case.

Need help confirming the correct Kawasaki gasket? Contact Carroll Stream Motor Company at 1-888-208-2088 with the complete Kawasaki engine model and specification number.
