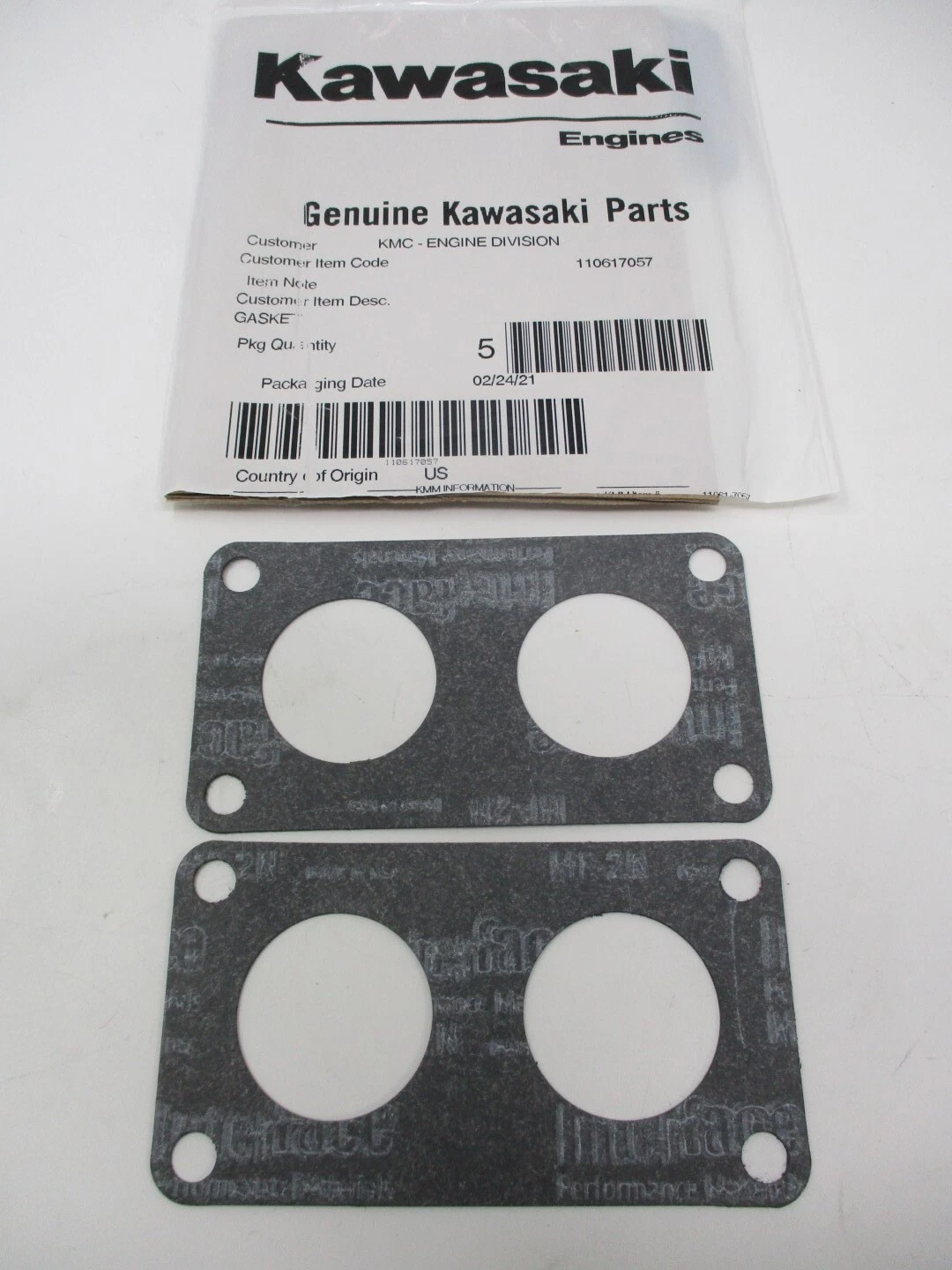

GASKET,INSULATOR 11061-7057

Kawasaki OEM Carburetor Insulator Gasket 11061-7057

The Kawasaki 11061-7057 Insulator Gasket is a genuine OEM carburetor-system gasket used on select Kawasaki FX921V, FX1000V and FXT00V commercial V-Twin engines.

Kawasaki identifies part number 11061-7057 as GASKET, INSULATOR. On compatible engines, it seals the carburetor-insulator connection within the intake and carburetor assembly.

Kawasaki 11061-7057 Product Details

What Is Kawasaki 11061-7057?

Kawasaki 11061-7057 is the sealing gasket used with the carburetor insulator on compatible Kawasaki engines.

In Kawasaki carburetor diagrams, the gasket is listed separately from the insulator itself, carburetor spacer gasket, manifold gasket and other carburetor seals.

Where Does Kawasaki 11061-7057 Install?

On applicable engines, 11061-7057 is installed at the carburetor-insulator connection.

Some engine configurations use an insulator positioned between two sealing gaskets. Because exact quantity can vary by specification, check the illustrated parts diagram before ordering.

What Engines Use Kawasaki 11061-7057?

Kawasaki parts catalogs document 11061-7057 on numerous high-output FX-series commercial V-Twin engines.

• Kawasaki FX921V
• Kawasaki FX1000V
• Kawasaki FXT00V

Documented FX921V examples include:

• FX921V-AS00
• FX921V-AS04
• FX921V-AS06
• FX921V-AS07
• FX921V-AS08
• FX921V-AS09
• FX921V-AS15
• FX921V-AS18
• FX921V-AS25
• FX921V-HS04

Documented FXT00V applications include numerous AS, BS, CS, DS, FS and HS specifications. Select FX1000V applications also use 11061-7057.

These are examples rather than a universal fitment list. Always verify the complete Kawasaki engine specification.

11061-7057 and the Carburetor Insulator

Kawasaki carburetor diagrams show 11061-7057 next to the carburetor insulator on compatible engines.

For many FX921V applications, the associated insulator is Kawasaki 16073-7010. Other engine specifications may use a different insulator, so the exact diagram should be checked before ordering related components.

The insulator is a separate service part and is not included with gasket 11061-7057 unless specifically stated otherwise.

11061-7057 vs. Other Kawasaki Carburetor Gaskets

Several different Kawasaki gaskets may appear together in the same carburetor diagram.

On many FX921V and FXT00V configurations, nearby parts include:

• 11061-7037 – Carburetor Spacer Gasket
• 11061-7038 – Carburetor Gasket on applicable specifications
• 11061-7057 – Insulator Gasket
• 11061-7062 – Manifold Gasket
• 11061-7067 – Additional carburetor gasket on applicable specifications

FX921V Insulator Gasket

Kawasaki carburetor diagrams for numerous FX921V specifications specifically list 11061-7057 as GASKET, INSULATOR.

For example, FX921V-HS04 lists 11061-7057 directly alongside carburetor spacer gasket 11061-7037, manifold gasket 11061-7062 and related carburetor components.

FX1000V Insulator Gasket

11061-7057 is also documented on select FX1000V carburetor configurations.

Equipment manufacturers may list the Kawasaki engine using slightly different spec or service-number formatting, so verify the original Kawasaki engine identification before ordering.

FXT00V Insulator Gasket

Kawasaki parts information documents 11061-7057 across numerous FXT00V carburetor specifications.

For example, FXT00V-FS08 and FXT00V-DS22 both list 11061-7057 as the carburetor insulator gasket.

When Should a Carburetor Insulator Gasket Be Replaced?

Inspect the gasket whenever the carburetor or insulator is removed. Replacement may be appropriate if the gasket is torn, crushed, hardened, distorted or otherwise unable to seal properly.

If an intake leak is suspected, inspect all mating surfaces and the related spacer, insulator and manifold gaskets instead of assuming 11061-7057 is the only possible source.

Before Ordering Kawasaki 11061-7057

• Locate the complete Kawasaki engine model and specification.
• Open the carburetor diagram for that exact engine.
• Confirm part number 11061-7057 is listed as GASKET, INSULATOR.
• Check the diagram quantity because some applications use two gaskets.
• Do not substitute another gasket based only on appearance.
• Inspect the related carburetor insulator and manifold gasket during service.
