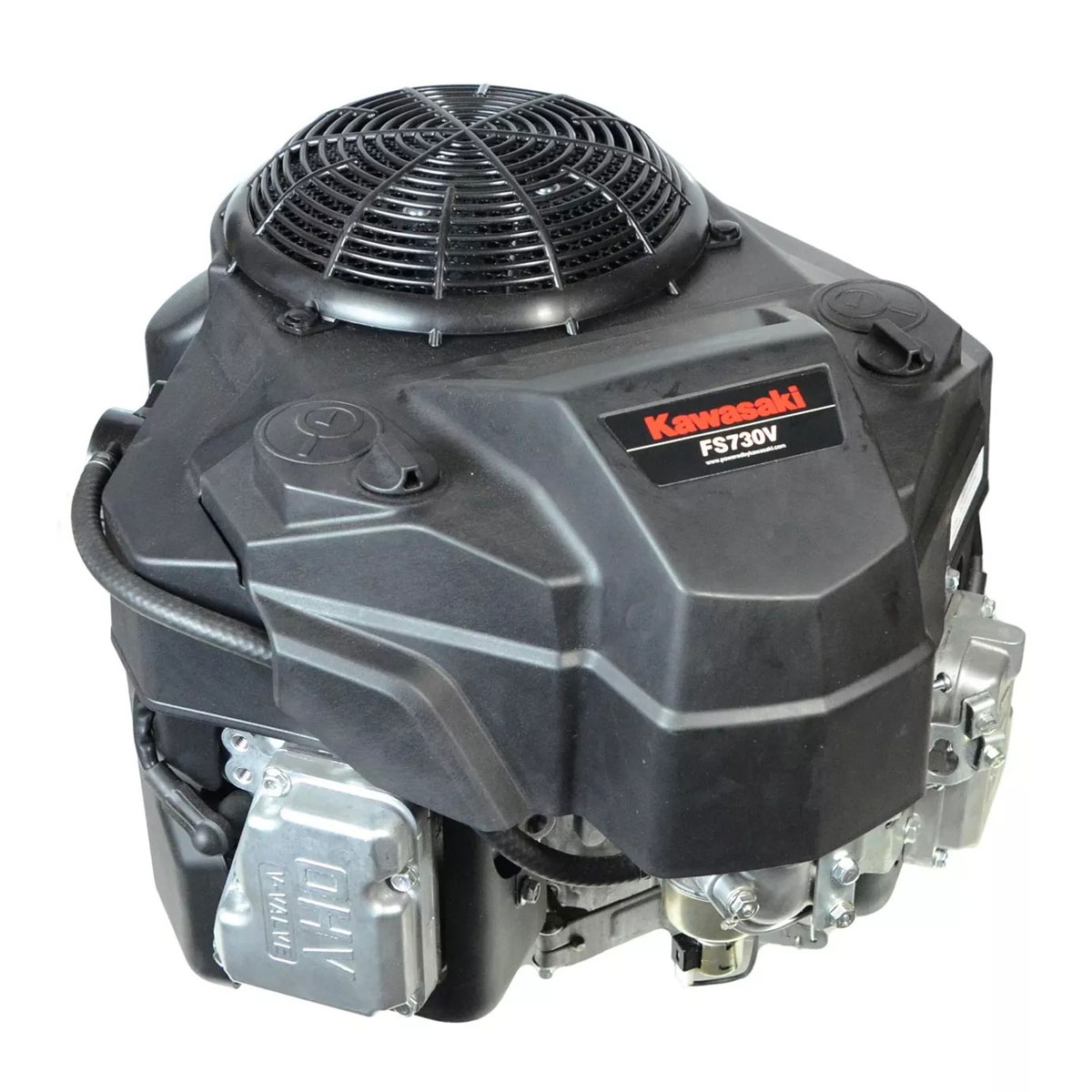

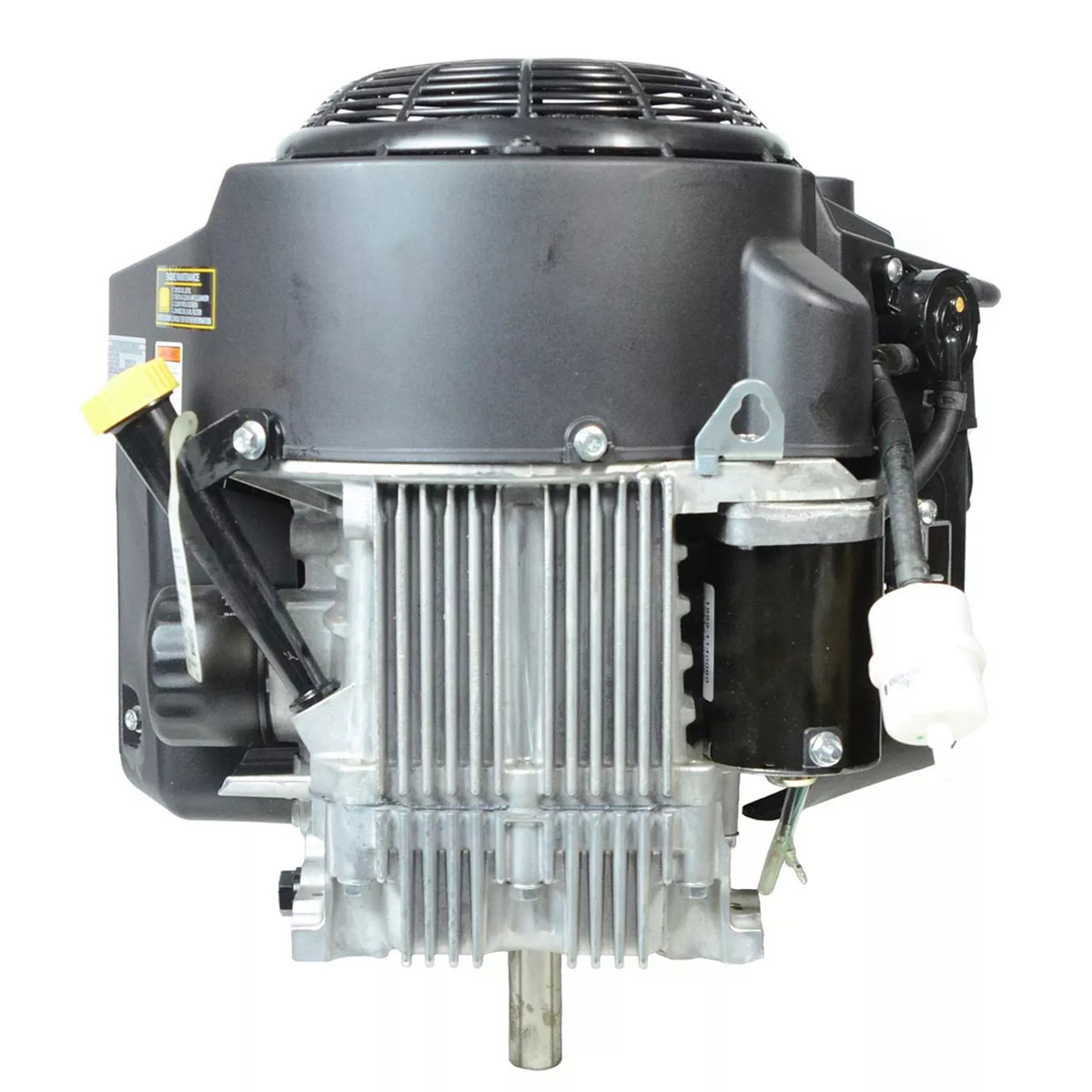

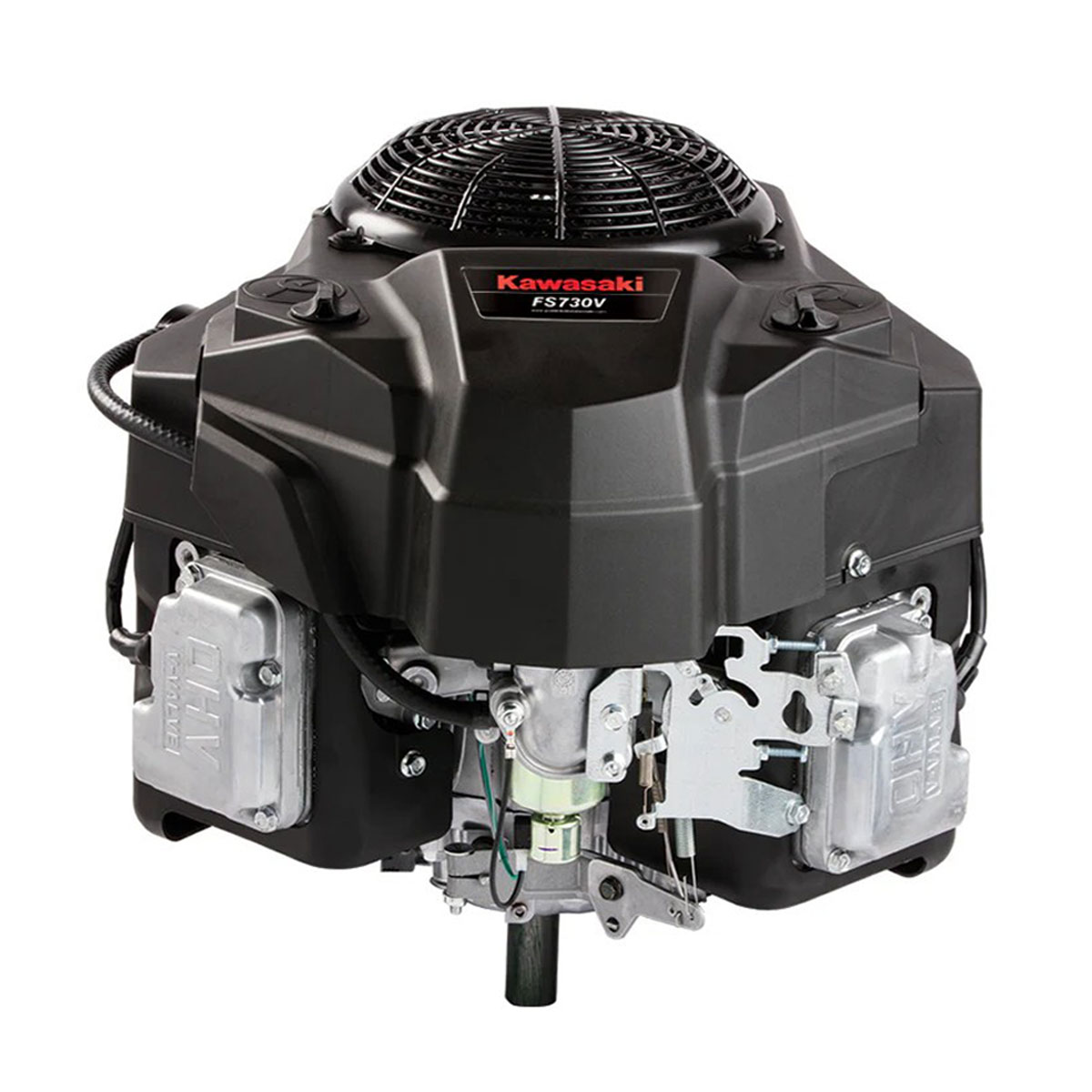

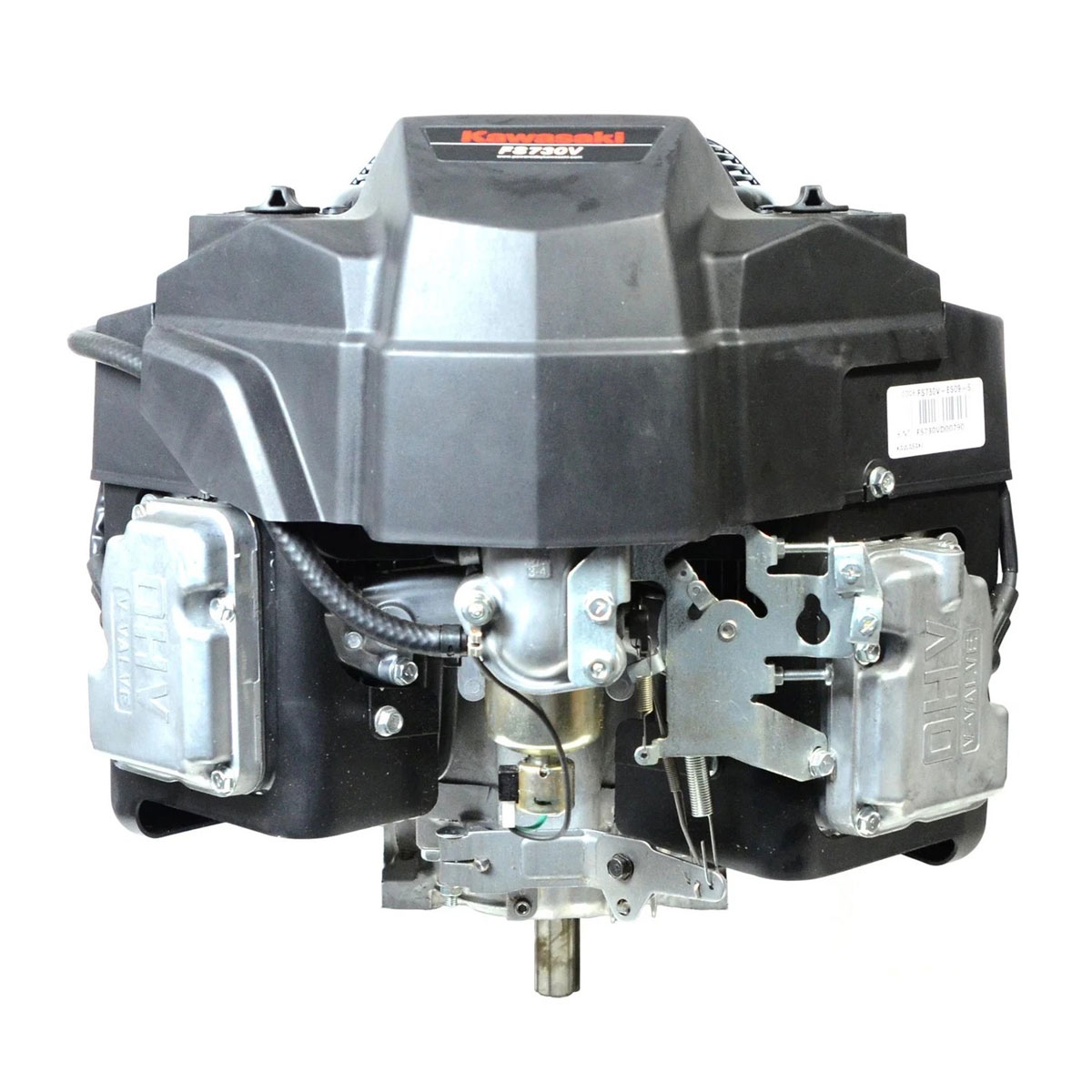

Kawasaki FS730V-S09 24 HP Vertical 1" (25.4mm) X 3-5/32" (80mm) Shaft

Price: $2,498.00
Sale Price: $2,095.00
No reviews yet Write a Review
‎Free 1–5 day delivery
90.00 LBS

Prop. 65 Warning: This product contains chemicals known to the state of California to cause cancer and birth defects, or other reproductive harm.





Kawasaki FS730V-S09 Small Gas Engine Electric Start

With 1" Diameter, 1/4" Shaft

This 24 HP Kawasaki FS730V, small gas engine is excellent for new or replacement applications! Perfect for zero turn mowers. Buy online today at Carroll Stream Motor Company. Order now to enjoy our competitive prices with fast, free shipping or call us at 1-888-208-2088 to speak with one of our experts. The highest quality guaranteed! We have been in business since 2005, and our engines are fully rebuildable with all parts available.

An excellent 4 stroke OHV twin cylinder, 3.1 X 3.0 in stroke and 726 cc. This motor has a electric shift start and 15 Amp charging coil. Direct replacement for: FS730V-S04, FS730V-AS04, FS730V-BS04, FS730V-CS04, FS730V-S05, FS730V-AS05, FS730V-BS05, FS730V-S06, FS730V-AS06, FS730V-BS06, FS730V-CS06, FS730V-DS06, FS730V-S08, FS730V-S09, FS730V-AS09, FS730V-AS09S, FS730V-BS09, FS730V-CS09, FS730V-CS09S, FS730V-DS09, FS730V-DS09S, FS730V-ES09 FS730V-S10, FS730V-AS10, FS730V-BS10, FS730V-CS10 *Used on Toro, Exmark, Scag, Bad Boy, KMC, Ariens, Excel, MTD, Dixie Chopper, and many others.

This Kawasaki small motor is built with quality components and is ready to outlast the competition. Purchase now to take advantage of our free shipping and quick turnaround time. Or, call if you have questions! 888-208-2088, 248-628-4638
Make Kawasaki
Model FS730V-S09
Type Small Engine
Fuel Gas Unleaded 86 Octane or Higher
Engine Type 4 Stroke OHV Twin Cylinder
Bore/Stroke 3.1 X 3.0 in
Displacement 726 cc
Max Power 24 HP
Starting Type Electric Start
Charging Coil 15 Amp
Starting System Electric Shift Starter
Dimensions (L x W x H) 19.25 x 18.25 x 24.75 in.
Exhaust Included No
Fuel Tank No
Dry Engine Weight 90lbs.
Shaft Type Keyed - Straight
Shaft Diameter 1" Diameter, 1/4" Keyway
Shaft Length 3-5/32" Total
Shaft I.D. Thread Size 7/16"-20 Drilled and Tapped
Bolt Pattern 4 Bolt
Oil System Pressurized with oil filter
Oil Capacity 2.2 Qts
Oil Cooler High Efficiency
Reduction Type None
Engine Cooling Type Forced Air Cooling
3 Year Consumer Warranty
3 Year Commercial Warranty
Mechanical Governor
4 Stroke OHV Small Engine
Dual Element Filtration
Dipstick in Crankcase
Cross Reference Guide
Kohler: CV750
User Manual

Use to Replace Model Numbers:

FS730V-S04, FS730V-AS04, FS730V-BS04, FS730V-CS04, FS730V-S05, FS730V-AS05, FS730V-BS05, FS730V-S06, FS730V-AS06, FS730V-BS06, FS730V-CS06, FS730V-DS06, FS730V-S08, FS730V-S09, FS730V-AS09, FS730V-AS09S, FS730V-BS09, FS730V-CS09, FS730V-CS09S, FS730V-DS09, FS730V-DS09S, FS730V-ES09, FS730V-S10, FS730V-AS10, FS730V-BS10, FS730V-CS10

Please call for questions about what engines this replaces. (888-208-2088, 248-628-4638)
Any cross-reference is provided as a courtesy. You will be responsible for making sure the part number we are providing will fit your application. If you are unsure, please contact us before purchasing for help. Please have your model and serial number available.

Overview of the FS730V-S09 engine

The Kawasaki FS730V-S09 is a top-of-the-line 24 HP small gas engine crafted for superior performance and longevity, ideal for zero-turn mowers and various other uses. This high-powered V-Twin, 4-stroke engine boasts a 726 cc displacement, guaranteeing outstanding dependability and effectiveness. Equipped with an electric start, a 1" diameter, 1/4" shaft, and a sturdy air-cooled system, it also features a forced lubrication system and carbureted fuel delivery for seamless and reliable operation.

The FS730V-S09 is equipped with a digital CDI ignition system and boasts a compression ratio of 8.2:1. This powerful engine delivers an impressive maximum power of 24 HP at 3,600 RPM and a maximum torque of 39.8 ft-lbs at 2,200 RPM. Despite its robust performance, this engine is surprisingly lightweight, weighing in at approximately 90 lbs. Its compact dimensions of 18.5" L x 16.9" W x 18.7" H make it a versatile choice for various commercial equipment. With its user-friendly design and exceptional versatility, the FS730V-S09 is well-suited for a wide range of applications.

The Kawasaki FS730V-S09 comes with a comprehensive full-pressure lubrication system, complete with an oil filter. This system plays a crucial role in extending the lifespan of the engine by minimizing the damage caused to its internal components. Additionally, the dual-element air filter provides an extra layer of protection, safeguarding the engine against dust and debris. As a result, this engine is well-suited for demanding operating conditions.

The electric start system of the engine enhances convenience by eliminating the requirement for manual pulling, ensuring quick and effortless starts consistently. Additionally, the design of the FS730V-S09 features easily accessible oil drain and fill ports, making routine maintenance tasks simpler. With an oil capacity of 2.1 U.S. quarts, it guarantees extended running time between oil changes.

Kawasaki is well-known for its dedication to quality and innovation, and the FS730V-S09 exemplifies this tradition. Each part is manufactured to precise specifications, guaranteeing top-notch performance and dependability. Carroll Stream Motor Company, boasting almost twenty years of expertise in the industry, backs this engine with a promise of excellence and customer contentment.
