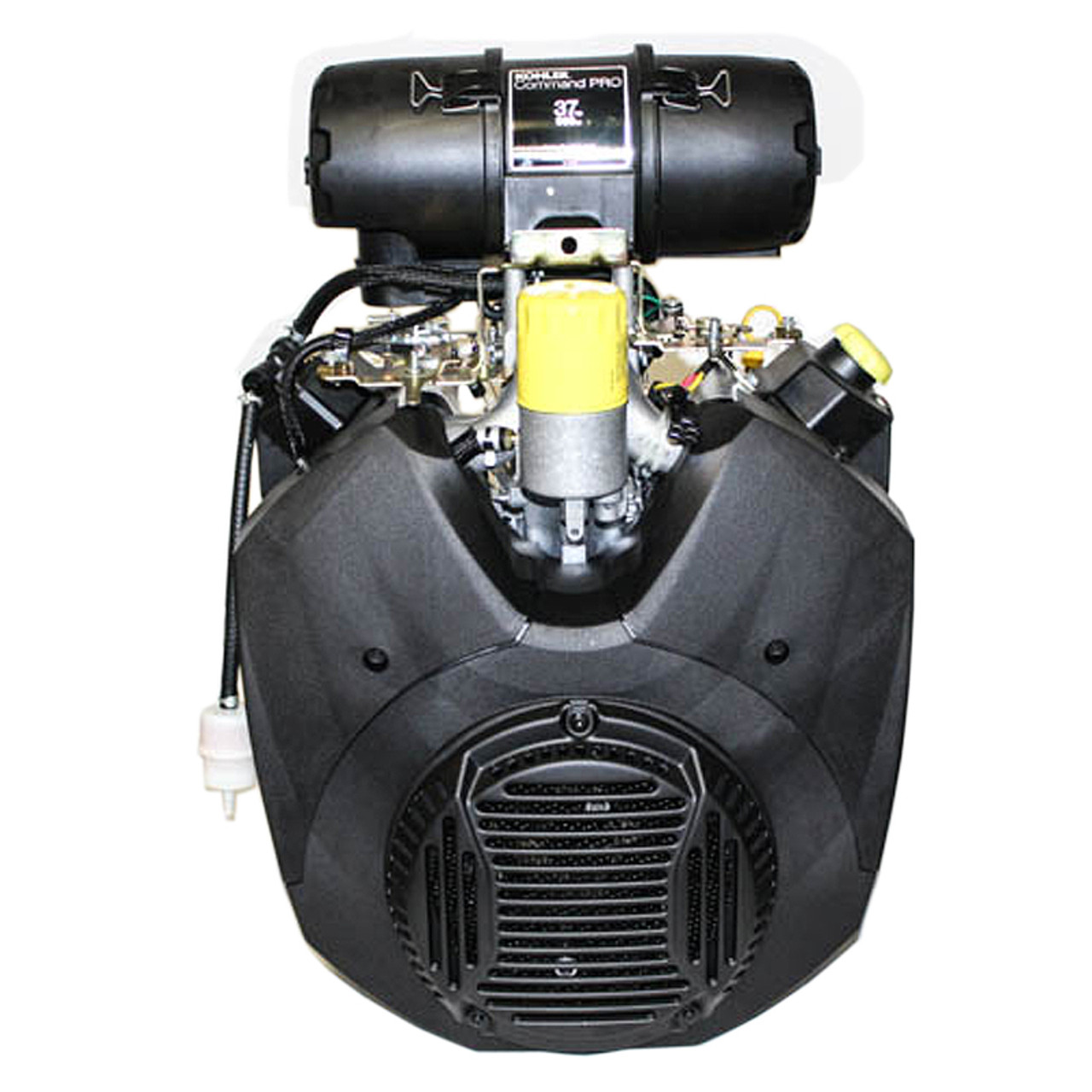

Kohler Command Pro CH1000-3000
Note: Keyswitch shown in photo is not included. If you would like to purchase key kit, please click here: 6237602-S
* Payment for this item is via wire transfer, check or ACH ONLY. If you wish to pay via credit card we will issue you a PayPal Invoice and a 4% cc transaction fee will apply. Please contact us for more info. Thank you!
*This Item ships by freight. FREE SHIPPING to a commercial address with a loading dock or fork lift. Residential Delivery will be extra. Please contact us for more information.
The Kohler Command Pro CH1000-3000 is a robust 37HP, 999cc engine crafted for dependable and enduring performance across commercial, industrial, and residential uses. Engineered to tackle the most demanding tasks, this 4-stroke OHV V-Twin engine merges strength, efficiency, and resilience, making it an ideal choice for zero-turn mowers, generators, construction machinery, and other heavy-duty equipment.
The CH1000-3000 features an electric start system that allows for fast and reliable ignition, reducing downtime and boosting productivity. Its 25 AMP charging system, complete with a regulator, ensures that electrical components receive consistent power, making it a trustworthy engine for equipment that needs extra electrical support.
The CH1000-3000 boasts an impressive 37 horsepower and 55.3 ft-lbs of peak torque, making it more than capable of tackling tough jobs. Its mechanical governor system guarantees steady power output, avoiding over-revving and ensuring a smooth performance. Built with a cast iron sleeve and robust construction, this engine is engineered to endure harsh operating environments while reducing wear and tear.
The pressure lubrication system improves the lifespan of the engine by minimizing friction and ensuring that oil is evenly spread over essential parts. With built-in oil coolers, it helps maintain optimal temperatures, which not only extends the time between oil changes but also lowers maintenance expenses, allowing the engine to perform efficiently even during extended operation.
Kohler focuses on delivering top-notch performance and protection by outfitting the CH1000-3000 with a highly efficient air filtration system. This robust air cleaner effectively keeps dirt and debris at bay, allowing only clean air to reach the engine. As a result, it boosts performance, minimizes maintenance needs, and prolongs the engine's life.
The air cooling system effectively prevents overheating, guaranteeing top performance even in tough conditions. When paired with oversized sleeve bearings, this engine is ideal for heavy-duty tasks that demand consistent reliability and stability during continuous, high-load use.
The shaft measures 1-7/16" in diameter and features a 1/4" keyway, with a length of 4-7/16". This design ensures it works well with various types of equipment, making it suitable for both new machines and as a replacement for older engines. Thanks to its standard 4-bolt mounting, installation is straightforward and it can easily fit into different setups.
The Kohler Command Pro CH1000-3000 is a favorite among professionals due to its dependability, efficiency, and outstanding performance. Whether you're working in landscaping, construction, or require a robust engine for agricultural tasks, this engine provides reliable, fuel-efficient power to ensure your operations run seamlessly. Plus, with a 3-year commercial warranty backing it, you can feel confident that your investment is secure.
Discover unmatched power, dependability, and efficiency with the Kohler Command Pro CH1000-3000. Whether you're enhancing your existing engine or equipping new machinery, this top-tier engine guarantees the strength and resilience required to complete any task.
Specifications | |
---|---|
Make | Kohler |
Model | CH1000-3000 |
Type | Small Engine |
Fuel | Gas Unleaded 86 Octane or Higher |
Engine Type | 4 Stroke OHV V-Twin |
Bore/Stroke | 3.5 X 3.1 in |
Displacement | 999cc |
Max Power | 37HP |
Starting Type | Electric Start |
Charging System | 25AMP W/Regulator |
Starting System | Stater, 12 Volt Heavy Duty |
Dimensions (L x W x H) | 15.5 x 19 x 27.5 in. |
Muffler Included | No |
Fuel Tank | No |
Dry Engine Weight | 132 lbs. |
Shaft Type | Keyed - Straight |
Shaft Diameter | 1 7/16" Diameter, 1/4" Keyway |
Shaft Length | 4 7/16" Total |
Shaft I.D. Thread Size | 5/8"-18 Drilled and Tapped |
Bolt Pattern | 4 Bolt |
Oil System | Pressure lubrication |
Oil Capacity | 2.1 Qts |
Peak Torque | 55.3 Ft. Lbs. |
Reduction Type | None |
Engine Cooling Type | Forced Air Cooling |
Features | |
3 Year Consumer Warranty | |
3 Year Commercial Warranty | |
Mechanical Governor | |
4 Stroke OHV Small Engine | |
Heavy Duty Air Cleaner | |
Dipstick in Crankcase | |
Cross Reference Guide | |
Briggs & Stratton 613477 | |
Accessories | |
Oil Cooler | |
User Manual |
