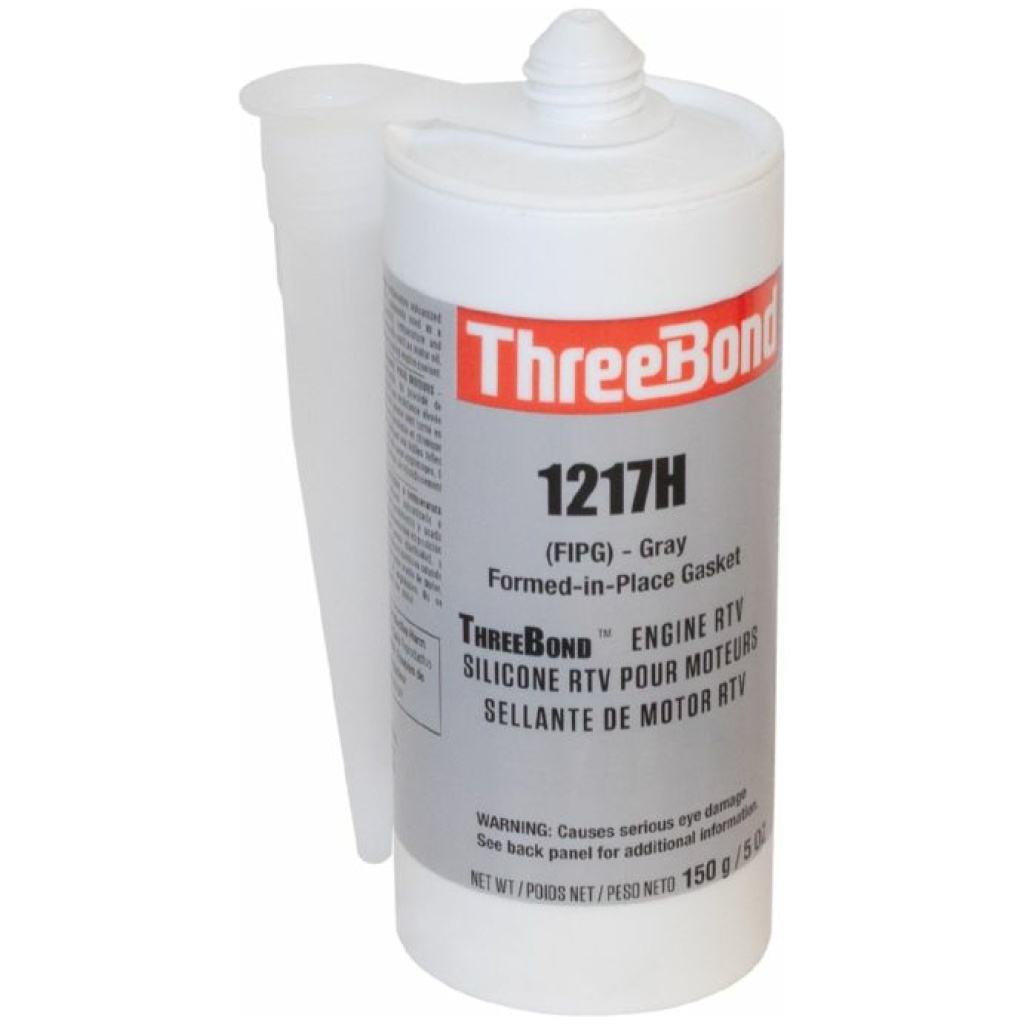

Kawasaki ThreeBond 1217H Liquid Gasket 92104-0007
Kawasaki 92104-0007 is genuine ThreeBond 1217H liquid gasket specified for sealing applications on select Kawasaki engines.
ThreeBond 1217H is a one-part silicone form-in-place gasket (FIPG) material designed for sealing machined engine surfaces where the applicable Kawasaki service information calls for TB1217H.
Kawasaki part number 92104-0007 replaces older liquid-gasket part number 92104-7001.
Manufacturer: Kawasaki / ThreeBond
Kawasaki Part Number: 92104-0007
Product: ThreeBond 1217H
OEM Description: GASKET-LIQUID, TB1217H
Type: Silicone Form-In-Place Liquid Gasket
Color: Gray
Container Size: 150 g / approximately 5 oz.
Previous Part Number: 92104-7001
Use 92104-0007 only where the applicable Kawasaki service manual or parts information specifies ThreeBond 1217H.
Liquid gasket products are formulation-specific. Do not substitute another Kawasaki liquid gasket solely because it is also an RTV or silicone sealant.
Kawasaki 92104-0007 Product Details
| ThreeBond 1217H Information | |
|---|---|
| Kawasaki Part Number | 92104-0007 |
| Sealant | ThreeBond 1217H |
| Product Type | Form-In-Place Liquid Gasket / Sealant |
| Main Material | Silicone |
| Appearance | Gray |
| Container Size | 150 g / approximately 5 oz. |
| Kawasaki Guide Work Time | 5 Minutes |
| Previous Kawasaki Part | 92104-7001 |
| Primary Use | Specified Engine Sealing Applications |
92104-0007 Replaces Kawasaki 92104-7001
Kawasaki 92104-0007 is the replacement for older 92104-7001 liquid gasket.
Older Kawasaki engine diagrams may therefore reference 92104-7001 even though the current service part is 92104-0007.
Previous: 92104-7001
Current: 92104-0007
What Is ThreeBond 1217H?
ThreeBond 1217H is a one-component silicone-based form-in-place gasket sealant designed for powertrain and machinery sealing applications.
ThreeBond identifies 1217H as having strong resistance to engine oil, good initial pressure resistance and flexibility that allows the cured material to follow vibration and movement.
Kawasaki specifies this material for particular engine sealing locations rather than using a conventional pre-cut gasket.
Where Does Kawasaki Use 92104-0007?
Kawasaki illustrated parts lists commonly show 92104-0007 in the Cylinder / Crankcase section as GASKET-LIQUID, TB1217H.
In these diagrams, the required quantity is frequently shown as AR – As Required, because the material is applied as a bead rather than installed as a pre-cut gasket.
For example, Kawasaki documentation for FR651V specifications lists 92104-0007 as an as-required liquid gasket in the cylinder/crankcase assembly.
Compatible Kawasaki Engine Families
92104-0007 is documented across a very large number of Kawasaki four-cycle engine specifications, including select:
- FR541V
- FR600V
- FR651V
- FR691V
- FR730V
- FS481V
- FS541V
- FS600V
- FS651V
- FS691V
- FS730V
- FT651V
- FT691V
- FT730V
- FX481V
- FX600V
- FX651V
- FX691V
- FX730V
- FX751V
- FX801V
- FX850V
- FX921V
- FX1000V
- FXT00V
This does not mean every sealing surface on these engines uses ThreeBond 1217H. Always use the material specified for the exact repair location in the Kawasaki service information.
92104-0007 vs. Other Kawasaki Liquid Gaskets
Kawasaki uses more than one ThreeBond formulation. The product number and formulation should be matched to the service manual rather than substituted by appearance.
Kawasaki's parts information also references products such as ThreeBond 1207B, TB1184, TB1211 and TB1216B for other applications.
TB1217H is not automatically interchangeable with other Kawasaki liquid gasket products.
Use the exact sealant formulation specified for the component being serviced.
5-Minute Work Time
Kawasaki's Quick Parts Guide identifies ThreeBond 1217H 92104-0007 with a 5-minute work time.
This should not be interpreted as the product's complete curing time. Follow the applicable Kawasaki and ThreeBond application instructions for surface preparation, assembly and cure requirements.
Before Using Kawasaki 92104-0007
- Confirm that the service manual specifies ThreeBond 1217H.
- Remove old gasket material according to the applicable service procedure.
- Make sure the sealing surfaces meet the service manual requirements.
- Apply the sealant using the specified bead location and amount.
- Observe Kawasaki's stated working and assembly procedures.
- Do not substitute another liquid gasket formulation without confirming compatibility.
Kawasaki 92104-0007 FAQs
What is Kawasaki 92104-0007?
Kawasaki 92104-0007 is genuine ThreeBond 1217H silicone form-in-place liquid gasket used for specified Kawasaki engine sealing applications.
What does 92104-0007 replace?
Kawasaki 92104-0007 replaces older liquid gasket part number 92104-7001.
How much sealant is in 92104-0007?
The container is approximately 150 grams, or about 5 ounces.
What color is ThreeBond 1217H?
ThreeBond identifies 1217H as a gray silicone sealant.
Is 92104-0007 RTV silicone?
It is a one-component silicone-based form-in-place gasket material that cures at room temperature.
What is the work time for Kawasaki 92104-0007?
Kawasaki's Quick Parts Guide identifies 92104-0007 ThreeBond 1217H with a five-minute work time.
Can I use 92104-0007 anywhere a Kawasaki engine needs sealant?
No. Use ThreeBond 1217H only where the applicable Kawasaki service information specifies that formulation.
Does 92104-0007 fit FR, FS, FT and FX engines?
It is documented on many specifications across those engine series, particularly in cylinder/crankcase diagrams. The exact repair location must still specify TB1217H.
