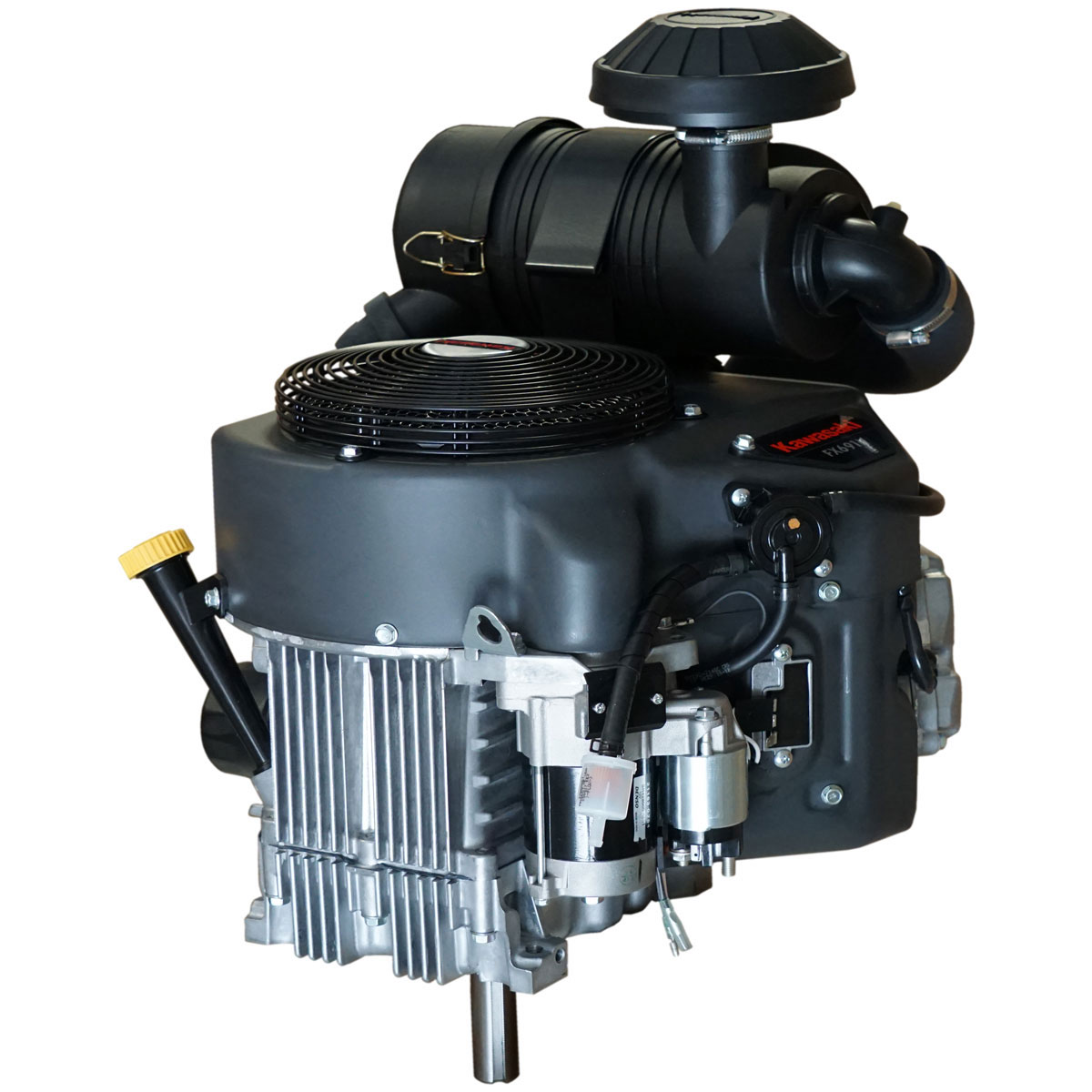

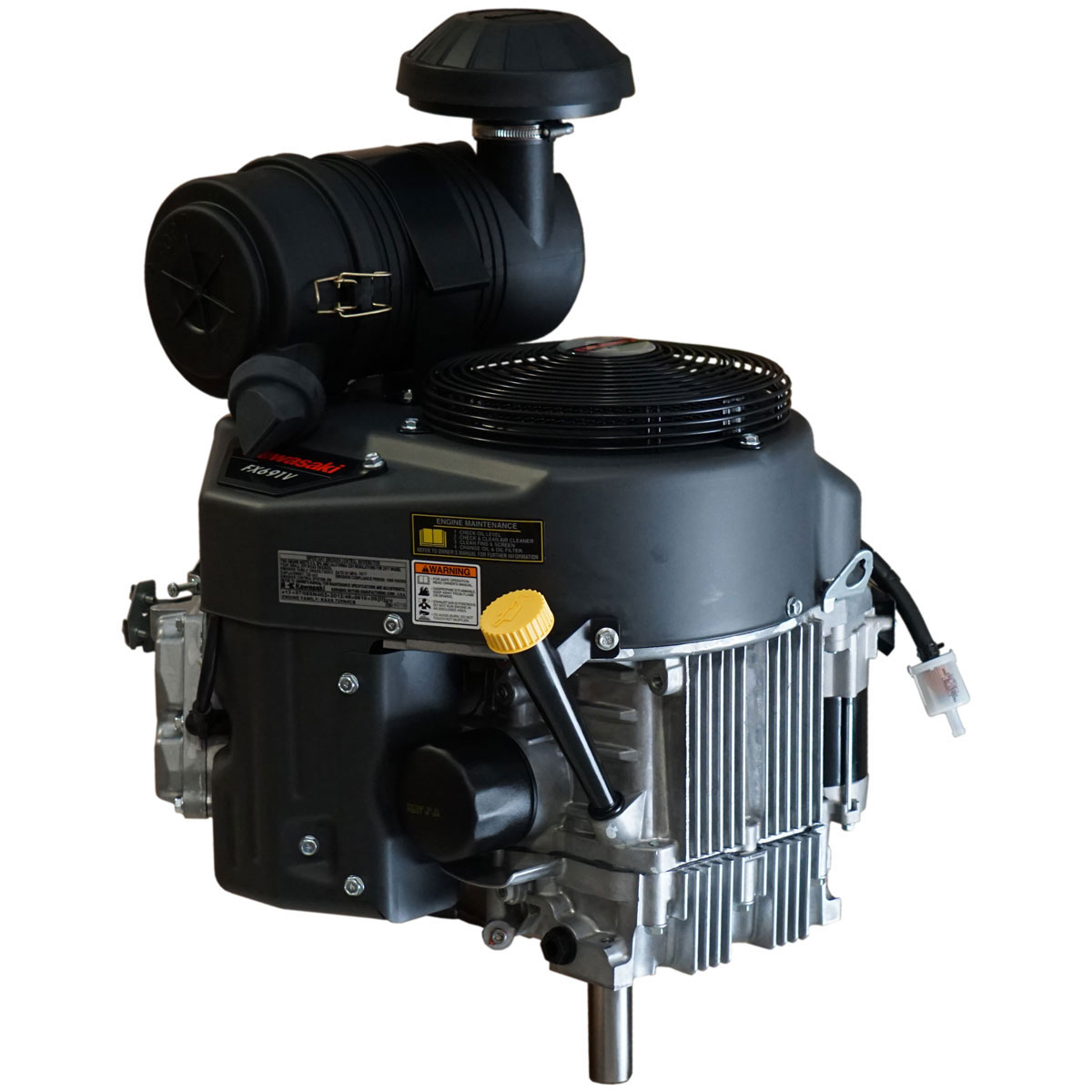

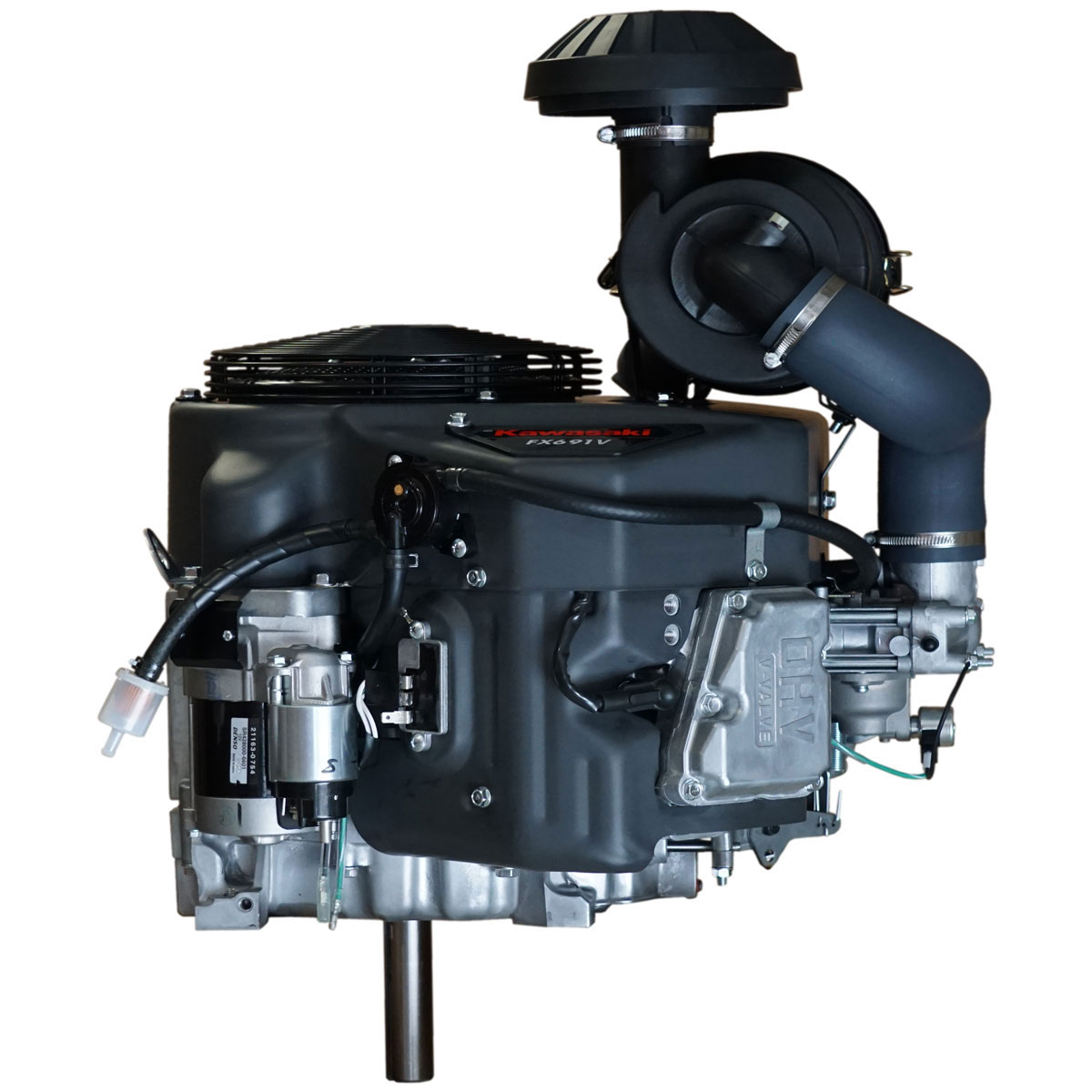

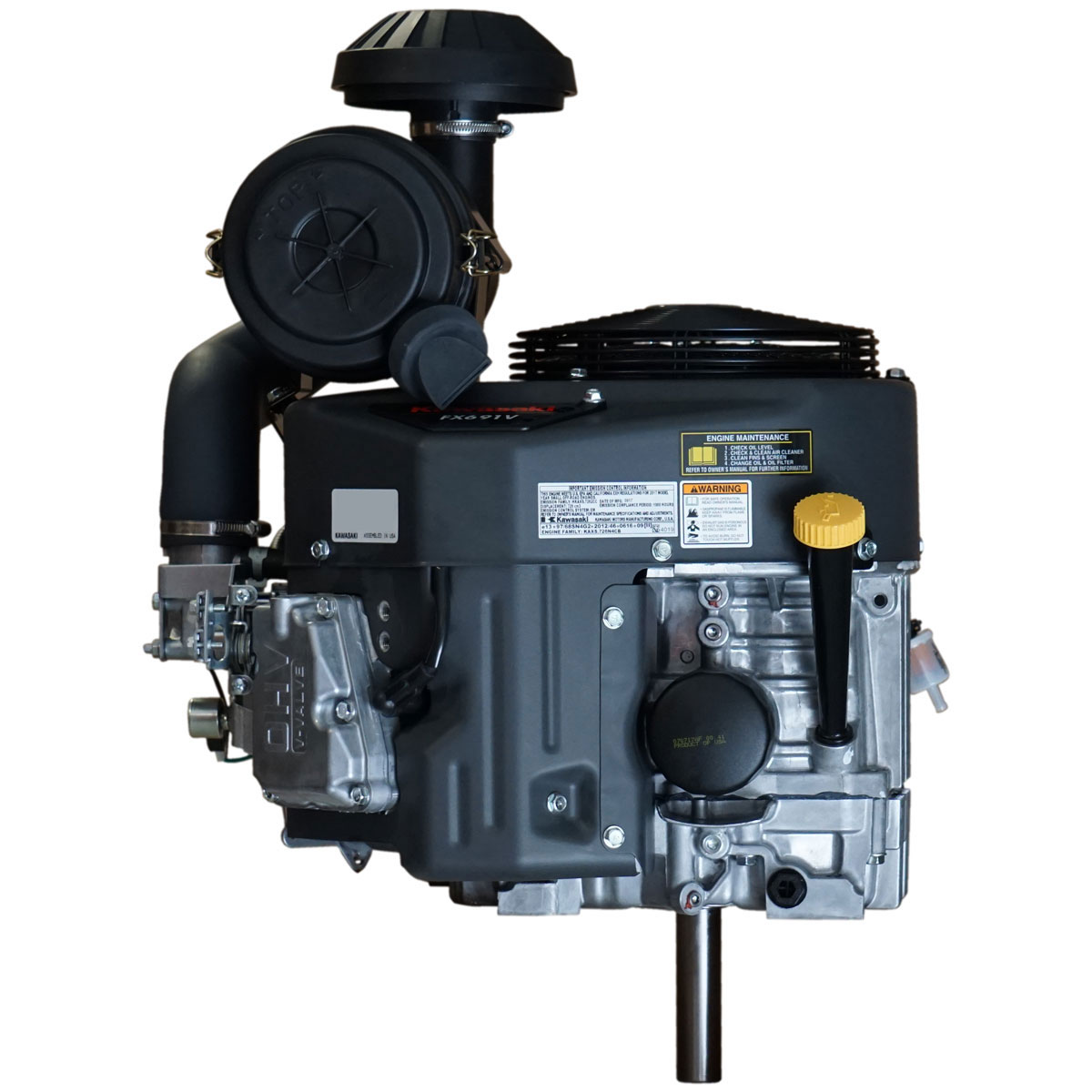

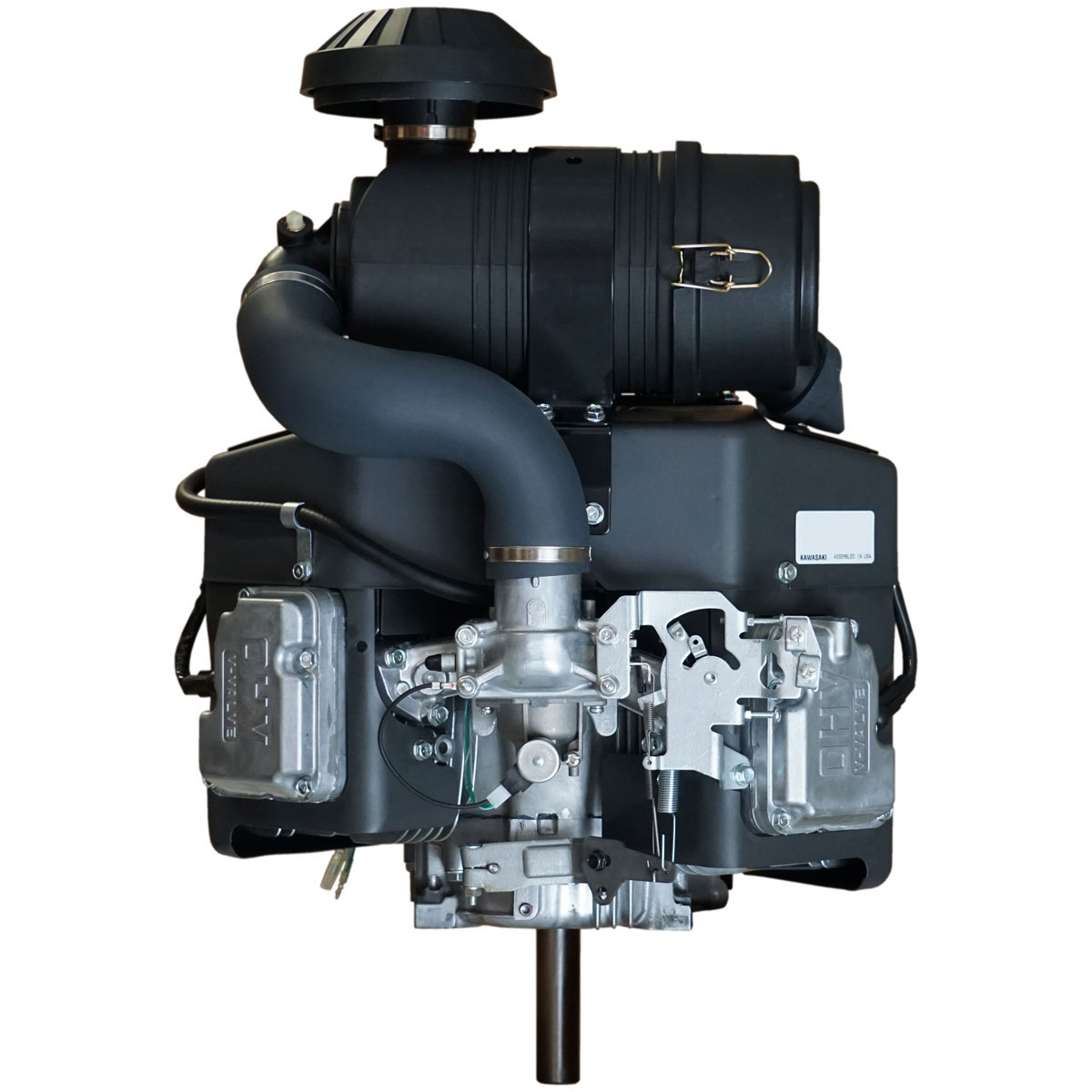

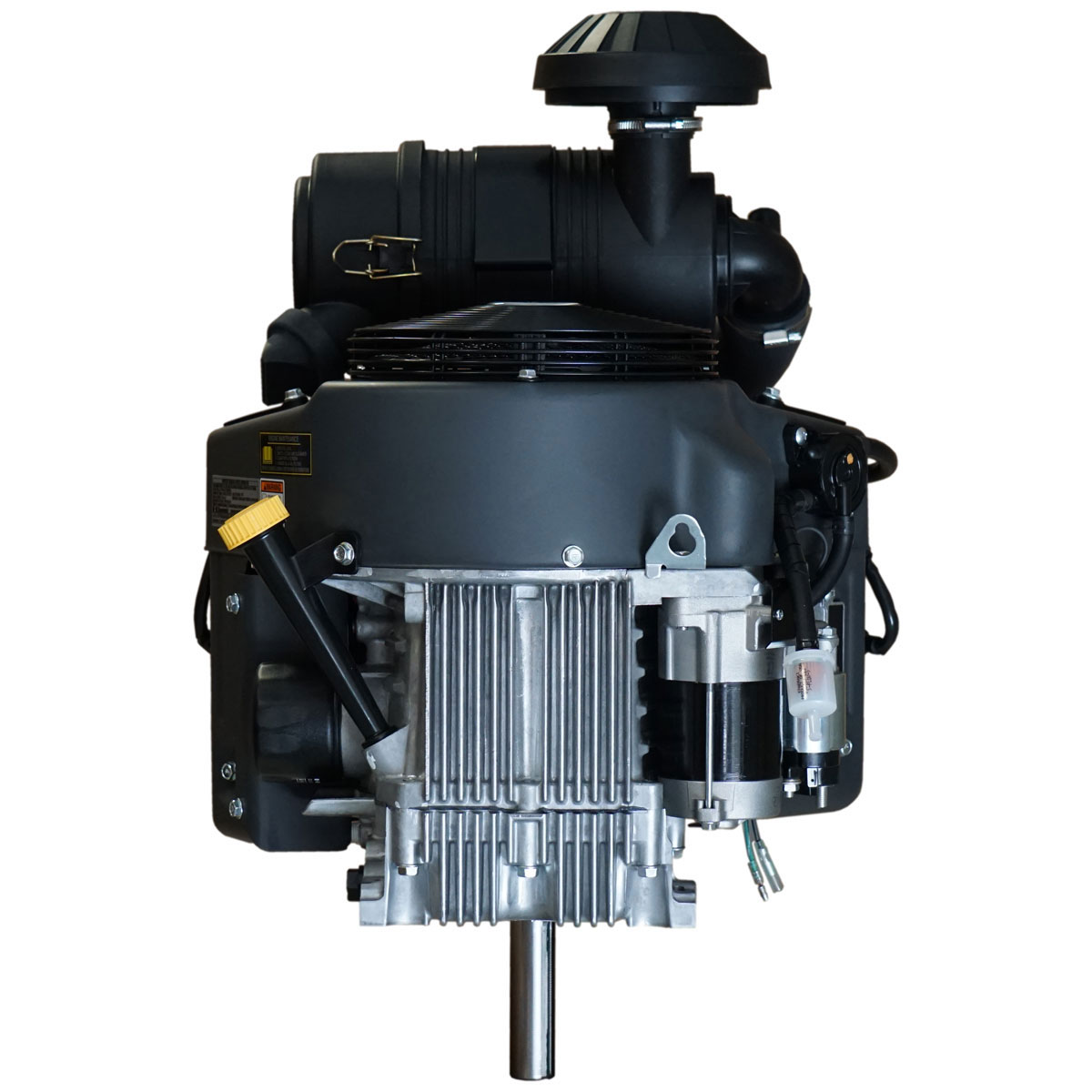

Kawasaki FX691V-S00 22 HP Vertical 1 1/8 (28.575mm) X 4-9/32" (108.8mm) Shaft

Price: $2,386.00
Sale Price: $2,324.00
No reviews yet Write a Review
SKU:
FX691V-S00
Availability:
‎‎Free 1–5 day delivery, NO TAX! (except MI)
Weight:
105.00 LBS

Please note: If purchasing an engine, free shipping
does
not apply to CA, WA, AZ, OR, and NV.
Please contact us for details prior to checkout. Thank you.

Prop. 65 Warning: This product contains chemicals known to the state of California to cause cancer and birth defects, or other reproductive harm.

  • FREE SHIPPING

  • ZERO SALES TAX

  • LOWEST PRICES

  • WIDEST SELECTION

Kawasaki FX691V-S00 22 HP Commercial Vertical Shaft Engine delivers 726cc of V-Twin power for compatible commercial zero-turn mowers, stand-on mowers, and professional turf equipment.

Featuring a 1-1/8-inch (28.575mm) diameter x 4-9/32-inch (108.8mm) long vertical shaft , this Kawasaki FX-series engine combines commercial-grade construction, a heavy-duty starting system, and high-capacity air filtration.

Shop Kawasaki replacement engines through Carroll Stream Motor Company, supplying engines and replacement parts since 2005.

22 HP 726cc Commercial V-Twin
1-1/8" x 4-9/32" Vertical Keyed Shaft
FX Series Commercial Kawasaki Engine

Kawasaki FX691V-S00 Commercial Replacement Engine

The Kawasaki FX691V-S00 is a 22 horsepower, 726cc commercial gasoline engine engineered for equipment operating in demanding lawn care and turf maintenance environments. Its four-stroke, 90-degree OHV V-Twin configuration provides a durable engine platform for professional applications.

A defining feature of this engine is the 1-1/8-inch diameter vertical crankshaft with a total length of 4-9/32 inches. This configuration is important when replacing an existing mower engine because the crankshaft must accommodate the equipment's pulley, drive system, and mounting requirements.

Kawasaki's FX691V platform features cast-iron cylinder liners, electronic spark ignition, automatic compression release, a mechanical governor, and a pressurized lubrication system with a replaceable oil filter.

The FX-series design also includes a heavy-duty canister air filter and metal engine cover with integrated clean-out ports, helping make routine cleaning and maintenance more accessible.

Kawasaki FX691V-S00 Engine Features

  • Commercial FX-Series Design: Intended for demanding mowing and turf equipment applications.
  • 22 HP / 726cc V-Twin: Four-stroke OHV configuration with two cylinders.
  • Vertical PTO Crankshaft: 1-1/8-inch diameter with 4-9/32-inch shaft length.
  • Heavy-Duty Electric Starter: Shift-type starting system for compatible installations.
  • Canister Air Filtration: Multi-stage filtration designed to help manage airborne dust and debris.
  • Forced-Air Cooling: Fan-driven cooling system with a rotating grass screen.
  • Pressurized Lubrication: Oil pump and replaceable full-flow oil filter.
  • Mechanical Governor: Engine speed regulation during changing loads.
  • Serviceable Components: Replaceable filters, ignition components, and maintenance parts.

Kawasaki FX691V-S00 Technical Specifications

Manufacturer Kawasaki
Model / SKU FX691V-S00
Engine Series FX Commercial Series
Maximum Power 22 HP at 3,600 RPM
Displacement 726cc (44.3 cu. in.)
Engine Configuration 4-Stroke OHV, 90-Degree V-Twin
Bore x Stroke 3.1" x 3.0"
Maximum Torque 39.3 ft-lb at 2,200 RPM (current FX691V published rating)
Shaft Orientation Vertical
Shaft Diameter 1-1/8" (28.575mm)
Shaft Length 4-9/32" (108.8mm)
Shaft Style Straight Keyed
Starting System Heavy-Duty Electric Start
Fuel System Carburetor With Fuel Shut-Off Solenoid
Engine Cooling Forced-Air Cooling
Air Filtration Multi-Stage Canister Air Filter
Ignition Electronic Spark Ignition
Lubrication Pressurized System With Replaceable Oil Filter
Oil Capacity 2.2 U.S. Quarts With Filter
Cylinder Liners Cast Iron
Governor Mechanical
Dry Engine Weight Approximately 101.4 lbs (current FX691V published weight)
Warranty 3-Year Limited Warranty, subject to Kawasaki terms

Engine-family specifications may differ by production revision and exact configuration. Confirm the engine identification and supplied accessories before installation.

Confirm Kawasaki FX691V-S00 Replacement Compatibility

A replacement engine must match more than horsepower. Before ordering the Kawasaki FX691V-S00, compare its installation requirements with your original engine.

  1. Identify Your Engine: Locate the full Kawasaki model and specification code.
  2. Verify Shaft Dimensions: Confirm the required 1-1/8-inch diameter and 4-9/32-inch shaft length.
  3. Check Pulley Alignment: Review crankshaft positioning, keyway, end threading, and drive pulley requirements.
  4. Compare Mounting: Verify mounting points, engine clearance, and accessory location.
  5. Review Wiring: Compare starter and charging connections, safety circuits, and electrical requirements.
  6. Inspect Accessories: Confirm exhaust, throttle, choke, oil drain, and fuel system compatibility.
Important Fitment Notice: The FX691V-S00 is not a guaranteed direct replacement for every FX691V, FX651V, or FS-series configuration. Compare the complete engine specification and equipment requirements before purchase. Additional parts or modifications may be necessary.

Comparing Kawasaki FX691V Shaft Configurations

The Kawasaki FX691V engine family includes multiple shaft configurations. Selecting the correct shaft diameter and length is essential for equipment compatibility.

  • FX691V-S00: 22 HP, 1-1/8" x 4-9/32" vertical shaft.
  • FX691V-S06: 22 HP, 1-1/8" x 3.94" vertical shaft.
  • FX691V-S14: 22 HP, 1" x 3-5/32" vertical shaft.

These configurations share the FX691V engine family, but their shaft measurements differ and should not be treated as interchangeable.

Maintenance for the Kawasaki FX691V Engine

Regular servicing helps commercial mower engines operate reliably. The Kawasaki FX691V includes serviceable filtration, lubrication, and ignition components.

  • Check engine oil levels and follow Kawasaki's recommended service intervals.
  • Inspect the canister air filter and replace filter elements as specified in the manual.
  • Keep engine cooling fins, metal cover clean-out ports, and grass screen clear of debris.
  • Inspect spark plugs and fuel system components during routine service.
  • Follow the manufacturer's procedures for seasonal storage and fuel system maintenance.

Compare Related Kawasaki FX Engines

Related models are shown for specification comparison, not as confirmed direct replacements.

Kawasaki FX691V-S00 Frequently Asked Questions

What size shaft does the FX691V-S00 have?

The Kawasaki FX691V-S00 uses a 1-1/8-inch (28.575mm) diameter vertical shaft measuring 4-9/32 inches (108.8mm) long.

How much horsepower does the FX691V-S00 produce?

The FX691V-S00 is a 22 HP Kawasaki commercial engine with a displacement of 726cc.

Is the FX691V-S00 suitable for a zero-turn mower?

It is designed for compatible commercial mowing applications, including certain zero-turn mowers. Verify the original engine specification and equipment installation requirements.

What is the difference between FX691V-S00 and FX691V-S14?

The FX691V-S00 uses a 1-1/8" diameter, 4-9/32" long shaft. The FX691V-S14 has a smaller 1" diameter, 3-5/32" long shaft.

Does the Kawasaki FX691V have a canister air filter?

Yes. The FX691V engine platform features multi-stage canister filtration to help protect against dust and debris.

Is the Kawasaki FX691V air-cooled?

Yes. It uses a forced-air cooling system rather than liquid cooling. Keeping cooling surfaces clean is important for routine operation.

Can the FX691V-S00 replace an FX651V?

Some engine configurations may be considered as replacement options, but direct fitment is not guaranteed. Check crankshaft dimensions, mounting, controls, wiring, and accessories.

What is the oil capacity of the Kawasaki FX691V?

Kawasaki lists approximately 2.2 U.S. quarts of oil with the filter for the FX691V. Follow the operator's manual for filling instructions.

Order Kawasaki FX691V-S00 from Carroll Stream Motor Company

Carroll Stream Motor Company supplies Kawasaki replacement engines and small engine parts for lawn care and power equipment applications.

Need help finding the correct engine? Have your original engine model and equipment details ready, then contact our team at 888-208-2088 .

Kawasaki FX691V-S00 | 22 HP | 726cc | 1-1/8" x 4-9/32" Vertical Shaft
