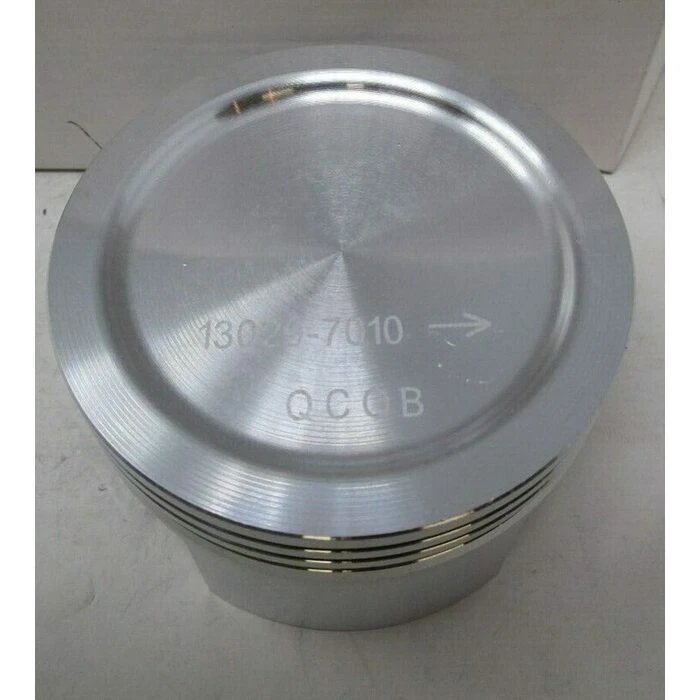

Kawasaki OEM 0.5 Oversize Piston 13029-7010
The Kawasaki 13029-7010 Engine Piston is a genuine OEM 0.5 oversize service piston used during engine rebuilding on select Kawasaki FR, FS, FT and FX V-Twin engines.
Kawasaki identifies part number 13029-7010 as PISTON-ENGINE L,0.5. It is an oversize service component and should not be confused with the standard-size piston used in the same engine families.
Important: 13029-7010 is an oversize service piston.
Do not order this piston as a standard replacement unless the engine has been properly inspected and prepared for the corresponding oversize piston configuration.
Verify the complete Kawasaki engine model and specification before ordering.
Kawasaki lists both standard-size and oversize piston components in applicable engine parts diagrams.
Kawasaki 13029-7010 Product Details
| 13029-7010 Oversize Piston Information | |
|---|---|
| Manufacturer | Kawasaki Engines |
| Part Number | 13029-7010 |
| OEM Description | PISTON-ENGINE L,0.5 |
| Part Type | Oversize Engine Piston |
| Service Size | 0.5 Oversize |
| Condition | New |
| Part Quality | Genuine OEM Kawasaki |
| Matching Oversize Ring Set | 13025-7009 – RING-SET-PISTON L,0.5 |
| Standard Piston on Applicable Engines | 13001-7027 |
| Common Engine Families | Select FR651V, FR691V, FR730V, FS651V, FS691V, FS730V, FT651V, FT691V, FT730V, FX651V, FX691V and FX730V |
13029-7010 Is an Oversize Piston
Kawasaki piston and crankshaft diagrams clearly distinguish 13029-7010 from the standard engine piston.
For example, applicable engine diagrams list:
- 13001-7027 – standard engine piston
- 13008-series – standard piston ring set
- 13029-7010 – PISTON-ENGINE L,0.5
- 13025-7009 – RING-SET-PISTON L,0.5
This makes 13029-7010 an engine-rebuilding service component, not simply an alternate version of the standard piston.
Matching Kawasaki Ring Set 13025-7009
Kawasaki parts diagrams pair 13029-7010 PISTON-ENGINE L,0.5 with 13025-7009 RING-SET-PISTON L,0.5.
If the engine requires the 13029-7010 oversize piston, verify whether matching oversize ring set 13025-7009 is also required for the repair.
Piston rings are sold separately. Do not assume that ring set 13025-7009, piston pin, snap rings or connecting rod are included with piston 13029-7010.
What Engines Use Kawasaki 13029-7010?
Kawasaki parts catalogs document 13029-7010 across numerous FR, FS, FT and FX V-Twin engine specifications.
Documented engine families include select:
- Kawasaki FR651V
- Kawasaki FR691V
- Kawasaki FR730V
- Kawasaki FS651V
- Kawasaki FS691V
- Kawasaki FS730V
- Kawasaki FT651V
- Kawasaki FT691V
- Kawasaki FT730V
- Kawasaki FX651V
- Kawasaki FX691V
- Kawasaki FX730V
Documented examples include FR651V-AS00, FR691V-AS00, FR730V-AS04, FS651V-AS00, FS691V-AS00, FS730V-AS00, FT651V-AS00, FT691V-AS00, FT730V-AR30, FX651V-AR00, FX691V-AR00 and FX730V-AR00.
These examples do not mean every engine within those families requires an oversize piston.
Standard vs. Oversize Kawasaki Piston
On many applicable engines, 13001-7027 is listed as the standard piston, while 13029-7010 is separately identified as the L,0.5 service piston.
Which piston is correct depends on the actual condition, measurements and machining of the engine being rebuilt.
Do not choose the oversize piston simply because the original piston or rings are worn.
When Is an Oversize Piston Used?
Oversize pistons are intended for certain engine-rebuilding procedures where cylinder condition and machining require a corresponding oversize service piston.
Cylinder inspection, machining limits, piston clearance and other rebuild specifications should be determined using the applicable Kawasaki service manual.
Do not machine or select piston size based only on the product listing. Follow Kawasaki's engine-specific service specifications.
Related Kawasaki Piston Components
Applicable Kawasaki piston/crankshaft diagrams may also show:
- 13025-7009 – Oversize Piston Ring Set
- 13002-0704 – Piston Pin
- 92033-0790 – Piston Pin Snap Ring on applicable engines
- 13251-0719 – Connecting Rod Assembly
- 13001-7027 – Standard Engine Piston
These are separate service components unless specifically stated otherwise in the product package.
Before Ordering Kawasaki 13029-7010
- Locate the complete Kawasaki engine model and specification number.
- Verify 13029-7010 in the engine's Piston/Crankshaft parts diagram.
- Confirm that the engine requires the L,0.5 oversize service piston.
- Do not substitute it for standard piston 13001-7027.
- Verify whether oversize ring set 13025-7009 is required.
- Confirm whether piston pin and retaining rings will be reused or replaced.
- Follow the Kawasaki service manual for inspection and machining specifications.
Need help confirming the correct Kawasaki piston? Contact Carroll Stream Motor Company at 1-888-208-2088 with the complete engine model and specification number.
Kawasaki 13029-7010 FAQs
What is Kawasaki part number 13029-7010?
Kawasaki 13029-7010 is a genuine OEM oversize engine piston identified by Kawasaki as PISTON-ENGINE L,0.5.
Is Kawasaki 13029-7010 a standard piston?
No. It is an oversize service piston. Kawasaki separately lists standard piston 13001-7027 on many applicable engines.
What piston rings fit Kawasaki 13029-7010?
Kawasaki parts diagrams pair 13029-7010 with 13025-7009 RING-SET-PISTON L,0.5.
Are piston rings included with 13029-7010?
Do not assume they are included. Kawasaki lists 13025-7009 as a separate piston ring set.
Does Kawasaki 13029-7010 fit FR691V engines?
Yes. Kawasaki catalogs 13029-7010 for numerous select FR691V specifications as the oversize service piston.
Does Kawasaki 13029-7010 fit FS730V engines?
Yes. It appears in the Piston/Crankshaft section of select FS730V engine specifications.
Does Kawasaki 13029-7010 fit FX730V engines?
Yes. Kawasaki diagrams list 13029-7010 on numerous FX730V specifications as the L,0.5 oversize piston.
Can I replace standard piston 13001-7027 with 13029-7010?
Not as a direct standard replacement. 13029-7010 is an oversize service piston and should only be used when the engine has been properly inspected and prepared for that service size.
How do I know whether my engine needs 13029-7010?
Verify the exact engine specification, inspect and measure the cylinder according to Kawasaki service information, and confirm that the L,0.5 oversize piston is required.
