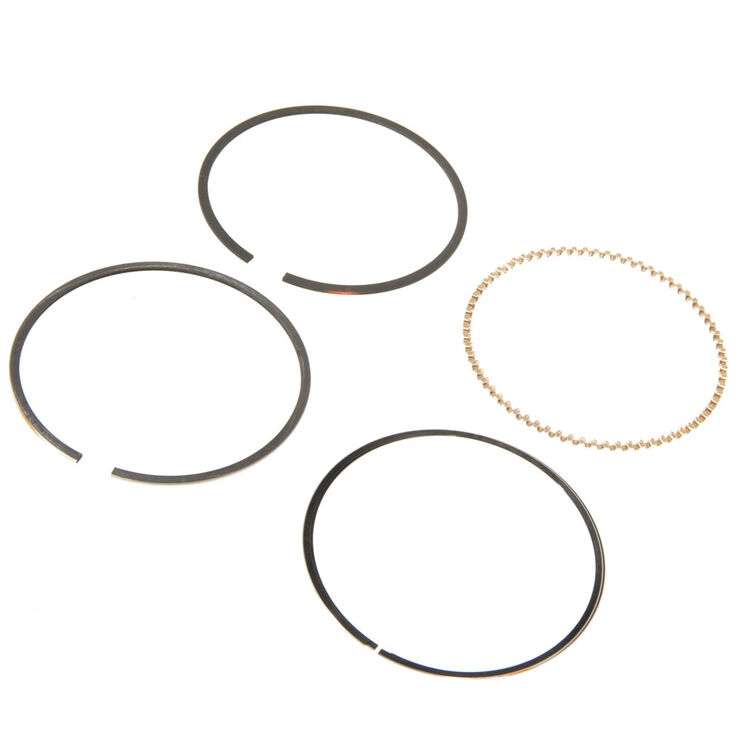

Kawasaki OEM 0.5 Oversize Piston Ring Set 13025-7009
The Kawasaki 13025-7009 Piston Ring Set is a genuine OEM 0.5 oversize service ring set used during engine rebuilding on select Kawasaki FR, FS, FT and FX V-Twin engines.
Kawasaki's official parts description is RING-SET-PISTON L,0.5. This is an oversize service part and should not be confused with the standard-size piston ring set used in the same engines.
Important: 13025-7009 is an oversize piston ring set.
Do not order 13025-7009 as a replacement for standard rings unless the engine has been machined/rebuilt for the corresponding oversize piston configuration.
Verify the complete Kawasaki engine model and specification before ordering. Kawasaki uses both standard and oversize piston components within these engine families.
Kawasaki 13025-7009 Product Details
| 13025-7009 Piston Ring Set Information | |
|---|---|
| Manufacturer | Kawasaki Engines |
| Part Number | 13025-7009 |
| OEM Description | RING-SET-PISTON L,0.5 |
| Part Type | Oversize Piston Ring Set |
| Service Size | 0.5 Oversize |
| Condition | New |
| Part Quality | Genuine OEM Kawasaki |
| Related Oversize Piston | Kawasaki 13029-7010 – PISTON-ENGINE L,0.5 |
| Common Engine Families | FR651V–FR730V, FS651V–FS730V, FT651V–FT730V, FX651V–FX730V |
13025-7009 Is Not the Standard Piston Ring Set
Kawasaki parts diagrams commonly list two different ring-set options in the same piston/crankshaft section:
- 13008-series ring set – standard-size piston rings
- 13025-7009 – RING-SET-PISTON L,0.5, oversize service rings
This distinction is critical during an engine rebuild. A standard piston should use the ring set specified for the standard piston, while 13025-7009 is intended for the corresponding oversize service configuration.
Matching Kawasaki Oversize Piston 13029-7010
Kawasaki piston/crankshaft diagrams list 13029-7010 PISTON-ENGINE L,0.5 alongside the 13025-7009 RING-SET-PISTON L,0.5.
This pairing is important when rebuilding an engine that has been prepared for the oversize service piston.
13029-7010 piston is sold separately. Do not assume that piston 13029-7010, piston pin, retaining clips or connecting rod are included with 13025-7009.
What Engines Use Kawasaki 13025-7009?
Kawasaki parts diagrams document 13025-7009 across numerous commercial and residential V-Twin engine specifications.
Documented engine families include select:
- Kawasaki FR651V
- Kawasaki FR691V
- Kawasaki FR730V
- Kawasaki FS651V
- Kawasaki FS691V
- Kawasaki FS730V
- Kawasaki FT651V
- Kawasaki FT691V
- Kawasaki FT730V
- Kawasaki FX651V
- Kawasaki FX691V
- Kawasaki FX730V
Exact documented examples include FR651V-AS43, FR691V-CS51, FR730V-AS25, FS651V-BS24, FS651V-CS20, FT651V-AS00, FX651V-AS13 and numerous related specifications.
This list does not mean every specification or production version within those engine families requires the oversize rings.
When Is an Oversize Piston Ring Set Used?
Oversize piston components are service parts used during certain engine-rebuilding procedures when the cylinder has been machined and the matching oversize piston is required.
Whether an engine requires standard or oversize piston components should be determined by proper engine inspection and measurement according to Kawasaki service information.
Do not install oversize rings simply because an engine has low compression, oil consumption or worn standard piston rings.
Standard vs. Oversize Kawasaki Piston Rings
On many applicable engines, Kawasaki lists a standard 13008-series piston ring set together with standard piston 13001-7027.
For the oversize service configuration, Kawasaki instead lists:
- 13025-7009 – Oversize Piston Ring Set
- 13029-7010 – Oversize Engine Piston
Use the parts specified for the actual cylinder and piston size being serviced.
Before Ordering Kawasaki 13025-7009
- Locate the complete Kawasaki engine model and specification.
- Verify 13025-7009 in the Piston/Crankshaft parts diagram.
- Confirm that the engine requires the 0.5 oversize service size.
- Do not substitute 13025-7009 for standard-size rings.
- Confirm whether matching oversize piston 13029-7010 is required.
- Confirm the quantity of ring sets required for the repair.
- Follow the applicable Kawasaki service manual for cylinder inspection and machining specifications.
Need help verifying the correct Kawasaki piston or ring set? Contact Carroll Stream Motor Company at 1-888-208-2088 with the complete Kawasaki engine model and specification number.
Kawasaki 13025-7009 FAQs
What is Kawasaki part number 13025-7009?
Kawasaki 13025-7009 is a genuine OEM oversize piston ring set identified by Kawasaki as RING-SET-PISTON L,0.5.
Is Kawasaki 13025-7009 a standard piston ring set?
No. 13025-7009 is an oversize service ring set. Kawasaki lists separate 13008-series ring sets for standard-size pistons on applicable engines.
What piston goes with Kawasaki 13025-7009?
Kawasaki piston/crankshaft diagrams pair 13025-7009 with 13029-7010 PISTON-ENGINE L,0.5 for the corresponding oversize service configuration.
Does 13025-7009 include the piston?
No. 13025-7009 is the piston ring set. The corresponding oversize piston, 13029-7010, is a separate Kawasaki part.
Does Kawasaki 13025-7009 fit FR691V engines?
Kawasaki catalogs 13025-7009 for select FR691V specifications. Verify the exact engine specification and confirm that an oversize service piston is being used.
Does Kawasaki 13025-7009 fit FS730V engines?
Yes, Kawasaki parts diagrams list 13025-7009 on select FS730V specifications as the L,0.5 oversize ring set.
Does Kawasaki 13025-7009 fit FX730V engines?
Yes, 13025-7009 is documented for numerous FX730V specifications as the oversize service ring set.
Can I use 13025-7009 with a standard piston?
It should not be treated as the standard replacement ring set. Verify the piston and cylinder service size using the applicable Kawasaki service information before ordering.
