Kawasaki

Kawasaki FS730V-S00 24 HP Vertical 1 1/8 (28.5mm) X 4-9/32" (108.8mm) Shaft

Price: $2,476.00
Sale Price: $2,282.00
1 review Write a Review
SKU:
FS730V-S00
UPC:
60398673
Availability:
‎FREE 1-5 day delivery, NO TAX! (except MI)
Weight:
90.00 LBS

Please note: If purchasing an engine, free shipping
does
not apply to CA, WA, AZ, OR, and NV.
Please contact us for details prior to checkout. Thank you.

Prop. 65 Warning: This product contains chemicals known to the state of California to cause cancer and birth defects, or other reproductive harm.

  • FREE SHIPPING

  • ZERO SALES TAX

  • LOWEST PRICES

  • WIDEST SELECTION

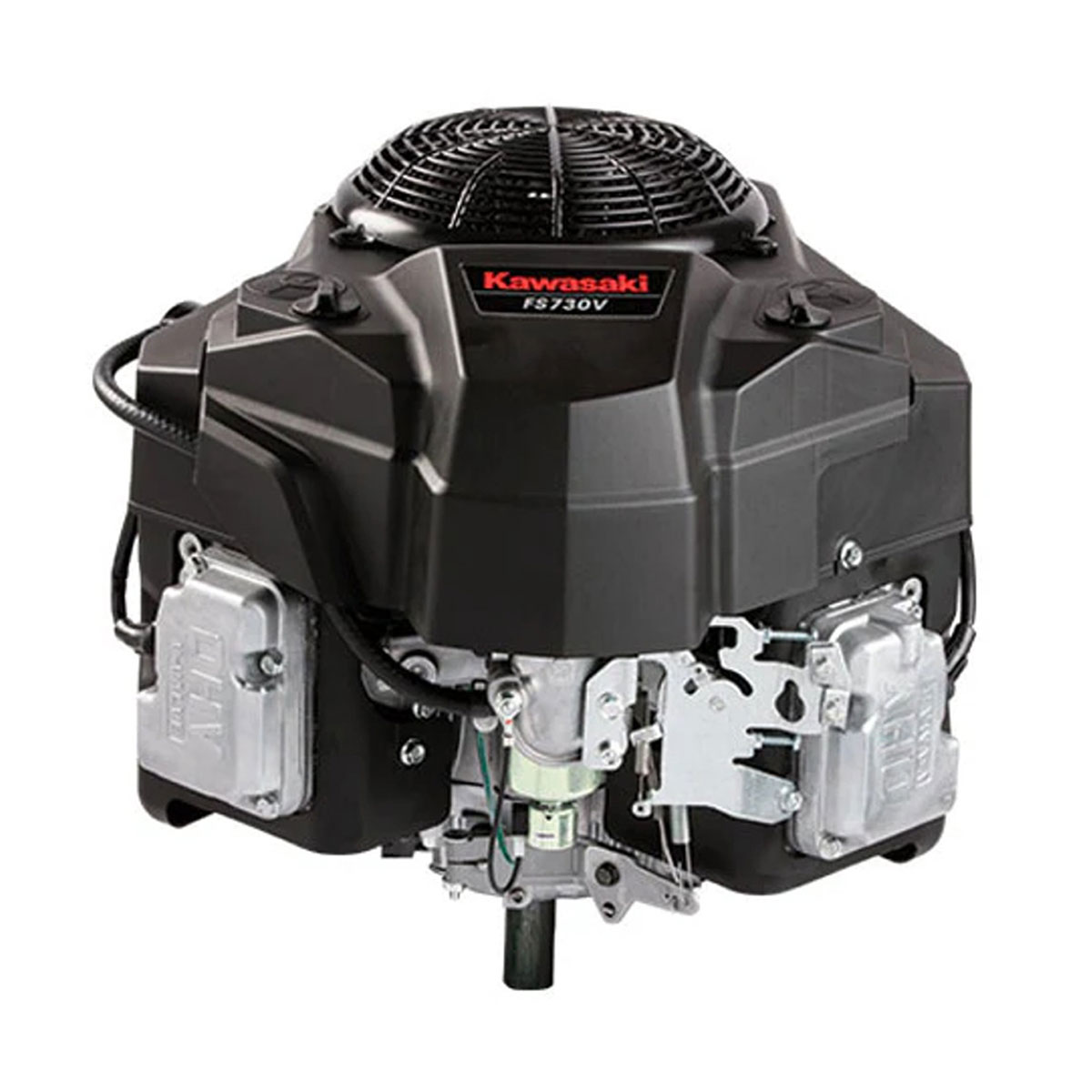

Genuine Kawasaki FS Series • Vertical-Shaft Engine

Kawasaki FS730V-S00 24 HP Engine – 1-1/8" x 4-9/32" Shaft

The Kawasaki FS730V-S00 is a 24 HP, 726cc, air-cooled V-twin gasoline engine designed for demanding mowing applications. Its vertical, keyed 1-1/8-inch-diameter x 4-9/32-inch-long PTO shaft makes shaft dimensions a critical part of choosing the right replacement.

  • 24 HP at 3,600 RPM
  • 726cc V-Twin OHV
  • Electric Start
  • 15-Amp Charging
  • Vertical 1-1/8" PTO

Why Choose the Kawasaki FS730V-S00?

Built within Kawasaki's FS Series for mid-duty turf applications, the FS730V combines a 90-degree V-twin configuration with overhead-valve design, cast-iron cylinder liners and a pressurized lubrication system. It is a practical engine choice for compatible zero-turn mowers and commercial-style lawn equipment requiring this specific shaft and installation configuration.

24 HP V-Twin Performance

Kawasaki rates the FS730V at 24.0 HP at 3,600 RPM and 40.0 ft-lb of maximum torque at 2,400 RPM.

Electric Start & Charging

Bendix-style electric starting, electronic ignition and a 15-amp charging system support compatible mower electrical systems.

Engine Protection

Dual-element air filtration with a reinforced primary filter, cast-iron cylinder liners and forced-air cooling are designed for outdoor mowing conditions.

Maintenance-Friendly Design

Pressurized oil lubrication, an oil filter and integrated clean-out ports help support routine engine care.

FS730V-S00 Engine Specifications

Specification Details
Brand / model Kawasaki FS730V-S00 (FS730V family)
Engine type 4-stroke, air-cooled, vertical-shaft, 90° V-twin OHV gasoline engine
Maximum power 24.0 HP (17.9 kW) at 3,600 RPM
Maximum torque 40.0 ft-lb (54.2 N·m) at 2,400 RPM
Displacement 726 cc (44.3 cu in)
Bore x stroke 3.1 x 3.0 in (78 x 76 mm)
Compression ratio 8.2:1
Starting system Electric start (Bendix starter)
Charging system 15 amp (listing configuration)
PTO shaft orientation Vertical; straight, keyed
PTO shaft diameter 1-1/8 in (28.575 mm nominal)
PTO shaft length 4-9/32 in (108.74 mm nominal)
Keyway / end thread 1/4 in keyway; 7/16-20 tapped end (verify against unit/drawing)
Lubrication Pressurized, with oil filter
Oil capacity with filter 2.2 US qt (2.1 L)
Dry weight 90.4 lb (41.0 kg), Kawasaki FS730V family specification
Dimensions (L x W x H) 19.68 x 18.30 x 15.39 in, Kawasaki FS730V family reference; installed accessories can affect clearance
Fuel delivery Carburetor with fuel shut-off solenoid
Air filtration Dual-element with reinforced primary filter
Muffler / fuel tank Not included according to Carroll Stream's current S00 listing; confirm package contents before ordering

Performance, weight and general engine-family dimensions are based on Kawasaki's official FS730V specifications. Shaft and configuration details are specific to this Carroll Stream listing; always compare your equipment and engine spec numbers before ordering.

Replacement Engine Fitment: What to Check

The FS730V-S00 may be considered for equipment originally fitted with a comparable Kawasaki engine, but matching horsepower or belonging to the FS730V family does not guarantee a direct fit. Before purchase, compare all of the following with your existing engine:

  • Full Kawasaki model and specification code from the engine identification label
  • Vertical crankshaft diameter, usable length, keyway and end thread
  • Mounting bolt pattern, deck clearance and overall engine dimensions
  • Starter, charging system, wiring harness and electrical connectors
  • Throttle/choke linkage, fuel connections, exhaust routing and PTO-clutch fit
Cross-reference guidance: The previous listing mentioned FS730V-AS00, BS00, CS00, DS00, ES00, FS00, S11, S12, S13, S14 and S50, as well as other Kawasaki and Kohler families. These are research starting points only, not verified one-to-one interchange numbers. Contact Carroll Stream with your existing model/specification and mower details for fitment help.

Frequently Asked Questions

What horsepower and displacement is the Kawasaki FS730V-S00?

The FS730V engine family is rated at 24.0 HP at 3,600 RPM with 726cc displacement. It uses a four-stroke, air-cooled, OHV V-twin design.

What shaft size does the FS730V-S00 use?

This listing specifies a vertical, straight keyed PTO shaft measuring 1-1/8 inches in diameter and 4-9/32 inches in length. Verify keyway, crankshaft end thread and usable shaft dimensions against your current engine.

How much oil does the Kawasaki FS730V take?

Kawasaki lists 2.2 US quarts (2.1 liters) with an oil filter change. Follow the operator's manual and verify the oil level using the dipstick.

Will this engine replace my existing mower engine?

Possibly, but fitment depends on more than horsepower. Compare the full engine specification number, shaft, mounting, wiring, exhaust and controls. Carroll Stream can help review those measurements before ordering.

Does the FS730V-S00 include a muffler or fuel tank?

The current Carroll Stream listing identifies the muffler and fuel tank as not included. Confirm current package contents before purchase.

Is the Kawasaki FS730V-S00 an electric-start engine?

Yes. This engine configuration is listed with electric start and a 15-amp charging system.

Explore Related Kawasaki Engines

Compare shaft dimensions before choosing an alternative:

Need Help Confirming Your Engine?

Carroll Stream Motor Company can help review model numbers, shaft measurements and equipment requirements before you buy. Have your existing engine's full model/specification number and mower model ready.

Call 888-208-2088 or 248-628-4638. Product pricing, availability, shipping restrictions and checkout details appear above in the store listing.

1 Review

  • 5
    Kawasaki FS730 engine

    Posted by Bobby H. on 27th Apr 2026

    Shipping was fast. Person that took my order was very knowledgeable. Perfect match to my old motor.
