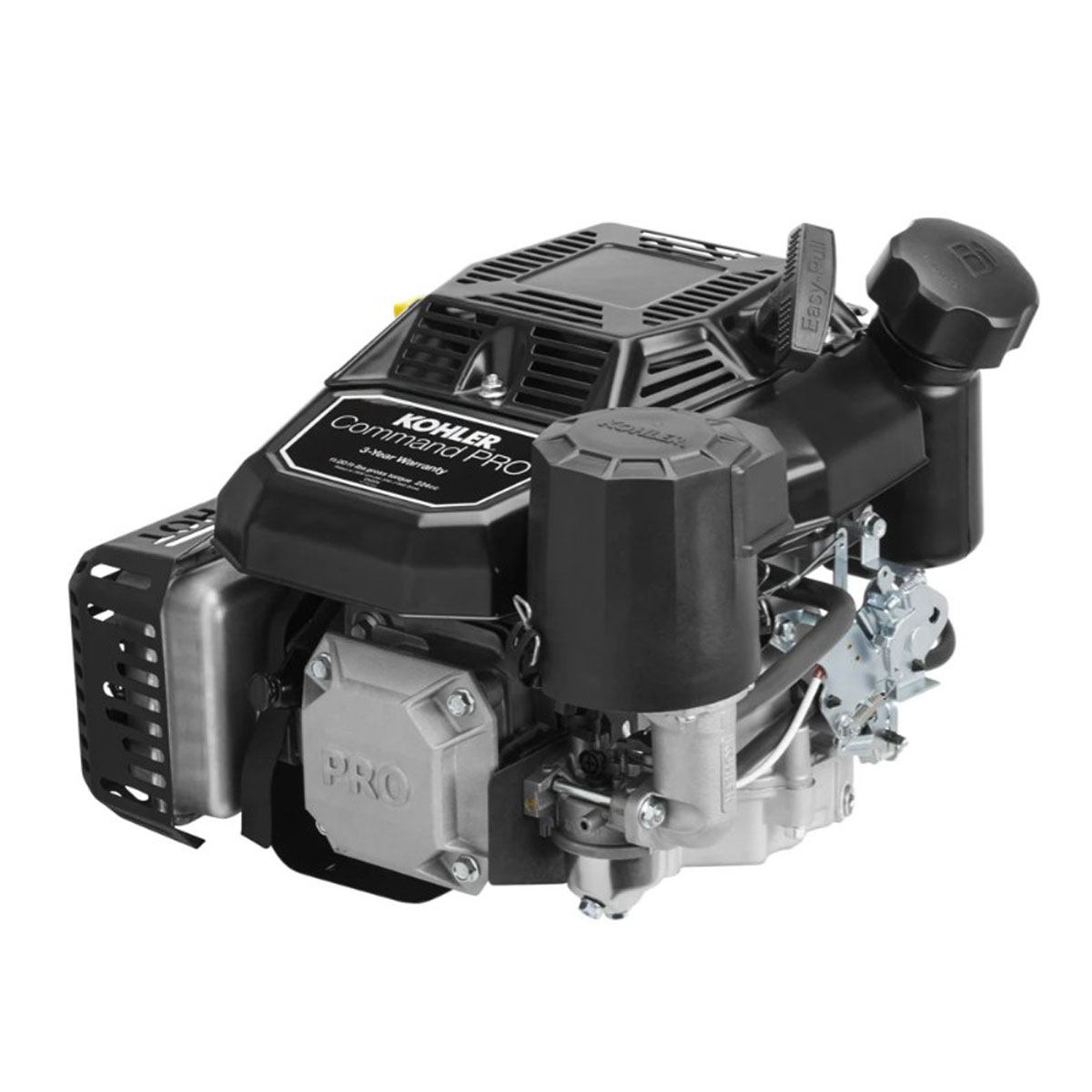

Rehlko Command Pro CV224-3002 6 HP Vertical Shaft Engine

25mm x 3.11" Shaft | Toro TurfMaster / TimeMaster Replacement

Heavy flywheel without brake, 2 #505 Woodruff keys

The Rehlko Command Pro CV224-3002 6HP engine is a commercial-grade vertical shaft engine designed for Toro TurfMaster and TimeMaster 30" mower replacement applications, as well as other compatible commercial and residential equipment.

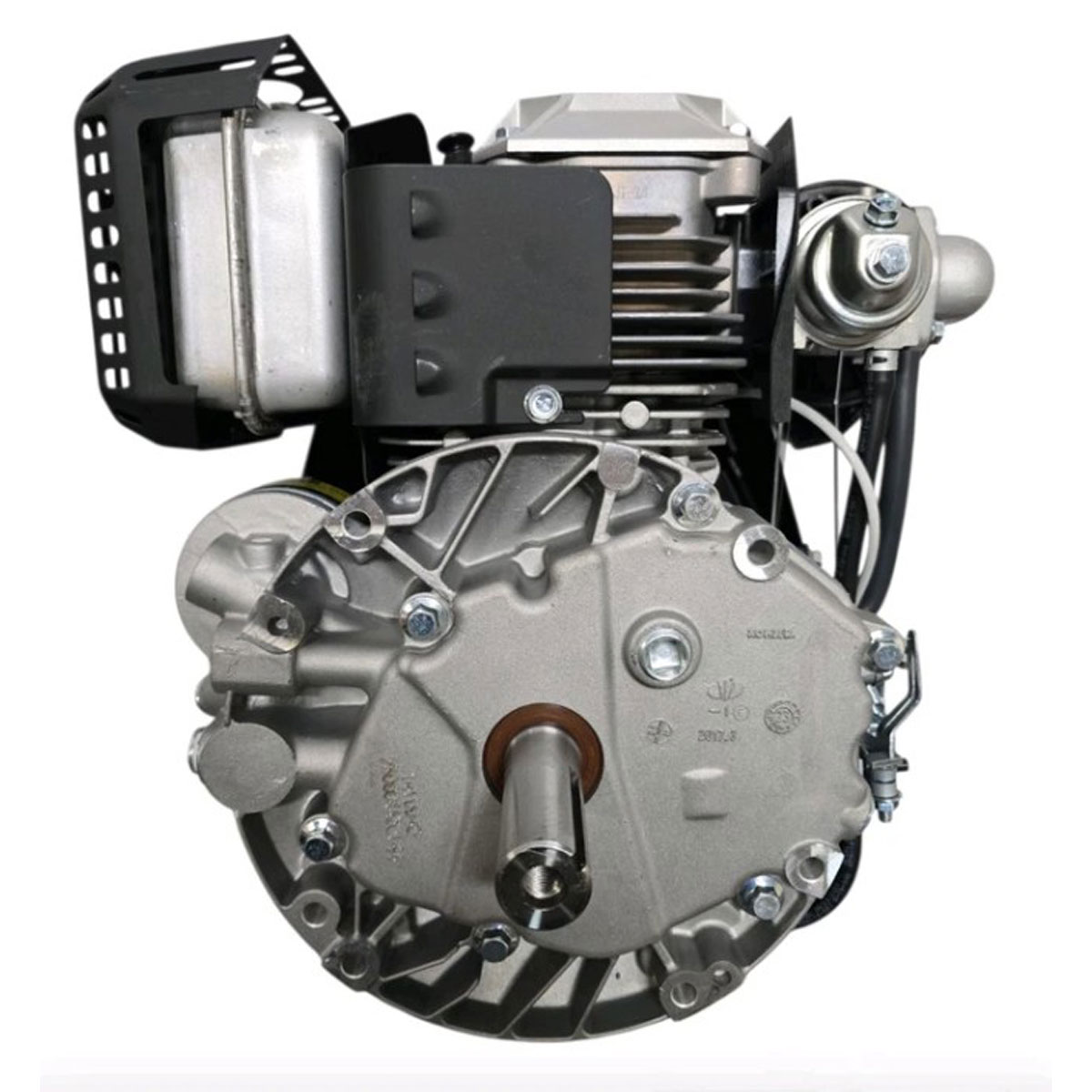

Built with a 224cc 4-stroke OHV single-cylinder design, this engine delivers reliable power, smooth operation, and long-term durability in demanding environments. The 25mm diameter shaft with a 3.11-inch length and 3/16" keyway ensures proper fitment for equipment requiring precise OEM specifications.

Unlike similar models, the CV224-3002 includes a 1.4L fuel tank, making it a more flexible and ready-to-install solution for standalone applications and mower replacements. With features like a dual lubrication system, integrated oil cooler, and heavy-duty internal components, this engine is engineered to reduce maintenance, extend lifespan, and deliver consistent performance under load.

Key Features & Benefits

• 6 HP Commercial Output – Reliable power for turf and light industrial applications
• 224cc OHV Engine – Efficient combustion with consistent torque delivery
• 25mm x 3.11" Vertical Shaft – Ideal for Toro TurfMaster / TimeMaster replacements
• 3/16" Keyway – Secure shaft engagement for compatible equipment

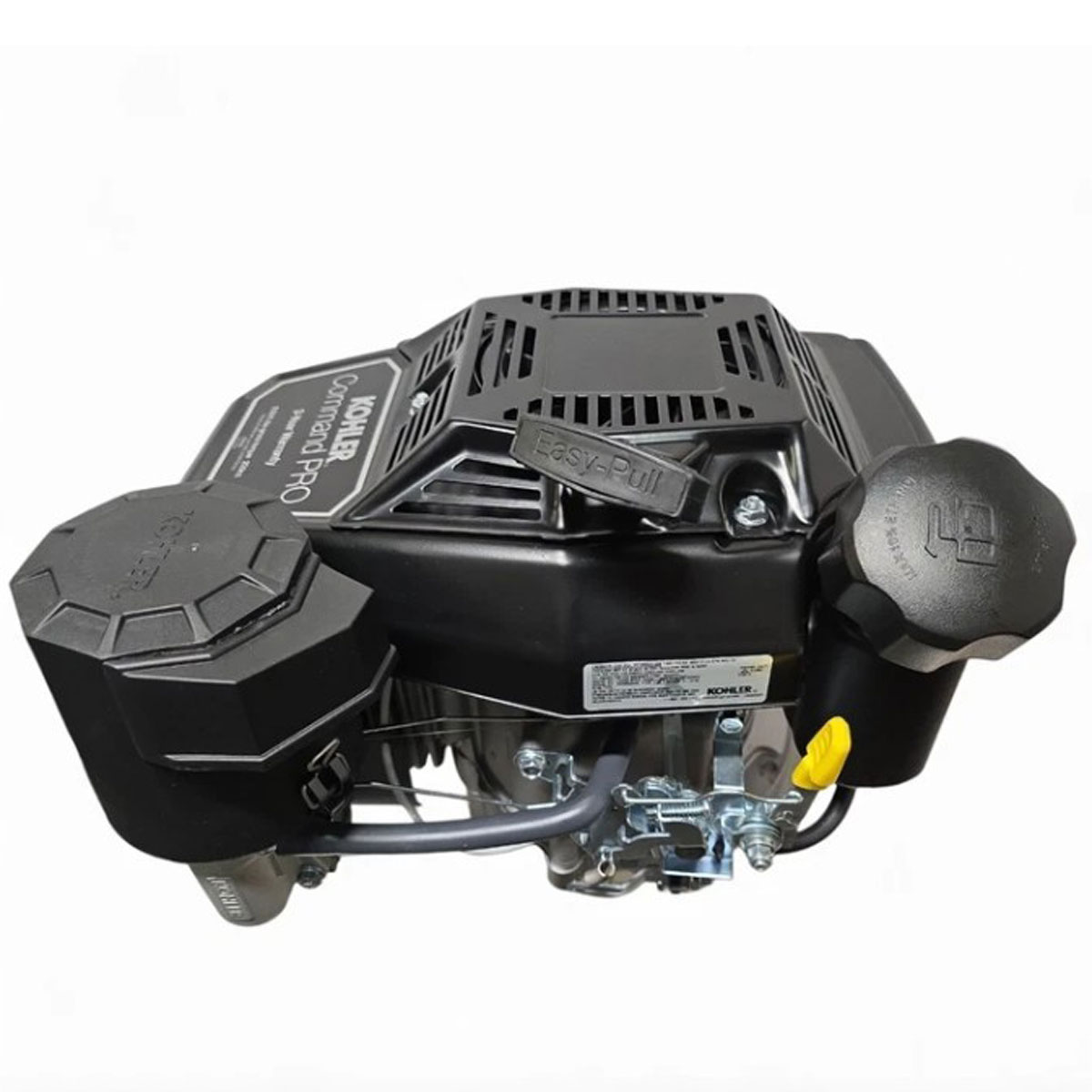

• Recoil Start System – Simple, dependable starting mechanism
• Fuel Tank Included (1.4L) – Ready-to-use configuration vs tankless models
• Dual Lubrication System – Full pressure + splash lubrication for durability
• Integrated Oil Cooler – Helps regulate temperature and extend oil life
• Heavy Flywheel (No Brake) – Designed for specific commercial applications
• 2 #505 Woodruff Keys Included
• 4-Bolt Mounting Pattern – Stable and secure installation
• Forced Air Cooling System – Prevents overheating during extended use
• 3-Year Consumer & Commercial Warranty

Ideal Applications

This engine is best suited for:

• Toro 30" TurfMaster mower replacement engines
• Toro TimeMaster mower replacement engines
• Commercial lawn and turf equipment
• Residential mower upgrades
• Small industrial machines
• Equipment requiring 25mm vertical shaft engines

Cross Reference & Fitment

• Direct replacement for Toro TurfMaster / TimeMaster 30" engines
• Compatible with equipment requiring:
• 25mm shaft diameter
• 3.11" shaft length
• 3/16" keyway
• Vertical shaft configuration

Frequently Asked Questions

What is the Rehlko CV224-3002 used for?

The CV224-3002 is primarily used as a replacement engine for Toro TurfMaster and TimeMaster 30" mowers, as well as other equipment requiring a 25mm vertical shaft.

What shaft size does this engine have?

It features a 25mm diameter shaft, 3.11-inch length, and a 3/16-inch keyway.

Does the CV224-3002 include a fuel tank?

Yes. This model includes a 1.4-liter fuel tank, unlike some similar engines.

Is this a vertical shaft engine?

Yes. The CV224-3002 is a vertical shaft engine, designed for mower and turf equipment applications.

What type of starting system does it use?

This engine uses a recoil start system with a heavy flywheel without brake.

What fuel does this engine require?

Use unleaded gasoline with a minimum of 86 octane.

Does the engine have an oil cooler?

Yes. The engine includes an integrated oil cooler to help regulate temperature and extend engine life.

Is this engine suitable for commercial use?

Yes. It is built with commercial-grade components and includes a 3-year commercial warranty.

At Carroll Stream Motor Company, we are proud to offer premium Rehlko engines like the CV224-3002 at competitive prices. Our knowledgeable team is based in Michigan and ready to help you confirm fitment and answer any technical questions. Call us today at 1-888-208-2088 or place your order online to experience the reliability of Rehlko power. Take on your toughest tasks with confidence.
