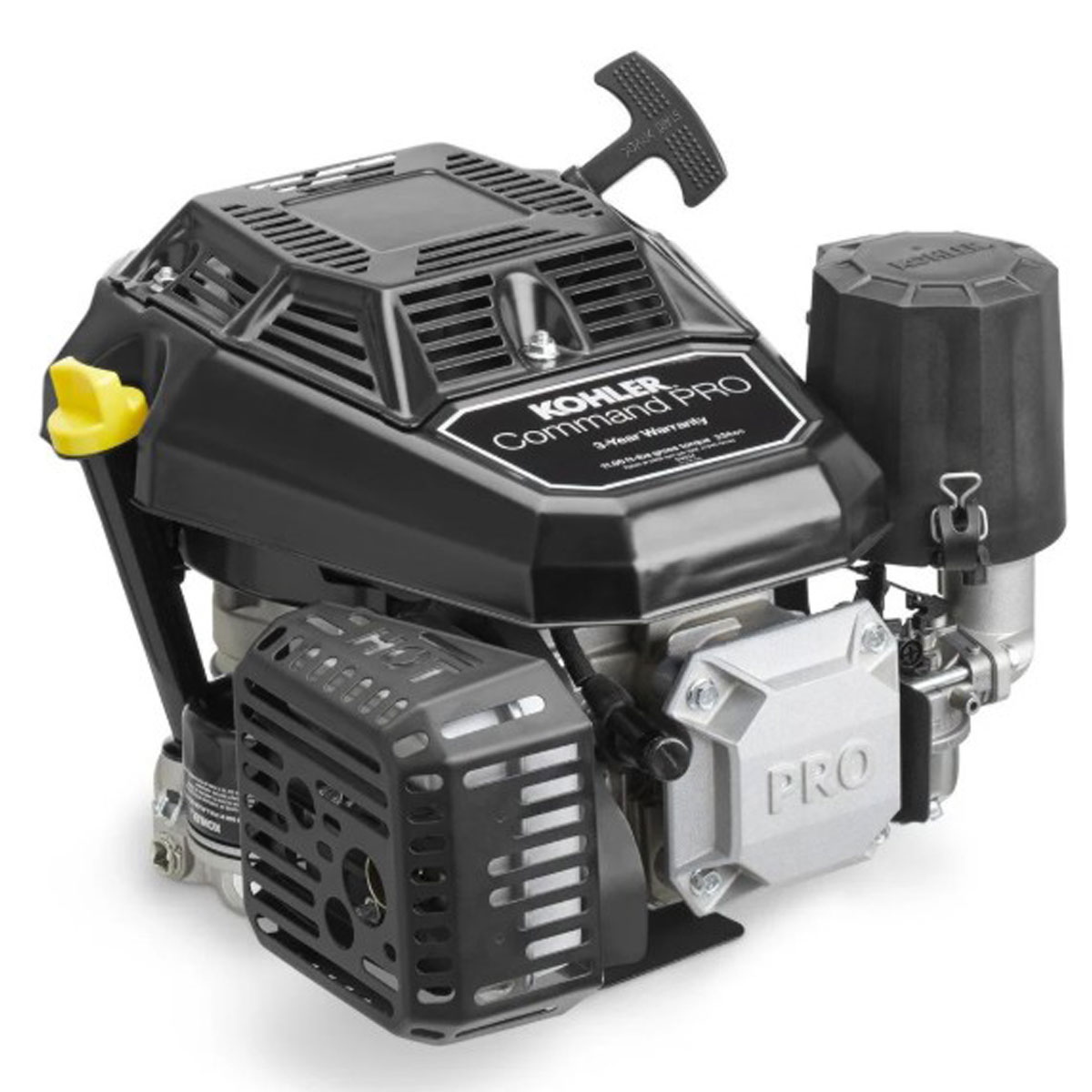

Rehlko Command Pro CV224-3015 6 HP Vertical Shaft Engine

Scag & Metalcraft Spec | Recoil Start

No Fuel Tank, Heavy flywheel without brake, 2 #505 Woodruff keys

The Rehlko Command Pro CV224-3015 is a commercial-grade 6 HP vertical shaft engine built for dependable performance in turf, landscaping, and industrial applications. Designed with a .875-inch diameter shaft, 3.11-inch shaft length, and 3/16-inch keyway, this engine is a strong fit for Scag, Metalcraft, and other compatible replacement applications that require precise vertical shaft fitment.

Powered by a 224cc 4-stroke OHV single-cylinder engine, the CV224-3015 delivers reliable output, durable construction, and long service life for users who need a compact engine that can perform under repeated workloads. This model does not include a fuel tank, which allows for left-side starter rope routing and supports equipment configurations that rely on remote or integrated fuel systems.

One of the key advantages of the CV224-3015 is its dual lubrication system, which combines full pressure and splash lubrication to protect critical engine components during heavy use. It also includes an integrated oil cooler to help regulate operating temperature and extend oil life. These features work together to reduce wear, improve reliability, and support longer engine life in demanding commercial conditions.

With its heavy flywheel without brake, 2 #505 Woodruff keys, and 4-bolt mounting pattern, this engine is engineered for specialized mower and equipment applications where fitment and durability matter. Whether you are replacing a worn engine on a Scag or Metalcraft setup or maintaining other compatible equipment, the CV224-3015 offers a practical combination of performance, fitment, and long-term value.

At Carroll Stream Motor Company, our Michigan-based team is ready to help confirm fitment and answer technical questions before you buy. Call 1-888-208-2088 for expert assistance.

Key Features and Benefits

• 6 HP commercial-grade vertical shaft engine
• 224cc 4-stroke OHV single-cylinder design
• .875" shaft diameter with 3/16" keyway
• 3.11" total shaft length
• Recoil start system
• No fuel tank for specialized equipment configurations
• Heavy flywheel without brake
• Dual full pressure and splash lubrication
• Integrated oil cooler
• Forced air cooling
• 4-bolt mounting pattern
• Muffler included
• 2 #505 Woodruff keys included
• 3-year consumer warranty
• 3-year commercial warranty

Ideal Applications

The Rehlko CV224-3015 is well suited for:

• Scag equipment replacement applications
• Metalcraft equipment replacement applications
• Commercial lawn and turf equipment
• Specialty mower setups
• Small industrial machines
• Equipment requiring a .875" x 3.11" vertical shaft engine
• Why Choose the Rehlko CV224-3015?

The CV224-3015 is a strong option for buyers who need a compact, reliable, commercial-duty vertical shaft engine with specific shaft dimensions for Scag, Metalcraft, and similar applications. The combination of precise shaft fitment, no-fuel-tank configuration, and durable internal components makes it a practical solution for equipment owners who need a direct-fit replacement rather than a generic engine.

Its oil cooler, dual lubrication design, and rugged air filtration system also help support long-term durability in dusty, outdoor, and commercial operating conditions. For repair shops, mower owners, and fleet operators, this engine offers dependable value and serviceability.

FAQs

What is the Rehlko CV224-3015 used for?

The Rehlko CV224-3015 is commonly used for Scag, Metalcraft, and other compatible applications that require a 6 HP vertical shaft engine with a .875-inch shaft diameter and 3.11-inch shaft length.

What shaft size does the Rehlko CV224-3015 have?

This engine has a .875-inch diameter shaft, a 3/16-inch keyway, and a 3.11-inch total shaft length.

Does the Rehlko CV224-3015 come with a muffler?

Yes. The specifications indicate that the muffler is included.

Is the Rehlko CV224-3015 a vertical shaft engine?

Yes. The CV224-3015 is a vertical shaft engine designed for mower and turf equipment applications.

What type of starting system does the CV224-3015 use?

This engine uses a recoil start system with a heavy flywheel without brake.

What kind of fuel does the Rehlko CV224-3015 require?

The engine uses unleaded gasoline with an octane rating of 86 or higher.

Does the Rehlko CV224-3015 have an oil cooler?

Yes. The engine includes an oil cooler, which helps regulate operating temperature and support long engine life.

What is the warranty on the Rehlko CV224-3015?

The engine includes a 3-year consumer warranty and a 3-year commercial warranty.

Is the CV224-3015 good for commercial turf equipment?

Yes. Its durable design, commercial warranty, shaft specifications, and lubrication system make it a strong option for commercial turf and mower applications.

At Carroll Stream Motor Company, we are proud to offer premium Rehlko engines like the CV224-3015 at competitive prices. Our knowledgeable team is based in Michigan and ready to help you confirm fitment and answer any technical questions. Call us today at 1-888-208-2088 or place your order online to experience the reliability of Rehlko power. Take on your toughest tasks with confidence.
