Rhino 5.5HP Gas Engine
3/4" Diameter, 3/16" Keyway Horizontal Shaft
HIGHEST QUALITY GUARANTEED! In business since 2005, our engines are fully rebuild-able with all parts available.
This 5.5 HP gas engine is excellent for new or replacement applications, and is excellent quality. This small gas engine is perfect as replacement small engines for go karts, log splitters, mini bikes, and various residential and commercial applications.
No sales to California.
Specifications | |
---|---|
Make | Carroll Stream Motor Company |
Model | CS165 - 5.5HP Recoil |
Type | Small Engine |
Fuel | Gas Unleaded 86 Octane or Higher |
Engine Type | 4 Stroke OHV Single Cylinder |
Bore/Stroke | 68 X 45 |
Displacement | 163 cc |
Compression Ratio | 8:5:1 |
Max Power | 5.5 HP @ 3600 RPM |
Max Torque | 7.3 ft. lbs. @ 2500 RPM |
Ignition Type | TCI No Contact Transistorized |
Dimensions (L x W x H) | 12.5 x 15 x 14.25 |
Starting Type | Recoil / Pull Start |
Fuel Tank Capacity | 0.95 Gal. |
Dry Engine Weight | 33 lbs. |
Shaft Type | Keyed - Straight |
Shaft Diameter | 3/4" Diameter, 3/16" Keyway |
Shaft Length | 2-5/8" Total, 2-5/16" Usable |
Shaft I.D. Thread Size | 5/16"-24 Drilled and Tapped |

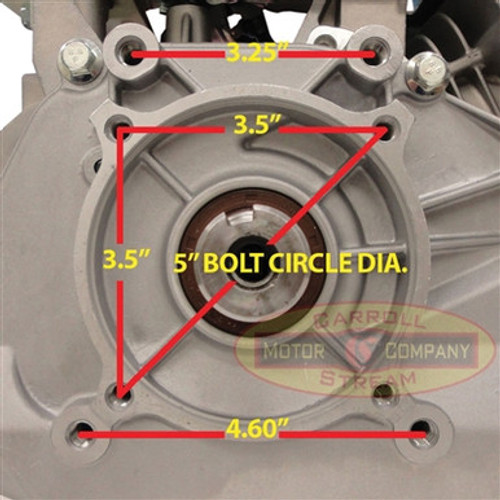

Bolt Pattern | 4 Bolt |
Oil System | Splash |
Reduction Type | None |
Engine Cooling Type | Forced Air Cooling |
Features | |
Cast Iron Sleeve | |
4 Stroke OHV Small Engine | |
Recoil Pull Start | |
Cross Reference Guide | |
Honda: GX 160 QX | |
Kohler: CS6T | |
Briggs & Stratton: 126332-023 | |
Accessories | |
Spark Plug Wrench | |
User Manual |
Summary of the Rhino 5.5HP Gas Engine
The Rhino 5.5HP Gas Engine, model CS165, is a durable engine crafted to elevate the efficiency of your equipment. Whether you seek a fresh engine or a substitute, the CS165 stands out as the optimal selection. Its adaptability renders it suitable for a wide range of uses, such as propelling go-karts, operating log splitters, mini bikes, and an array of residential and commercial machinery.
The compact gas engine has been meticulously engineered to provide efficient power output and fuel economy. With a 4-stroke OHV single-cylinder configuration, the CS165 boasts a 163cc displacement and an 8.5:1 compression ratio, delivering a peak power of 5.5 HP at 3600 RPM and a torque of 7.3 ft. lbs. at 2500 RPM. This blend ensures outstanding performance and dependability.
Durability is of utmost importance at Carroll Stream Motor Company. The CS165 engine is equipped with a cast iron sleeve and a splash oil system, which improve its durability and reliability even in challenging conditions. The forced air cooling system helps maintain the engine's temperature at an optimal level, preventing overheating and ensuring consistent performance for prolonged periods of time.
The CS165 comes with a recoil/pull start system, providing effortless ignition for fast and convenient use. With its small size measuring at 12.5" x 15" x 14.25" and weighing only 33 lbs., it guarantees simple setup and easy handling, making it a perfect option for various uses.
The CS165 is designed to seamlessly integrate into a wide range of equipment setups, boasting a keyed-straight shaft with a 3/4" diameter and a 3/16" keyway. This design allows for compatibility with numerous accessories and attachments. Additionally, the included cross-reference guide offers information on compatibility with engines from other well-known brands, making replacement and interchangeability a simple process.
Each engine manufactured by Carroll Stream Motor Company is completely rebuildable, with all components easily accessible. Supported by our dedication to excellence and customer contentment, our specialized customer service team is constantly available to assist with any questions or issues, guaranteeing a smooth process from the initial purchase to post-sales assistance.
No matter if you are an enthusiast, an expert, or a business proprietor, the Rhino 5.5HP Gas Engine is the dependable partner for all your power requirements. Each engine delivers unmatched performance, dependability, and longevity, opening up new opportunities for your endeavors.
