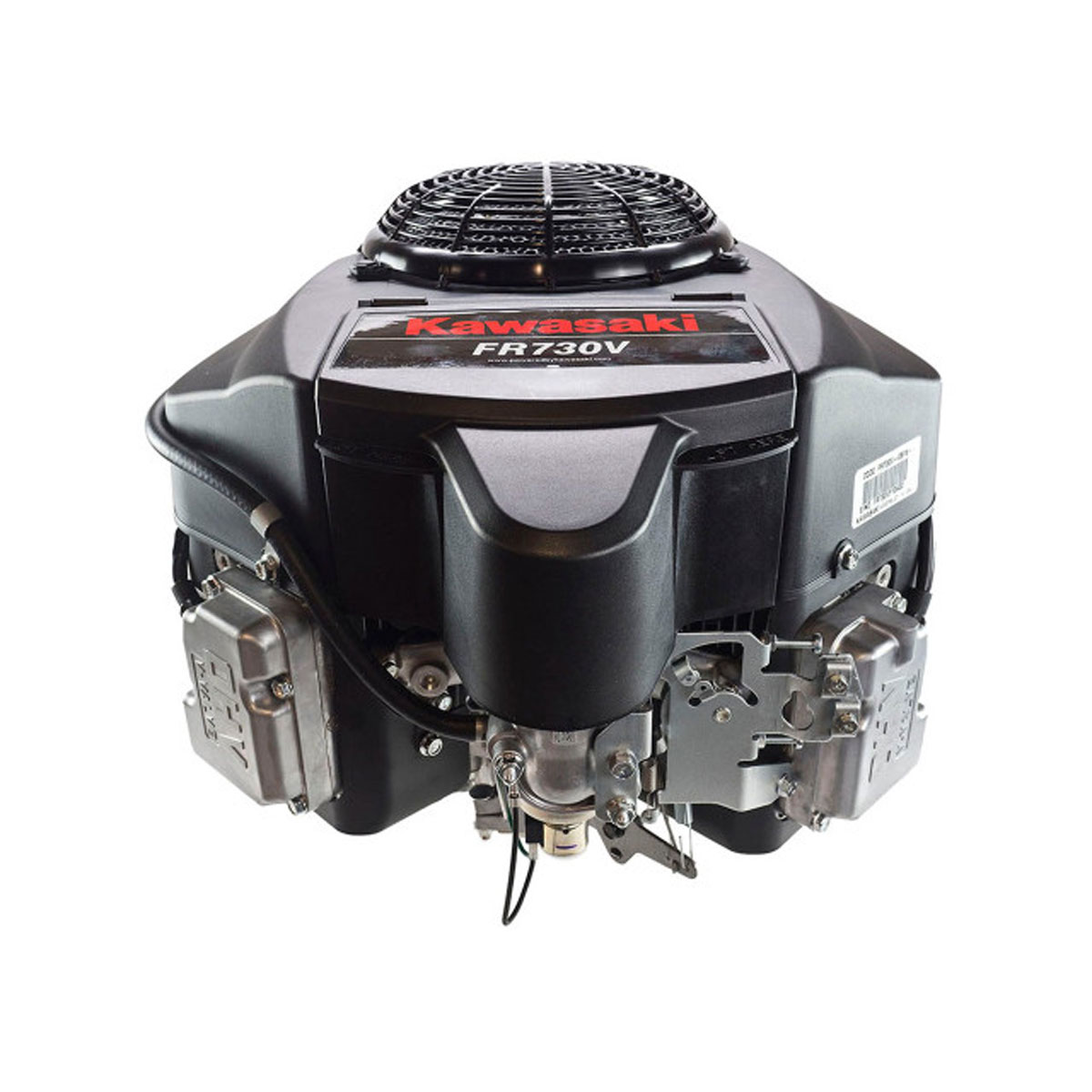

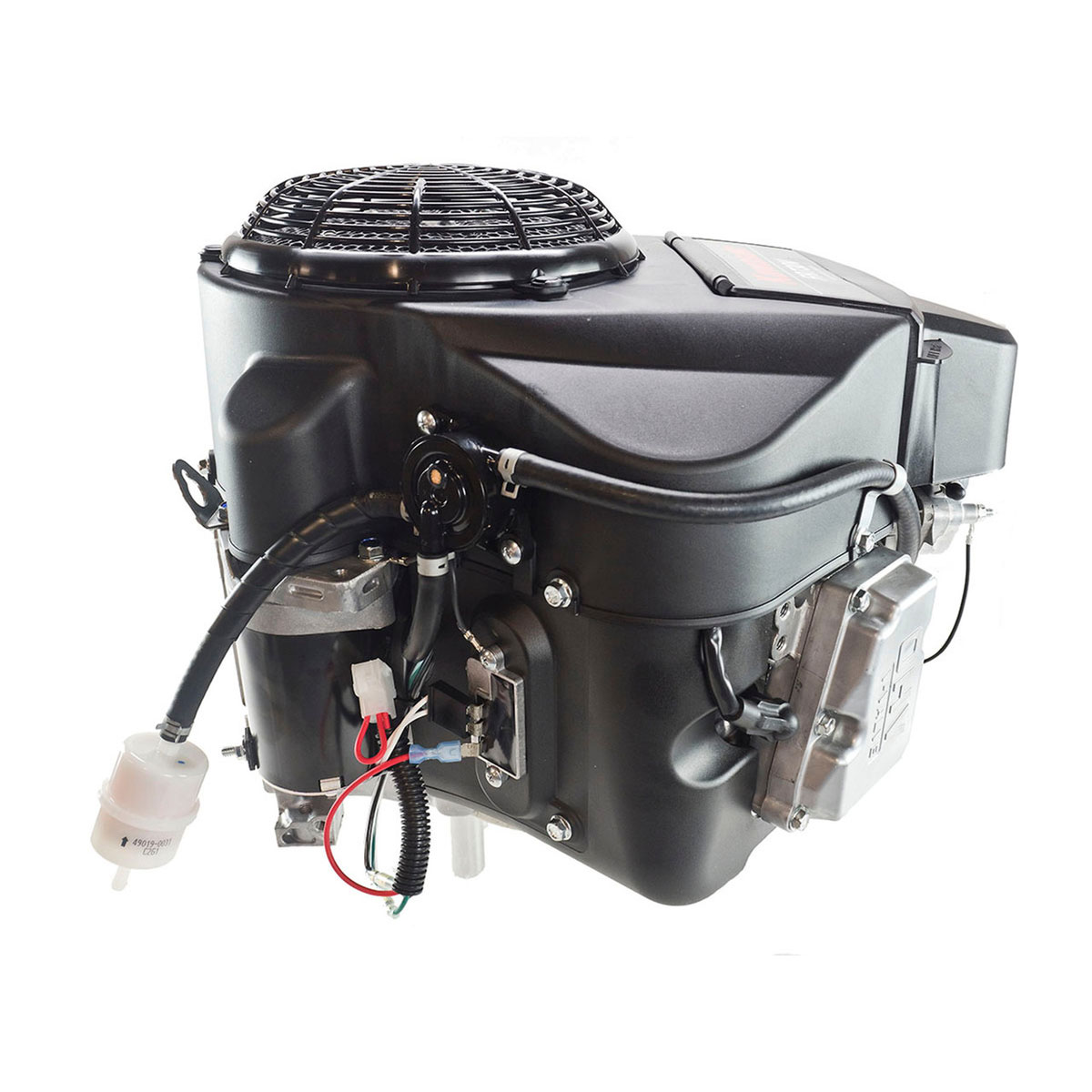

Kawasaki FR730V-S16 24 HP vertical shaft engine delivers 726cc V-twin power for compatible zero-turn mowers and other lawn and garden equipment. This four-stroke, air-cooled gasoline engine features electric start, pressure lubrication with an oil filter, and a 1-1/8-inch diameter x 4-9/32-inch long keyed crankshaft. Shop the FR730V-S16 at Carroll Stream Motor Company and confirm fitment before ordering.
Kawasaki FR730V-S16 Engine Highlights
- 24 HP, 726cc V-twin: Four-stroke OHV engine for compatible mower applications.
- Vertical PTO shaft: 1-1/8-inch diameter, 4-9/32-inch length, and 1/4-inch keyway.
- Electric start: Electric starter with a 15-amp charging system.
- Air-cooled design: Forced-air engine cooling and a cast-iron cylinder bore.
- Lubrication: Pressurized oil system with replaceable oil filter.
- Warranty: Listed with a 3-year consumer and commercial warranty; confirm current manufacturer terms and eligibility.
FR730V-S16 Specifications
| Specification | Details |
|---|---|
| Manufacturer | Kawasaki |
| Model / SKU | FR730V-S16 |
| Rated horsepower | 24 HP |
| Displacement | 726cc |
| Engine configuration | Four-stroke OHV V-twin gasoline engine |
| Cooling system | Forced-air cooled |
| Starting system | Electric start |
| Charging system | 15 amp |
| Crankshaft orientation | Vertical |
| Crankshaft diameter | 1-1/8 in. |
| Crankshaft length | 4-9/32 in. (total, per listing) |
| Keyway | 1/4 in. |
| Crankshaft type | Straight, keyed |
| Lubrication | Pressurized, with oil filter |
| Oil capacity | 2.2 US qt. (per listing; verify in owner's manual) |
| Dry engine weight | 89 lb. (per existing specifications) |
| Exhaust / muffler included | No |
| Fuel tank included | No |
| Mounting | Four-bolt pattern; verify dimensions |
Replacement Engine and Fitment Information
The FR730V-S16 may be considered for replacement applications requiring the same engine configuration and PTO shaft dimensions. The original listing references the following models for cross-reference research:
FR730V-S04, FR730V-AS04, FR730V-BS04, FR730V-CS04, FR730V-DS04, FR730V-ES04, FR730V-S14-R, FR730V-AS14, FR730V-BS14, FR730V-S16-R, FR730V-BS16, FR730V-BS16S, FR730V-S17, FR730V-AS17, FR730V-S22, FR730V-AS22, FR730V-S27.
Why Order From Carroll Stream Motor Company?
Carroll Stream Motor Company has supplied engines and parts since 2005. Order online or contact the team for help evaluating this Kawasaki FR730V-S16 engine for your equipment. Shipping availability, timing and charges depend on your destination. Free engine shipping does not apply to California, Washington, Arizona, Oregon or Nevada; contact Carroll Stream for shipping details before checkout.
Kawasaki FR730V-S16 Frequently Asked Questions
What size shaft does the Kawasaki FR730V-S16 have?
The listed vertical crankshaft is 1-1/8 inches in diameter and 4-9/32 inches long, with a 1/4-inch keyway. Verify crankshaft and mounting dimensions against your original engine before ordering.
Is the FR730V-S16 an electric-start engine?
Yes. The FR730V-S16 is listed with electric start and a 15-amp charging system. Confirm wiring and starter compatibility with your equipment.
Can the FR730V-S16 replace any FR730V engine?
No. Engines in the FR730V family can differ in shaft dimensions, controls, wiring, exhaust and other specifications. Match the full engine specification and your mower's requirements before purchasing.
Does this engine include a muffler or fuel tank?
No. The existing product specifications list both the muffler and fuel tank as not included. Confirm any other accessories required for your installation.
Is the FR730V-S16 liquid-cooled?
No. The Kawasaki FR730V-S16 is a forced-air-cooled V-twin gasoline engine.
Related Kawasaki Engines
Compare other shaft configurations before ordering: Kawasaki FR730V-S00 24 HP and Kawasaki FR691V-S00. Different specifications do not guarantee interchangeability.
