Product Description

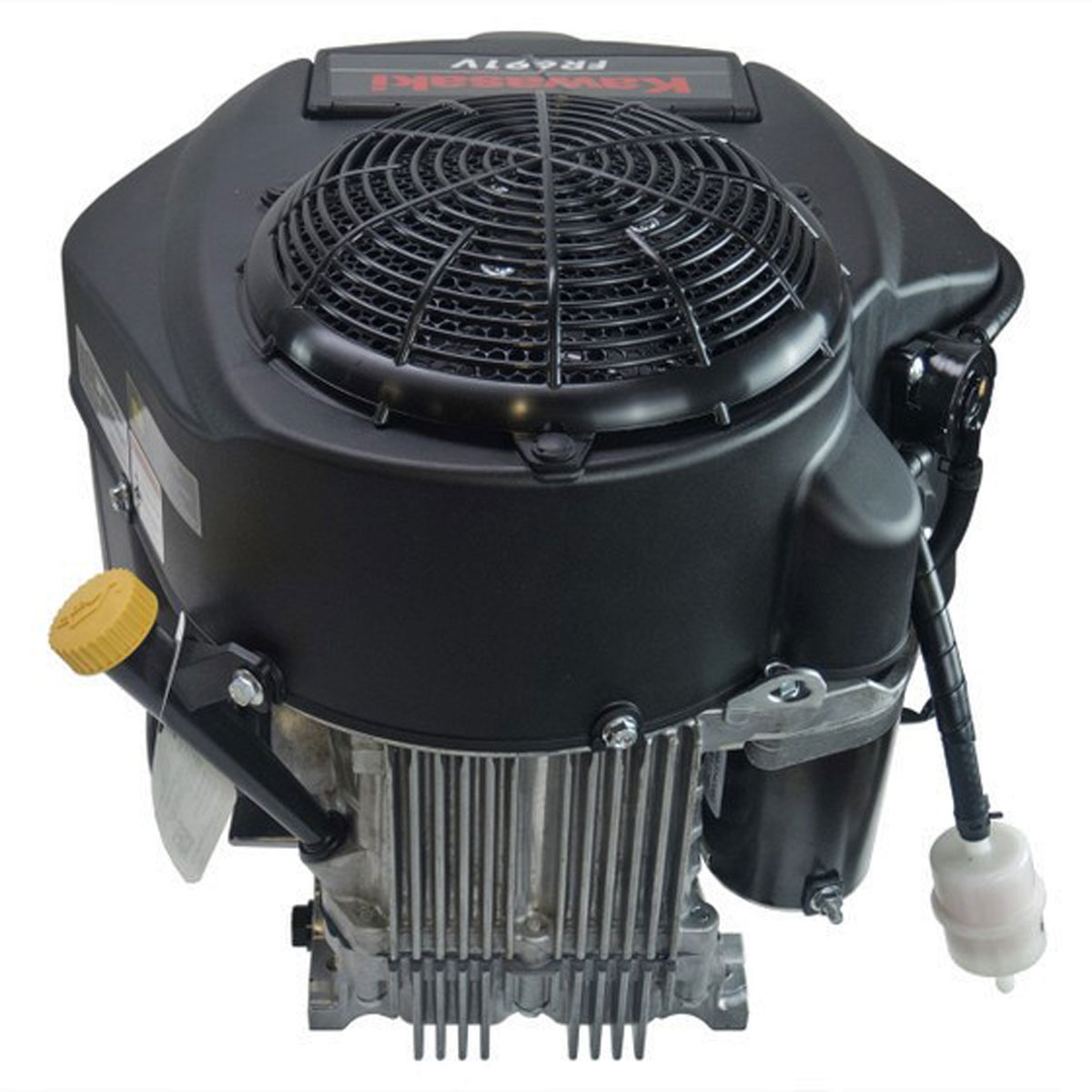

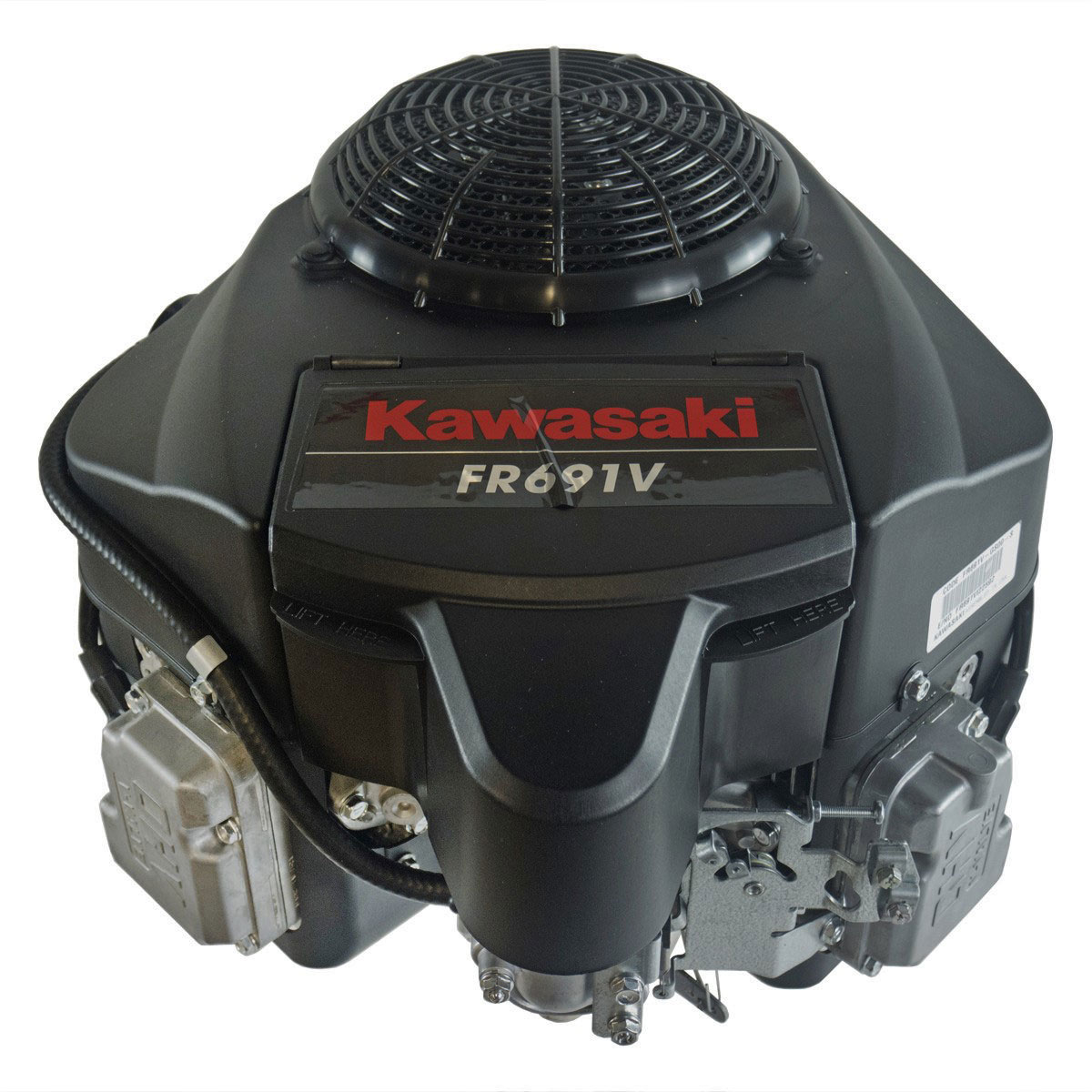

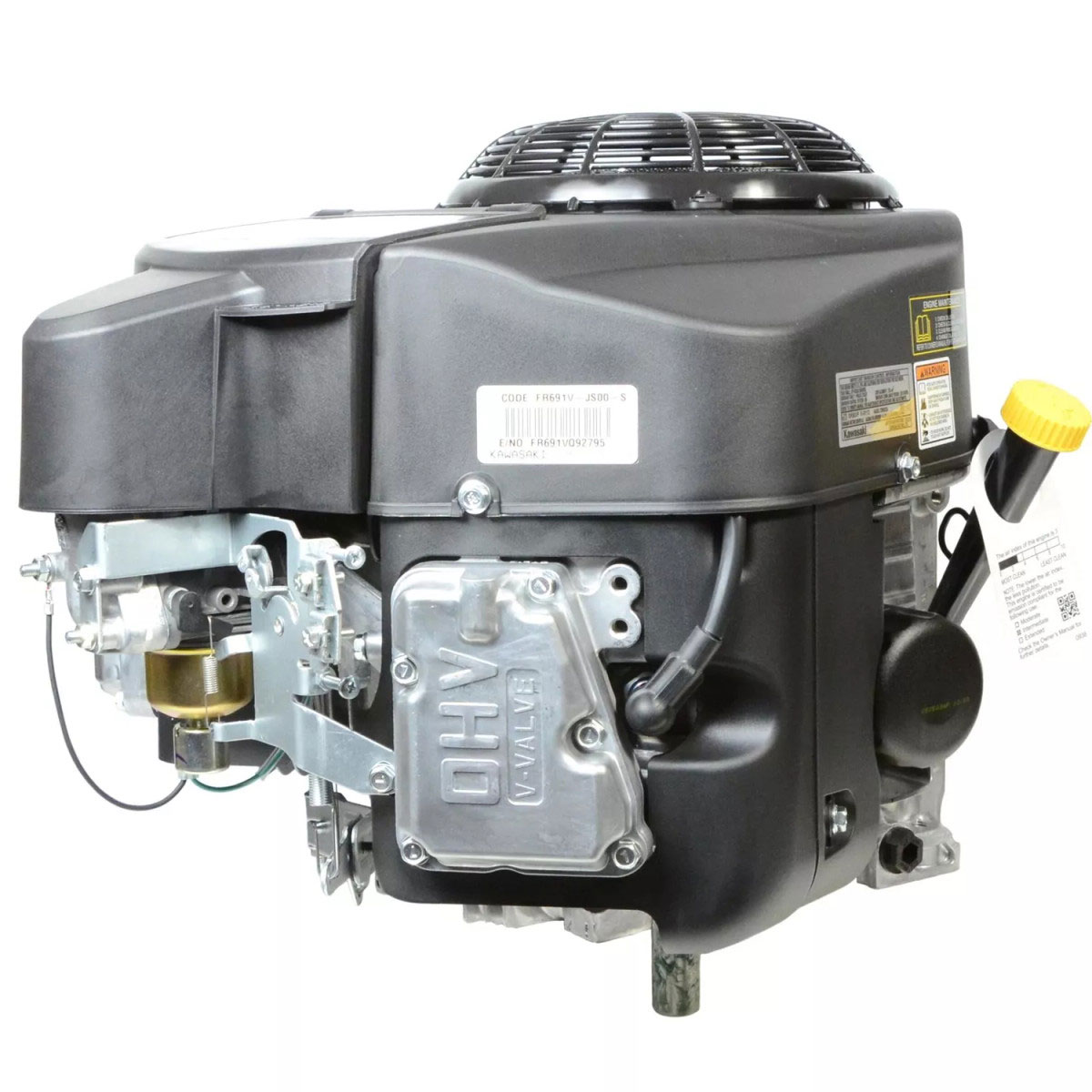

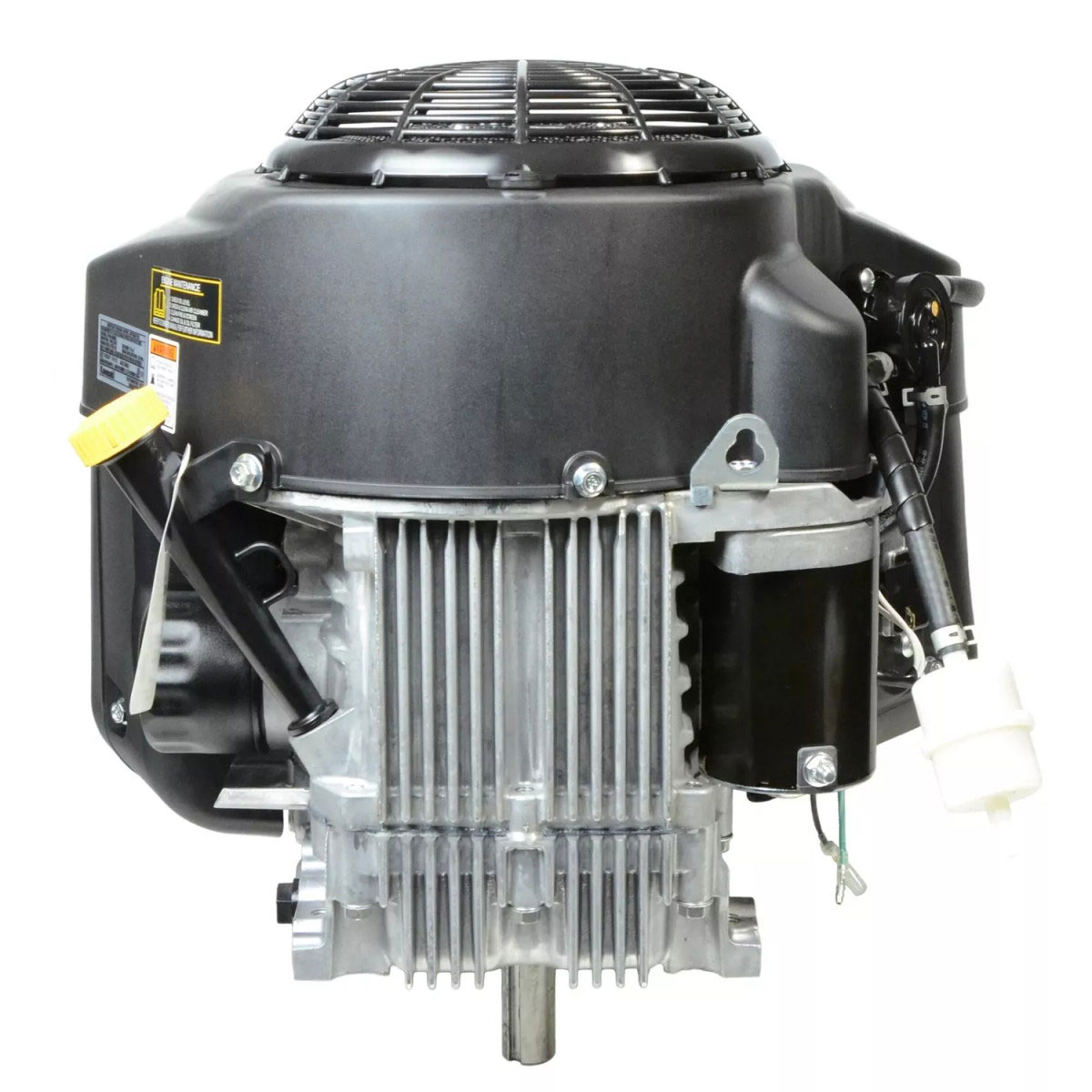

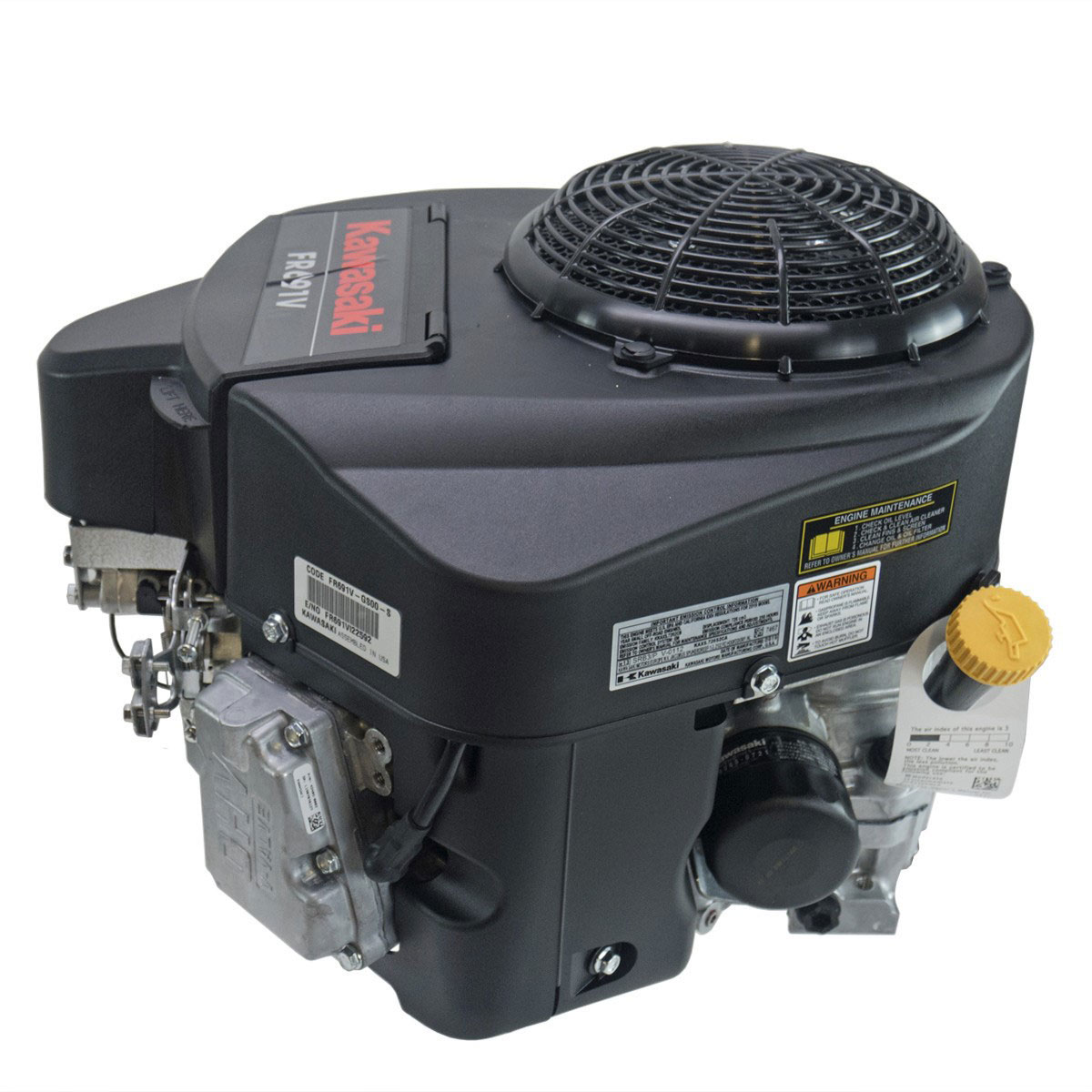

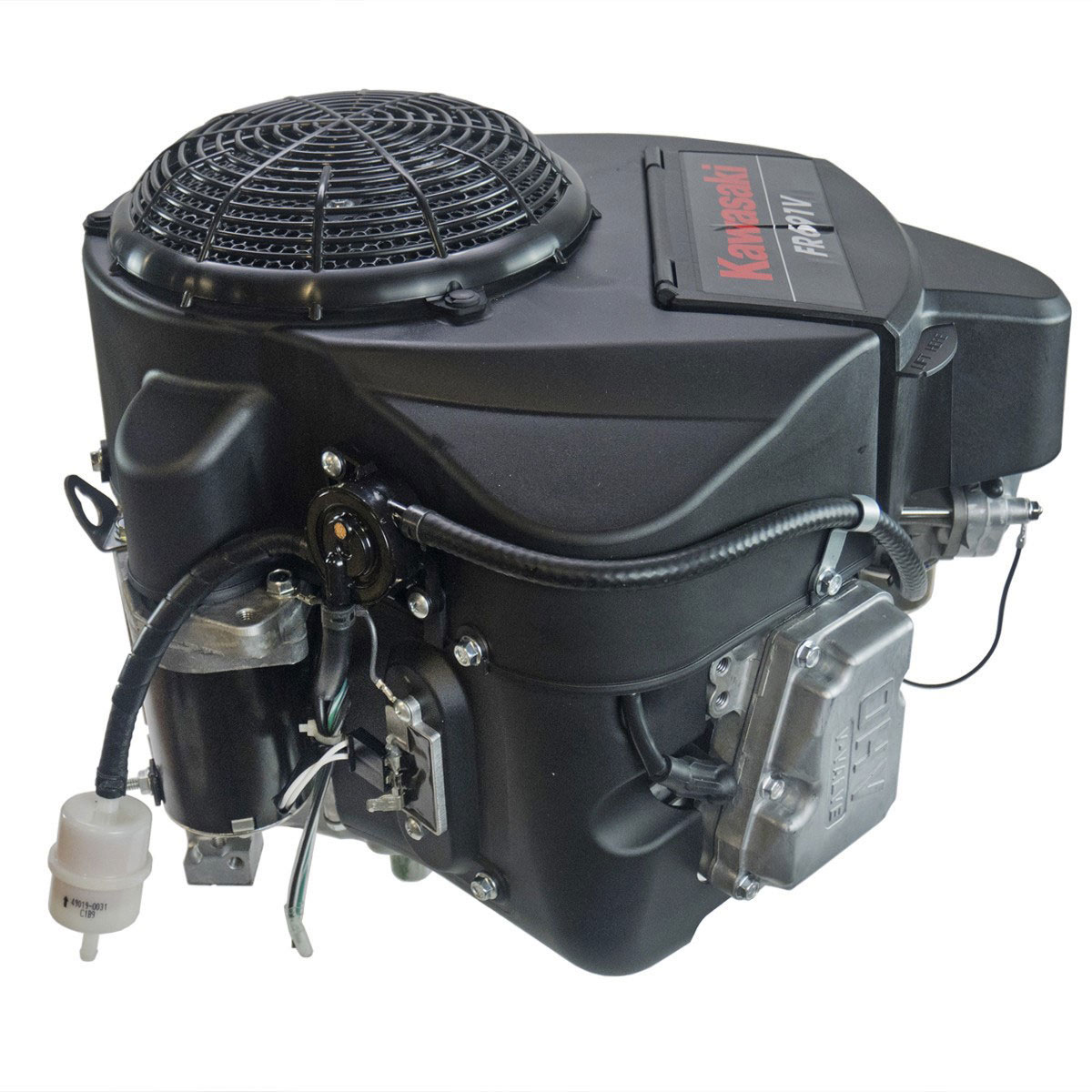

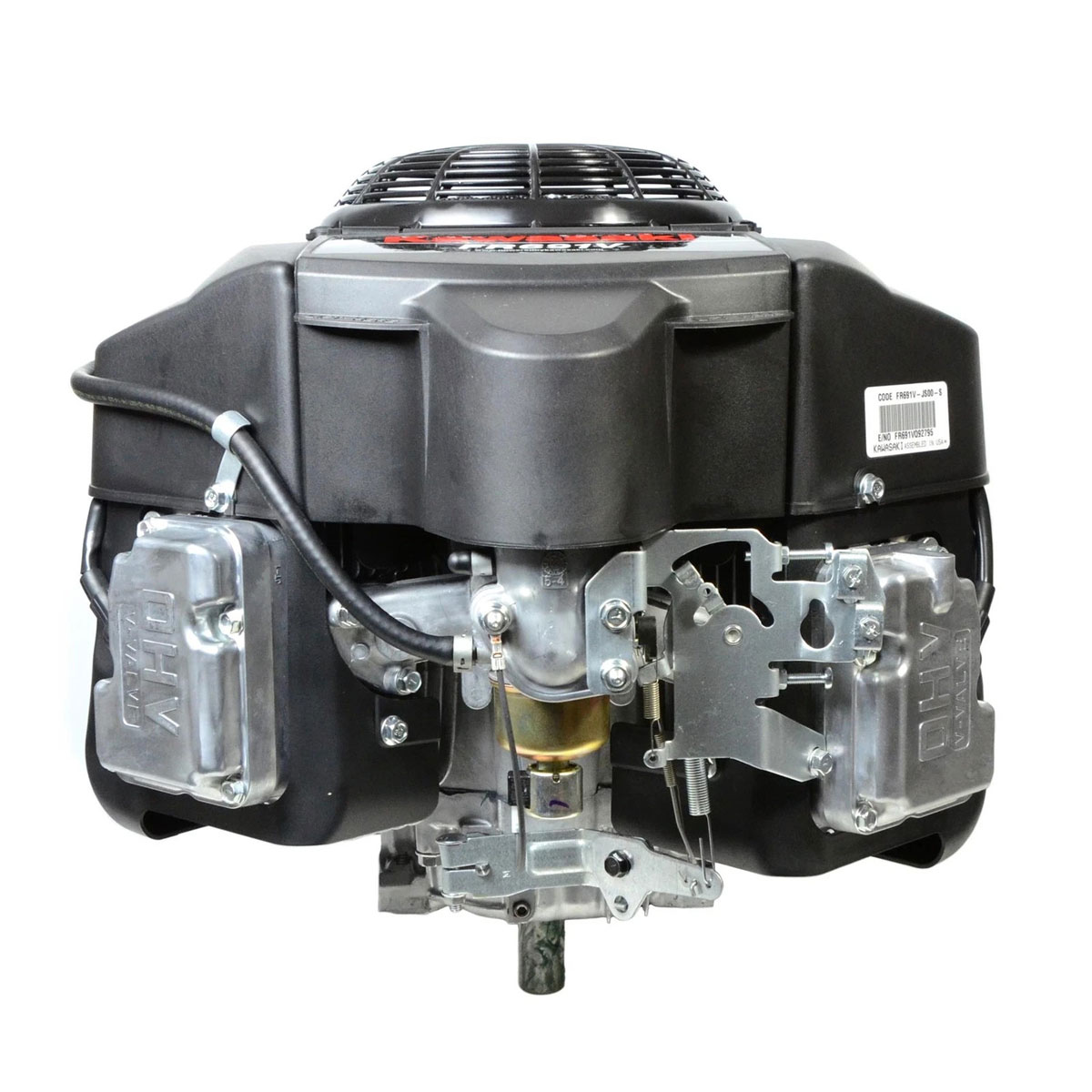

Kawasaki FR691V-S00 Small Gas Engine

Name: Kawasaki FR691V-S00 23 HP Vertical 1" X 3-5/32" Shaft
Brand: Kawasaki
SKU: FR691V-S00
Price: 1956 USD
Availability: InStock

With 1" X 3-5/32" Vertical Shaft

Electric Start Kawasaki Engine

This 726cc Kawasaki FR691V-S00, small gas engine is excellent for new or replacement applications! Buy online today at Carroll Stream Motor Company. Order now to enjoy our competitive prices with fast, free shipping or call us at 888-208-2088 to speak with one of our experts. The highest quality guaranteed! We have been in business since 2005, and our engines are fully rebuildable with all parts available. The perfect Kawasaki motor to replace FR691V.

Kawasaki 23 HP Gas Engine, Electric Start, 15 amp Charging Coil. Perfect for Zero turn mower and various Industrial and Commercial Uses. This Kawasaki small motor is built with quality components and is ready to outlast the competition. Purchase now to take advantage of our free shipping and quick turnaround time. Or, call if you have questions! 888-208-2088, 248-628-4638

Replaces:

FR691V-S00, FR691V-AS00, FR691V-BS00, FR691V-CS00, FR691V-DS00, FR691V-ES00, FR691V-FS00, FR691V-FS00S, FR691V-S04, FR691V-AS04, FR691V-S05, FR691V-AS05, FR691V-BS05, FR691V-CS05, FR691V-DS05, FR691V-ES05, FR691V-S07, FR691V-AS07, FR691V-BS07, FR691V-CS07, FR691V-DS07, FR691V-S08, FR691V-AS08, FR691V-BS08, FR691V-S09, FR691V-AS09, FR691V-BS09, FR691V-CS09, FR691V-S10, FR691V-AS10, FR691V-BS10, FR691V-CS10, FR691V-S11, FR691V-S12, FR691V-AS12, FR691V-BS12, FR691V-CS12, FR691V-DS12, FR691V-S13, FR691V-AS13, FR691V-BS13, FR691V-CS13, FR691V-S14, FR691V-AS14, FR691V-BS14, FR691V-CS14, FR691V-S15, FR691V-AS15, FR691V-BS15, FR691V-CS15, FR691V-DS15, FR691V-S16, FR691V-S17, FR691V-S19, FR691V-AS19, FR691V-BS19, FR691V-S21, FR691V-S24, FR691V-AS24, FR691V-BS24, FR691V-S25, FR691V-AS25, FR691V-S26, FR691V-S50, FR691V-S51, FR691V-S52. *Used on Toro, Exmark, Scag, Bad Boy, KMC, Ariens, Excel, MTD, Dixie Chopper, and many others. Any cross-reference is provided as a courtesy. You will be responsible for making sure the part number we are providing will fit your application. If you are unsure, please contact us before purchasing for help. Please have your model and serial number available.

Add Genuine OEM Kawasaki Fuel Treatment. This 12oz bottle is designed to help protect your engine!

Specifications
Make	Kawasaki
Model	FR691V-S00
Type	Small Engine
Fuel	Gas Unleaded 86 Octane or Higher
Engine Type	4 Stroke OHV Twin Cylinder
Bore/Stroke	3.1 X 3.0 in
Displacement	726 cc
Max Power	23 HP
Starting Type	Electric Start
Charging Coil	15 Amp
Starting System	Electric Starter
Dimensions (L x W x H)
Exhaust Included	No
Fuel Tank	No
Dry Engine Weight	88.2lbs.
Shaft Type	Keyed - Straight
Shaft Diameter	1" Diameter, 1/4" Keyway
Shaft Length	3-5/32" Total
Shaft I.D. Thread Size
Bolt Pattern	4 Bolt
Oil System	Pressurized with oil filter
Oil Capacity	2.2 Qts
Oil Cooler	High Efficiency
Reduction Type	None
Engine Cooling Type	Forced Air Cooling
Features
3 Year Consumer Warranty
3 Year Commercial Warranty
Mechanical Governor
4 Stroke OHV Small Engine
Heavy Duty Canister Filtration
Dipstick in Crankcase
Cross Reference Guide

Accessories
User Manual

Use to Replace Model Numbers:

FR691V-S00, FR691V-AS00, FR691V-BS00, FR691V-CS00, FR691V-DS00, FR691V-ES00, FR691V-FS00, FR691V-FS00S, FR691V-S04, FR691V-AS04, FR691V-S05, FR691V-AS05, FR691V-BS05, FR691V-CS05, FR691V-DS05, FR691V-ES05, FR691V-S07, FR691V-AS07, FR691V-BS07, FR691V-CS07, FR691V-DS07, FR691V-S08, FR691V-AS08, FR691V-BS08, FR691V-S09, FR691V-AS09, FR691V-BS09, FR691V-CS09, FR691V-S10, FR691V-AS10, FR691V-BS10, FR691V-CS10, FR691V-S11, FR691V-S12, FR691V-AS12, FR691V-BS12, FR691V-CS12, FR691V-DS12, FR691V-S13, FR691V-AS13, FR691V-BS13, FR691V-CS13, FR691V-S14, FR691V-AS14, FR691V-BS14, FR691V-CS14, FR691V-S15, FR691V-AS15, FR691V-BS15, FR691V-CS15, FR691V-DS15, FR691V-S16, FR691V-S17, FR691V-S19, FR691V-AS19, FR691V-BS19, FR691V-S21, FR691V-S24, FR691V-AS24, FR691V-BS24, FR691V-S25, FR691V-AS25, FR691V-S26, FR691V-S50, FR691V-S51, FR691V-S52

Please call for questions about what engines this replaces. (888-208-2088, 248-628-4638)

Any cross-reference is provided as a courtesy. You will be responsible for making sure the part number we are providing will fit your application. If you are unsure, please contact us before purchasing for help. Please have your model and serial number available.

Summary of the FR691V-S00 engine

The Kawasaki FR691V-S00 Small Gas Engine is a dependable and potent option suitable for various new installations and replacements. Boasting a 1" x 3-5/32" vertical shaft and electric start, this engine offers a blend of convenience and outstanding functionality. With a displacement of 726cc, the FR691V-S00 provides substantial power, making it well-suited for a range of demanding duties.

This motor is ideal for individuals who expect superior quality and reliability from their machinery. For over 15 years, Carroll Stream Motor Company has been delivering exceptional engines, and the Kawasaki FR691V-S00 is a prime example. With the ability to be fully rebuilt and all components easily accessible, this motor guarantees durability and effortless upkeep, enabling you to maximize your investment.

Crafted as a replacement for the FR691V model, the FR691V-S00 stands out as a superior option with improved functionalities suitable for residential and commercial purposes alike. The electric start attribute streamlines usage, guaranteeing prompt engine readiness whenever necessary. Boasting a 726cc displacement, this model delivers sufficient power for various tasks, from lawn mowing to operating different types of power equipment, rendering it a flexible selection.

By acquiring the Kawasaki FR691V-S00 from Carroll Stream Motor Company, you can take advantage of our competitive pricing and dedication to ensuring customer satisfaction. Our prompt and complimentary shipping services ensure that your engine reaches you swiftly, reducing any potential downtime and allowing you to stay on schedule with your projects. Should you have any inquiries or require assistance, our team of knowledgeable professionals is ready to offer support and guidance. Feel free to reach out to us at 888-208-2088.

The Kawasaki FR691V-S00 Small Gas Engine is an ideal option for individuals in search of a reliable and high-performing engine solution, with a strong focus on quality and performance. Count on our extensive experience and commitment to excellence to provide you with an engine that surpasses your highest expectations. Place your order online today and discover the distinctive difference offered by Carroll Stream Motor Company.
