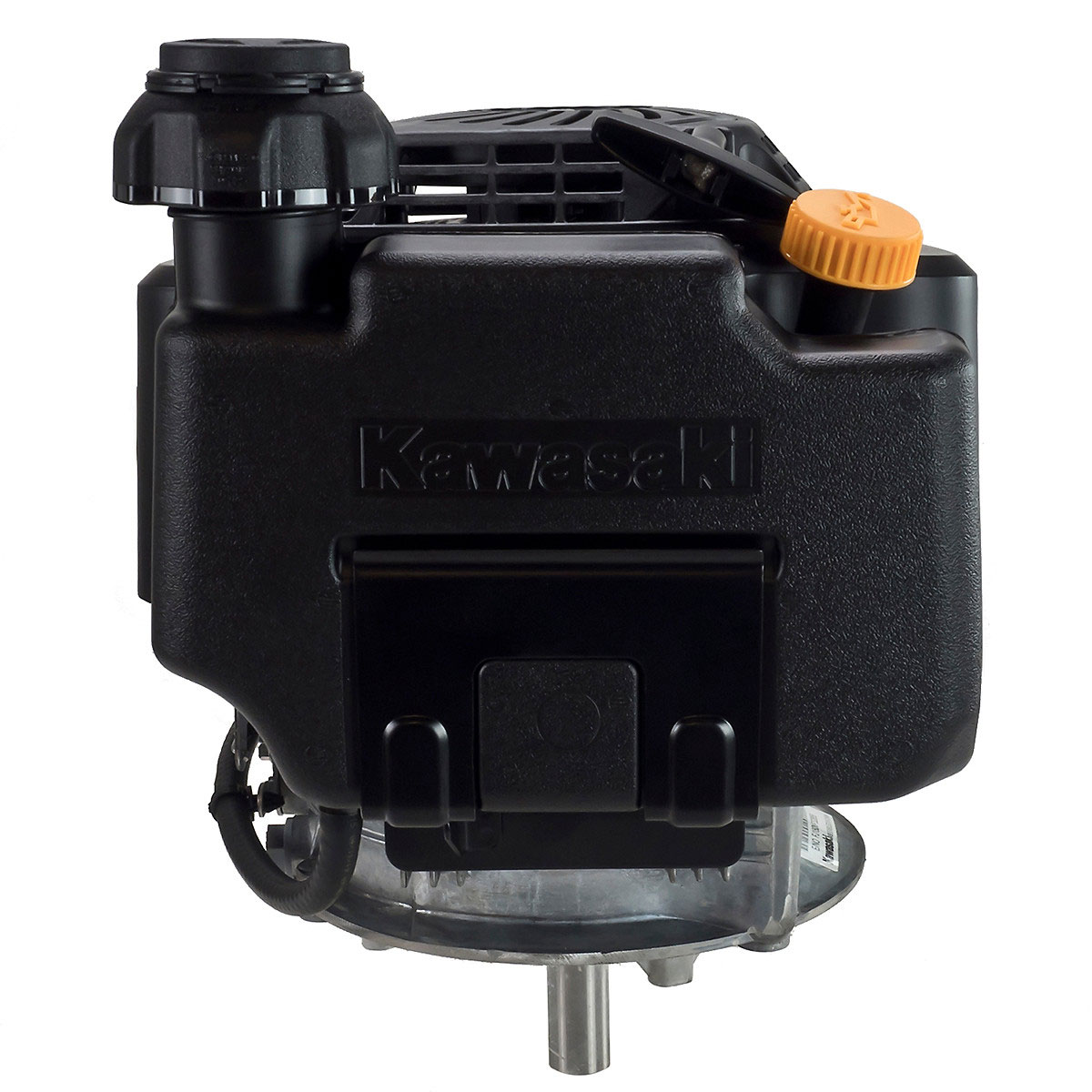

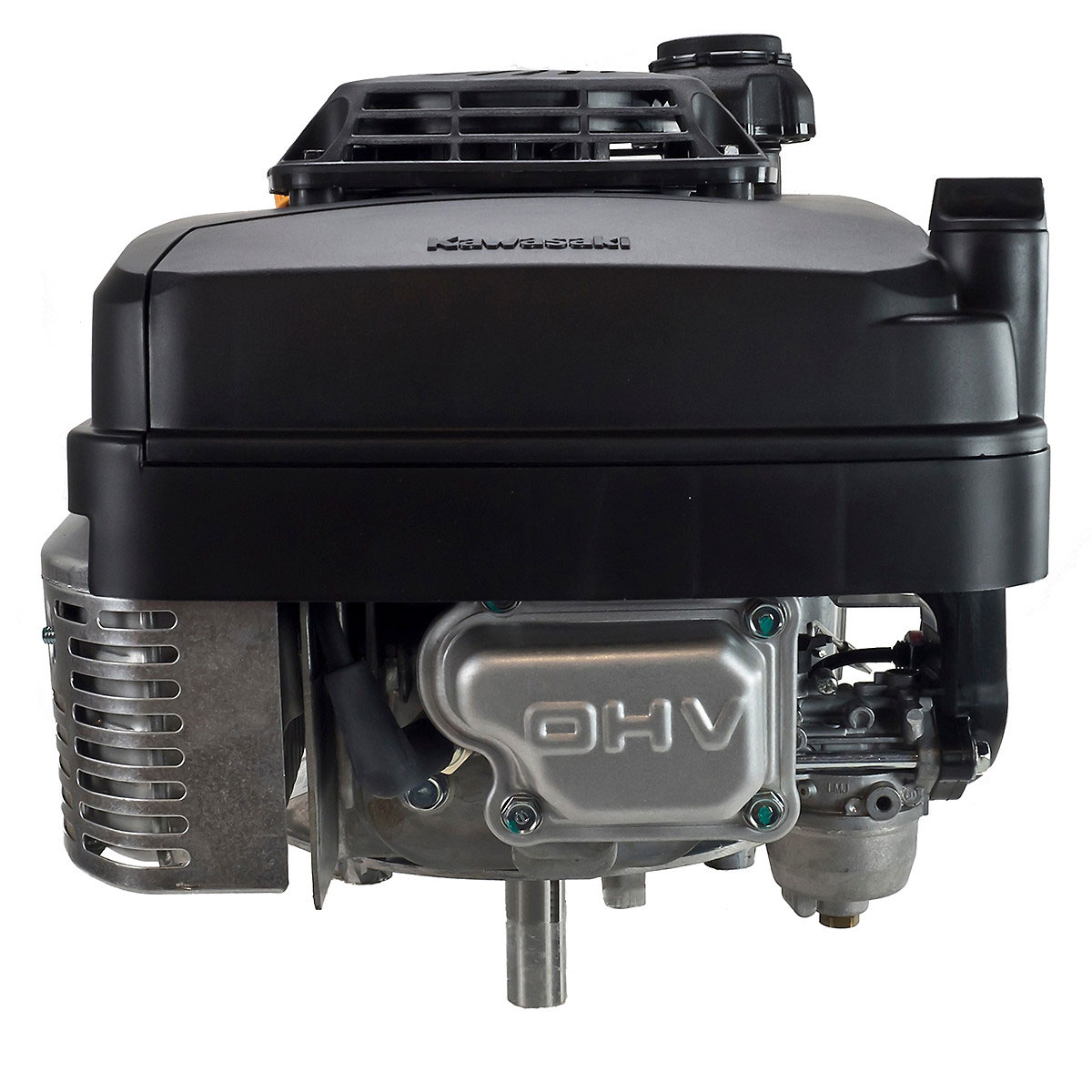

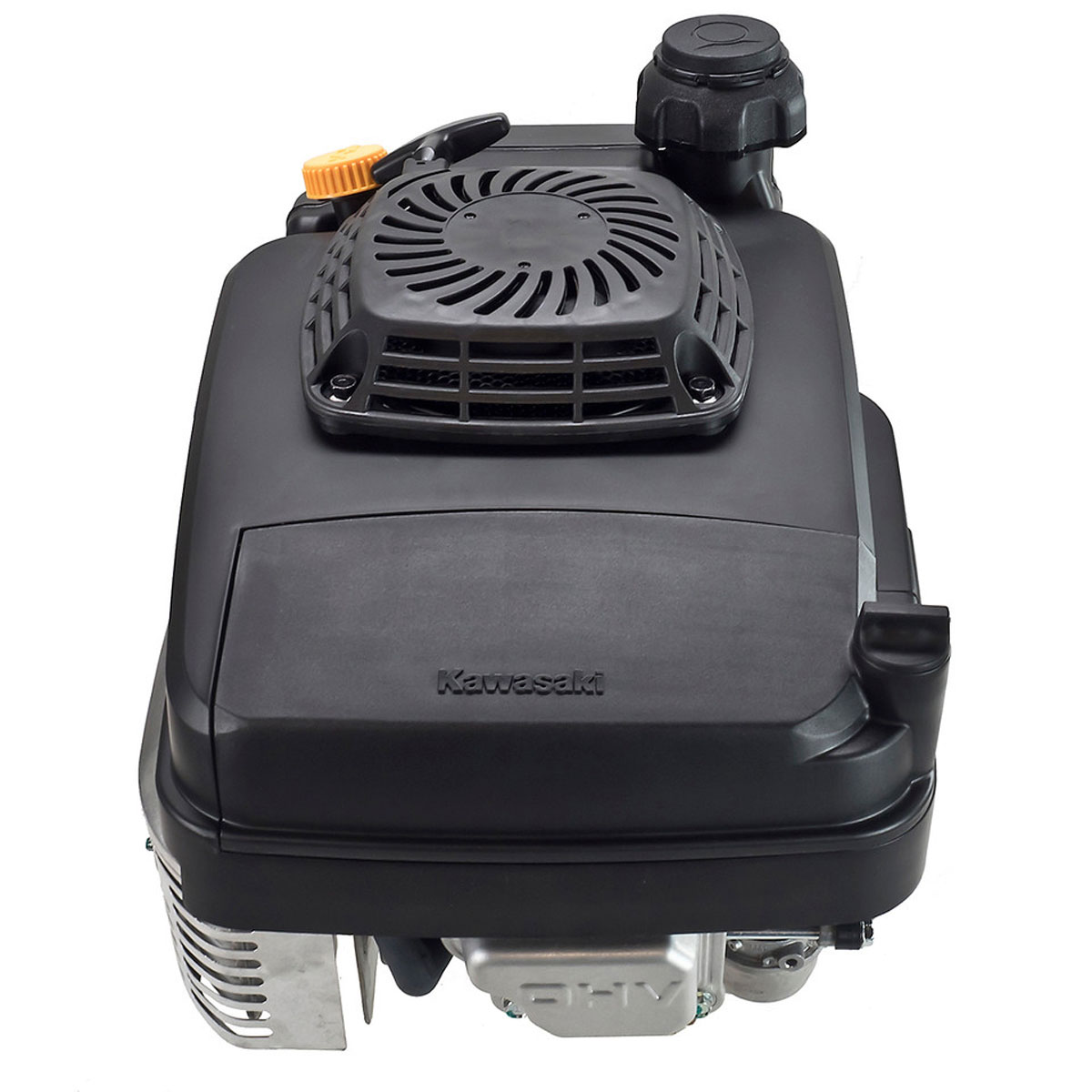

Kawasaki FJ180V-M11 Small Gas Engine Recoil Pull Start
With 25mm X 3-5/32" Vertical Shaft
179cc 6hp FJ Series Motor
Commonly used on Ariens, Billy Goat, Eastman, MTD, and Kawasaki power products. The highest quality guaranteed! We have been in business since 2005, and our engines are fully rebuildable with all parts available. The perfect Kawasaki motor to replace FJ180V.The Kawasaki FJ180V-M11 is perfect for industrial, commercial and residential applications. These premium residential motors have low tone mufflers, mechanical governors and duel element air filters. This convenient, heavy duty and reliable 4 stroke OHV single cylinder engine does the job for many applications. Also, offering a 3-year commercial warranty on these motors. Your order ships quickly with expert turnaround time in our fully stocked warehouse. Packaged with care, Carroll Stream Motor Company provides free shipping. This forced air-cooled 4-cycle engine features an internally vented carburetor, dual element air cleaner, zone start, 1.8L fuel tank, primer, fixed throttle, engine brake and a ball bearing supported crankshaft.
Kawasaki FJ180V-M11 engine is a 4 Stroke OHV single cylinder, which is a 2.6 X 2.1 in stroke. It is a 179cc, 8.7 Ft lbs. gross torque. This Kawasaki small motor is built with quality components and is ready to outlast the competition. Purchase now to take advantage of our free shipping and quick turnaround time. Or, call if you have questions! 888-208-2088, 248-628-4638.
| Specifications | |
|---|---|
| Make | Kawasaki |
| Model | FJ180V-M11 |
| Type | Small Engine |
| Fuel | Gas Unleaded 86 Octane or Higher |
| Engine Type | 4 Stroke OHV Single Cylinder |
| Bore/Stroke | 2.6 X 2.1 in |
| Displacement | 179 cc |
| Max Power | 8.7 Ft Lbs. Gross Torque |
| Starting Type | Recoil Start |
| Starting System | Recoil |
| Dimensions (L x W x H) | 11.75 x 13 x 9.75 in. |
| Exhaust Included | Yes |
| Fuel Tank | Yes |
| Dry Engine Weight | 30 lbs. |
| Shaft Type | Straight |
| Shaft Diameter | 25mm |
| Shaft Length | 3-5/32" Total |
| Shaft I.D. Thread Size | 3/8"-24 Drilled and Tapped |
| Bolt Pattern | 4 Bolt |
| Oil System | Pressure Lubrication |
| Oil Capacity | 20 Fl. oz |
| Reduction Type | None |
| Engine Cooling Type | Forced Air Cooling |
| Features | |
| 3 Year Commercial Warranty | |
| Super Low Tone Muffler | |
| Mechanical Governor | |
| 4 Stroke OHV Small Engine | |
| Duel Element Air Filter | |
| Dipstick in Crankcase | |
| Cross Reference Guide | |
| Kohler: XT800 | |
| Accessories | |
| User Manual | |
Use to Replace Model Numbers:
Please call for questions about what engines this replaces. (888-208-2088, 248-628-4638)
Summary of the FJ180V-M11
The Kawasaki FJ180V-M11 Small Gas Engine is a versatile choice for various industrial, commercial, and residential uses. This single-cylinder engine operates on a 4-stroke OHV (Overhead Valve) system and has a vertical shaft measuring 25mm x 3-5/32". It is widely recognized for its dependable performance and exceptional reliability. With a displacement of 179cc and a power output of 6hp, it is compatible with a range of equipment from renowned brands such as Ariens, Billy Goat, Eastman, MTD, and Kawasaki power products.
Manufactured to meet the most stringent quality criteria, the FJ180V-M11 ensures long-lasting durability and optimal efficiency. For over 15 years, Carroll Stream Motor Company has been supplying these engines, ensuring they can be fully rebuilt with readily accessible spare parts. Serving as an ideal substitute for the FJ180V, this engine guarantees a seamless installation and reliable performance.
The FJ180V-M11 boasts several impressive characteristics. Firstly, it is equipped with a low-tone muffler, ensuring a quieter operation. Secondly, it features a mechanical governor, which guarantees steady performance. Furthermore, the engine is safeguarded by a dual-element air filter, effectively protecting it from dust and debris. The forced air-cooled system, internally vented carburetor, and ball bearing-supported crankshaft all contribute to the engine's durability and operational efficiency. Moreover, this model is user-friendly and easy to maintain, thanks to its zone start, 1.8L fuel tank, primer, fixed throttle, engine brake, and dual-element air cleaner.
Backed by a 3-year commercial warranty, the FJ180V-M11 stands as a testament to Kawasaki's confidence in the engine's reliability and durability. Carroll Stream Motor Company ensures customer satisfaction by offering free shipping and fast turnaround times from our fully stocked warehouse. Each engine is meticulously packaged to ensure it arrives in perfect condition, ready to power your equipment with unmatched reliability and efficiency.
