Kawasaki FJ180V-M09 Vertical 25mm X 3-5/32" Shaft

Price: $550.00
Sale Price: $489.00
No reviews yet Write a Review
‎Free 1–5 day delivery
30.00 LBS

Prop. 65 Warning: This product contains chemicals known to the state of California to cause cancer and birth defects, or other reproductive harm.

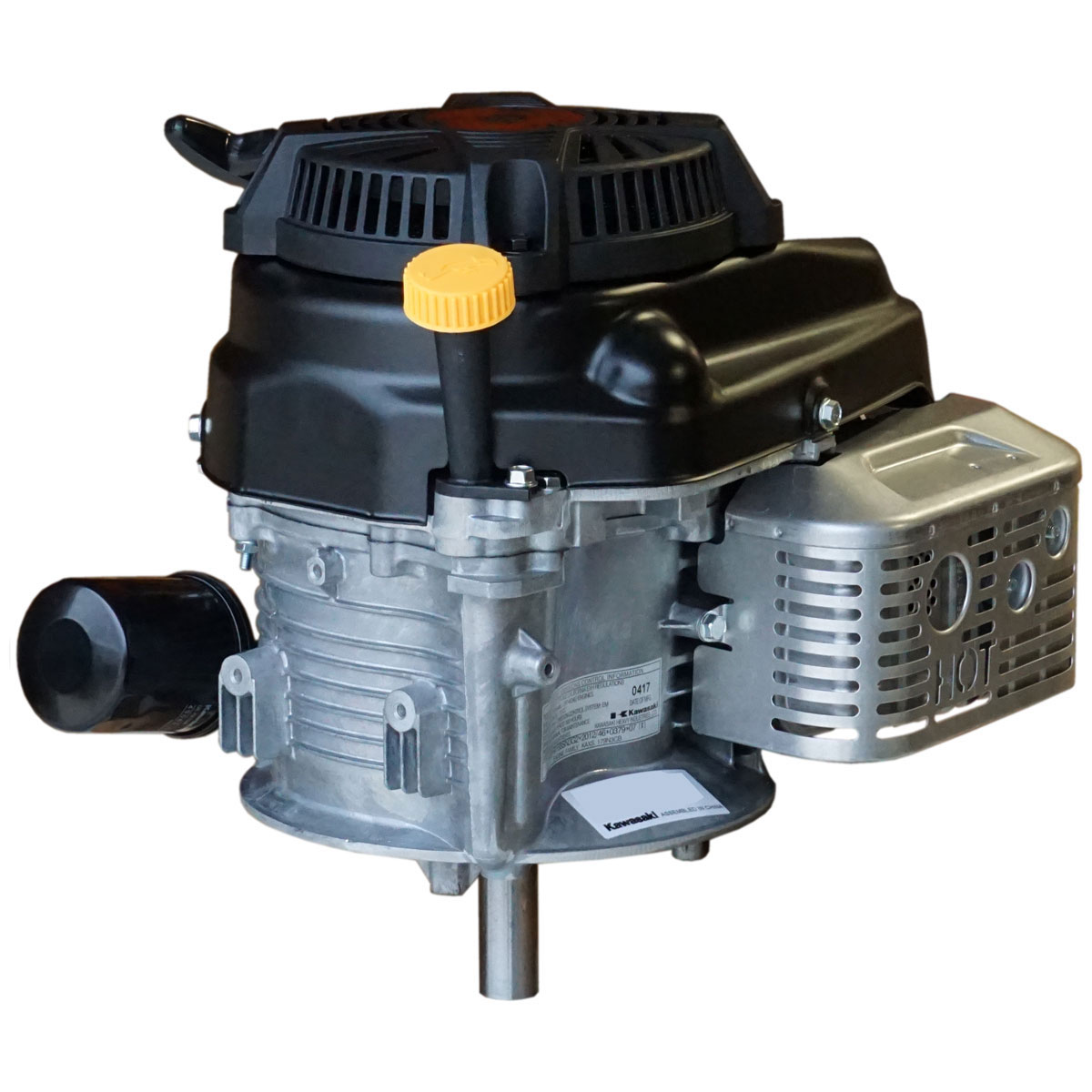

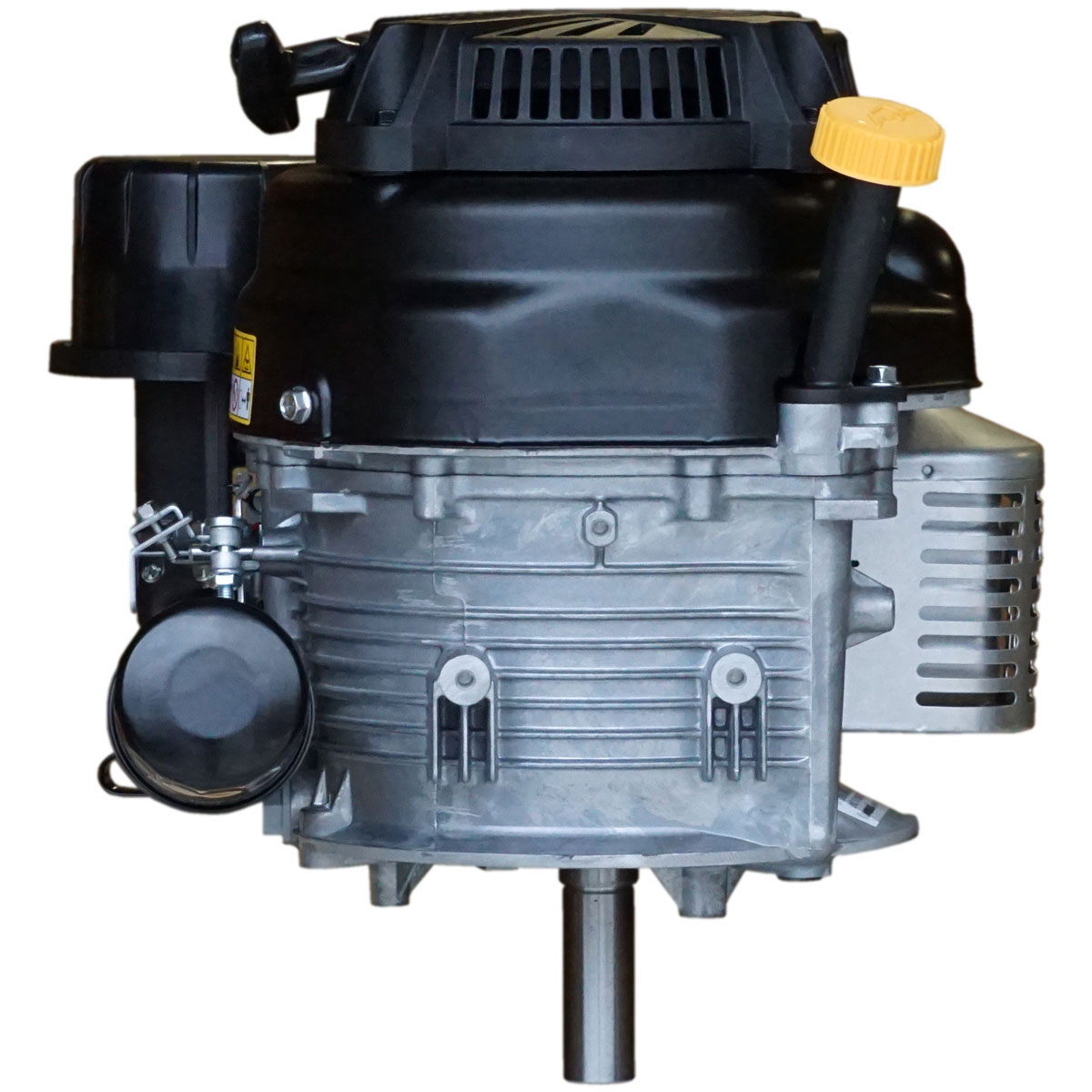

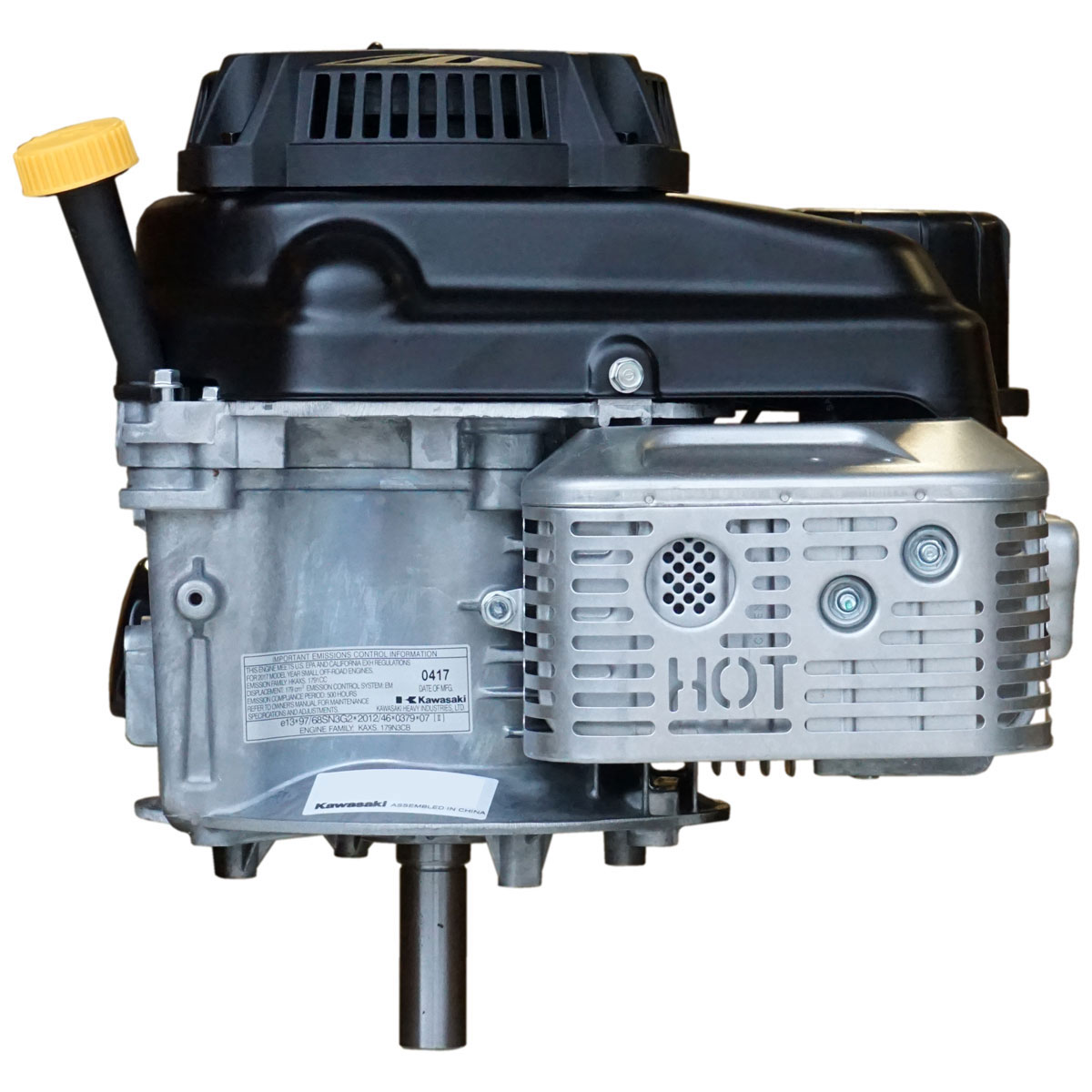

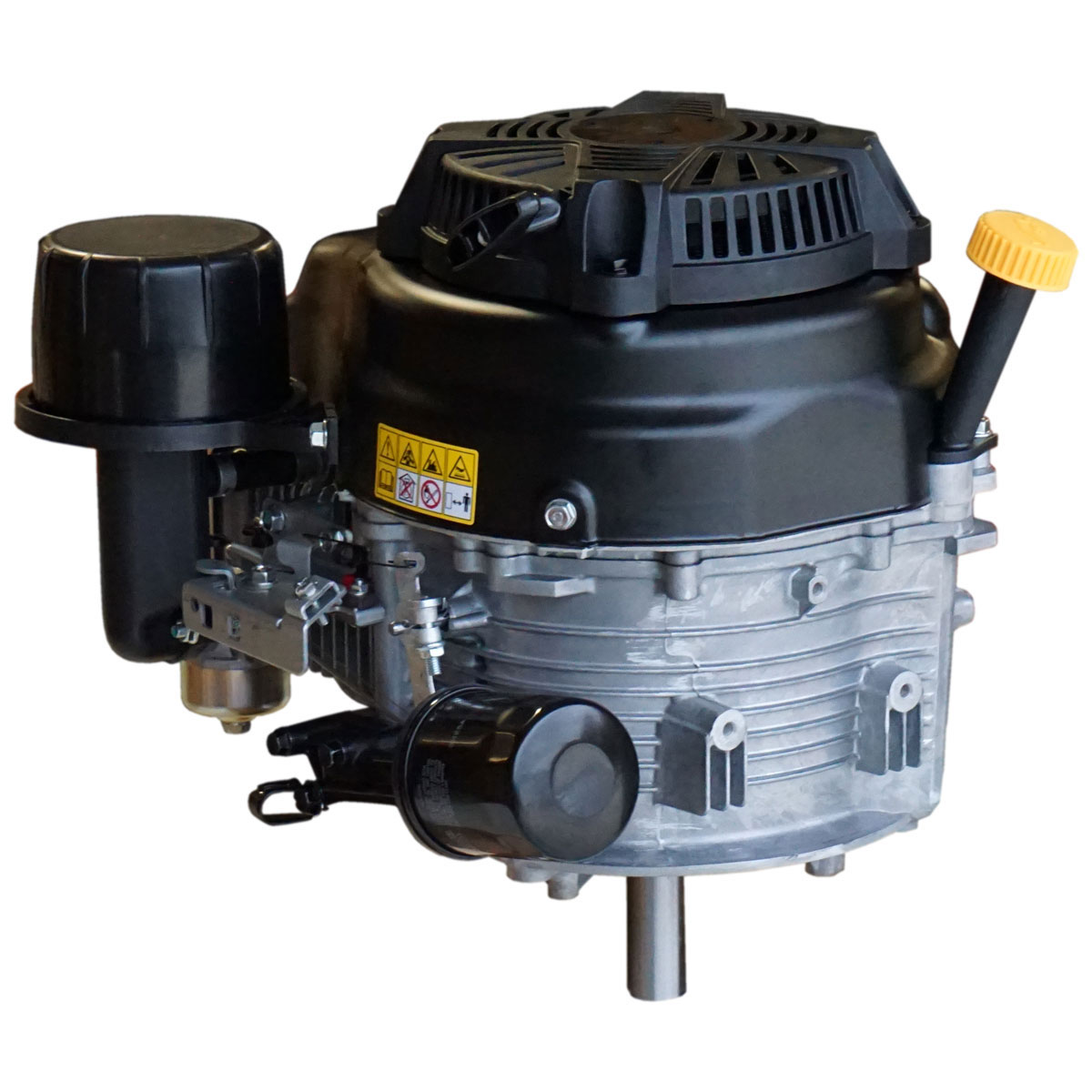

Kawasaki FJ180V-M09 Small Gas Engine Recoil Pull Start

With 25mm X 3-5/32" Vertical Shaft

FJ180V 4-Stroke OHV Small Engine

The highest quality guaranteed! We have been in business since 2005, and our engines are fully rebuildable with all parts available. The perfect Kawasaki motor to replace FJ180V.

The Kawasaki FJ180V-M09 is perfect for industrial, commercial and residential applications. These premium residential motors have low tone mufflers, mechanical governors and duel element air filters. This convenient, heavy duty and reliable 4 stroke OHV single cylinder engine does the job for many applications. Also, offering a 3-year commercial warranty on these motors. Your order ships quickly with expert turnaround time in our fully stocked warehouse. Packaged with care, Carroll Stream Motor Company provides free shipping. This forced air-cooled 4-cycle engine features an internally vented carburetor, dual element air cleaner, zone start, oil filter, KAI, choke, engine brake and a ball bearing supported crankshaft.

This Kawasaki FJ180V-M09 engine is a 4 Stroke OHV single cylinder, which is a 2.6 X 2.1 in in stroke. It is a 179cc, 8.7 Ft lbs. gross torque.

This Kawasaki small motor is built with quality components and is ready to outlast the competition. Purchase now to take advantage of our free shipping and quick turnaround time. Or, call if you have questions! 888-208-2088, 248-628-4638.

Make Kawasaki
Model FJ180V-M09
Type Small Engine
Fuel Gas Unleaded 86 Octane or Higher
Engine Type 4 Stroke OHV Single Cylinder
Bore/Stroke 2.6 X 2.1 in
Displacement 179 cc
Max Power 8.7 Ft Lbs. Gross Torque
Starting Type Recoil Start
Starting System Recoil
Dimensions (L x W x H) 11.75 x 13 x 9.75 in.
Exhaust Included Yes
Fuel Tank No
Dry Engine Weight 30 lbs.
Shaft Type Straight
Shaft Diameter 25mm
Shaft Length 3-5/32" Total
Shaft I.D. Thread Size 3/8"-24 Drilled and Tapped
Bolt Pattern 4 Bolt
Oil System Pressure Lubrication
Oil Capacity 20 Fl. oz
Reduction Type None
Engine Cooling Type Forced Air Cooling
3 Year Commercial Warranty
Super Low Tone Muffler
Mechanical Governor
4 Stroke OHV Small Engine
Duel Element Air Filter
Dipstick in Crankcase
Cross Reference Guide
Kohler: XT800
User Manual

Use to Replace Model Numbers:

FJ180V-AM09-S / FJ180V-BM09
FJ180V-M21, FJ180V-S15, FJ180V-S33, FJ180V-S40

Please call for questions about what engines this replaces. (888-208-2088, 248-628-4638)

Any cross-reference is provided as a courtesy. You will be responsible for making sure the part number we are providing will fit your application. If you are unsure, please contact us before purchasing for help. Please have your model and serial number available.

Summary of the FJ180V M09

The Kawasaki FJ180V-M09 Small Gas Engine is an excellent option for a wide range of applications, including industrial, commercial, and residential use. It has been specifically designed to prioritize reliability and efficiency, making it a highly dependable choice. This engine operates on a 4-stroke OHV (Overhead Valve) single-cylinder system, ensuring powerful performance and long-lasting durability. With its 25mm x 3-5/32" vertical shaft, it is perfectly suited to meet the diverse equipment requirements.

This motor is engineered to seamlessly replace the FJ180V, providing top-notch quality and durability. It comes with fully rebuildable components and easily accessible parts. The FJ180V-M09 boasts a low-tone muffler for quieter operation, a mechanical governor for consistent performance, and a dual-element air filter for enhanced engine protection. Its forced air-cooled system, internally vented carburetor, and ball bearing-supported crankshaft all work together to ensure longevity and efficiency.

In addition to the aforementioned advantages, customers can also enjoy a 3-year commercial warranty, which serves as a testament to the manufacturer's unwavering trust in the engine's long-lasting performance and dependability. Moreover, the FJ180V-M09 model is equipped with zone start, an oil filter, KAI, choke, and engine brake, all of which contribute to its user-friendly nature and simplified maintenance process.

The FJ180V-M09 is equipped with a 179cc engine that produces 8.7 ft-lbs of gross torque, providing ample power for a wide range of uses. Its stroke measures 2.6 x 2.1 inches, ensuring top-notch performance.
