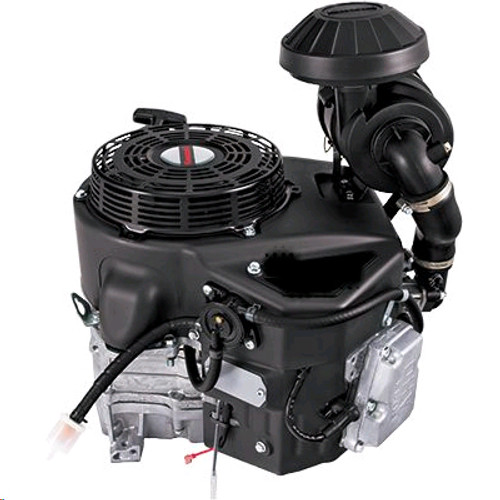

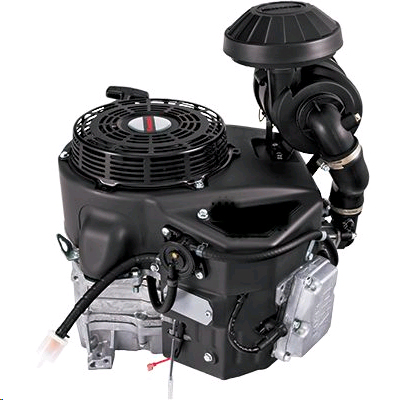

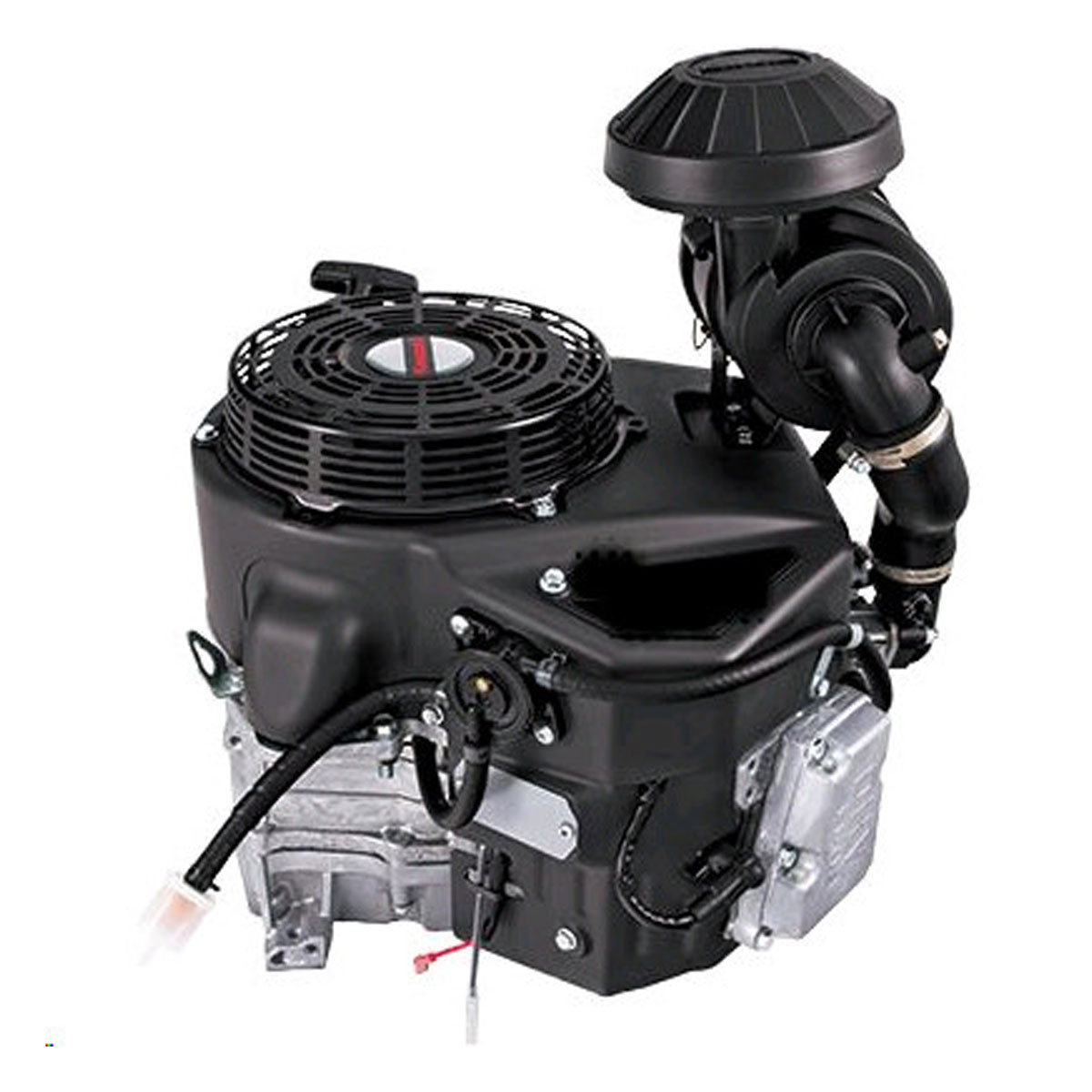

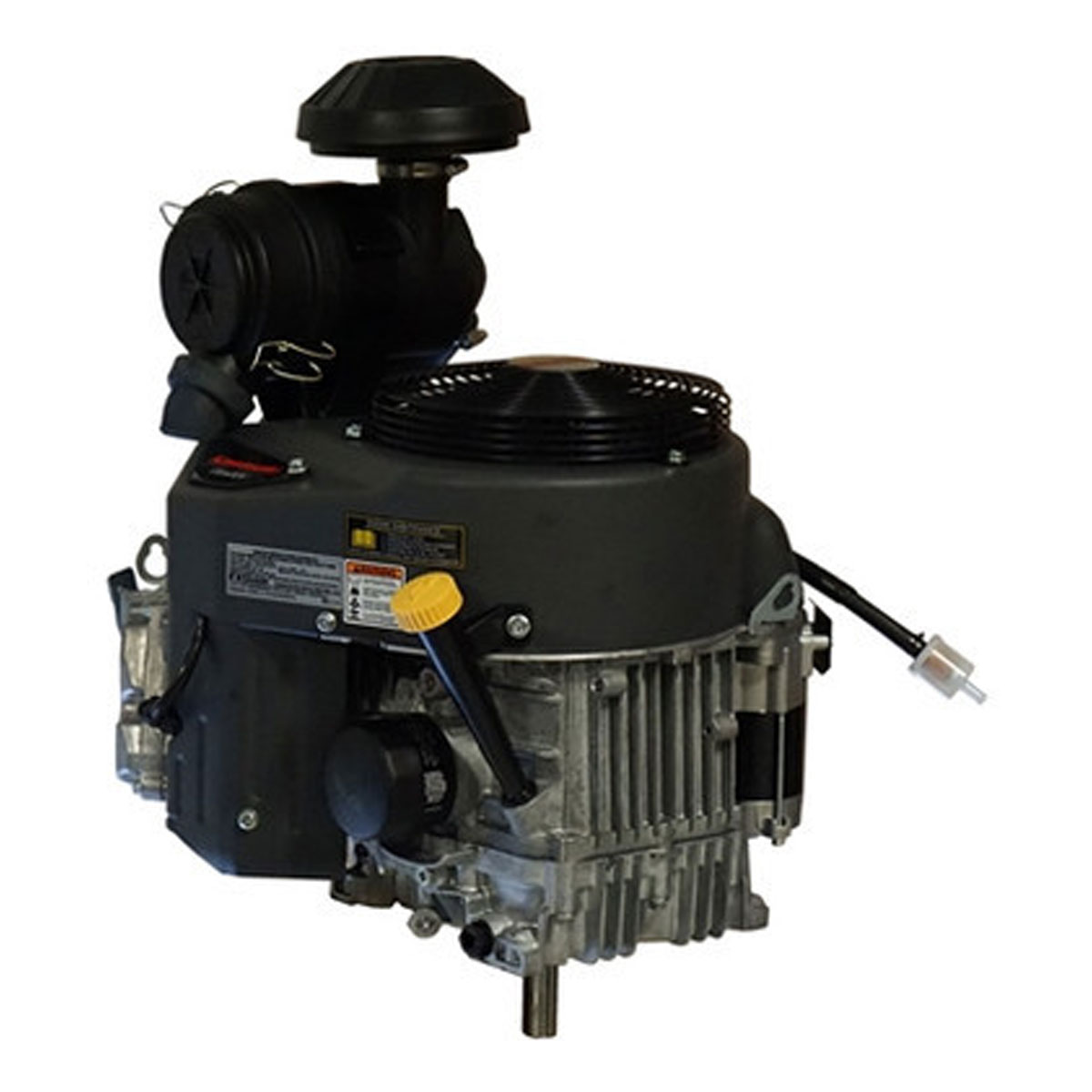

Kawasaki FX600V-S01 Small Gas Engine Recoil Pull Start
With 1" Diameter, 1/4" Keyway Shaft
In Stock! Same day Shipping!
Commonly used on Ariens, Billy Goat, Eastman, MTD, and Kawasaki power products. The highest quality guaranteed! We have been in business since 2005, and our engines are fully rebuildable with all parts available. The perfect Kawasaki motor to replace FS600V. Direct replacement for FX481V, FS481V, FX541V, FS541V, FX600V, and FS600V.The Kawasaki FX600V-S01 is perfect for industrial, commercial and residential applications. Perfect for walk behind mowers. These premium residential motors have low tone mufflers, mechanical governors and duel element air filters. This convenient, heavy duty and reliable 4 stroke OHV twin cylinder engine does the job for many applications. Also, offering a 3-year commercial warranty on these motors. Your order ships quickly with expert turnaround time in our fully stocked warehouse. Packaged with care, Carroll Stream Motor Company provides free shipping. This forced air-cooled 4-cycle engine features an internally vented carburetor, dual element air cleaner and zone start.
This Kawasaki FX600V-S01 19 HP gas engine, recoil start, clutch coil and heavy duty air filtration system. Used on Toro, Exmark, Scag, Bad Boy, KMC, Ariens, Excel, MTD, Dixie Chopper, and many others.
This Kawasaki small motor is built with quality components and is ready to outlast the competition. Purchase now to take advantage of our free shipping and quick turnaround time. Or, call if you have questions! 888-208-2088, 248-628-4638
| Specifications | |
|---|---|
| Make | Kawasaki |
| Model | FX600V-S01 |
| Type | Small Engine |
| Fuel | Gas Unleaded 86 Octane or Higher |
| Engine Type | 4 Stroke OHV Twin Cylinder |
| Bore/Stroke | 2.9 X 2.8 in |
| Displacement | 603cc |
| Max Power | 19 HP |
| Starting Type | Recoil Start |
| Charging Coil | Clutch Coil |
| Starting System | Recoil |
| Dimensions (L x W x H) | 19.25 x 18.25 x 24.75 in. |
| Exhaust Included | No |
| Fuel Tank | No |
| Dry Engine Weight | 90lbs. |
| Shaft Type | Keyed - Straight |
| Shaft Diameter | 1" Diameter, 1/4" Keyway |
| Shaft Length | 3-5/32" Total |
| Shaft I.D. Thread Size | 7/16"-20 Drilled and Tapped |
| Bolt Pattern | 4 Bolt |
| Oil System | Pressurized with oil filter |
| Oil Capacity | 2.2 Qts |
| Oil Cooler | High Efficiency |
| Reduction Type | None |
| Engine Cooling Type | Forced Air Cooling |
| Features | |
| 3 Year Consumer Warranty | |
| 3 Year Commercial Warranty | |
| Mechanical Governor | |
| 4 Stroke OHV Small Engine | |
| Heavy Duty Canister Filtration | |
| Dipstick in Crankcase | |
| Cross Reference Guide | |
| Kohler: CV680 | |
| Accessories | |
| User Manual | |
Use to Replace Model Numbers:
FX600V-S01, FX600V-AS01, FX600V-BS01, FX600V-CS01, FX600V-DS01, FX600V-DS01S, FX600V-ES01, FX600V-ES01S
FX600V-S10, FX600V-AS10, FX600V-BS10
FX600V-S11, FX600V-AS11, FX600V-BS11
More about the FX600V-S01
The Kawasaki FX600V-S01 engine is a highly recommended option for a wide variety of uses in the industrial, commercial, and residential sectors. It boasts impressive power and reliability, making it an excellent choice. With its recoil pull start and a 1" diameter shaft featuring a 1/4" keyway, this engine is designed to seamlessly fit with popular brands like Ariens, Billy Goat, Eastman, MTD, and Kawasaki power products. Renowned for its exceptional build quality, the FX600V-S01 is an ideal replacement for models such as the FX481V, FS481V, FX541V, FS541V, FX600V, and FS600V.
The Kawasaki FX600V-S01 is specifically engineered to meet the high standards required for a wide range of applications. It excels in walk-behind mowers, offering reliable performance thanks to its 4-stroke OHV twin-cylinder design. With a low-tone muffler, it operates quietly, ensuring a peaceful environment. The mechanical governor ensures that the engine maintains an optimal speed at all times. Additionally, the dual-element air filter enhances the durability and longevity of the engine by providing exceptional air filtration, which is essential for preserving engine health in dusty conditions.
This motor can be completely rebuilt, with all components easily accessible, guaranteeing long-lasting service and worth. Since 2005, our dedication has been to offer top-notch motors, supported by a strong 3-year commercial guarantee, highlighting our trust in the product's resilience and effectiveness. The FX600V-S01 is also equipped with a forced air-cooled system and an internally vented carburetor, aimed at optimizing efficiency and lifespan.
At Carroll Stream Motor Company, we take great pride in our efficient and expedited shipping service. Our fully stocked warehouse enables us to provide same-day shipping, ensuring that you receive your engine promptly. Each order is meticulously packaged with utmost care to guarantee its arrival in impeccable condition. Moreover, we offer free shipping, further simplifying the process of acquiring the top-notch Kawasaki FX600V-S01 engine that meets your requirements.
