Kawasaki FH680V-S28 Vertical 1" X 80mm Shaft

Price: $2,579.00
Sale Price: $2,389.00
No reviews yet Write a Review
‎Free 1–5 day delivery
105.00 LBS

Prop. 65 Warning: This product contains chemicals known to the state of California to cause cancer and birth defects, or other reproductive harm.

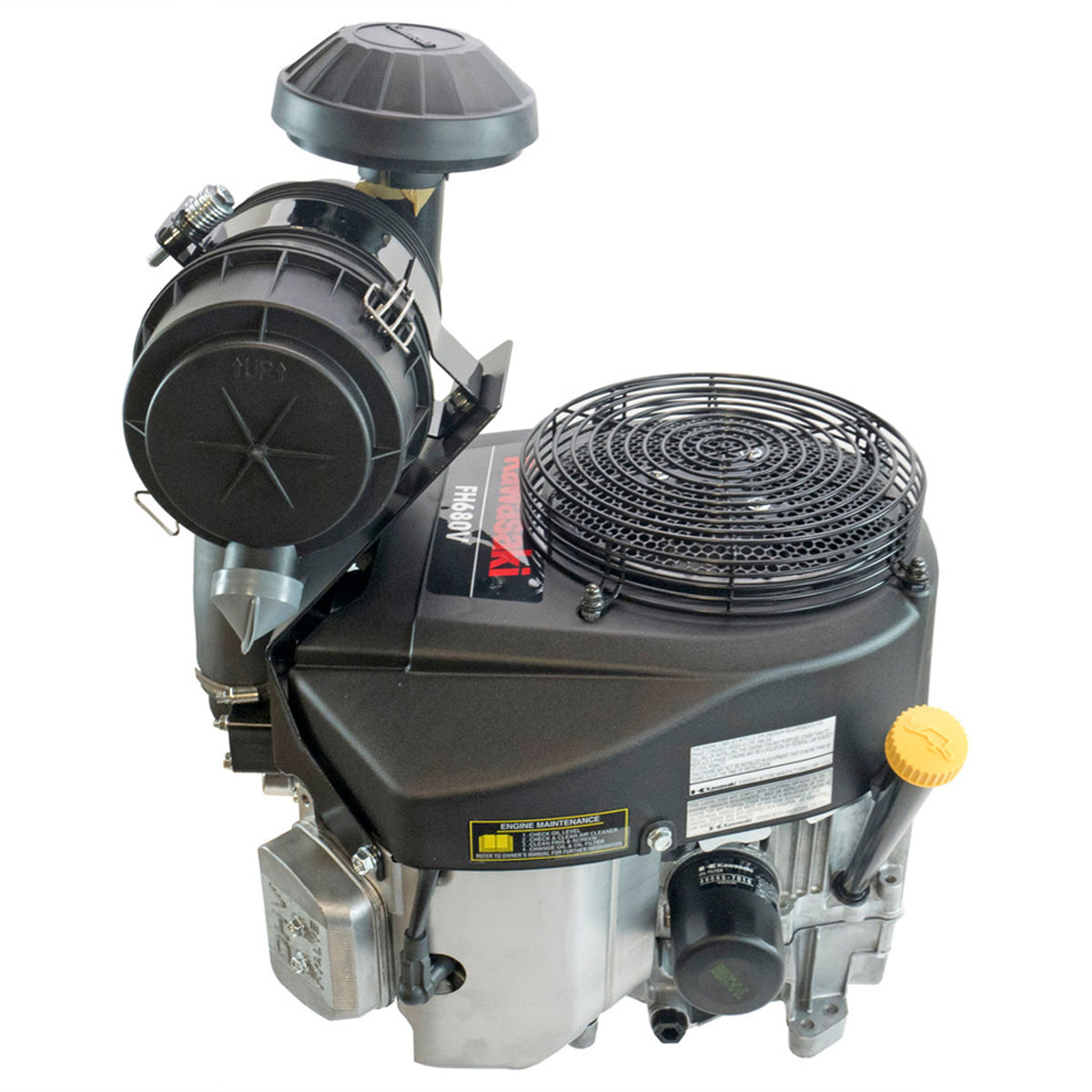

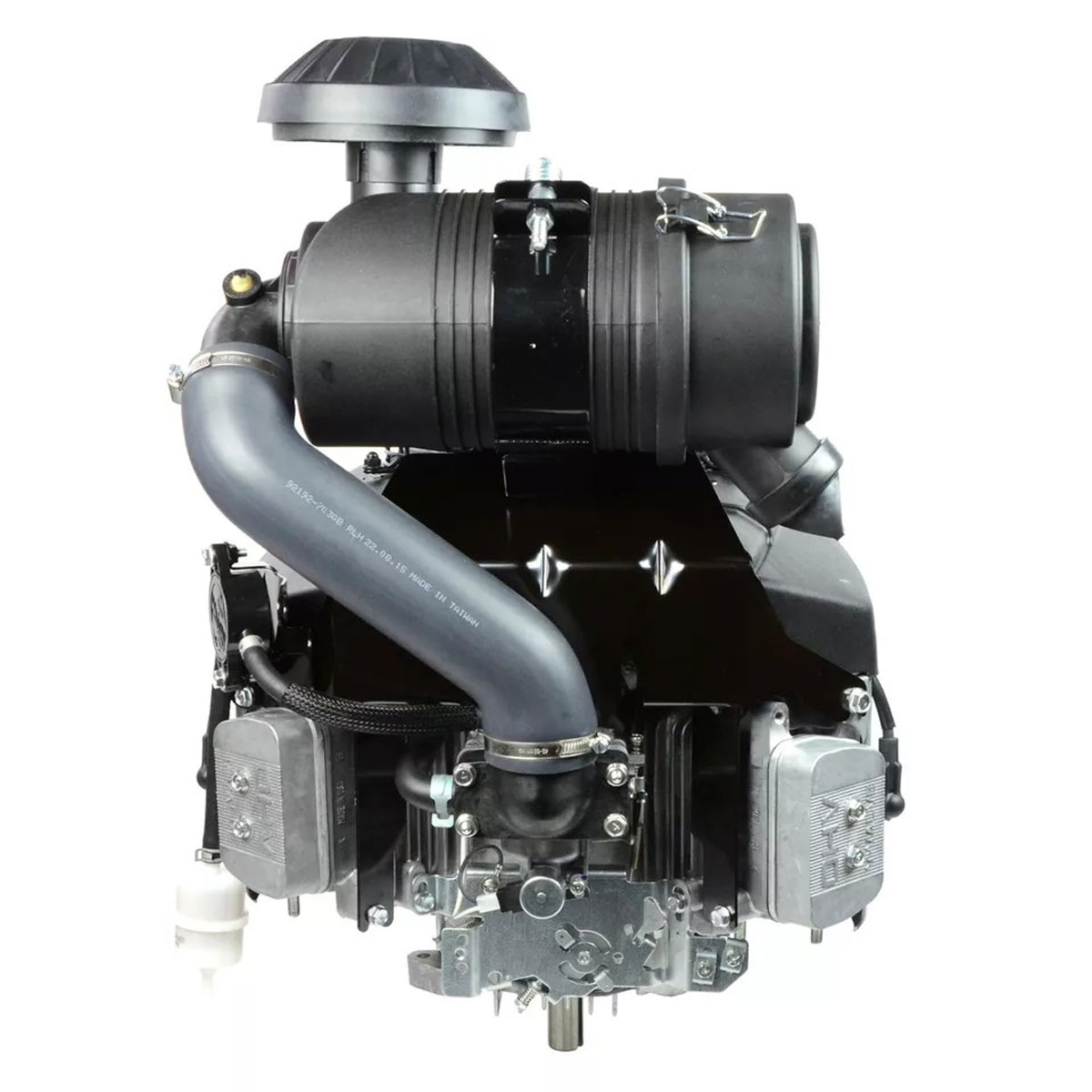

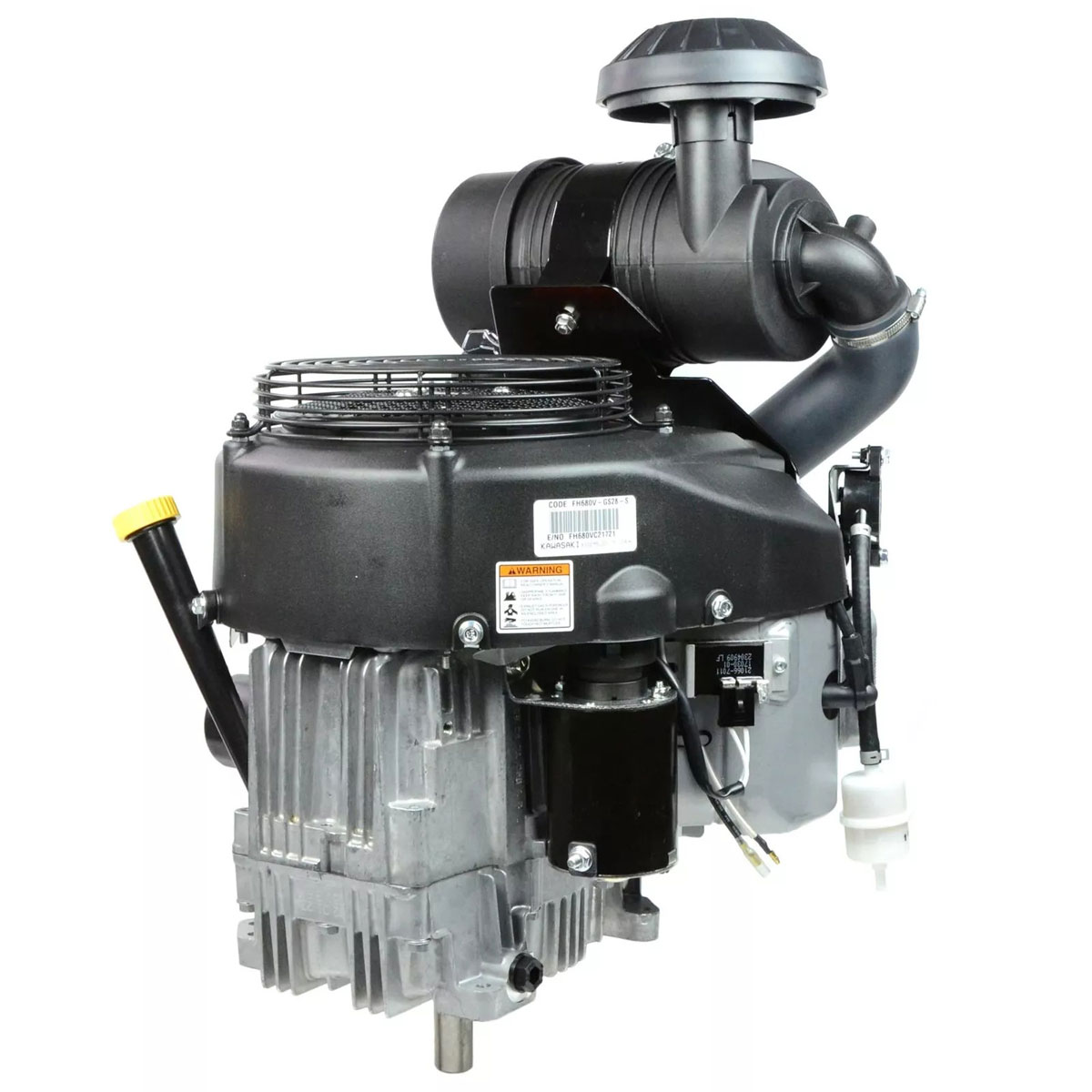

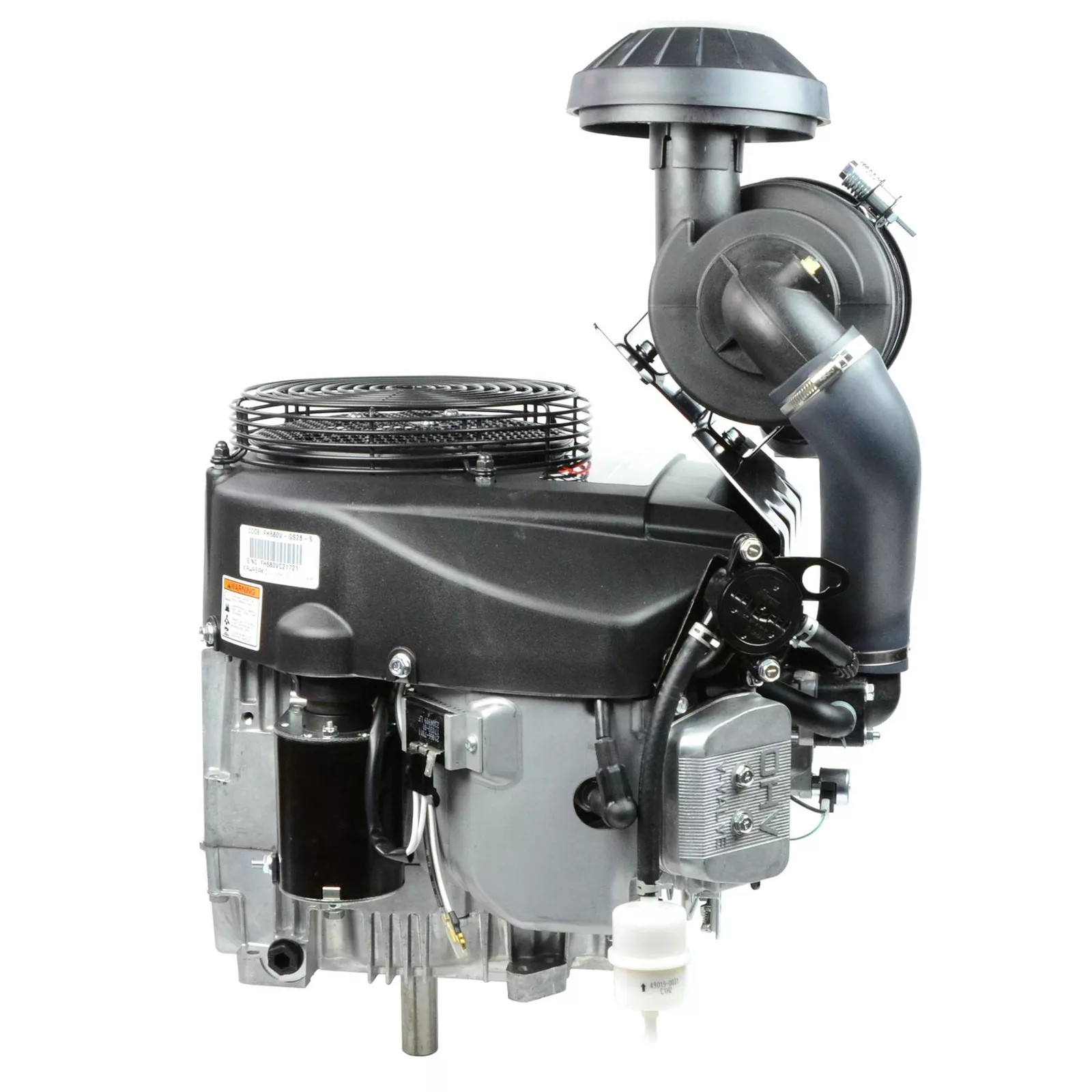

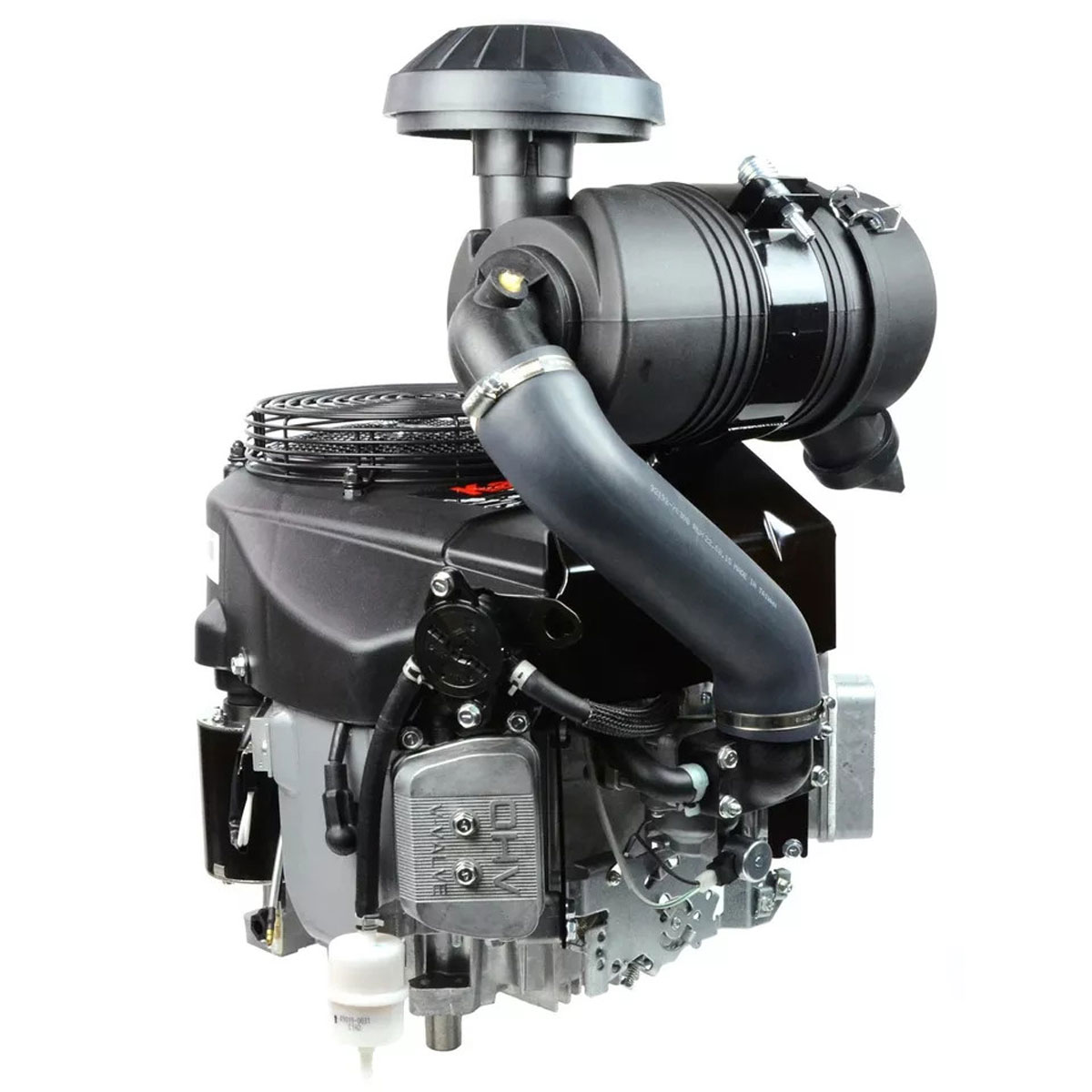

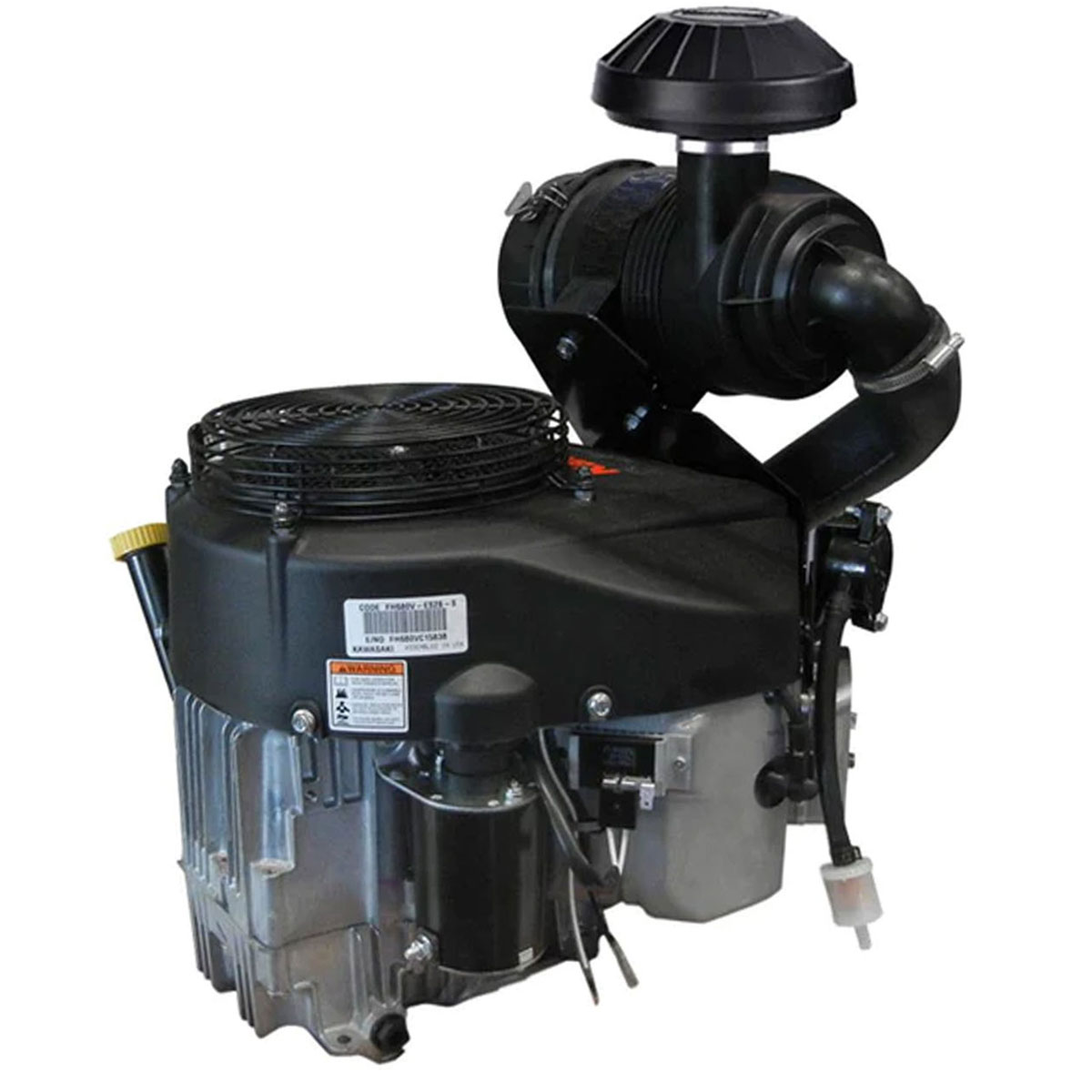

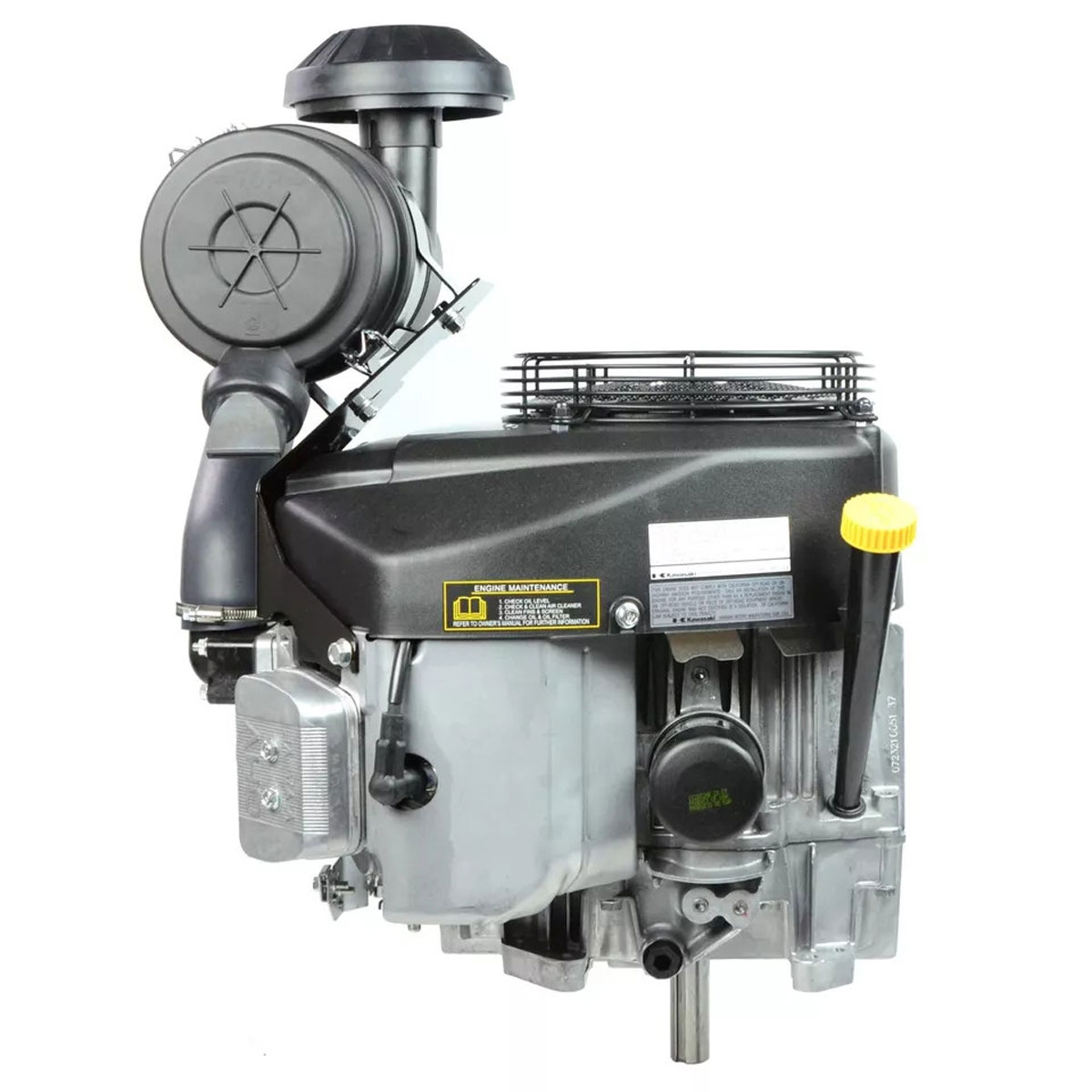

Kawasaki FH680V-S28 23hp Gas Engine

With 1" X 80mm Vertical Shaft

* IN-STOCK NOW!! The FH721V-S13 is also an option. Please check specs.


The FH680V-S28 Is one of the toughest replacement engines on the market with its wide variety of uses in zero-turn mowers, lawn and garden tractors and walk-behind mowers. It is SAE certified and built to handle the toughest terrains and the toughest conditions. The FH680V-S28 Kawasaki motor also offers a guaranteed 3 year consumer or commercial warranty on all parts and labor.

The Kawasaki 23 HP FH680V-S28 gas engine is powerful, heavy duty, and built to handle years of rugged use. Order now to take advantage of our competitive prices with fast free shipping on all orders over $100 and give us a call at 888-208-2088, 248-628-4638 to speak with our Kawasaki Gold team of experts that are able to help you with all your Kawasaki needs.

The Kawasaki FH680V-S28 engine is a direct replacement for many brands such as Scag Tiger Cub, Toro, Exmark, Scag, Bad Boy, Auburn Consolidated, KMC, Ariens, Excel, MTD, Dixie Chopper, Husqvarna, CHP, Little Wonder, Ferris and many others.

No Sales to California


Make Kawasaki
Model FH680V-S28
Type Small Engine
Fuel Gas Unleaded 86 Octane or Higher
Engine Type 4 Stroke OHV Twin Cylinder
Bore/Stroke 3.0 X 3.0 in
Displacement 675 cc
Max Torque 41.2 FT. Lbs
Starting Type Electric Start
Charging Coil 15 Amp
Starting System Electric Shift Starter
Dimensions (L x W x H) 18 x 17 x 24 in.
Exhaust Included No
Fuel Tank No
Dry Engine Weight 105lbs.
Shaft Type Keyed - Straight
Shaft Diameter 1" Diameter, 1/4" Keyway
Shaft Length 3-5/32" Total
Shaft I.D. Thread Size 7/16"-20 Drilled and Tapped
Bolt Pattern 4 Bolt
Oil System Pressurized with oil filter
Oil Capacity 2.0 Qts
Oil Cooler High Efficiency
Reduction Type None
Engine Cooling Type Forced Air Cooling
3 Year Consumer Warranty
3 Year Commercial Warranty
Mechanical Governor
4 Stroke OHV Small Engine
Heavy Duty Air Filter
Dipstick in Crankcase
Cross Reference Guide
Kohler: CV750
User Manual

The FH680V-S28 by Kawasaki is a robust and versatile 23 horsepower gas engine designed to meet the demanding needs of professional landscapers and homeowners. Featuring a 1" x 80mm vertical shaft, this engine is well-suited for a range of applications including zero-turn mowers, lawn and garden tractors, and walk-behind mowers. In addition to the availability of this model, the FH721V-S13 is also available as an alternative option, so it is advisable to carefully examine the specifications for suitability.

The FH680V-S28 ensures maximum efficiency for your machinery, providing exceptional power and performance in even the toughest environments. Engineered to withstand heavy use, this motor is not only SAE certified but also tailored to handle tough jobs and rough terrain. Enjoy peace of mind with a complete 3-year warranty that includes coverage for all components and labor.

The Kawasaki FH680V-S28 is ideal for a variety of outdoor power equipment uses. It is specially crafted to enhance the efficiency of zero-turn mowers, ensure seamless operation of lawn and garden tractors, and boost the durability and strength of walk-behind mowers. To optimize your equipment, make sure to purchase the Kawasaki FH680V-S28 23HP gas engine without delay. This will help guarantee that your machinery operates at its maximum potential. For additional specifications and compatibility details, or to explore the FH721V-S13, feel free to reach out.

Use to Replace Model Numbers:

FH601V-S05: SAS05, BS05, CS05, DS05 / FH601V-S07: AS07 / FH601V-S10: AS10, BS10, CS10 / FH601V-S14: AS14, BS14, CS14, DS14, ES14, FS14 / FH601V-S17: AS17, BS17, CS17 / FH601V-S18: AS18. BS18, CS18, DS18 / FH601V-S20: AS20, BS20, CS20, DS20, ES20 / FH601V-S23: AS23, BS23, CS23, DS23 / FH601V-S26: AS26, BS26, CS26, DS26, ES26 / FH601V-S30: AS30 / FH601V-S31: AS31, BS31, FH641V-S04: AS04, BS04, CS04, DS04 / FH641V-S06: AS06, BS06, CS06, DS06, ES06, FS06, GS06, HS06 / FH641V-S08: AS08, BS08, CS08, DS08, ES08 / FH641V-S10: AS10, BS10, CS10, DS10 / FH641V-S12: AS12, BS12, CS12, DS12, ES12 / FH641V-S16: AS16, BS16 / FH641V-S17: AS17, BS17, CS17, DS17, ES17 / FH641V-S19: AS19, BS19, CS19, DS19, ES19 / FH641V-S24: AS24, BS24, CS24, DS24, ES24 / FH641V-S28: AS28, BS28, CS28, DS28
FH680V-S10: AS10, BS10, CS10, DS10, ES10, FS10
FH680V-S13: AS13, BS13, CS13, DS13, ES13, FS13, GS13
FH680V-S14: AS14, BS14, CS14, DS14
FH680V-S21: AS21, BS21, CS21, DS21, ES21
FH680V-S22: AS22, BS22, CS22, DS22, ES22
FH680V-S25: AS25, BS25, CS25, DS25, ES25
FH680V-S28: AS28, BS28, CS28, DS28, ES28
FH680V-S37: AS37
FH680V-S40: AS40

Please call for questions about what engines this replaces. (888-208-2088, 248-628-4638)

Any cross-reference is provided as a courtesy. You will be responsible for making sure the part number we are providing will fit your application. If you are unsure, please contact us before purchasing for help. Please have your model and serial number available.
