Kawasaki FH580V-S35 Vertical 1-1/8"(28.575MM) X 3-15/16" (100mm) Shaft

Price: $2,308.00
Sale Price: $2,048.00
No reviews yet Write a Review
Free 1-5 day shipping, and no tax (except MI)
71.00 LBS
15.00 (in)
22.00 (in)
17.00 (in)

Prop. 65 Warning: This product contains chemicals known to the state of California to cause cancer and birth defects, or other reproductive harm.

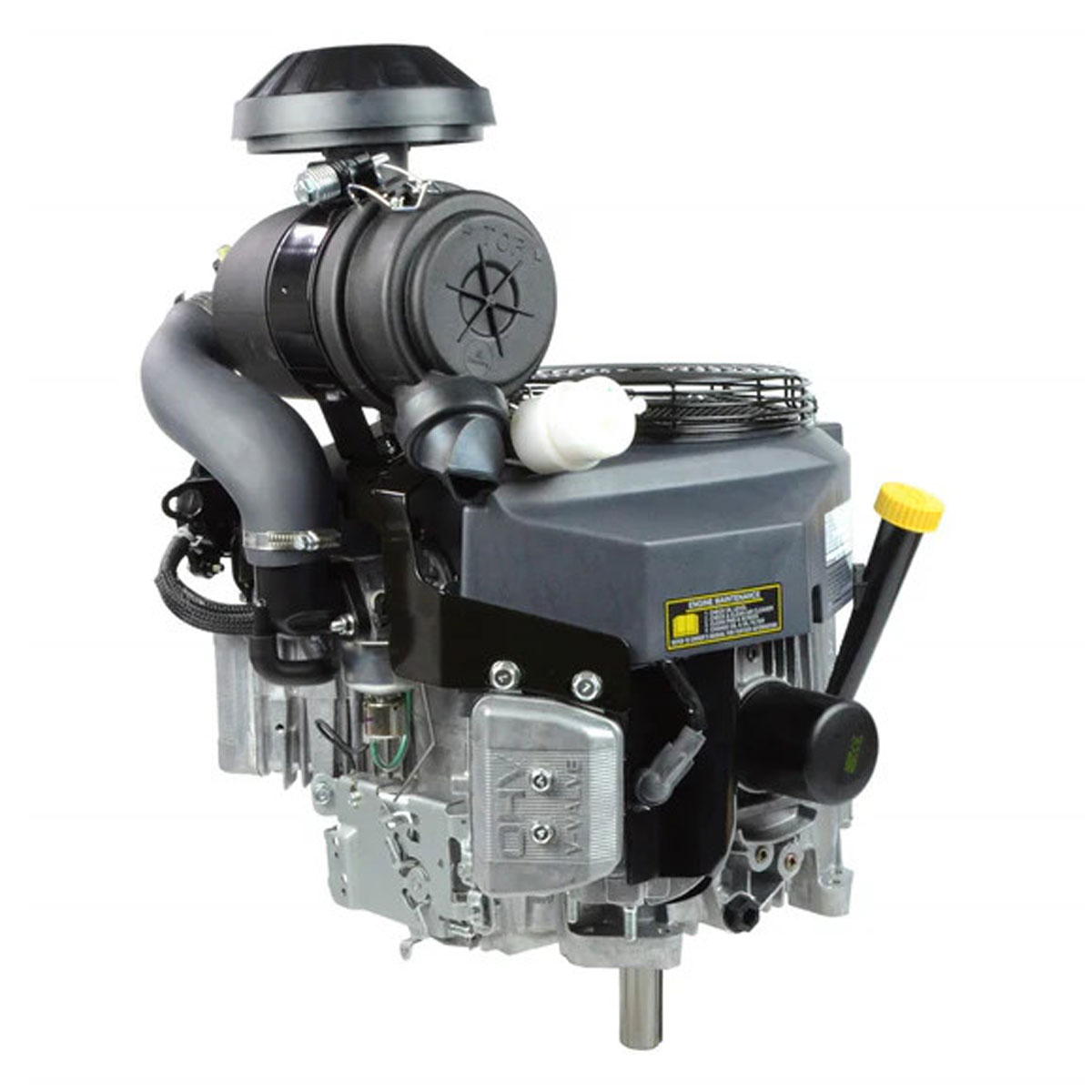

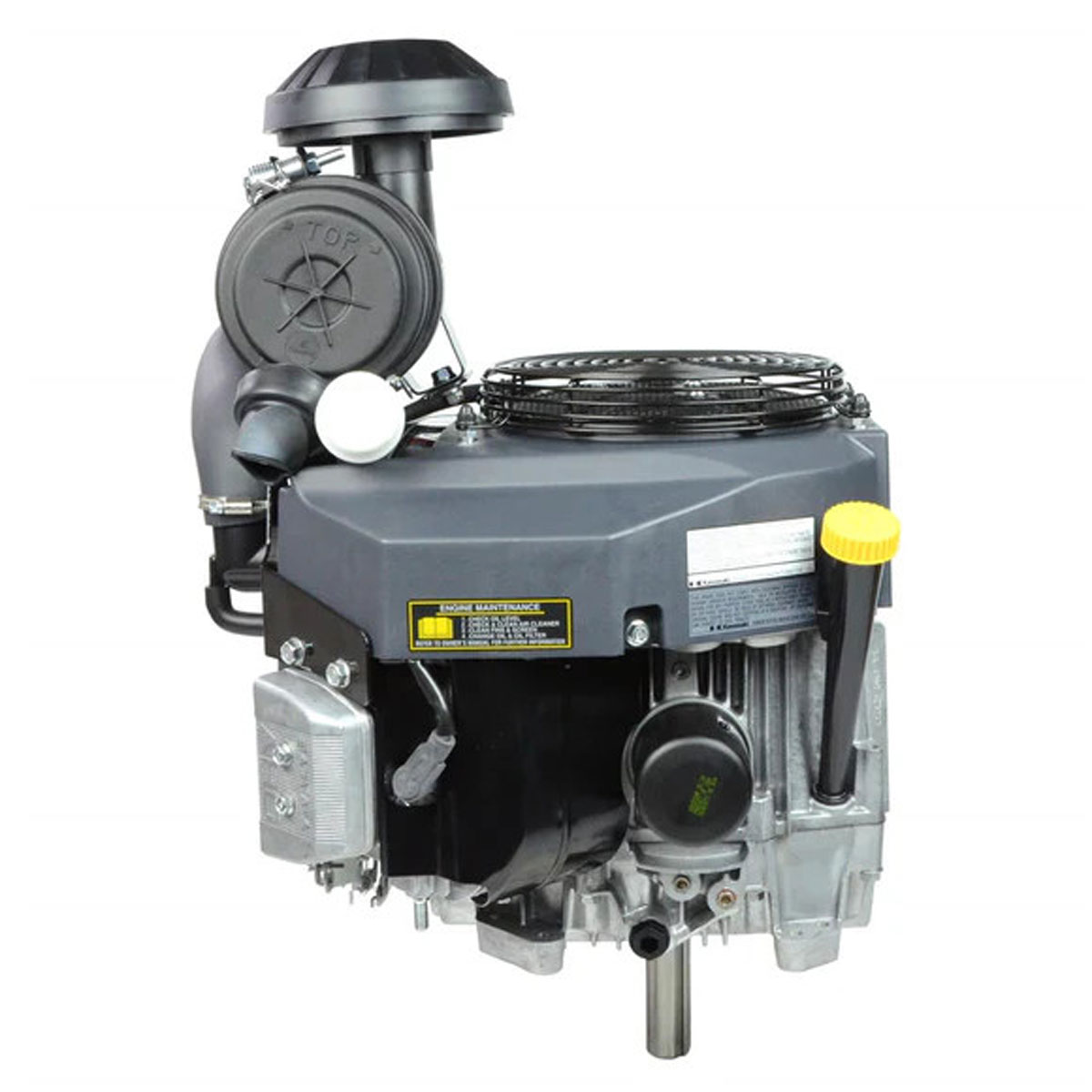

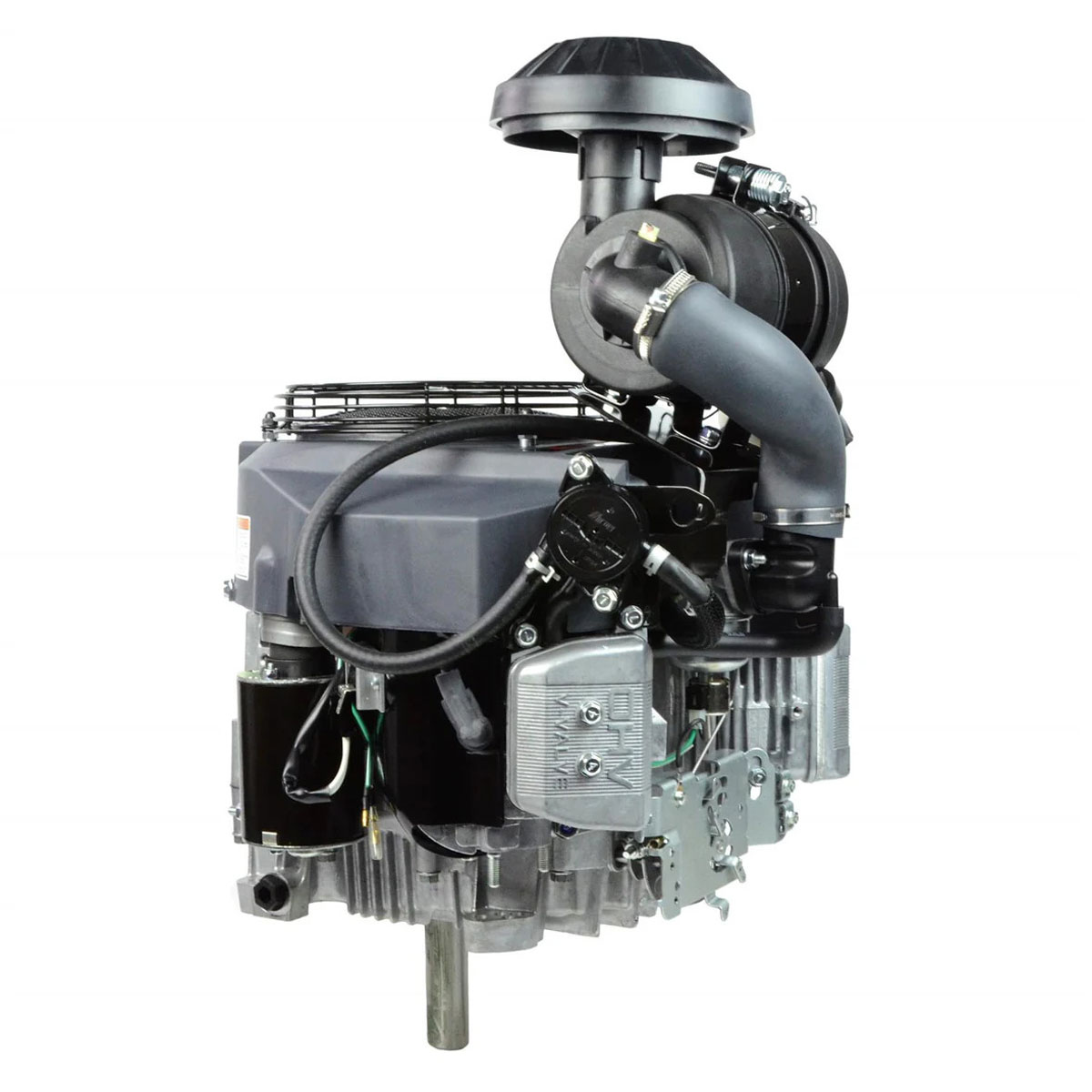

Kawasaki FH580V-S35 Gas Engine: Power and Reliability

With Vertical 1-1/8" X 3-15/16" Shaft

Electric Start Kawasaki Engine

* In-stock Now, limited Quantities Available


Carroll Stream sells the Kawasaki FH580V-S35 replacement motor for zero-turn mowers and a wide range of other commercial and industrial applications. This powerful Kawasaki gas engine with electric start delivers up to 19 horsepower and comes with a high-efficiency oil cooling system and forced air cooling technology to deliver the power you need with the fuel efficiency you expect from Kawasaki engines. Our powerful 19 horsepower Kawasaki motor is in stock ready to ship today!

The Kawasaki FH580V-35 model gas engine is powerful, versatile, and built to withstand years of rugged use. Order now to take advantage of our competitive prices with fast free shipping on all orders over $100 and give us a call at 888-208-2088, 248-628-4638 to speak with our Kawasaki Gold team of experts that are able help you with any cross referencing or questions you might have.

The Kawasaki FH580V-S35 engine is a direct replacement engine and is used on brands such as Toro, Exmark, Scag, Bad Boy, KMC, Ariens, Excel, MTD, Dixie Chopper, Husqvarna, CHP, Little Wonder, Ferris and many others.

Summary of FH580V-S35

The FH580V-S35 by Kawasaki is a top-performing gasoline engine engineered to provide outstanding power and dependability. Boasting remarkable attributes and cutting-edge technology, this engine has gained widespread popularity across various uses. This piece will delve into the essential characteristics of the FH580V-S35 engine, such as its electric ignition, power output, and offer a summary of Kawasaki and their compact gasoline engines.

More On Kawasaki

Kawasaki, the renowned manufacturer, has been producing high-quality engines for over a century. With a strong commitment to innovation and reliability, Kawasaki has become a trusted name in the industry. The FH580V-S35 engine is a testament to their dedication to excellence, as it incorporates cutting-edge technology and superior craftsmanship.
Kawasaki provides a diverse selection of small gas engines, including the FH580V-S35 model, designed for a variety of uses. These engines, which power equipment such as lawnmowers, pressure washers, water pumps, and generators, are recognized for their reliability and effectiveness. Kawasaki's dedication to manufacturing high-performance engines has established them as a top pick for both professionals and homeowners.

Carroll Stream Motor Company

Carroll Stream is a leading distributor of small gas engines, including the Kawasaki FH580V-S35. They offer a wide selection of engines, parts, and accessories to meet the needs of their customers.
The Kawasaki FH580V-S35 gas engine is a robust and trustworthy option for a wide range of uses. Featuring an electric start system, strong horsepower, and the reliability associated with the Kawasaki brand, this engine delivers outstanding performance and user-friendliness. Whether you require power for a lawnmower, generator, or other machinery, the FH580V-S35 engine is a reliable choice. For all your small gas engine requirements, including the FH580V-S35, Carroll Stream is the ideal destination for top-notch products and exceptional customer support.
Make Kawasaki
Model FH580V-S35
Type Small Engine
Fuel Gas Unleaded 86 Octane or Higher
Engine Type 4 Stroke OHV Twin Cylinder
Bore/Stroke 2.9 X 2.7 in
Displacement 585 cc
Max Torque 36.6FT. Lbs
Starting Type Electric Start
Charging Coil 15 Amp
Starting System Electric Shift Starter
Dimensions (L x W x H) 17 x 15 x 22 in.
Exhaust Included No
Fuel Tank No
Dry Engine Weight 71lbs.
Shaft Type Keyed - Straight
Shaft Diameter 1 1/8" Diameter, 1/4" Keyway
Shaft Length 3-15/16" Total
Shaft I.D. Thread Size 7/16"-20 Drilled and Tapped
Bolt Pattern 4 Bolt
Oil System Pressurized with oil filter
Oil Capacity 1.9 Qts
Oil Cooler High Efficiency
Reduction Type None
Engine Cooling Type Forced Air Cooling
3 Year Consumer Warranty
3 Year Commercial Warranty
Mechanical Governor
4 Stroke OHV Small Engine
Heavy Duty Air Filter
Dipstick in Crankcase
Cross Reference Guide
Kohler: CV750
User Manual

Use to Replace Model Numbers:

FH580V-S35: AS35, BS35, CS35, DS35, ES35

Please call for questions about what engines this replaces. (888-208-2088, 248-628-4638)
Any cross-reference is provided as a courtesy. You will be responsible for making sure the part number we are providing will fit your application. If you are unsure, please contact us before purchasing for help. Please have your model and serial number available.
