Kawasaki FH680V-S01 Vertical 1 1/8" (28.575mm) X 3 15/16" (100mm) Shaft with Muffler

Price: $2,583.00
Sale Price: $2,399.00
No reviews yet Write a Review
‎Free 1–5 day delivery
88.20 LBS

Prop. 65 Warning: This product contains chemicals known to the state of California to cause cancer and birth defects, or other reproductive harm.

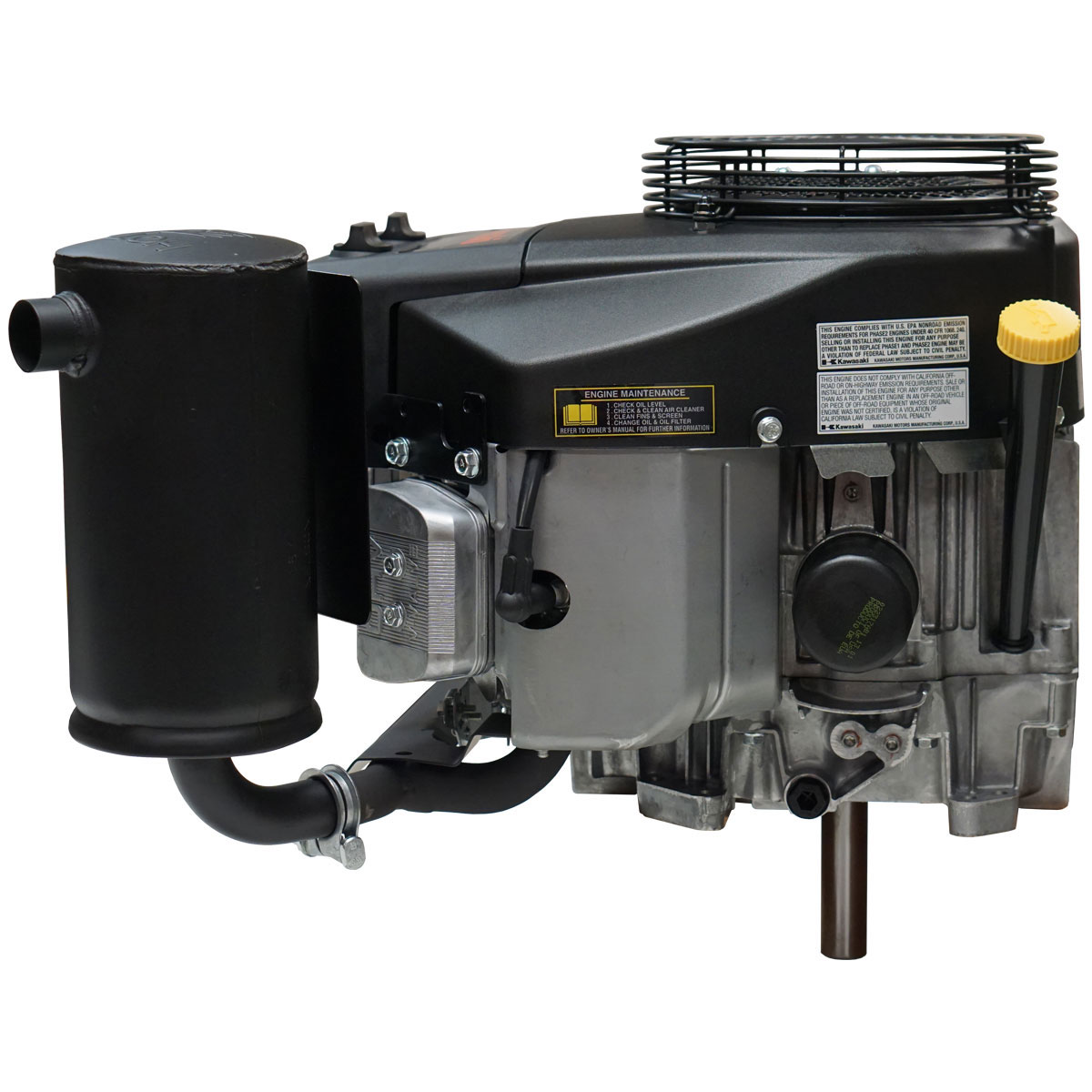

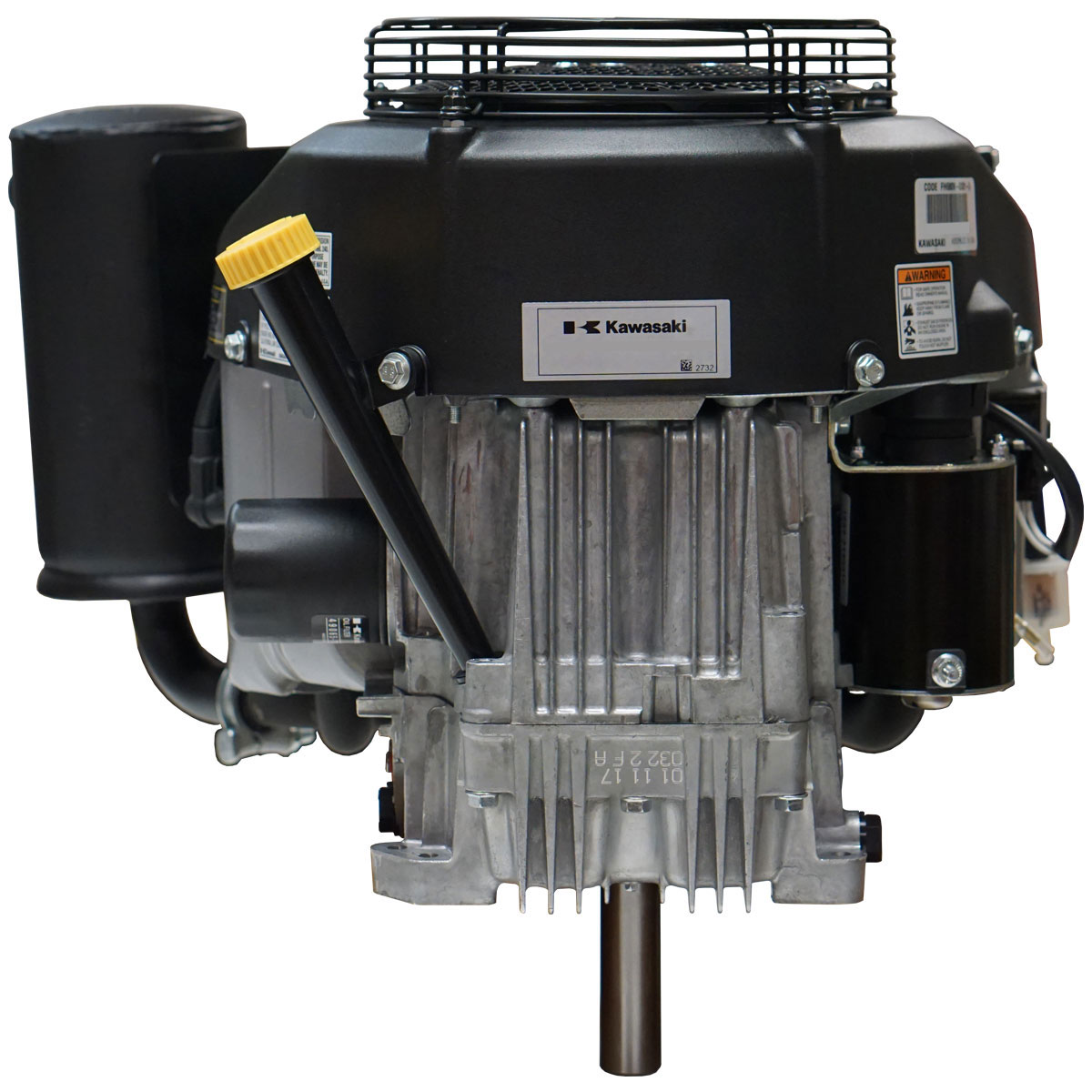

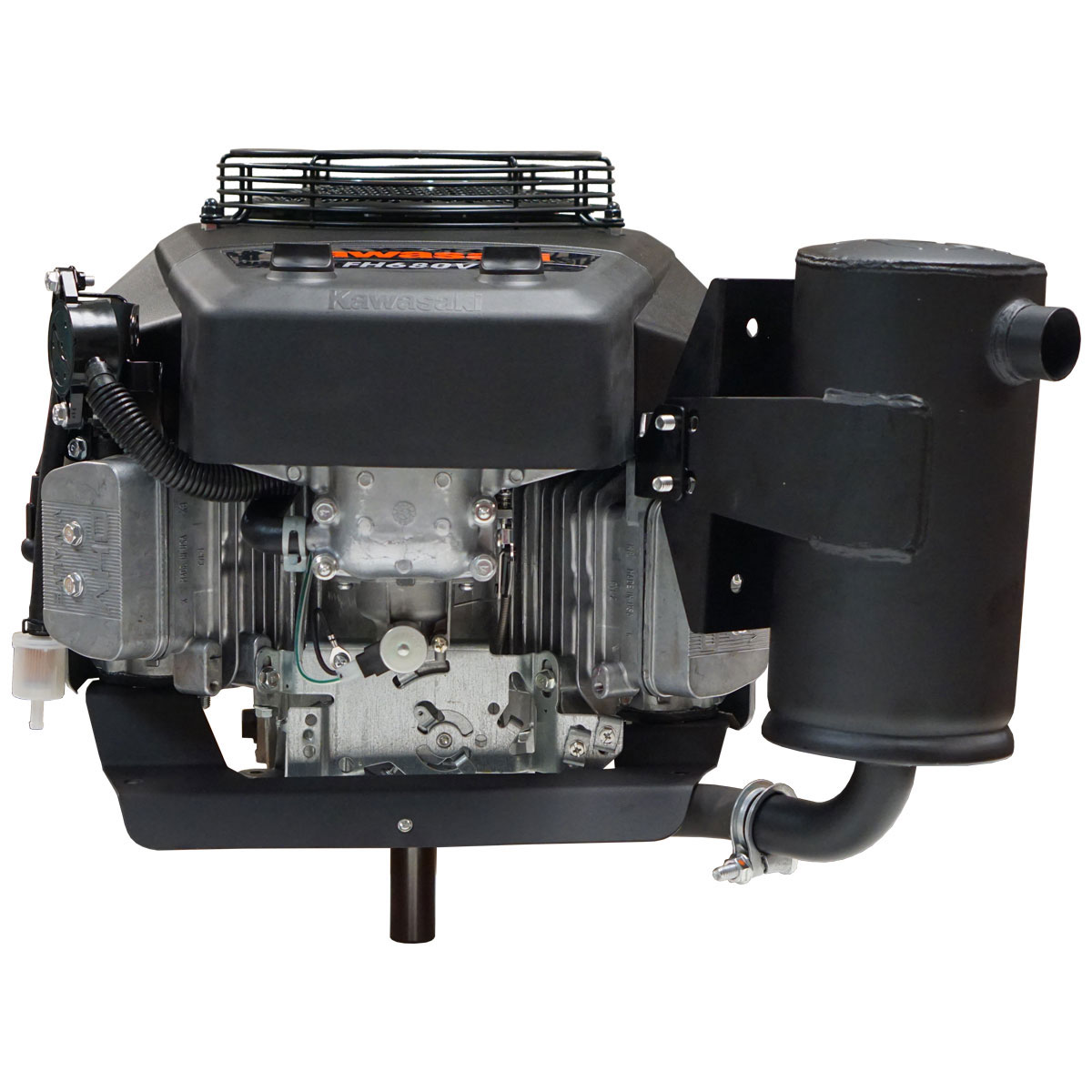

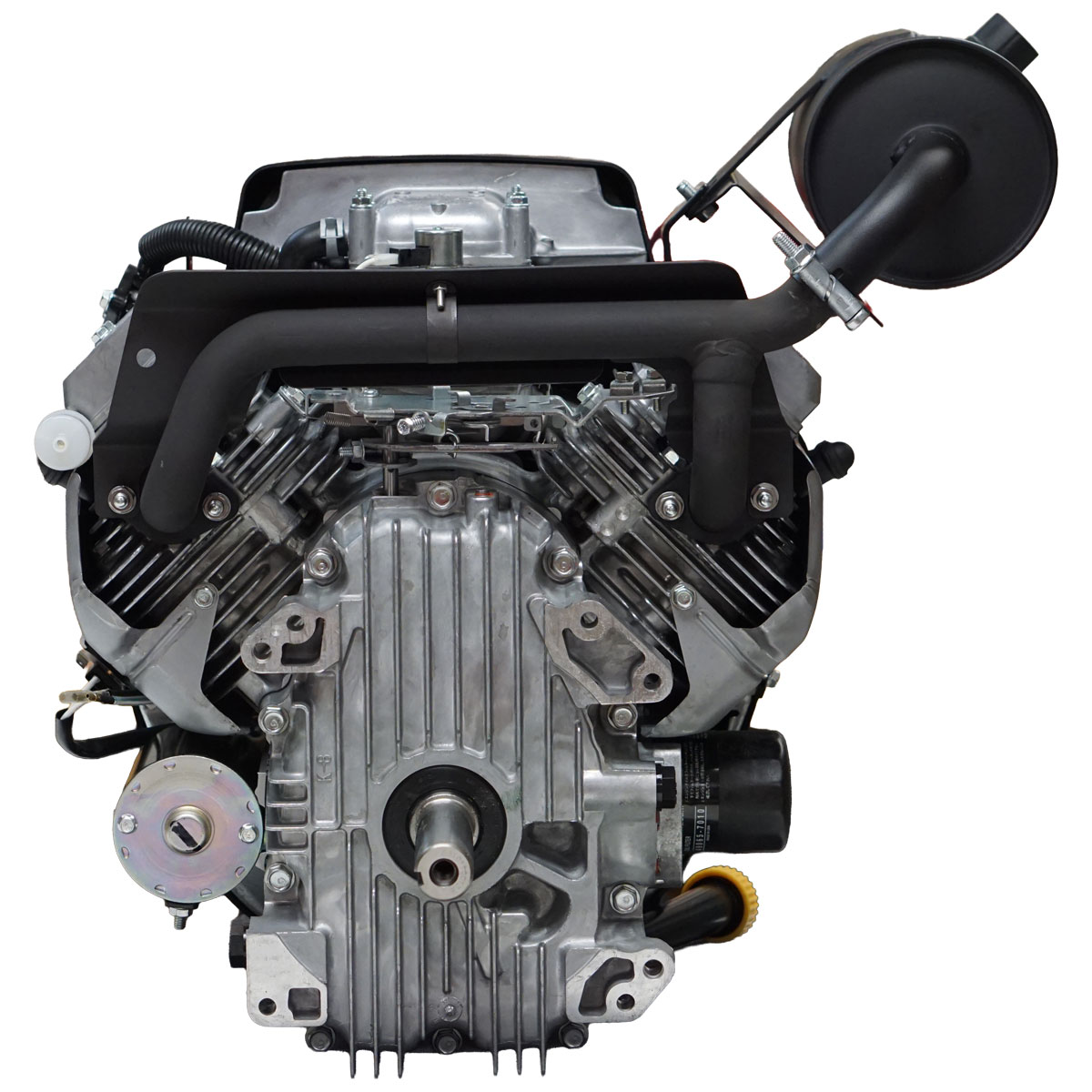

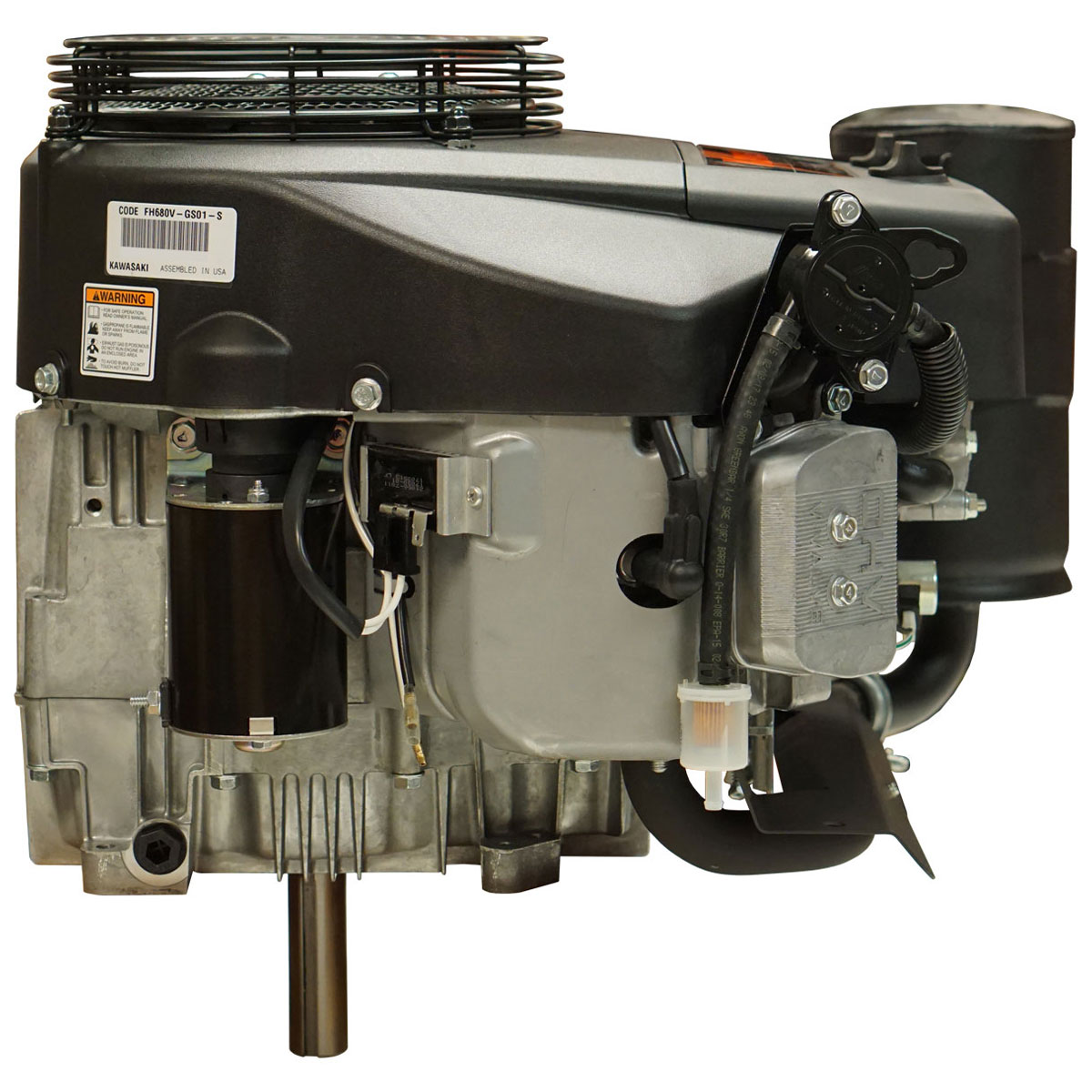

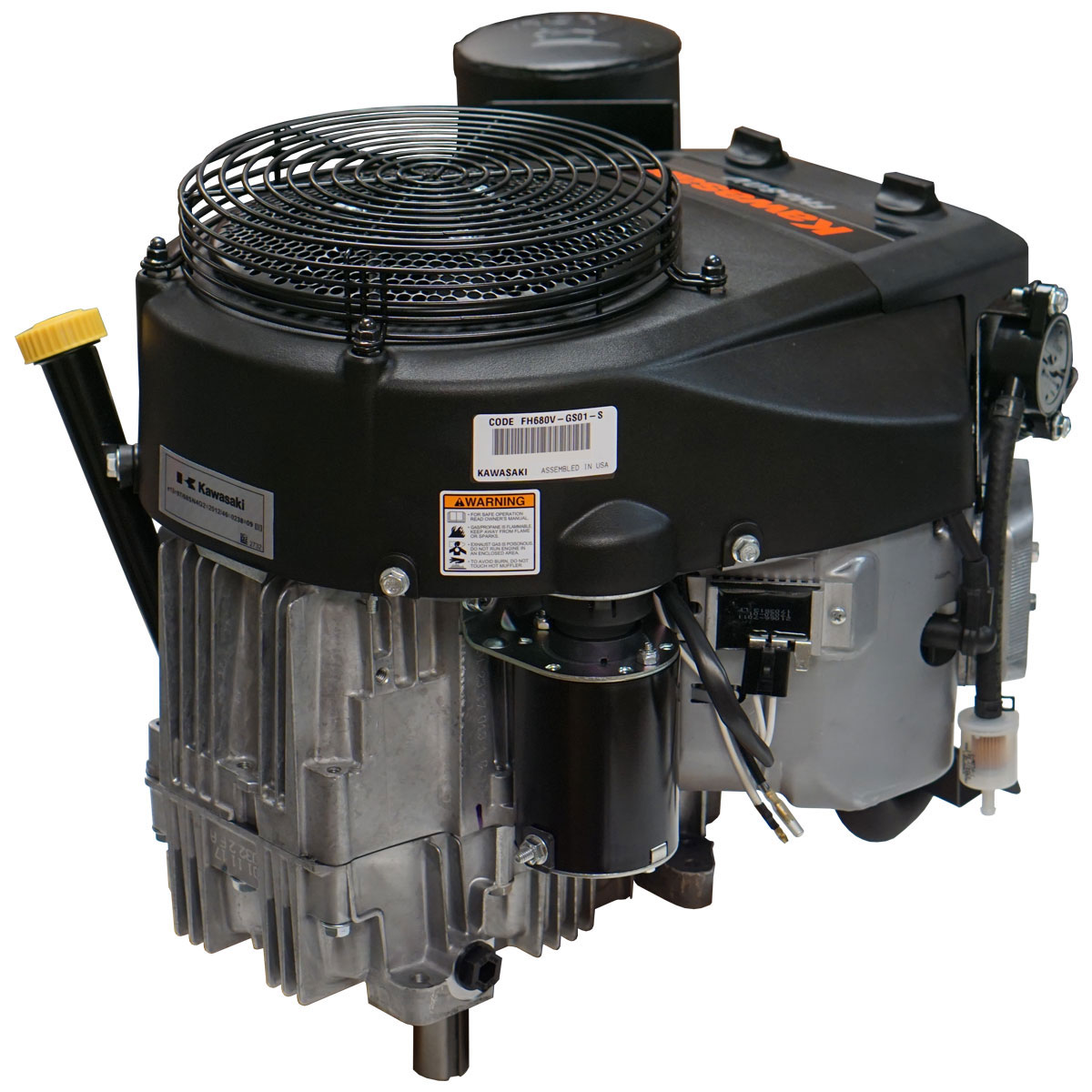

Kawasaki FH680V-S01 Small Gas Engine
With 1 1/8" X 3 15/16" Vertical Shaft

Electric Start Kawasaki Engine

In-stock Now! Limited Quantities Available.

FH680V-S32 is the same engine, with the exception that it has a large, Donaldson air filter. Please make sure you have appropriate space for your application: CLICK HERE FOR FH680V-S32!

At Carroll Stream, we sell top-of-the-line Kawasaki mower engines, including the 23 horsepower motor. This powerful Kawasaki FH680V engine for sale has a lightweight construction at only 88.2 pounds and a durable electric start system that ensures fast starts every time. This small motor has a 4 stroke OHV twin cylinder and will mount to your mower, generator or other motorized equipment using a simple 4-bolt configuration to deliver unparalleled power and precision.

This 23HP Kawasaki motor is versatile, powerful and built to handle rugged commercial and residential use. This motor is compatible with a wide range of brands, including Toro, Exmark, Scag, Bad Boy, KMC, Ariens, Excel, MTD, Dixie Chopper and many others. Order now to take advantage of our competitive prices with fast, free shipping or give us a call at 1-888-208-2088 to speak with one of our trained experts.

Some more information on the Kawasaki FH680V-S01 gas engine:

The engine is built with durable materials, such as cast iron cylinder liners and a forged steel crankshaft, to ensure long life. Designed to be fuel-efficient, thanks to its OHV design and diaphragm carburetor.

Kawasaki FH680V-S01 gas engine is a powerful, reliable, and versatile engine that is a good choice for a variety of applications.

Muffler Included!


Make Kawasaki
Model FH680V-S01
Type Small Engine
Fuel Gas Unleaded 86 Octane or Higher
Engine Type 4 Stroke OHV Twin Cylinder
Bore/Stroke 2.96" inch X 2.99" inch
Displacement 675 cc
Max Torque 41.2 FT. Lbs
Starting Type Electric Start
Charging Coil 15 Amp
Starting System Bendix
Dimensions (L x W x H) 18 x 17 x 24 in.
Exhaust Included Yes
Fuel Tank No
Dry Engine Weight 88.2lbs.
Shaft Type Keyed - Straight
Shaft Diameter 1 1/8" Diameter, 1/4" Keyway
Shaft Length 3 15/16" Total
Shaft I.D. Thread Size 7/16"-20 Drilled and Tapped
Bolt Pattern 4 Bolt
Oil System Pressurized with oil filter
Oil Capacity 2.0 Qts
Oil Cooler No
Reduction Type None
Air Cleaner Type Dual Element
3 Year Consumer Warranty
3 Year Commercial Warranty
Mechanical Governor
4 Stroke OHV Small Engine
Heavy Duty Air Filter
Dipstick in Crankcase
Cross Reference Guide
User Manual


Replaces Model #'s:
FH601V-S01: AS01, BS01, CS01, DS01, ES01, FS01, GS01
FH641V-S01: AS01, BS01, CS01, DS01, ES01, FS01, GS01
FH680V-S01: AS01, BS01, CS01, DS01, ES01, FS01, GS01
FH680V-S05: AS05, BS05, CS05
FH680V-S07: AS07, BS07, CS07, DS07, ES07, FS07, GS07, HS07
FH680V-S08: AS08, BS08, CS08, DS08, ES08, FS08
FH680V-S09: AS09, BS09, CS09, DS09, ES09, FS09, GS09, HS09
FH680V-S18: AS18, BS18, CS18

Please call for questions about what engines this replaces. (888-208-2088, 248-628-4638)

Any cross-reference is provided as a courtesy. You will be responsible for making sure the part number we are providing will fit your application. If you are unsure, please contact us before purchasing for help. Please have your model and serial number available.
