Kawasaki FS600V-S01 19 HP Vertical 1" (25.4mm) X 3-5/32" (80mm) Shaft

Price: $1,911.00
Sale Price: $1,368.00
No reviews yet Write a Review
‎Free 1–5 day delivery
81.00 LBS

Prop. 65 Warning: This product contains chemicals known to the state of California to cause cancer and birth defects, or other reproductive harm.

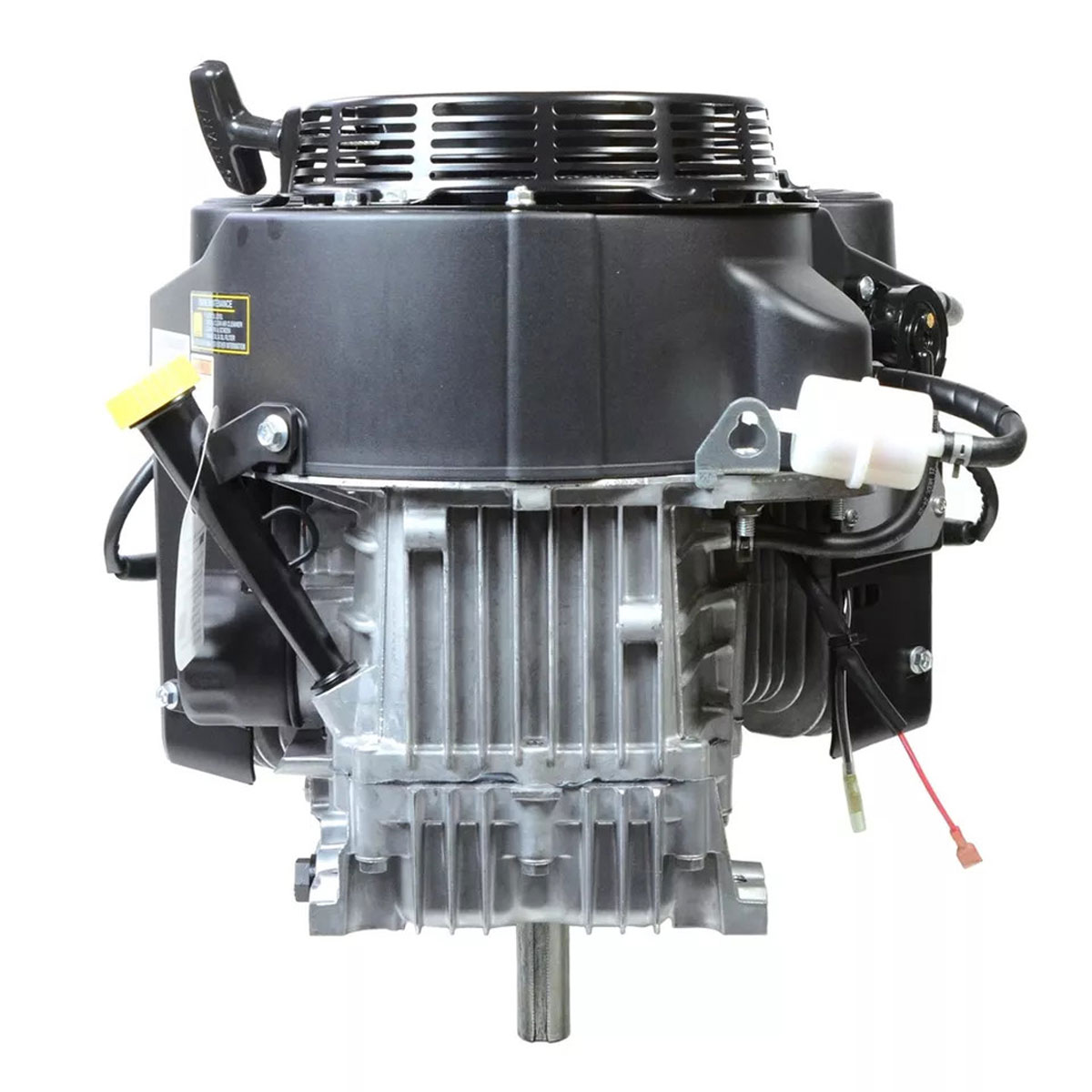

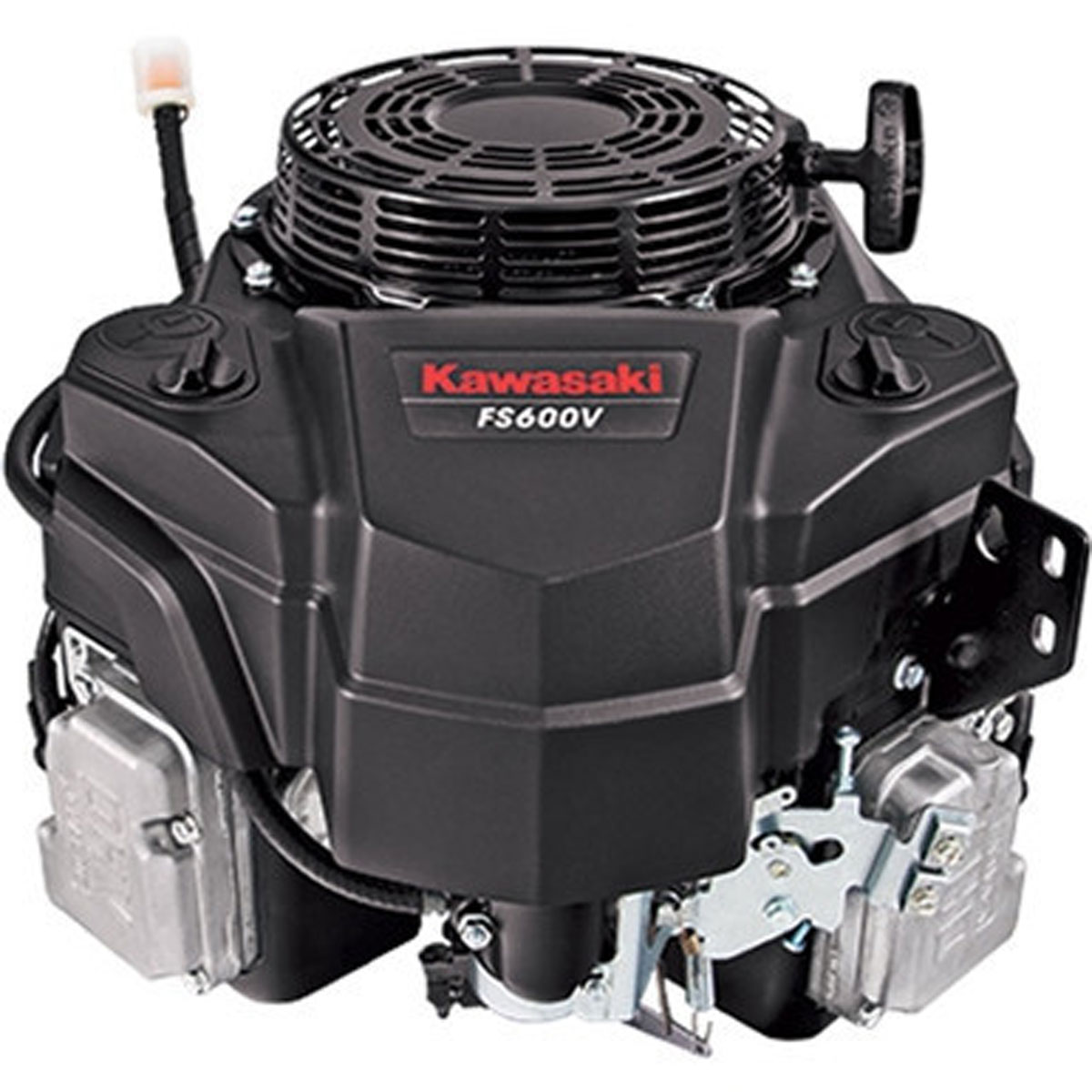

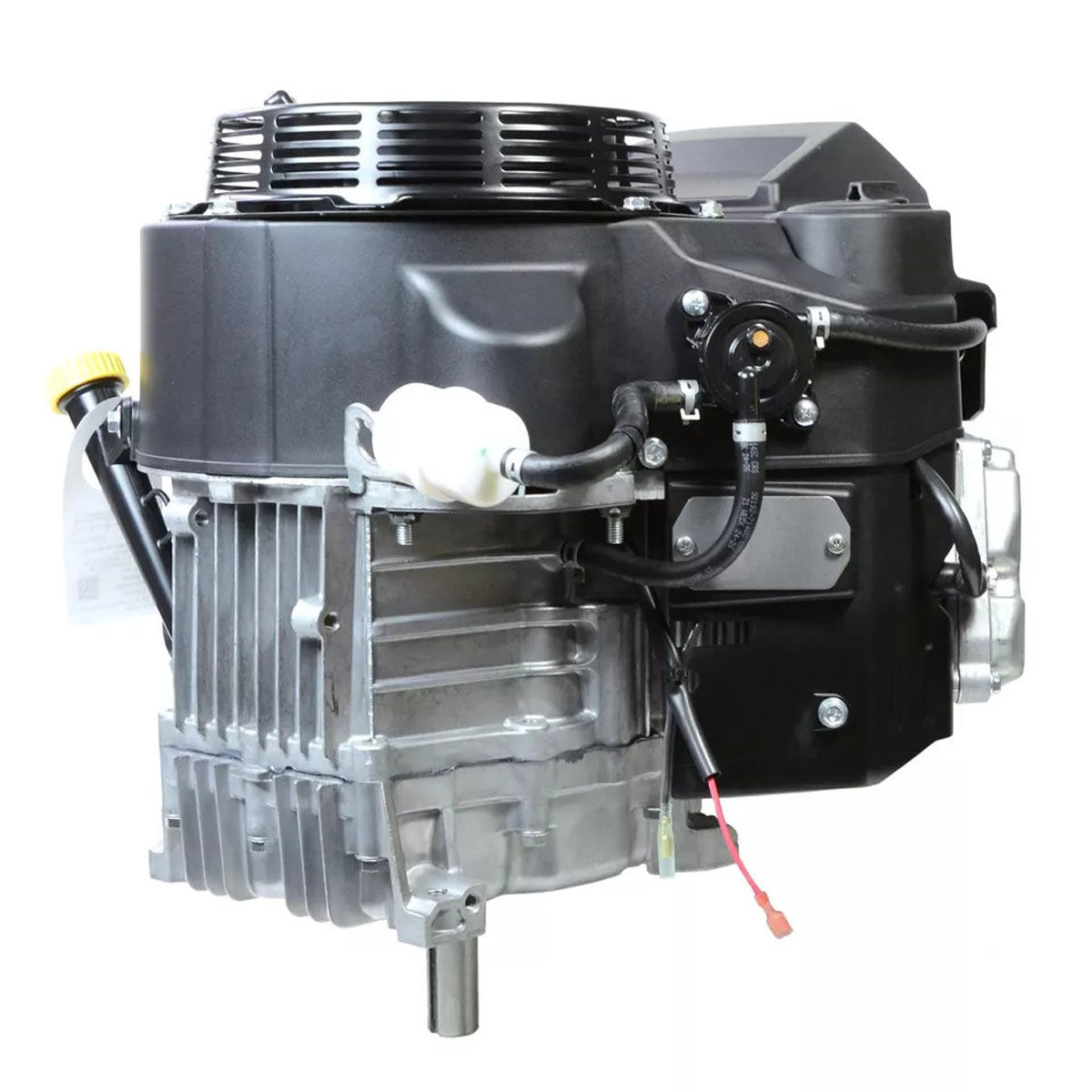

Kawasaki FS600V-S01 Small Gas Engine Recoil Pull Start

With 1" X 3-5/32" Vertical Shaft

19hp Kawasaki Motor

The highest quality guaranteed! We have been in business since 2005, and our engines are fully rebuildable with all parts available. The perfect Kawasaki motor to replace FS600V.

The Kawasaki FS600V-S01 is perfect for industrial, commercial and residential applications. These premium residential motors have low tone mufflers, mechanical governors and duel element air filters. This convenient, heavy duty and reliable 4 stroke OHV twin cylinder engine does the job for many applications. Also, offering a 3-year commercial warrenty on these motors. Your order ships quickly with expert turnaround time in our fully stocked warehouse. Packaged with care, Carroll Stream Motor Company provides free shipping. In-Stock! Fast Free Shipping! Gas Engine with recoil pull start, clutch coil, separate choke and throttle. Perfect for wide area walk behind mower, and various industrial and commercial uses. Used on Toro, Exmark, Husqvarna, Wright, World Lawn, and many others. This Kawasaki FS600V-S01 engine is a 4 Stroke OHV twin cylinder, which is a 603cc, 18.5 HP.

This Kawasaki small motor is built with quality components and is ready to outlast the competition. Purchase now to take advantage of our free shipping and quick turnaround time. Or, call if you have questions! 888-208-2088, 248-628-4638

Make Kawasaki
Model FS600V-S01
Type Small Engine
Fuel Gas Unleaded 86 Octane or Higher
Engine Type 4 Stroke OHV Twin Cylinder
Bore/Stroke 2.9X 2.8 in
Displacement 603cc
Max Power 18.5HP
Starting Type Recoil Start
Charging Coil Clutch Coil
Starting System Recoil Starter
Dimensions (L x W x H) 19.25 x 17 x 14.25 in.
Exhaust Included No
Fuel Tank No
Dry Engine Weight 90lbs.
Shaft Type Keyed - Straight
Shaft Diameter 1" Diameter, 1/4" Keyway
Shaft Length 3-5/32" Total
Shaft I.D. Thread Size 7/16"-20 Drilled and Tapped
Bolt Pattern 4 Bolt
Oil System Pressurized with oil filter
Oil Capacity 2.2 Qts
Oil Cooler High Efficiency
Reduction Type None
Engine Cooling Type Forced Air Cooling
3 Year Consumer Warranty
3 Year Commercial Warranty
Mechanical Governor
4 Stroke OHV Small Engine
Dual Sealing Cartridge type Air Filter
Dipstick in Crankcase
Cross Reference Guide
Kohler: CV640
User Manual

Use to Replace Model Numbers:

FS541V-S05, FS541V-S07, FS541V-S11, FS541V-S15, FS541V-S17, FS541V-S19, FS541V-S23, FS541V-S24, FS541V-S26, FS541V-S27, FS541V-AS27, FS541V-BS27, FS541V-BS27S, FS600V-S25,
FS600V-AS25, FS600V-BS25, FS600V-BS25S, FS600V-CS25, FS600V-CS25S

Please call for questions about what engines this replaces. (888-208-2088, 248-628-4638)
Any cross-reference is provided as a courtesy. You will be responsible for making sure the part number we are providing will fit your application. If you are unsure, please contact us before purchasing for help. Please have your model and serial number available.

Summary of the FS600V-S01

The Kawasaki FS600V-S01 small gas engine is a dependable and powerful option suitable for a wide range of industrial, commercial, and residential applications. With an impressive 19 horsepower output and a vertical shaft measuring 1" X 3-5/32", this engine is specifically engineered to tackle demanding tasks effortlessly. Its recoil pull start guarantees convenient and reliable ignition, making it a versatile choice for various equipment types.

The FS600V-S01 is an exceptional engine with a 603cc, 4-stroke OHV twin-cylinder design. It boasts several premium attributes that set it apart, such as low-tone mufflers that effectively minimize noise, mechanical governors for maintaining consistent speed regulation, and dual-element air filters that guarantee clean air intake, thereby enhancing performance and durability. These remarkable features make the FS600V-S01 perfectly suited for a range of applications, including wide-area walk-behind mowers and various industrial and commercial uses.

The FS600V-S01 engine from Kawasaki is renowned for its long-lasting nature, just like other Kawasaki engines. It is backed by a 3-year commercial warranty, which demonstrates the trust Kawasaki has in its reliability and performance. Upgrade your equipment with the Kawasaki FS600V-S01 and experience the exceptional power and reliability that come with a Kawasaki engine.
