Kawasaki FS600V-S00 18.5 HP Electric Start, Vertical 1" (25.4mm) X 3-5/32" (80mm) Shaft

Price: $2,040.00
Sale Price: $1,778.00
No reviews yet Write a Review
‎Free 1–5 day delivery
81.00 LBS

Prop. 65 Warning: This product contains chemicals known to the state of California to cause cancer and birth defects, or other reproductive harm.

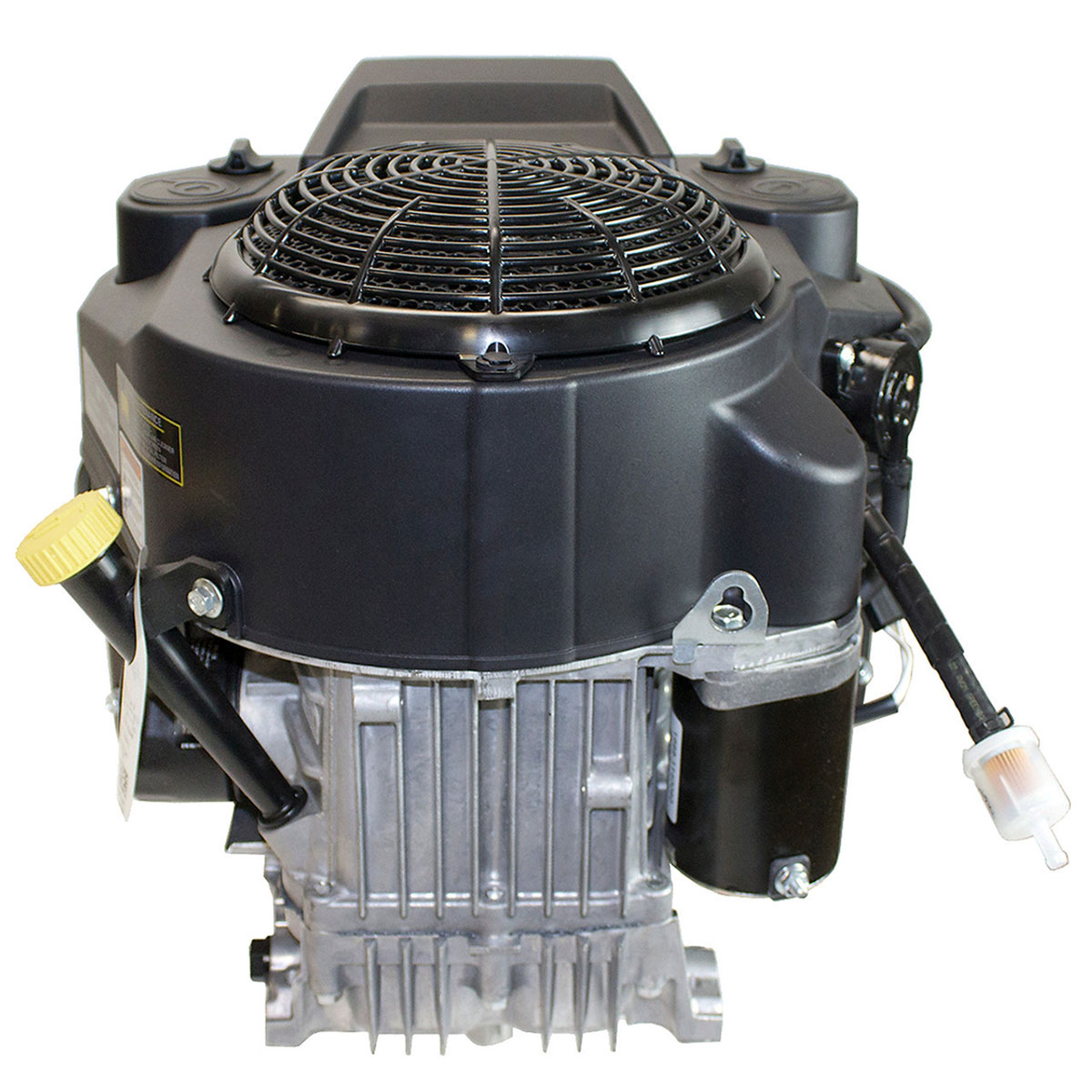

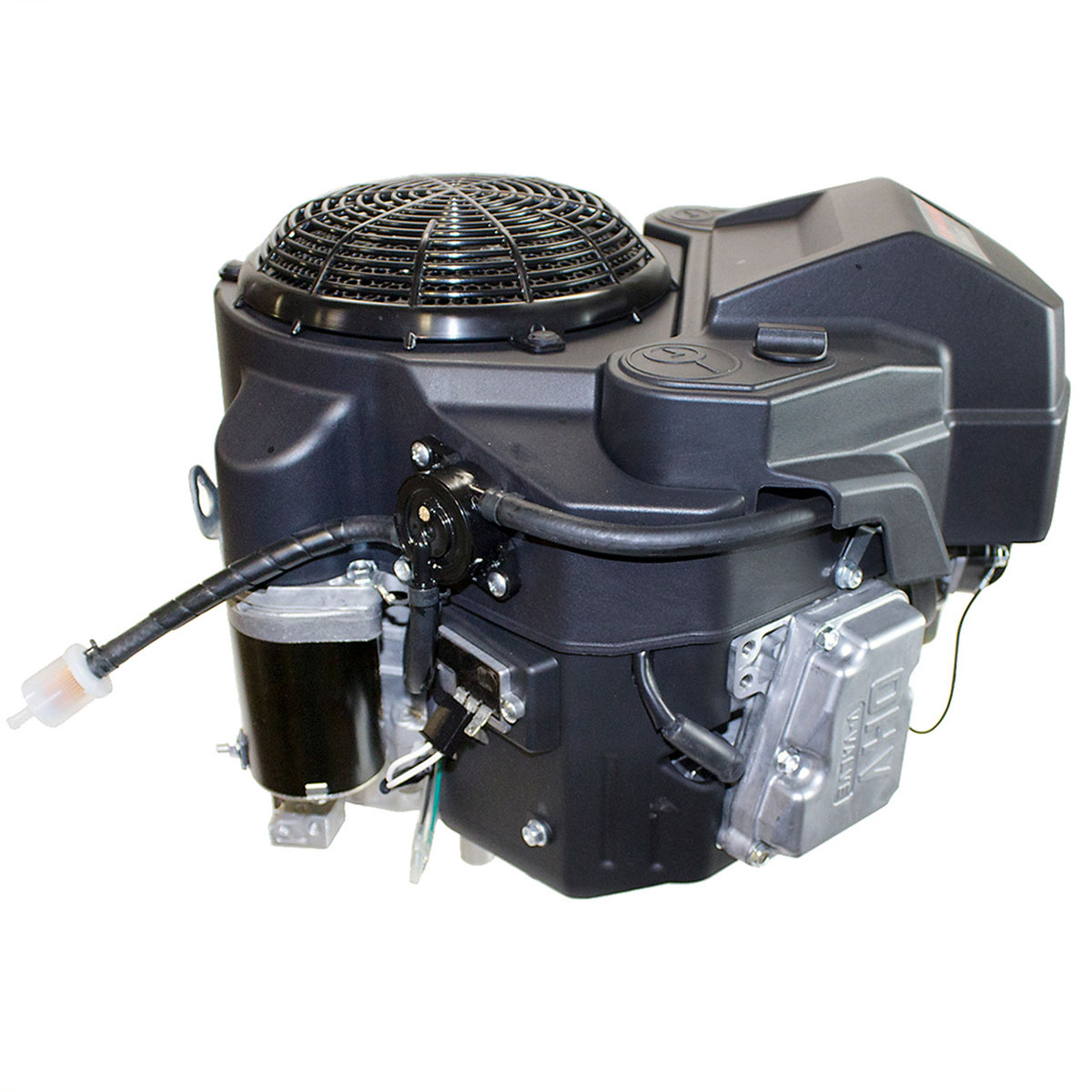

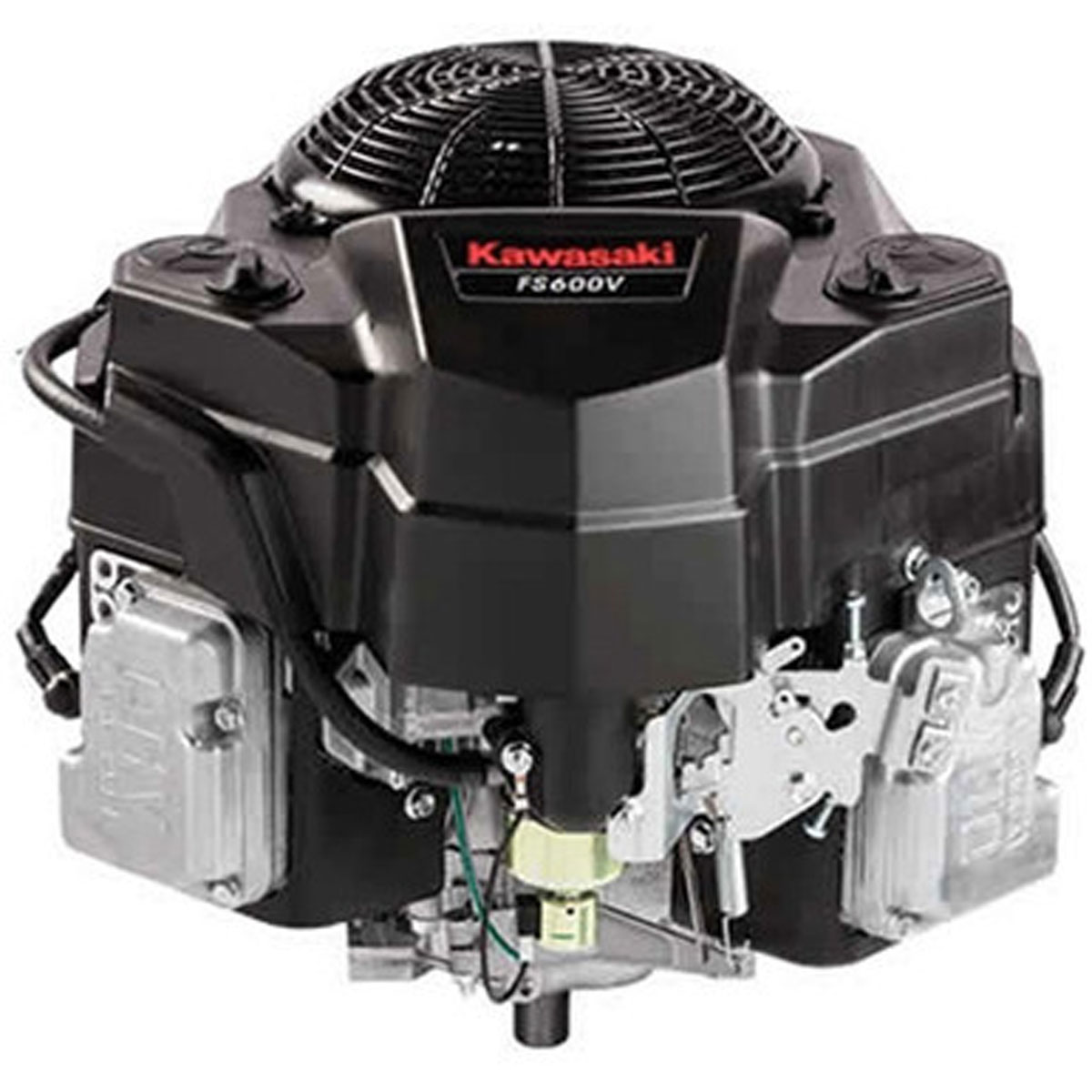

Kawasaki FS600V-S00 Small Gas Engine Electric Start

18HP Motor With 1" Diameter, 1/4" Keyway Shaft

In Stock! Same day Shipping!

This Kawasaki replacement motor has the power and versatility you need to tackle the toughest jobs quickly and efficiently. This motor is the perfect replacement for Toro, Exmark, Scag, Bad Boy, KMC, Ariens, Excel, MTD, Dixie Chopper and many more. Order now to enjoy our competitive prices with fast, free shipping or call us at 1-888-208-2088 to speak with one of our experts. The highest quality guaranteed! We have been in business since 2005, and our engines are fully rebuildable with all parts available. The perfect Kawasaki motor to replace FS600V.

The Kawasaki FS600V-S00 is perfect for industrial, commercial and residential applications. Perfect for walk behind mowers. At Carroll Stream, we have the best deals on Kawasaki replacement motors for zero-turn mowers and a wide range of residential and commercial applications. This Kawasaki 18.5HP motor has a powerful 4 stroke OHV twin cylinder design that delivers increased fuel efficiency and performance compared to other motors in its class. The Kawasaki FS600V motors easily mount to your equipment using a sturdy 4-bolt configuration that provides plenty of stability. The high-efficiency air cooling and oil systems ensure the motor wonƒ??t overheat even after hours of continuous use. This Kawasaki FS600V-S00 19 HP gas engine, electric start and 18.5HP engine. Forced Air Cooling with ressurized with oil filter and high efficient oil cooler.

This Kawasaki small motor is built with quality components and is ready to outlast the competition. Purchase now to take advantage of our free shipping and quick turnaround time. Or, call if you have questions! 888-208-2088, 248-628-4638

Make Kawasaki
Model FS600V-S00
Type Small Engine
Fuel Gas Unleaded 86 Octane or Higher
Engine Type 4 Stroke OHV Twin Cylinder
Bore/Stroke 2.9X 2.8 in
Displacement 603cc
Max Power 18.5HP
Starting Type Electric Start
Charging Coil 15 Amp
Starting System Electric Starter
Dimensions (L x W x H) 19.25 x 17 x 14.25 in.
Exhaust Included No
Fuel Tank No
Dry Engine Weight 90lbs.

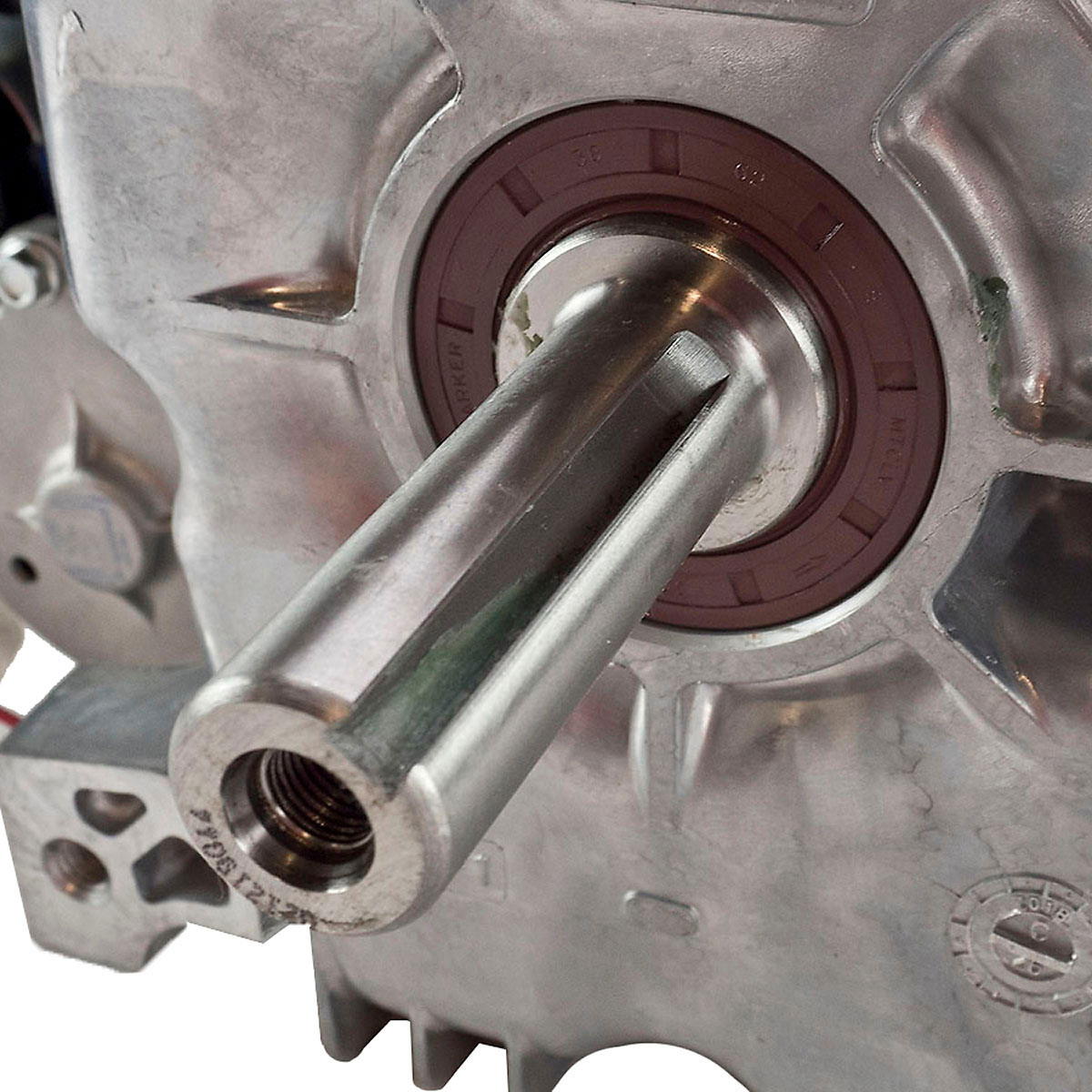

Shaft Type Keyed - Straight
Shaft Diameter 1" Diameter, 1/4" Keyway
Shaft Length 3-5/32" Total
Shaft I.D. Thread Size 7/16"-20 Drilled and Tapped
Bolt Pattern 4 Bolt
Oil System Pressurized with oil filter
Oil Capacity 2.2 Qts
Oil Cooler High Efficiency
Reduction Type None
Engine Cooling Type Forced Air Cooling
3 Year Consumer Warranty
3 Year Commercial Warranty

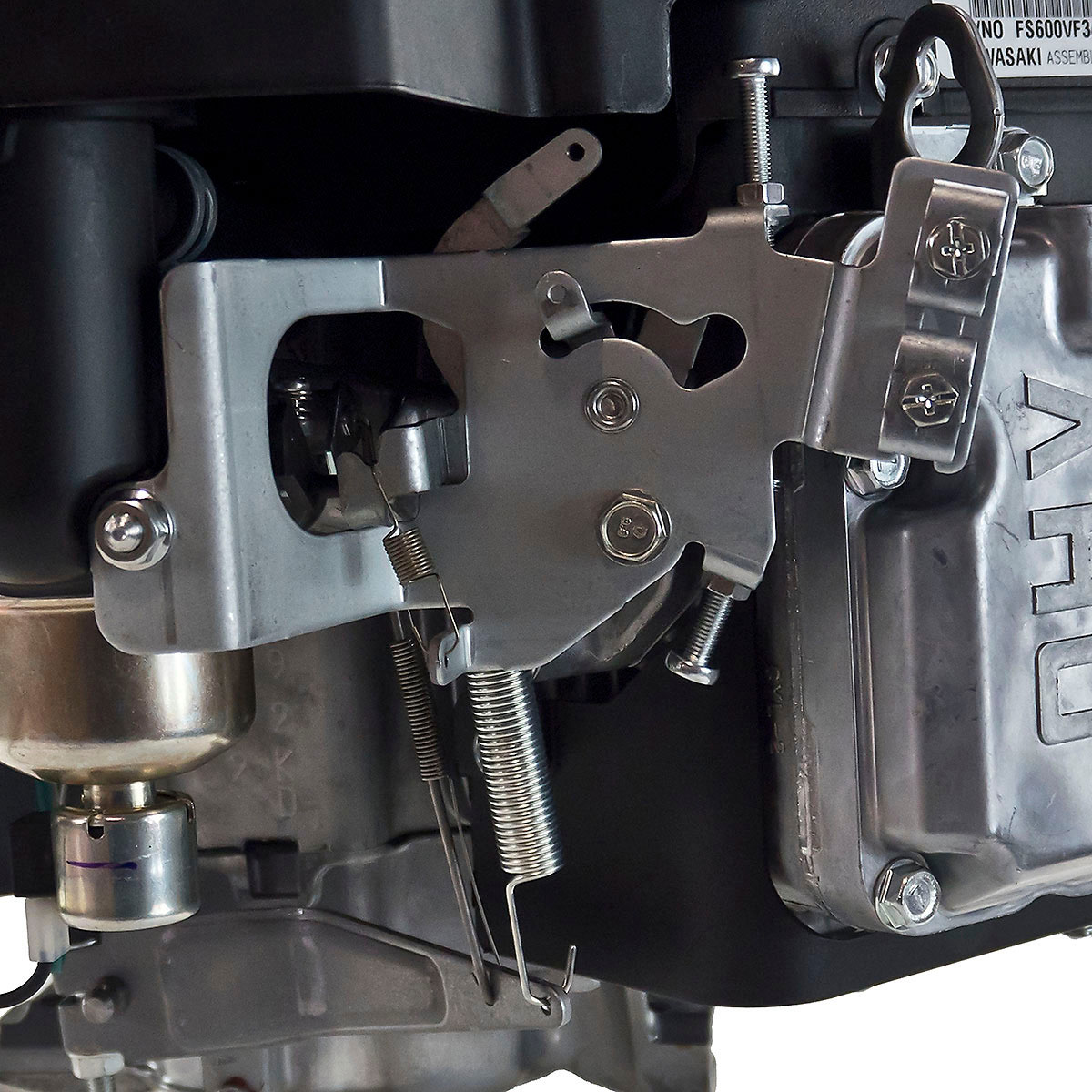

Mechanical Governor
4 Stroke OHV Small Engine
Dual Sealing Cartridge type Air Filter
Dipstick in Crankcase
Cross Reference Guide
Kohler: CV640
User Manual

Replaces Model Numbers:

FS600V-S16, FS600V-AS16-S, FS600V-BS16, FS600V-CS16, FS600V-CS16S, FS600V-DS16-S

Please call for questions about what engines this replaces. (888-208-2088, 248-628-4638)
Any cross-reference is provided as a courtesy. You will be responsible for making sure the part number we are providing will fit your application. If you are unsure, please contact us before purchasing for help. Please have your model and serial number available.

Overview of the FS600V-S00 engine

The Kawasaki FS600V-S00 small gas engine is a high-performance machine built to cater to the requirements of industrial, commercial, and residential uses. With a strong 18.5 horsepower capacity and a flexible 1" diameter shaft equipped with a 1/4" keyway, this engine guarantees the strength and versatility necessary to handle challenging tasks with speed and effectiveness. Its electric start function offers easy and dependable ignition, making it a perfect option for a wide range of equipment.

The 4-stroke OHV twin-cylinder design of the engine not only improves fuel efficiency but also provides exceptional performance when compared to other engines in its category. Additionally, the engine's efficient air cooling and pressurized oil systems, which include an oil filter and high-efficiency oil cooler, guarantee that the motor remains cool and functional even after prolonged periods of continuous operation.

Mounting the FS600V-S00 to your equipment is straightforward with its sturdy 4-bolt configuration, providing exceptional stability and ease of installation. This engine is particularly well-suited for walk-behind mowers and zero-turn mowers, making it a versatile option for a wide range of residential and commercial applications.

The Kawasaki FS600V-S00 is currently available and prepared for immediate shipment, guaranteeing that you will promptly receive your order with complimentary shipping. Enhance your equipment with the dependable and robust Kawasaki FS600V-S00, and encounter the exceptional service and products that have established Carroll Stream Motor Company as an industry leader.
