Kawasaki FH601D-S01 19HP Horizontal 1-1/8" X 100 MM/3.94" Shaft

Price: $2,209.00
Sale Price: $2,044.00
No reviews yet Write a Review
‎Free 1–5 day delivery
89.00 LBS

Prop. 65 Warning: This product contains chemicals known to the state of California to cause cancer and birth defects, or other reproductive harm.

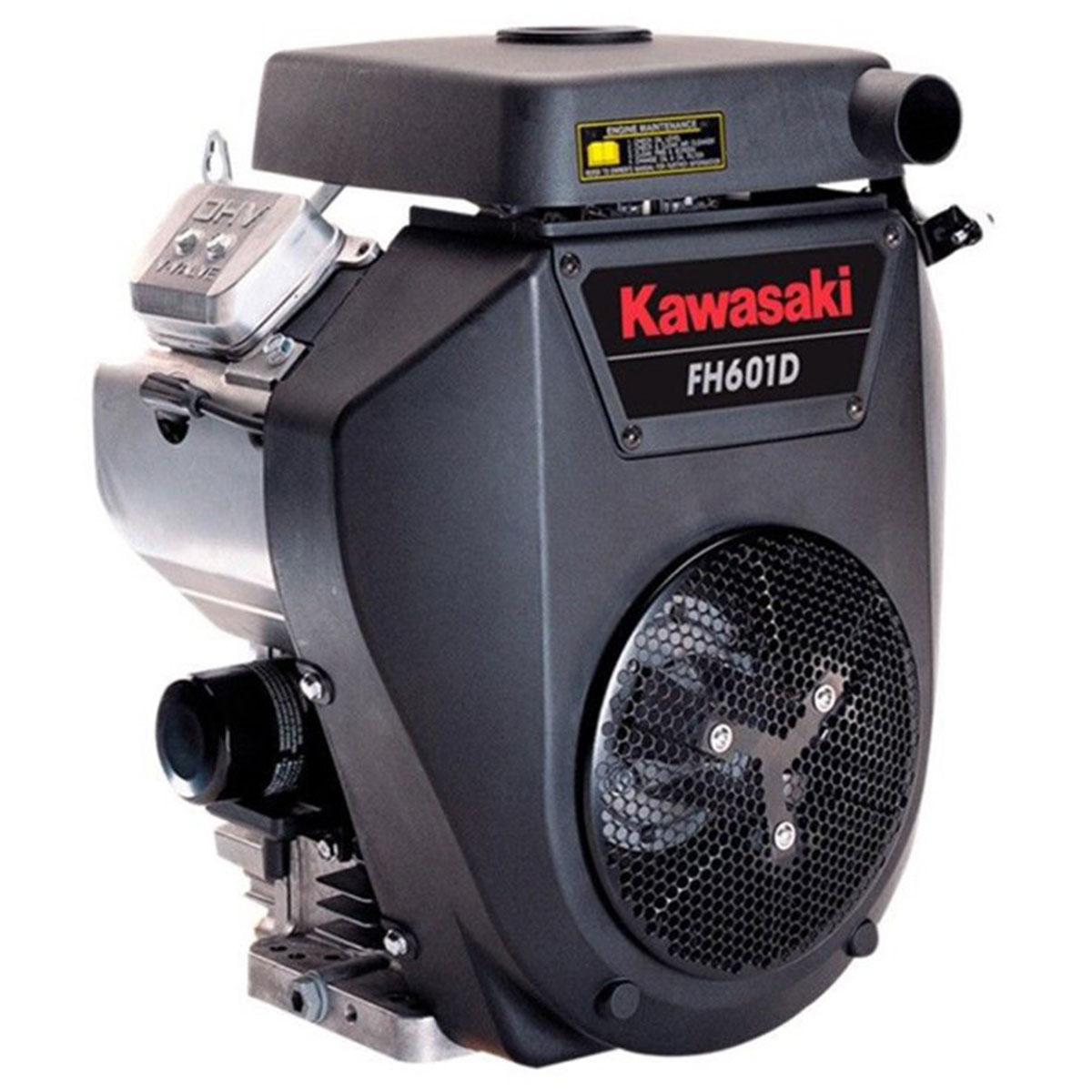

Kawasaki FH601D-S01 Small Gas Engine

Horizontal Shaft 1-1/8" X 100 MM/3.94"

Electric Start Kawasaki

The Kawasaki FH601D-S01 motor is one of the best replacement motors for zero-turn and riding mowers, as well as a wide range of other commercial and industrial machinery. This versatile 19 HP Kawasaki engine comes with a 4-stroke OHV V-twin engine that delivers the power you need in a compact design that can fit into tight spots and a 4-bolt pattern for the ultimate stability and torque. The FH601D motor uses regular unleaded gas and has a reliable electric start system. The Kawasaki 19 HP mower engine fits various John Deer, Toro, Exmark, Encore, Venture, and a many other brands of lawn mowers and motorized equipment. This mower engine installs in minutes.

Kawasaki motors are versatile, powerful, and built to last. Order now to take advantage of our competitive prices with fast free shipping on all orders over $100 and give us a call at 888-208-2088, 248-628-4638 to speak with our KAWASAKI Gold team of experts that are able to help you find everything you need before you buy.

The Kawasaki FH601D-S01 engine is engineered to endure the challenges of consistent operation in harsh settings. Featuring a sturdy build and long-lasting parts, this engine is crafted to deliver dependable performance for many years, even under the most extreme conditions.

The FH601D-S01 engine is designed with a liquid cooling system that enables it to effectively manage high temperatures and prolonged operation without the risk of overheating. This sophisticated cooling mechanism plays a crucial role in preserving the engine's peak performance and extending the longevity of essential components.

The FH601D-S01 engine boasts an efficient 4-stroke OHV V-twin engine design, providing impressive power output with minimal fuel consumption. This results in cost-effective operation and reduced environmental impact, making it a favorable choice for both businesses and homeowners. Engineered to comply with stringent emissions regulations, it stands out as a cleaner and more eco-friendly alternative to conventional gas engines. By lowering harmful emissions, this engine contributes to environmental protection without compromising on performance.

The FH601D-S01 engine offers a smooth and vibration-free operation due to its well-balanced design and advanced engineering. This enhances user comfort and decreases wear and tear on engine parts, leading to extended service life and reduced maintenance expenses. With easily accessible components and user-friendly design elements, the FH601D-S01 engine is designed for simple maintenance. Routine tasks like oil changes and filter replacements can be completed swiftly and effortlessly, minimizing downtime and maximizing productivity.

The Kawasaki FH601D-S01 engine, despite its remarkable power output, operates in a quiet manner, effectively minimizing noise pollution and enhancing the overall working environment. This exceptional feature makes it a perfect option for residential areas and applications that require noise-sensitive operations.

The FH601D-S01 engine offers compatibility with a wide range of accessories and attachments, enabling users to personalize their equipment according to their individual requirements. With a plethora of options available, from mulching kits to bagging systems, there are numerous choices to enhance the functionality and adaptability of your equipment. This engine combines durability, efficiency, and performance to cater to a diverse array of applications. Whether you are engaged in lawn mowing, operating generators, or undertaking various outdoor tasks, this engine provides the necessary power and reliability to successfully accomplish the job at hand.


Make Kawasaki
Model FH601D-S01
Type Small Engine
Fuel Gas Unleaded 86 Octane or Higher
Engine Type 4 Stroke OHV V-Twin
Bore/Stroke 2.96X 2.99 in
Displacement 675 cc
Max Power 19HP
Starting Type Electric Start
Charging System 15AMP W/Regulator
Starting System Stater, 12 Volt Bendix type
Dimensions (L x W x H) 21.5 x 18.5 x 17.75 in.
Muffler Included No
Fuel Tank No
Dry Engine Weight 89 lbs.
Shaft Type Keyed - Straight
Shaft Diameter 1 1/8" Diameter, 1/4" Keyway
Shaft Length 3-15/16" Total
Shaft I.D. Thread Size 7/16"-20 Drilled and Tapped
Bolt Pattern 4 Bolt
Oil System Pressure lubrication
Oil Capacity 2 Qts
Fuel Pump Pulse
Reduction Type None
Engine Cooling Type Forced Air Cooling
3 Year Consumer Warranty
3 Year Commercial Warranty
Mechanical Governor
4 Stroke OHV Small Engine
Dual Element Air Cleaner
Dipstick in Crankcase
Cross Reference Guide
Briggs & Stratton 305447
Throttle Linkage Kit
User Manual

Use to Replace Model Numbers:

FH601D-S01, FH601D-S06, FH601D-AS01, FH601D-AS01-S, FH601D-BS01, FH601D-BS01-S, FH601D-CS01, FH601D-CS01-S, FH601D-DS01, FH601D-DS01-S, FH601D-ES01, FH601D-ES01-S, FH601D-FS01, FH601D-FS01-S, FH601D-AS06, FD601D-AS06-R, FH601D-BS06, FD601D-BS06-R, FH601D-CS06, FD601D-CS06-R

Please call for questions about what engines this replaces. (888-208-2088, 248-628-4638)
Any cross-reference is provided as a courtesy. You will be responsible for making sure the part number we are providing will fit your application. If you are unsure, please contact us before purchasing for help. Please have your model and serial number available.

Kawasaki FS Engines: Find Your Perfect Match

The FS Kawasaki engine lineup offers a range of options from 14.5hp to 24hp. These engines are known for their dependable performance, durability, and impressive power. They are equipped with a 4-stroke, overhead valve system and forced air-cooling, ensuring optimal functioning.

Discover the Precision of Kawasaki FR Engines

Our range of Kawasaki FR series provides a variety of compact yet robust engines that are suitable for a wide range of applications. These engines are equipped with liquid cooling technology, which guarantees efficient and dependable performance even in challenging conditions. Discover the ideal combination of power, durability, and compact size to meet your equipment requirements.

Kawasaki FD Liquid Cooled Engines

We offer a range of Kawasaki FD lawn mower engines with horizontal shafts, available in either 25HP or 26HP. These engines are compact, V-twin, and equipped with liquid cooling. They are ideal for various commercial lawn mower applications.

Unleash the Power of Kawasaki FJ Vertical Engines

Our range of Kawasaki FJ engines varies from 4.5hp to 6hp. The FJ series provides an excellent solution for industrial, agricultural, and manufacturing needs. Equipped with 4-stroke OHV, dual-element air filters, and a mechanical governor.
