Kawasaki

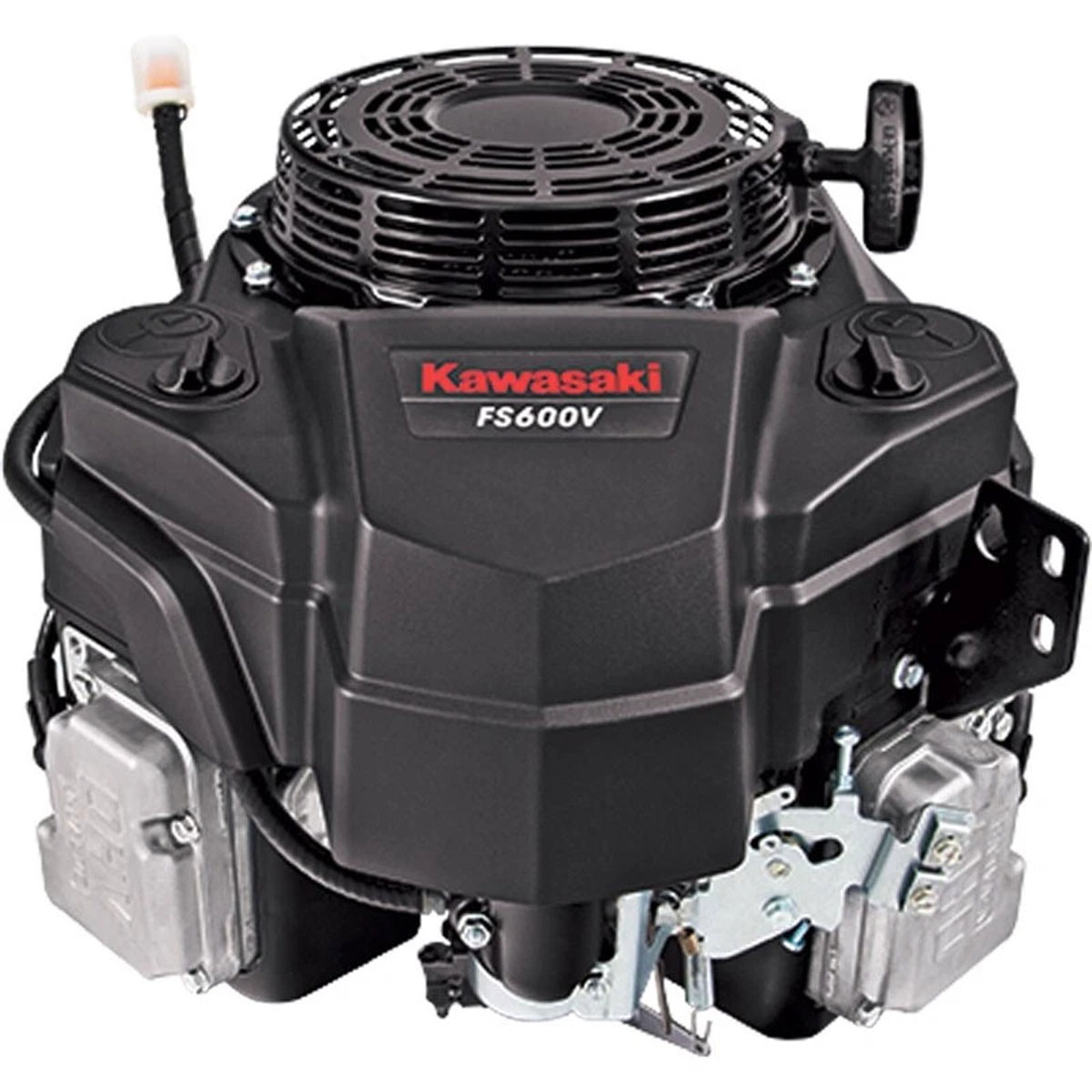

Kawasaki FS600V-S25 19 HP Vertical 1" (25.4mm) X 3-5/32" (80mm) Shaft, Comes with Muffler

Price: $2,104.00
Sale Price: $1,799.00
No reviews yet Write a Review
SKU:
FS600V-S25
Availability:
‎Free 1–5 day delivery
Weight:
81.00 LBS

Prop. 65 Warning: This product contains chemicals known to the state of California to cause cancer and birth defects, or other reproductive harm.

  • FREE SHIPPING

  • ZERO SALES TAX

  • LOWEST PRICES

  • WIDEST SELECTION

Kawasaki FS600V-S25 Small Gas Engine Recoil Pull Start

With 1" X 3-5/32" Vertical Shaft

In Stock! Same day Shipping! Comes with Muffler!

** It's an FS600V-S01 with a 99999-0414 Muffler

The Kawasaki FS600V-S25 is a robust and reliable 19 HP small gas engine, crafted to handle a variety of commercial, industrial, and residential jobs. Whether you're swapping out an old engine or embarking on a new installation, this recoil-start model features a 1" x 3-5/32" vertical shaft, ensuring compatibility with many zero-turn and walk-behind mowers, turf equipment, and beyond.

Constructed using high-quality components and designed for durability, this engine is relied upon by brands such as Ariens, Billy Goat, Eastman, MTD, Toro, Exmark, Scag, Bad Boy, Dixie Chopper, and more. Its 4-stroke OHV twin-cylinder configuration enhances both power and fuel efficiency, providing you with the strength to tackle challenging tasks while conserving fuel.

The FS600V-S25 is equipped with a recoil pull start, a clutch coil, and a mechanical governor that ensures stable RPM control. Additionally, it includes a low-tone muffler to minimize noise, a dual-element air filter for enhanced engine protection, and a pressurized oil system featuring a high-efficiency cooler to sustain performance during intense usage. The internally vented carburetor and forced air-cooling system collaborate effectively to avoid overheating, even during prolonged operation.

At Carroll Stream Motor Company, we have been proudly serving our customers since 2005, offering only top-quality engines. Every Kawasaki motor we provide is completely rebuildable, with all parts readily available and supported by a 3-year warranty for both consumers and commercial use—because we understand that reliability is important.

Your FS600V-S25 engine is shipped the same day from our well-stocked warehouse, carefully packed and delivered to your doorstep at no cost.

Are you unsure if this is the right engine for you?
Feel free to reach out to our Kawasaki specialists at 888-208-2088 or 248-628-4638—we're dedicated to helping you find the ideal match for your equipment. Just let me know if you need a version customized for SEO, advertising, or email campaigns!


Specifications
Make Kawasaki
Model FS600V-S25
Type Small Engine
Fuel Gas Unleaded 86 Octane or Higher
Engine Type 4 Stroke OHV Twin Cylinder
Bore/Stroke 2.9X 2.8 in
Displacement 603cc
Max Power 18.5HP
Starting Type Recoil Start
Charging Coil Clutch Coil
Starting System Recoil Starter
Dimensions (L x W x H) 19.25 x 17 x 14.25 in.
Exhaust Included Yes
Fuel Tank No
Dry Engine Weight 90lbs.
Shaft Type Keyed - Straight
Shaft Diameter 1" Diameter, 1/4" Keyway
Shaft Length 3-5/32" Total
Shaft I.D. Thread Size 7/16"-20 Drilled and Tapped
Bolt Pattern 4 Bolt
Oil System Pressurized with oil filter
Oil Capacity 2.2 Qts
Oil Cooler High Efficiency
Reduction Type None
Engine Cooling Type Forced Air Cooling
Features
3 Year Consumer Warranty
3 Year Commercial Warranty
Mechanical Governor
4 Stroke OHV Small Engine
Dual Sealing Cartridge type Air Filter
Dipstick in Crankcase
Cross Reference Guide
Kohler: CV640
Accessories
User Manual


Use to Replace Model Numbers:

FS541V-S05, FS541V-S07, FS541V-S11, FS541V-S15, FS541V-S17, FS541V-S19, FS541V-S23, FS541V-S24, FS541V-S26, FS541V-S27, FS541V-AS27, FS541V-BS27, FS541V-BS27S, FS600V-S25,
FS600V-AS25, FS600V-BS25, FS600V-BS25S, FS600V-CS25, FS600V-CS25S

Please call for questions about what engines this replaces. (888-208-2088, 248-628-4638)

Any cross-reference is provided as a courtesy. You will be responsible for making sure the part number we are providing will fit your application. If you are unsure, please contact us before purchasing for help. Please have your model and serial number available.



Kawasaki FS Engines: Find Your Perfect Match

The FS Kawasaki engine lineup offers a range of options from 14.5hp to 24hp. These engines are known for their dependable performance, durability, and impressive power. They are equipped with a 4-stroke, overhead valve system and forced air-cooling, ensuring optimal functioning.

Discover the Precision of Kawasaki FR Engines

Our range of Kawasaki FR series provides a variety of compact yet robust engines that are suitable for a wide range of applications. These engines are equipped with liquid cooling technology, which guarantees efficient and dependable performance even in challenging conditions. Discover the ideal combination of power, durability, and compact size to meet your equipment requirements.

Kawasaki FD Liquid Cooled Engines

We offer a range of Kawasaki FD lawn mower engines with horizontal shafts, available in either 25HP or 26HP. These engines are compact, V-twin, and equipped with liquid cooling. They are ideal for various commercial lawn mower applications.

Unleash the Power of Kawasaki FJ Vertical Engines

Our range of Kawasaki FJ engines varies from 4.5hp to 6hp. The FJ series provides an excellent solution for industrial, agricultural, and manufacturing needs. Equipped with 4-stroke OHV, dual-element air filters, and a mechanical governor.
