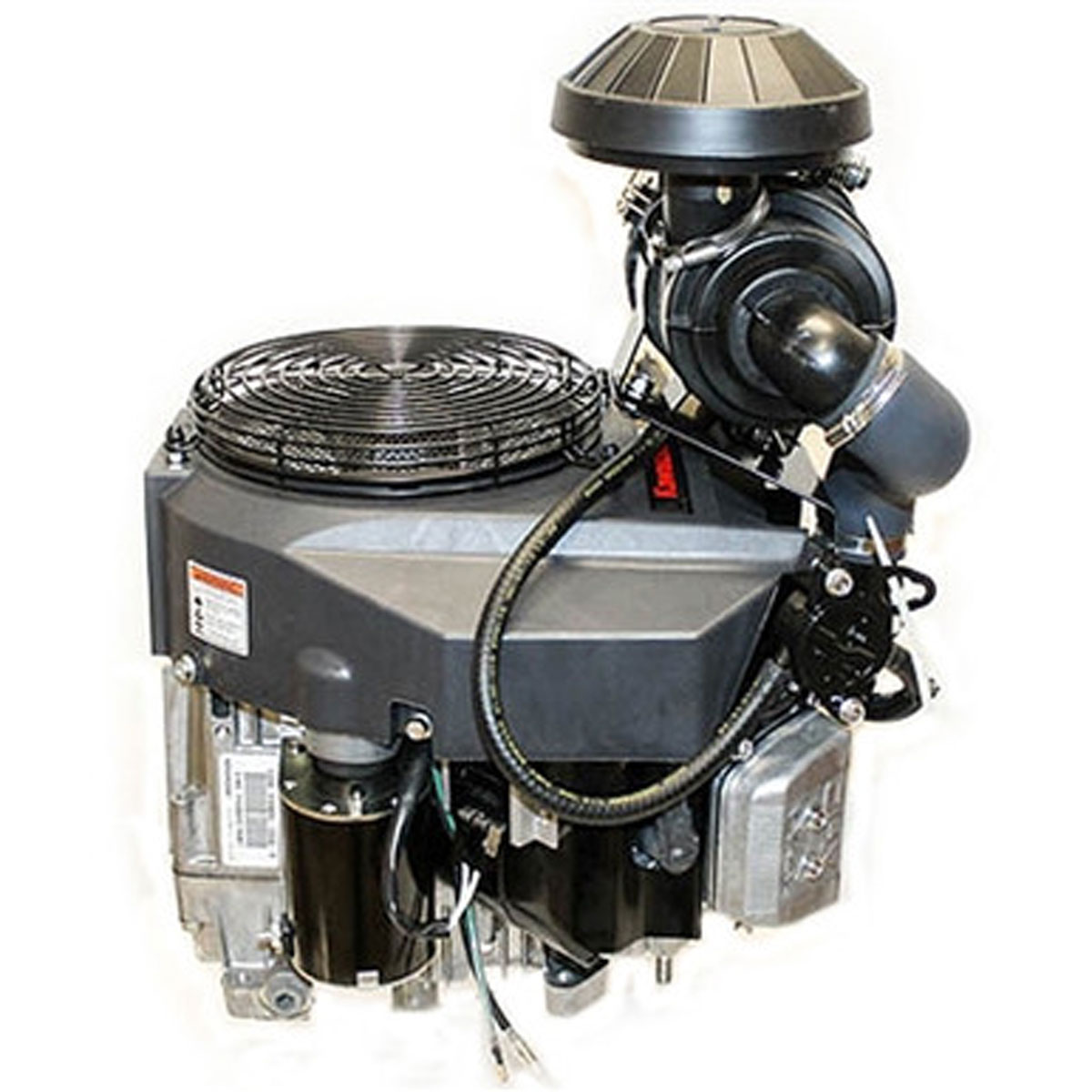

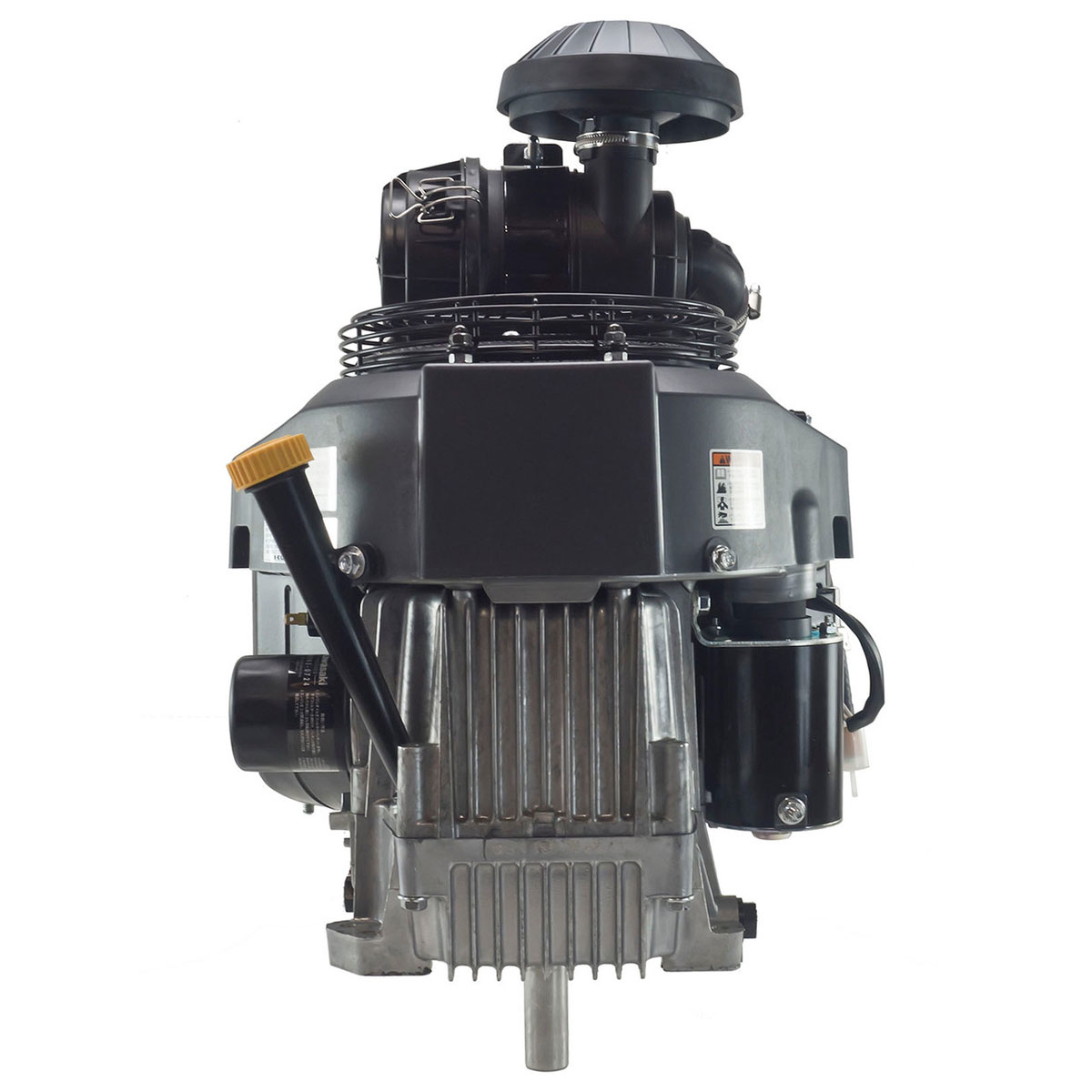

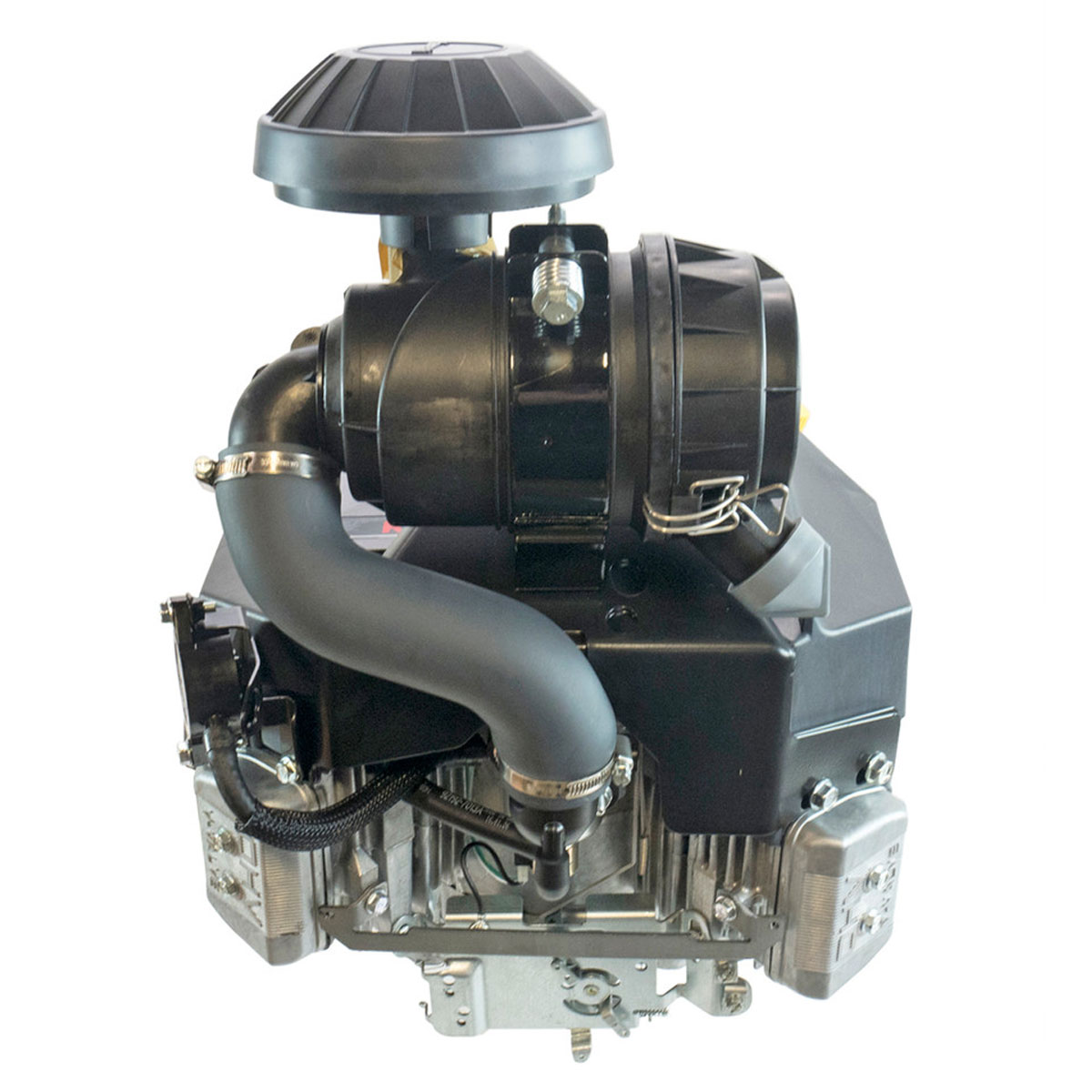

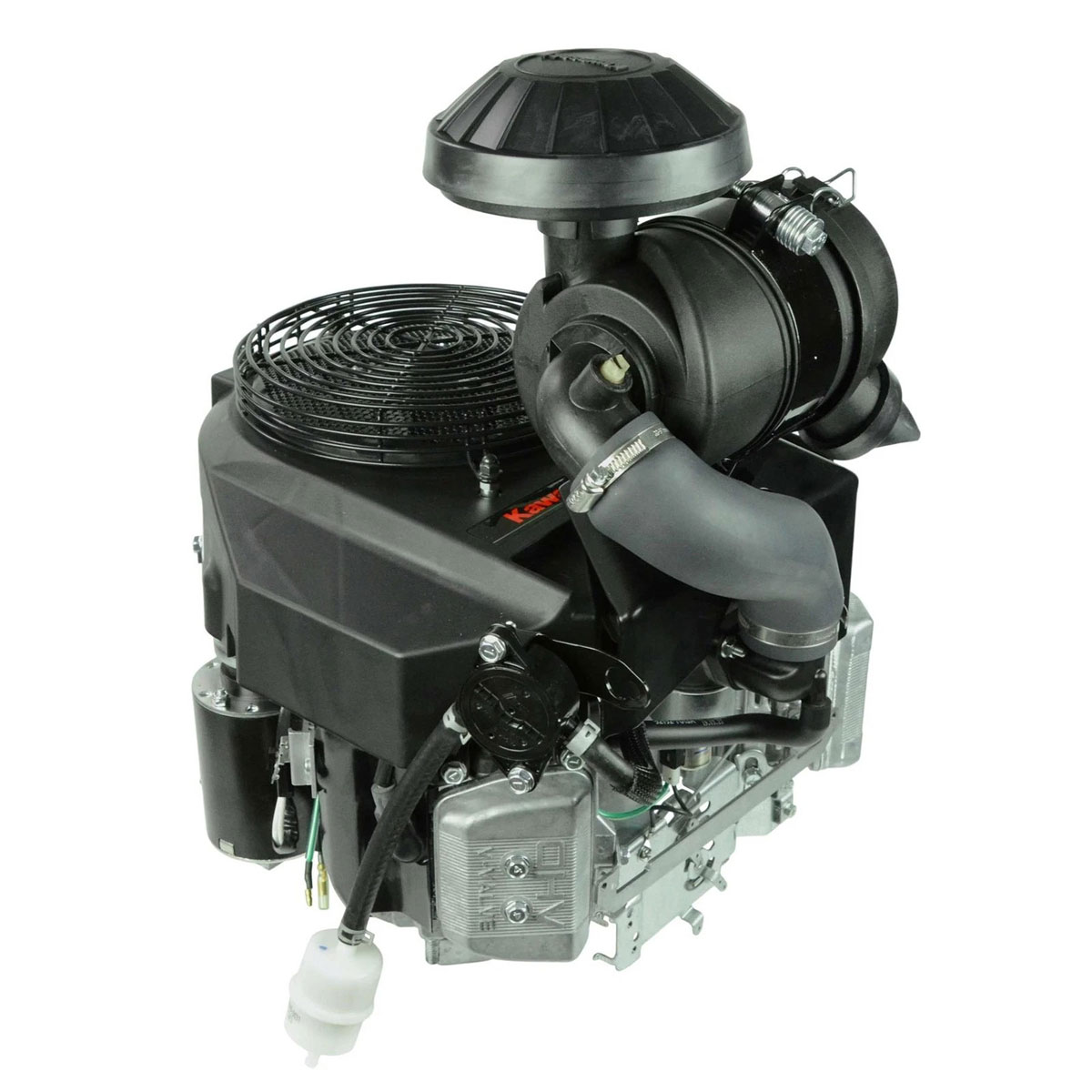

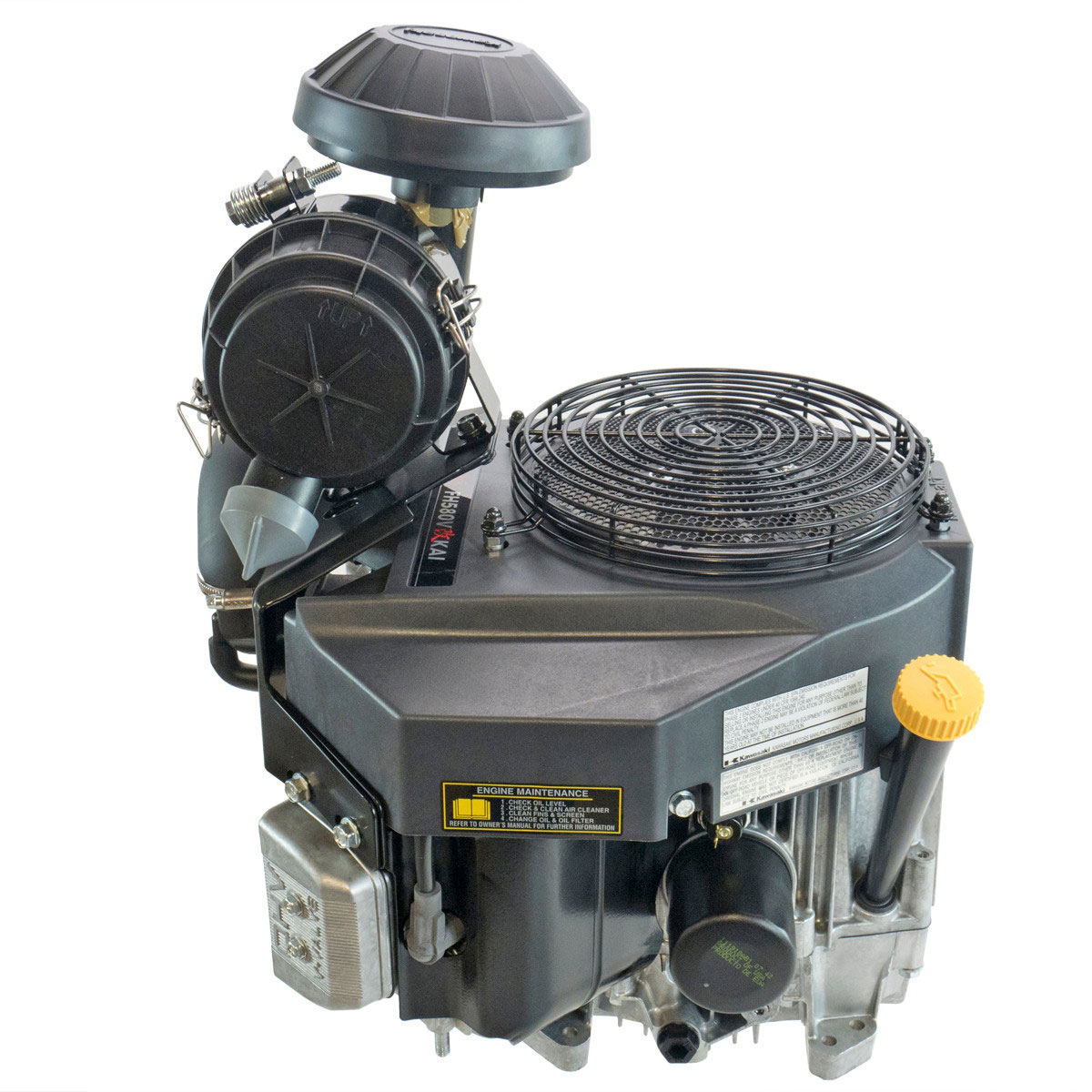

Kawasaki FH580V-S29 Vertical 1" X 3-5/32" Shaft

Price: $2,194.00
Sale Price: $2,048.00
No reviews yet Write a Review
‎Free 1–5 day delivery
71.00 LBS
15.00 (in)
22.00 (in)
17.00 (in)

Prop. 65 Warning: This product contains chemicals known to the state of California to cause cancer and birth defects, or other reproductive harm.





Kawasaki FH580V-S29 Gas Engine: Exceptional Performance and Reliability

With Vertical 1" X 3-5/32" Shaft

Electric Start Kawasaki Engine

* In-stock; however, limited quantities are available so act now!

Carroll Stream sells the Kawasaki FH580V-S29 replacement engine for zero-turn mowers and a wide range of other commercial and industrial applications. This powerful Kawasaki gas engine with electric start delivers up to 19 horsepower and comes with a high-efficiency full pressure lubrication system with spin on oil filter and dual element air cleaner technology to deliver the power you need with the fuel efficiency you expect from Kawasaki engines. Our powerful Kawasaki engine is in stock ready to ship today! This is an electric start, 585cc and 4-stroke OHV engine. The FH580V-S29 includes heavy duty air filter, high efficient oil cooler and a 3 year warranty,

The Kawasaki FH580V-S29 is covered by one of the strongest warranties in the industry with a 3 year parts and labor warranty. Order now to take advantage of our competitive prices with fast free shipping on all orders over $100 and give us a call at 1-888-208-2088 to speak with our Kawasaki Gold team of experts that are able to help you with any and all your Kawasaki needs or questions.

The Kawasaki FH580V-S29 is used on many brands such as Toro, Exmark, Scag, Bad Boy, KMC, Ariens, Excel, MTD, Dixie Chopper, Husqvarna, CHP, Little Wonder, Ferris and many other top brands.

FH580V-S29 Summary

The Kawasaki FH580V-S29 Engine is widely recognized as an exceptional powerhouse among small gas engines. Renowned for its outstanding performance and unwavering reliability, this engine has gained immense popularity across various applications. Now, let us explore the remarkable features and advantages offered by this extraordinary piece of machinery.

Kawasaki Engines

Kawasaki has established a strong reputation for quality and durability over the years, and the FH580V-S29 Engine is a prime example of this. With a focus on precision and excellence, Kawasaki is renowned for manufacturing high-quality engines. The FH580V-S29 serves as proof of their unwavering commitment to delivering dependable and enduring products.

Engines from Carroll Stream Motor Company

For all your small gas engine needs, Carroll Stream is the go-to source. With their extensive selection of Kawasaki engines, including the FH580V-S29, Carroll Stream offers high-quality products that you can trust. Their commitment to customer satisfaction and industry expertise make them a reliable partner for all your engine needs.

The Kawasaki FH580V-S29 Gas Engine is undeniably a robust powerhouse that offers outstanding performance and dependability. Boasting an electric start system, remarkable horsepower, and the support of a reputable brand such as Kawasaki, this engine stands out as a premier option for various uses. Whether you are a seasoned professional or a homeowner, the FH580V-S29 is guaranteed to surpass your needs. For your engine procurement needs, Carroll Stream is your ultimate destination, offering a diverse range of top-notch Kawasaki engines.
Make Kawasaki
Model FH580V-S29
Type Small Engine
Fuel Gas Unleaded 86 Octane or Higher
Engine Type 4 Stroke OHV Twin Cylinder
Bore/Stroke 2.9 X 2.7 in
Displacement 585 cc
Max Torque 36.6FT. Lbs
Starting Type Electric Start
Charging Coil 15 Amp
Starting System Electric Shift Starter
Dimensions (L x W x H) 17 x 15 x 22 in.
Exhaust Included No
Fuel Tank No
Dry Engine Weight 71lbs.

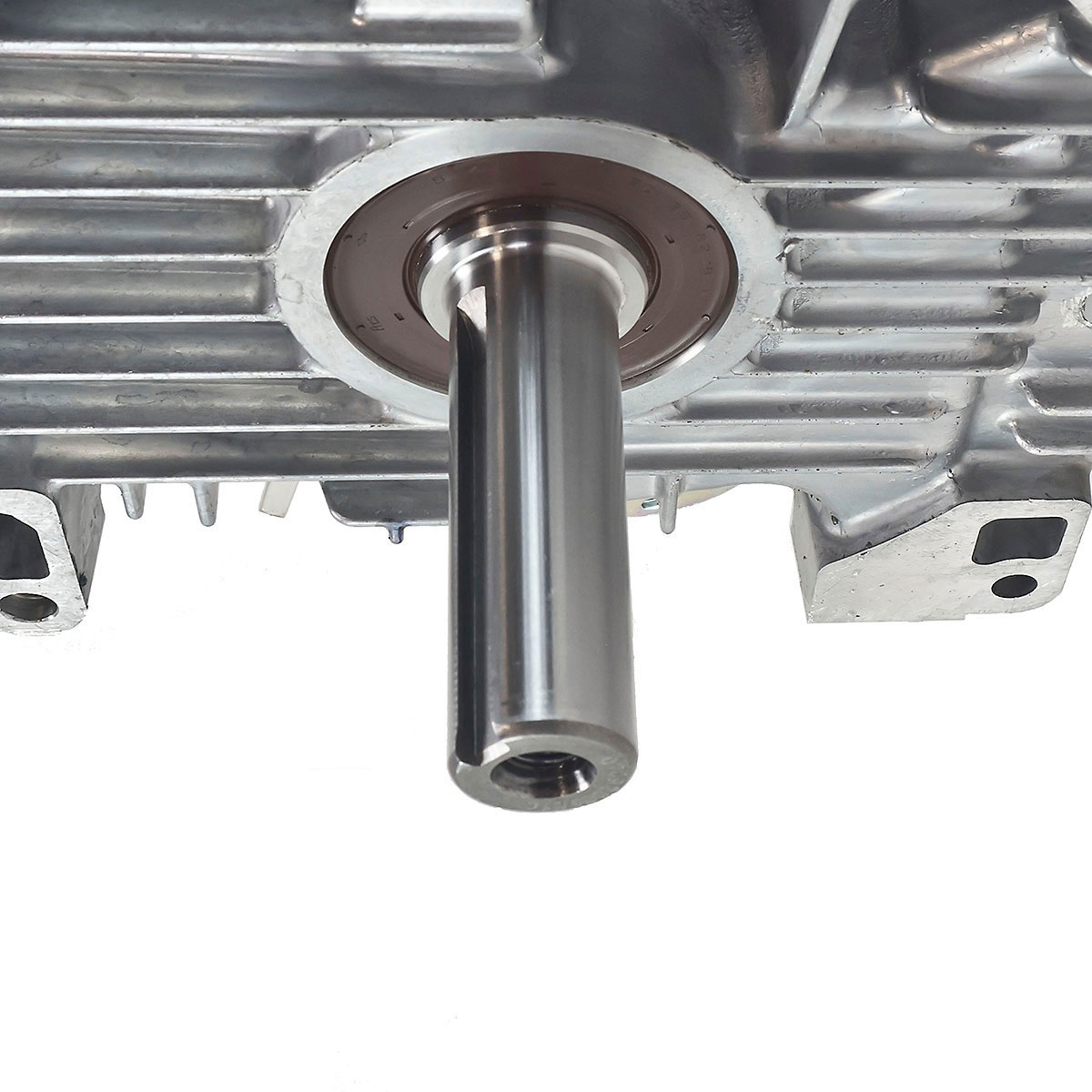

Shaft Type Keyed - Straight
Shaft Diameter 1" Diameter, 1/4" Keyway
Shaft Length 3-5/32" Total
Shaft I.D. Thread Size 7/16"-20 Drilled and Tapped
Bolt Pattern 4 Bolt
Oil System Pressurized with oil filter
Oil Capacity 1.9 Qts
Oil Cooler High Efficiency
Reduction Type None
Engine Cooling Type Forced Air Cooling
3 Year Consumer Warranty
3 Year Commercial Warranty

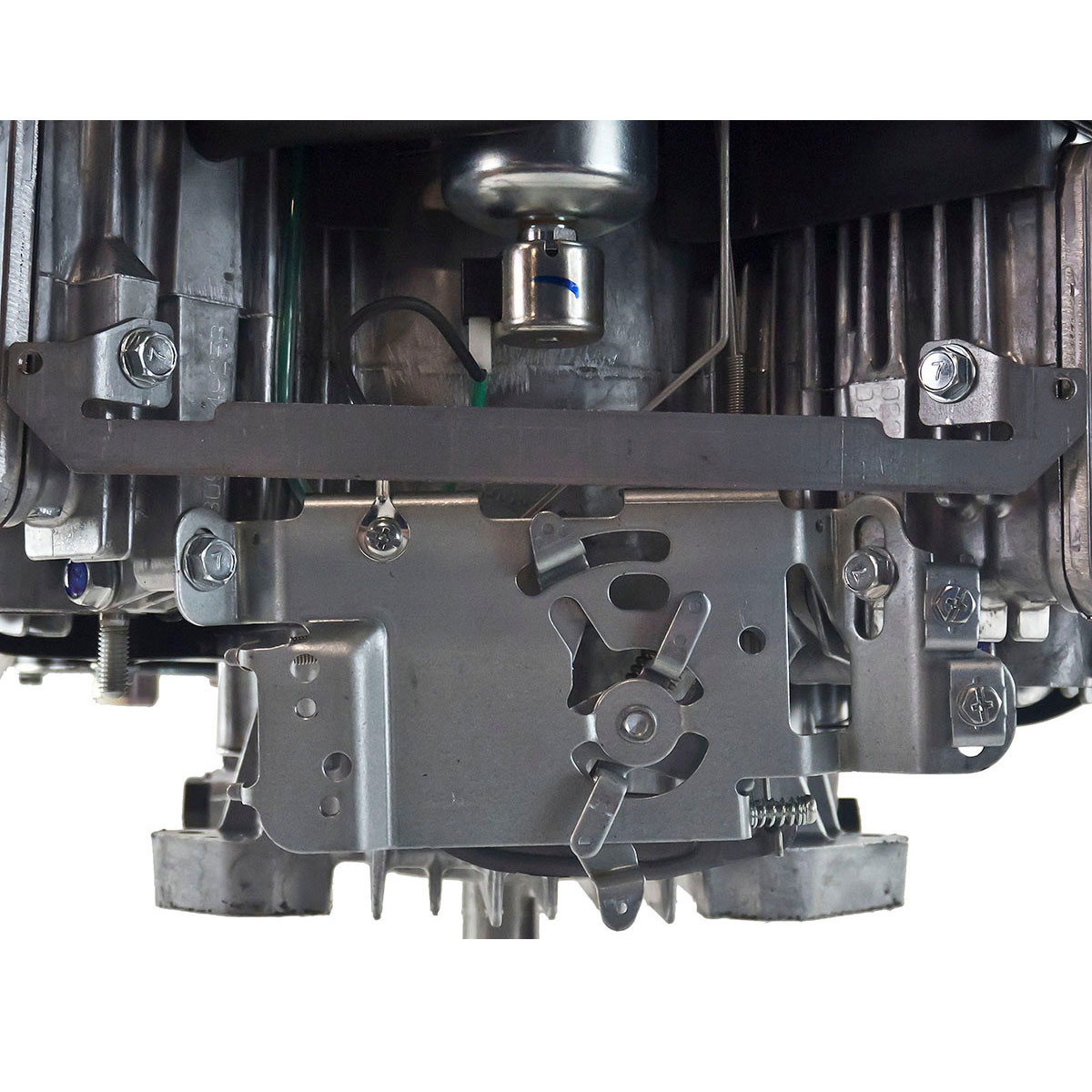

Mechanical Governor
4 Stroke OHV Small Engine
Heavy Duty Air Filter
Dipstick in Crankcase
Cross Reference Guide
Kohler: CV750
User Manual

Use to Replace Model Numbers:

FH580V-S25: AS25, BS25, CS25, DS25, ES25
FH580V-S29: AS29, BS29, CS29, DS29, ES29
FH580V-S36: AS36, BS36, CS36
FH580V-S41: AS41, BS41, CS41

Please call for questions about what engines this replaces. (888-208-2088, 248-628-4638)
Any cross-reference is provided as a courtesy. You will be responsible for making sure the part number we are providing will fit your application. If you are unsure, please contact us before purchasing for help. Please have your model and serial number available.
