Kawasaki FH680V-S32 Vertical 1-1/8"(28.575") X 3-15/16" (100 mm) Shaft

Price: $2,771.00
Sale Price: $2,497.00
No reviews yet Write a Review
‎Free 1–5 day delivery
105.00 LBS
17.00 (in)
24.00 (in)
18.00 (in)

Prop. 65 Warning: This product contains chemicals known to the state of California to cause cancer and birth defects, or other reproductive harm.





Kawasaki FH680V-S32: Small Gas Engine With Power and Reliability

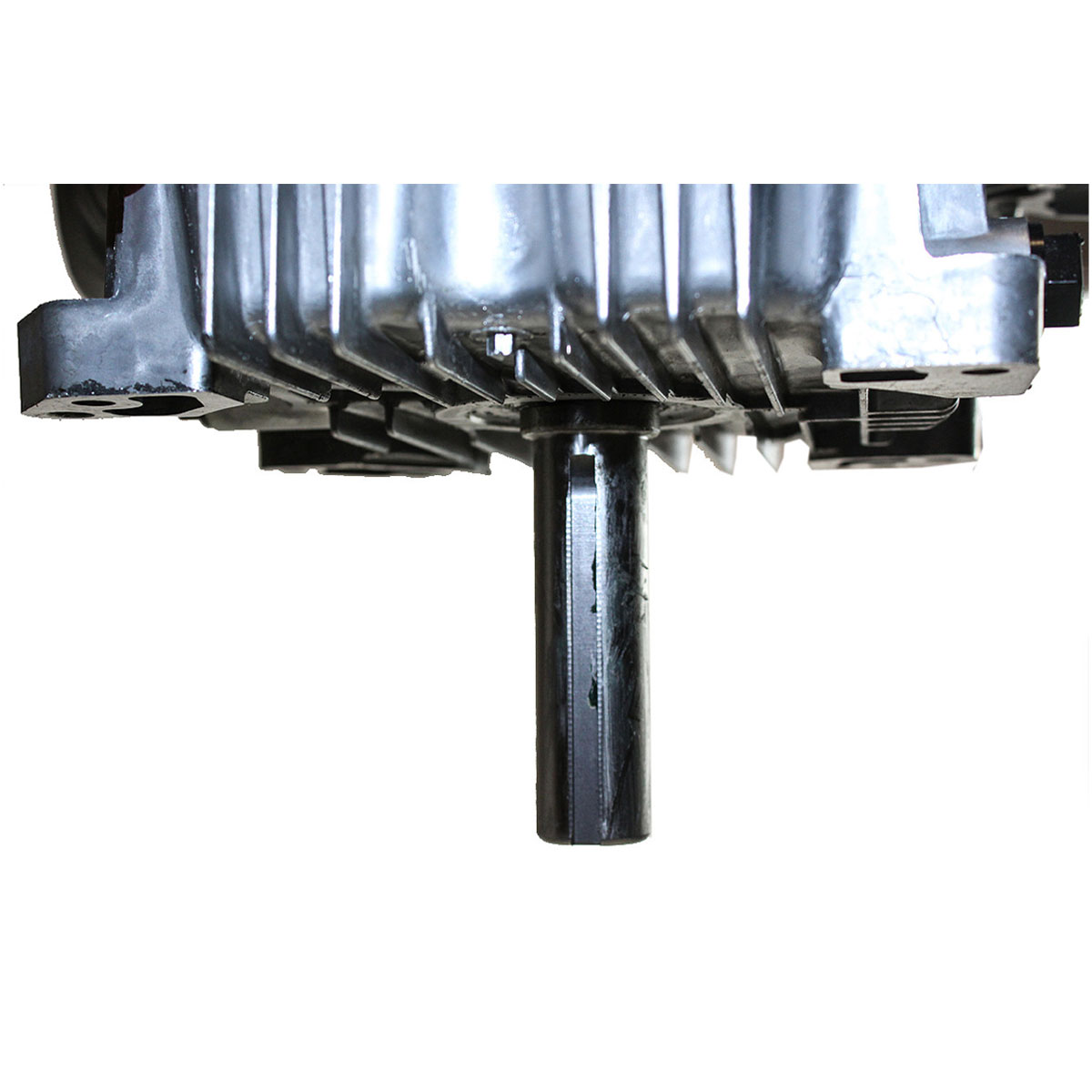

With 1-1/8" X 3-15/16" Vertical Shaft

Electric Start Motor



The FH680V-S32 Is one of the strongest replacement engines on the market with its wide variety of uses in zero-turn mowers, lawn and garden tractors and walk-behind mowers. It is SAE certified and built to handle the toughest terrains and the worst conditions. The FH680V-S32 Kawasaki engine also offers a guaranteed 3 year consumer or commercial warranty on all parts and labor.

The Kawasaki 23 HP gas engine is powerful, heavy duty, and built to handle years of rugged use. Order now to take advantage of our extremely low prices and our incredibly fast free shipping on all orders over $100 and give us a call at 888-208-2088, 248-628-4638 to speak with any one of our Kawasaki Gold memebers to help you find exactly what you need.

The Kawasaki FH680V-S32 engine is a direct replacement for many brands such as Scag, Ransomes, Toro, Exmark, CGC, Bad Boy, Auburn Consolidated, KMC, Ariens, Excel, MTD, Dixie Chopper, Husqvarna, CHP, Little Wonder, Snapper, Ferris and many others.

FH680V-S32 Engine

Kawasaki is a renowned name in the realm of robust and dependable small gas engines. With a long-standing reputation for quality and groundbreaking technology, Kawasaki has dominated the engine manufacturing industry for more than a hundred years. The Kawasaki FH680V-S32 Engine is a prime example of their superior products, delivering unparalleled power and longevity suitable for various uses.
The FH680V-S32 Engine is a member of Kawasaki's FH series, renowned for its exceptional performance and dependability. Boasting a displacement of 675cc, this engine offers an impressive power output of 23 horsepower, making it ideal for a wide range of small engine applications. Whether you require power for your lawn mower, generator, or any other equipment, the FH680V-S32 Engine is the perfect choice to meet your needs.
The FH680V-S32 Engine not only delivers outstanding performance but also incorporates a variety of cutting-edge technologies that enhance its overall quality. Kawasaki's Digital Fuel Injection (DFI) system guarantees accurate fuel delivery, leading to enhanced fuel efficiency and lower emissions. Additionally, the engine features Kawasaki's Automatic Compression Release (ACR) system, which streamlines the starting process by minimizing the effort needed to turn the flywheel. Whether you're initiating your equipment in chilly conditions or after an extended period of dormancy, the ACR system guarantees a prompt and trouble-free start on every occasion.

Carroll Stream Motor Company

Carroll Stream, a trusted distributor of small gas engines, recognizes the exceptional quality and performance of the Kawasaki FH680V-S32 Engine. As a leading supplier of engines and parts, Carroll Stream offers a wide range of Kawasaki engines, including the FH680V-S32, to meet the needs of various industries and applications. With their expertise and commitment to customer satisfaction, Carroll Stream ensures that customers receive top-notch products and support.
The Kawasaki FH680V-S32 Engine stands out as a formidable force in the realm of compact gas engines. Boasting a V-Twin configuration, cutting-edge innovations, and outstanding capabilities, it comes as no surprise that this engine garners significant attention from both experts and hobbyists.
Make Kawasaki
Model FH680V-S32
Type Small Engine
Fuel Gas Unleaded 86 Octane or Higher
Engine Type 4 Stroke OHV Twin Cylinder
Bore/Stroke 3.0 X 3.0 in
Displacement 675 cc
Max Torque 41.2 FT. Lbs
Starting Type Electric Start
Charging Coil 15 Amp
Starting System Electric Shift Starter
Dimensions (L x W x H) 18 x 17 x 24 in.
Exhaust Included No
Fuel Tank No
Dry Engine Weight 105lbs.
Shaft Type Keyed - Straight
Shaft Diameter 1 1/8" Diameter, 1/4" Keyway
Shaft Length 3-15/16" Total
Shaft I.D. Thread Size 7/16"-20 Drilled and Tapped
Bolt Pattern 4 Bolt
Oil System Pressurized with oil filter
Oil Capacity 2.0 Qts
Oil Cooler High Efficiency
Reduction Type None
Engine Cooling Type Forced Air Cooling
3 Year Consumer Warranty
3 Year Commercial Warranty
Mechanical Governor
4 Stroke OHV Small Engine
Heavy Duty Air Filter
Dipstick in Crankcase
Cross Reference Guide
Kohler: CV750
User Manual

Use to Replace Model Numbers:

FH680V-S32: AS32, BS32, CS32, DS32, ES32

Please call for questions about what engines this replaces. (888-208-2088, 248-628-4638)

Any cross-reference is provided as a courtesy. You will be responsible for making sure the part number we are providing will fit your application. If you are unsure, please contact us before purchasing for help. Please have your model and serial number available.
