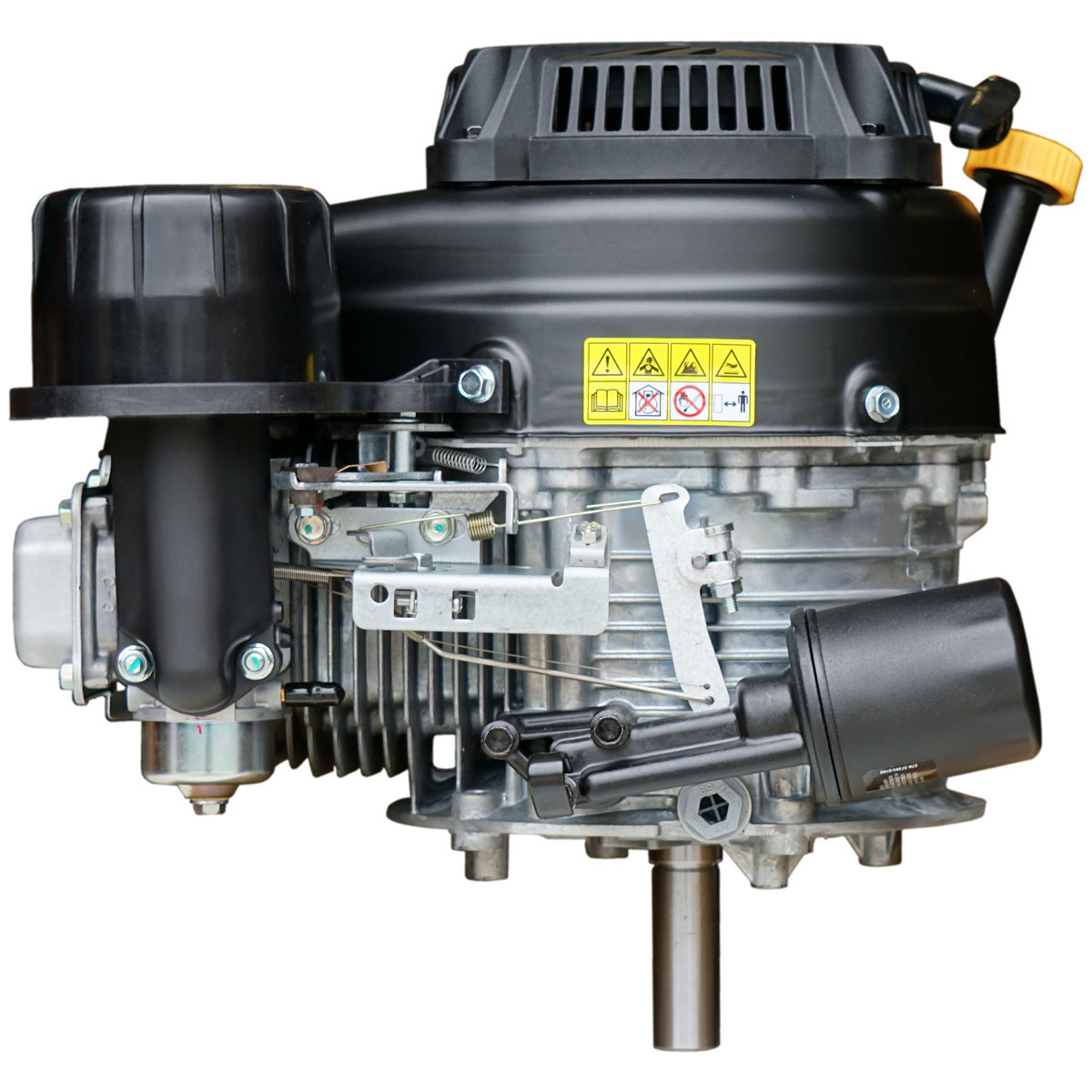

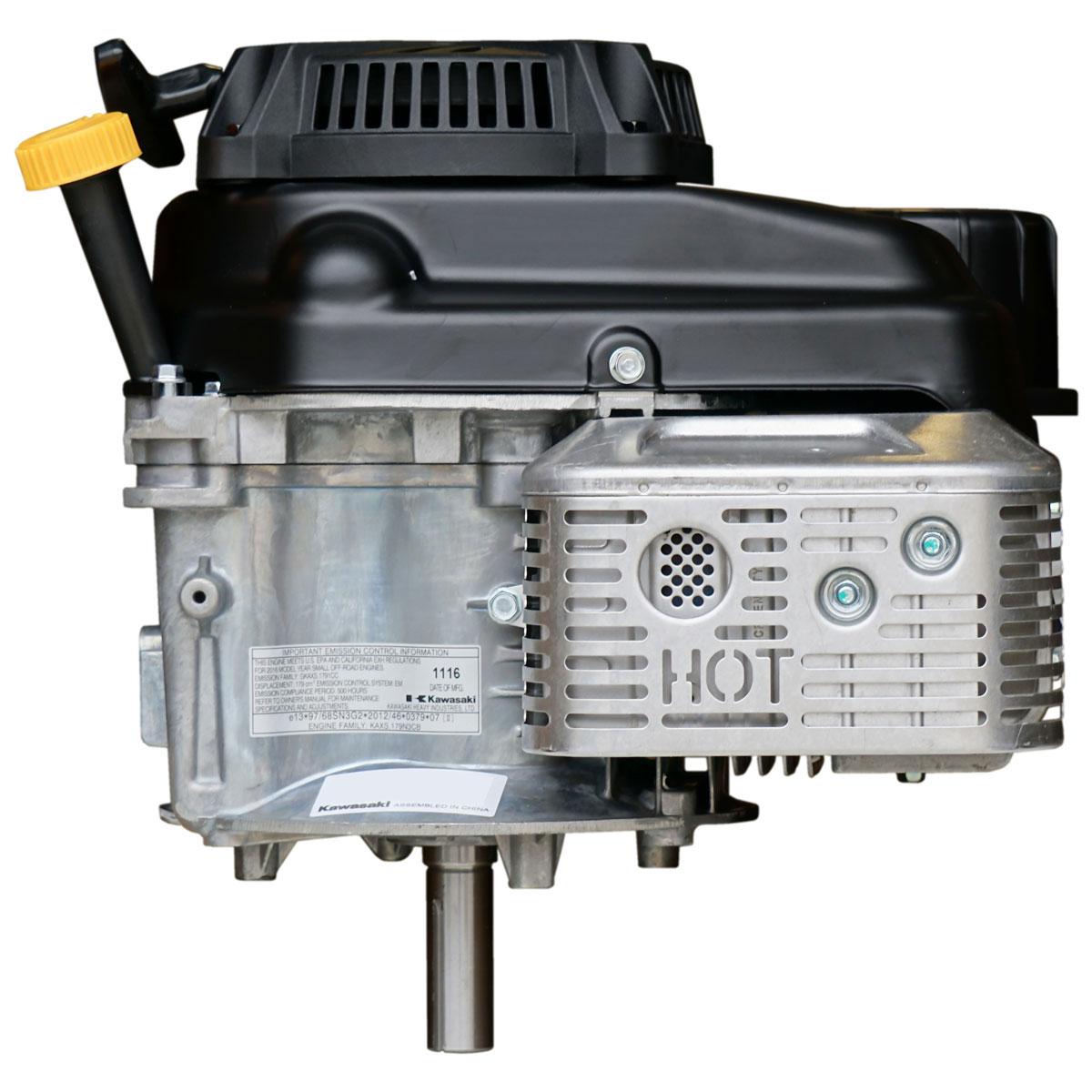

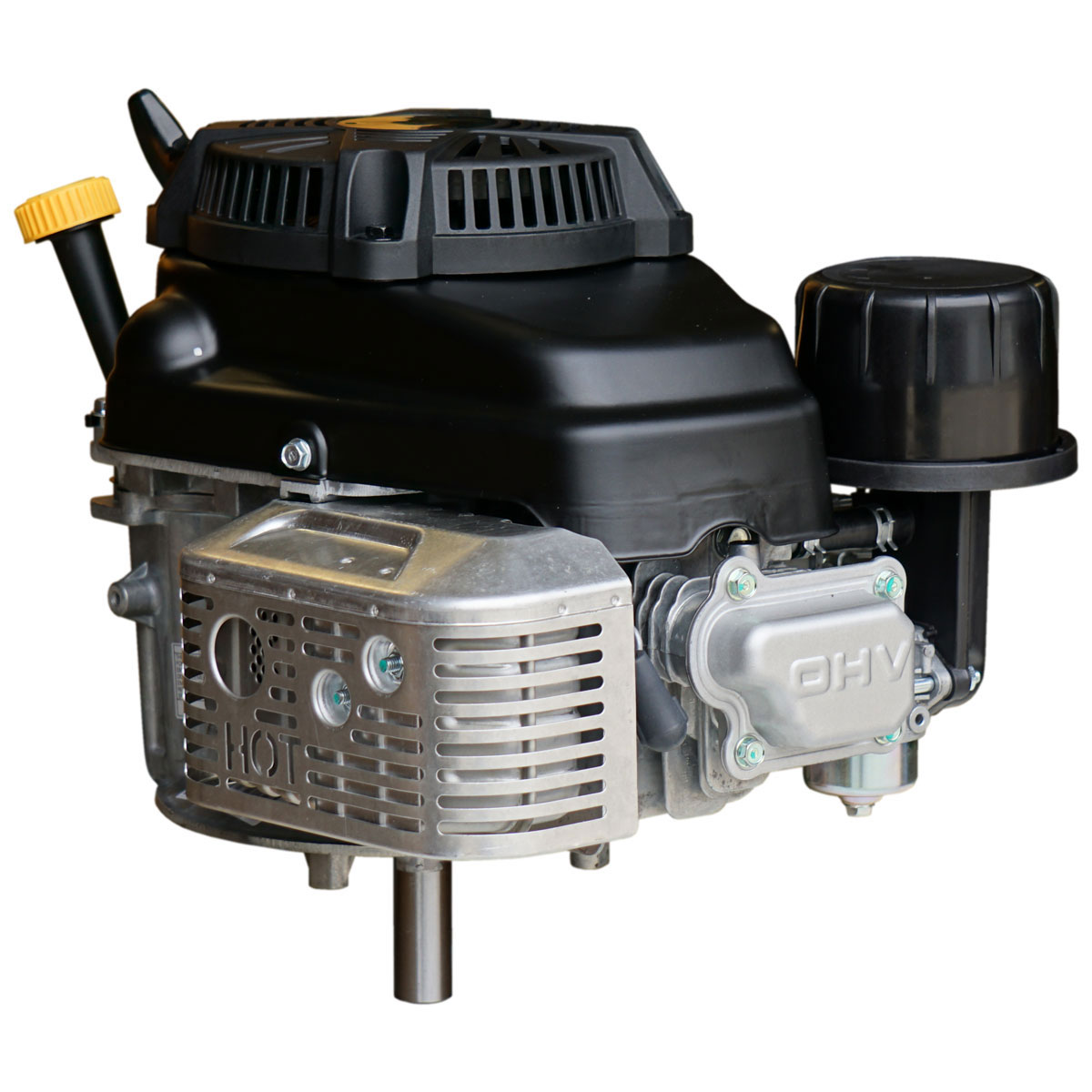

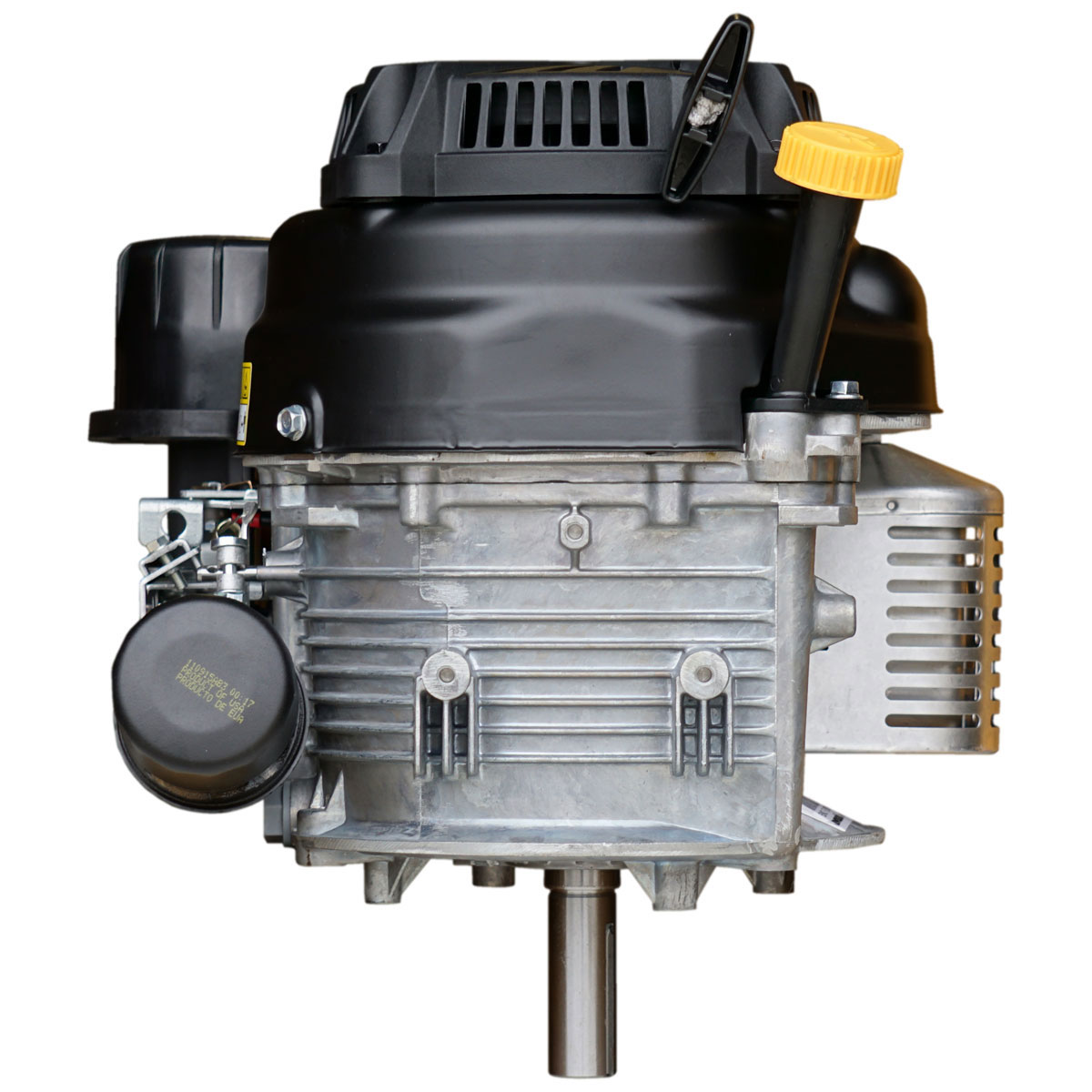

Kawasaki FJ180V-M08 Small Gas Engine Recoil Pull Start
With 25mm X 3-5/32" Vertical Shaft
179cc 6hp Kawasaki Engine
The highest quality guaranteed! We have been in business since 2005, and our engines are fully rebuildable with all parts available. The perfect Kawasaki motor to replace FJ180V.The Kawasaki FJ180V-M08 is perfect for industrial, commercial and residential applications. These premium residential motors have low tone mufflers, mechanical governors and duel element air filters. This convenient, heavy duty and reliable 4 stroke OHV single cylinder engine does the job for many applications. Also, offering a 3-year commercial warranty on these motors. Your order ships quickly with expert turnaround time in our fully stocked warehouse. Packaged with care, Carroll Stream Motor Company provides free shipping. This forced air-cooled 4-cycle engine features an internally vented carburetor, dual element air cleaner, zone start, oil filter, KAI, choke, engine brake and a ball bearing supported crankshaft.
This Kawasaki FJ180V-M08 engine is a 4 Stroke OHV single cylinder, 179cc, 8.7 Ft lbs. of gross torque.
This Kawasaki small motor is built with quality components and is ready to outlast the competition. Purchase now to take advantage of our free shipping and quick turnaround time. Or, call if you have questions! 888-208-2088, 248-628-4638.
Specifications | |
---|---|
Make | Kawasaki |
Model | FJ180V-M08 |
Type | Small Engine |
Fuel | Gas Unleaded 86 Octane or Higher |
Engine Type | 4 Stroke OHV Single Cylinder |
Bore/Stroke | 2.6 X 2.1 in |
Displacement | 179 cc |
Max Power | 8.7 Ft Lbs. Gross Torque |
Starting Type | Recoil Start |
Starting System | Recoil, 2200mm |
Dimensions (L x W x H) | 11.75 x 13 x 9.75 in. |
Exhaust Included | Yes |
Fuel Tank | No |
Dry Engine Weight | 30 lbs. |
Shaft Type | Straight |
Shaft Diameter | 25mm |
Shaft Length | 3-5/32" Total |
Shaft I.D. Thread Size | 7/16"-20 Drilled and Tapped |
Bolt Pattern | 4 Bolt |
Oil System | Pressure Lubrication |
Oil Capacity | 20 Fl. oz |
Reduction Type | None |
Engine Cooling Type | Forced Air Cooling |
Features | |
3 Year Commercial Warranty | |
Super Low Tone Muffler | |
Mechanical Governor | |
4 Stroke OHV Small Engine | |
Duel Element Air Filter | |
Dipstick in Crankcase | |
Cross Reference Guide | |
Kohler: XT800 | |
Accessories | |
User Manual |
Use to Replace Model Numbers:
FJ180V-M08
FJ180V-AM08-S / FJ180V-BM08 / FJ180V-BM08-S
FJ180V-S10, FJ180V-S31, FJ180V-S56
Summary of the FJ180V-M08
The Kawasaki FJ180V-M08 is a high-quality small gas engine that guarantees exceptional performance and dependability. With its compact dimensions measuring 11.75 x 13 x 9.75 inches, this engine is designed with a vertical shaft configuration, making it suitable for a wide range of applications. With an impressive gross torque of 8.7 ft-lbs, the Kawasaki FJ180V-M08 delivers consistent and powerful performance, even when faced with the most challenging tasks. It is a preferred choice for renowned brands like Ariens, Billy Goat, Eastman, MTD, and Kawasaki, highlighting its outstanding versatility and superior quality.
The FJ180V-M08 engine by Kawasaki is specifically designed to outperform in various settings, including industrial, commercial, and residential environments. Its sturdy construction enables it to be compatible with a wide array of power equipment, ranging from lawn mowers and garden tractors to other machinery that demands dependable power. This high-quality engine incorporates a noise-reducing low-tone muffler, a mechanical governor for consistent performance, and a dual-element air filter to guarantee clean air intake and prolong the engine's lifespan.
The 4-stroke OHV single-cylinder engine has been designed with durability and user-friendliness in mind. Its forced air-cooled system effectively prevents overheating, allowing the engine to operate at its best even during demanding tasks. With an internally vented carburetor and dual-element air cleaner, the engine maintains cleanliness and efficiency. Moreover, it boasts convenient features like a zone start for effortless operation, a primer for quick starting, a fixed throttle for steady speed control, and an engine brake for added safety.
The Kawasaki FJ180V-M08 engine is designed with user convenience in mind. Its 1.8L fuel tank provides ample capacity for extended use, while the ball-bearing-supported crankshaft ensures smooth and reliable operation. The engine's special tapered BBC (Blade Brake Clutch) size further enhances its adaptability, making it suitable for a broad range of equipment.
Select the Kawasaki FJ180V-M08 and discover the impact a high-quality engine can have on your industrial, commercial, or residential projects. Count on Carroll Stream Motor Company's wide range of products and commitment to customer service for all your engine requirements.
Redefine Efficiency: Kawasaki FX Engines
Are you interested in exploring our range of vertical shaft FX Kawasaki engines? The engines in this series have a power range of 19hp to 35hp. The FX series is known for its durability, reliability, and high-performance capabilities, making it ideal for heavy-duty machinery. These commercial-grade vertical engines are suitable for a wide range of applications.- Kawasaki FX600V-S00 19HP Vertical 1"
- Kawasaki FX600V-S01 19HP Vertical 1"
- Kawasaki FX600V-S02 19HP Vertical 1-1/8"
- Kawasaki FX651V-S00 20.5HP Vertical 1-1/8"
- Kawasaki FX691V-S00 22HP Vertical 1-1/8"
- Kawasaki FX691V-S14 22HP Vertical 1"
- Kawasaki FX691V-S06 22HP Vertical 1-1/8"
- Kawasaki FX730V-S12 23.5HP Vertical 1"
- Kawasaki FX730V-S00 23.5HP Vertical 1-1/8"
- Kawasaki FX730V-S09 23.5HP Vertical 1-1/8"
- Kawasaki FX730V-S01 25.5HP Vertical 1-1/8"
- Kawasaki FX801V-S00 25.5HP Vertical 1-1/8"
- Kawasaki FX850V-S00 27HP Vertical 1-1/8"
- Kawasaki FX850V-S12 27HP Vertical 1-1/8"
- Kawasaki FX850V-S42 EFI 29.5HP Vertical 1-1/8"
- Kawasaki FX921V-S04 31HP Vertical 1-1/8"
- Kawasaki FXT00V-S08 35HP Vertical 1-1/8"
Discover the Precision of Kawasaki FR Engines
Our range of Kawasaki FR series provides a variety of compact yet robust engines that are suitable for a wide range of applications. These engines are equipped with liquid cooling technology, which guarantees efficient and dependable performance even in challenging conditions. Discover the ideal combination of power, durability, and compact size to meet your equipment requirements.
Kawasaki FD Liquid Cooled Engines
We offer a range of Kawasaki FD lawn mower engines with horizontal shafts, available in either 25HP or 26HP. These engines are compact, V-twin, and equipped with liquid cooling. They are ideal for various commercial lawn mower applications.
Unleash the Power of Kawasaki FJ Vertical Engines
Our range of Kawasaki FJ engines varies from 4.5hp to 6hp. The FJ series provides an excellent solution for industrial, agricultural, and manufacturing needs. Equipped with 4-stroke OHV, dual-element air filters, and a mechanical governor.
- Kawasaki FJ180V-M00 6HP Vertical 7/8"
- Kawasaki FJ180V-M01 6HP Vertical 25mm
- Kawasaki FJ180V-M07 6HP Tapered BBC Shaft
- Kawasaki FJ180V-M08 6HP Vertical 25mm

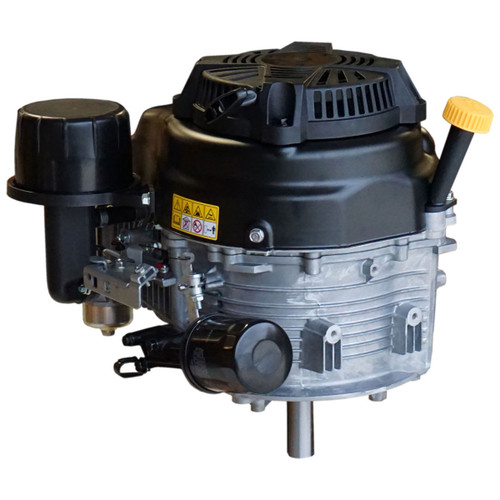

- Kawasaki FJ180V-M09 6HP Vertical 25mm
- Kawasaki FJ180V-M11 6HP Vertical 25mm
- Kawasaki FJ180V-M12 6HP Tapered BBC Shaft

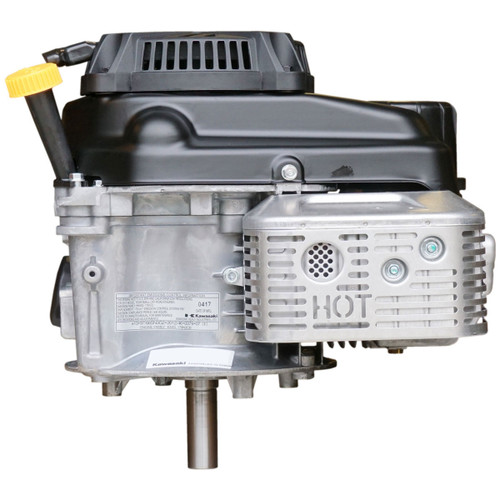

- Kawasaki FJ180V-M17 6HP Vertical 25mm
