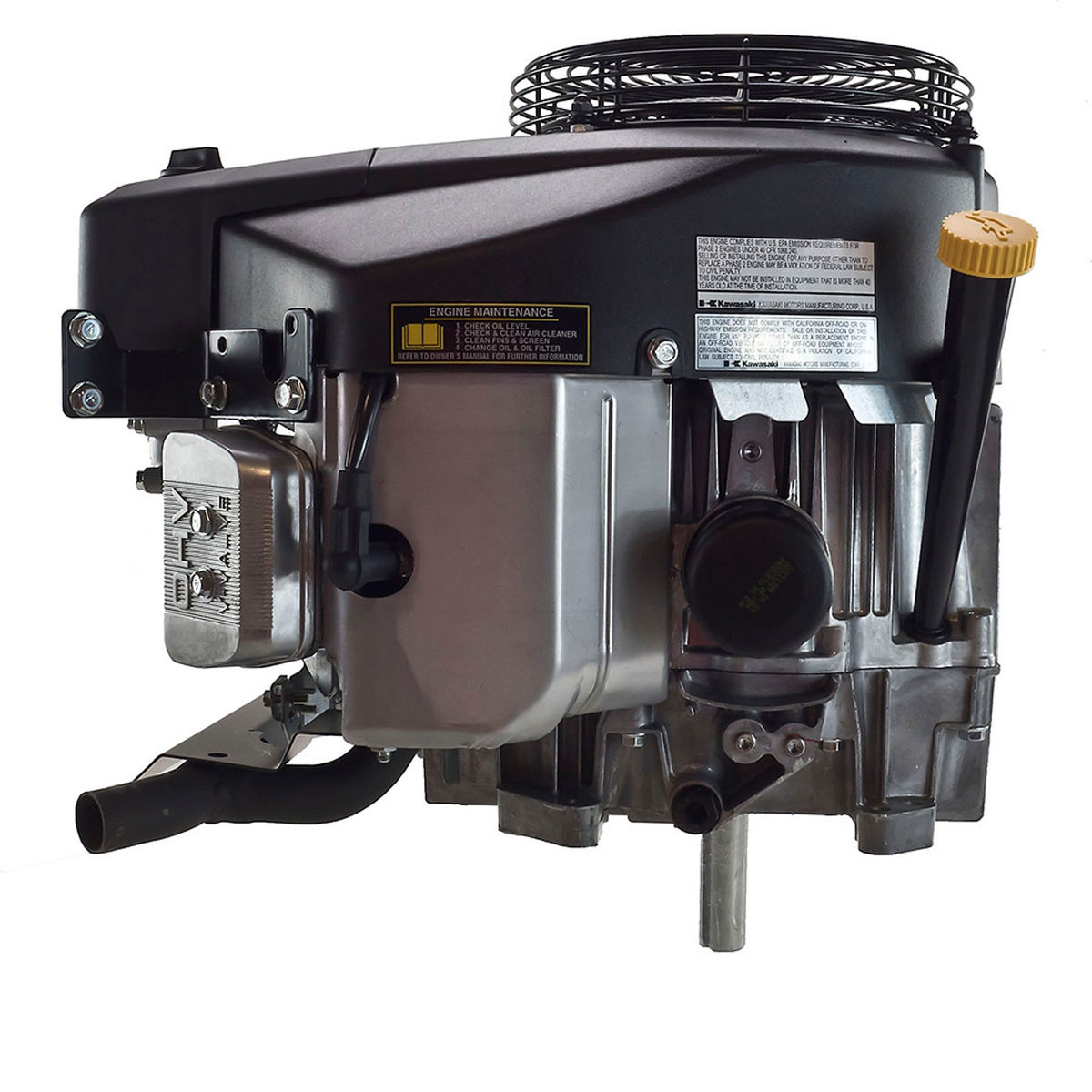

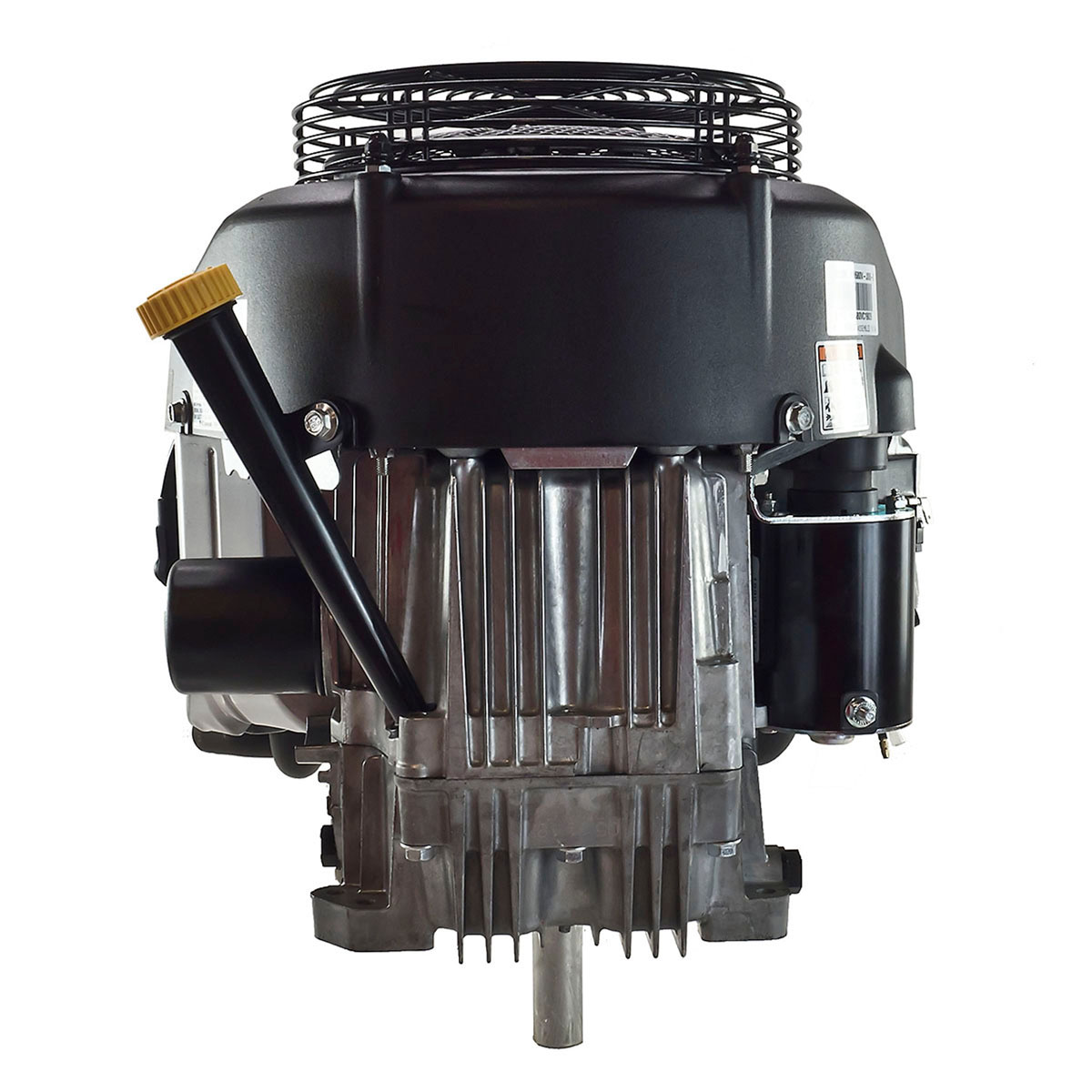

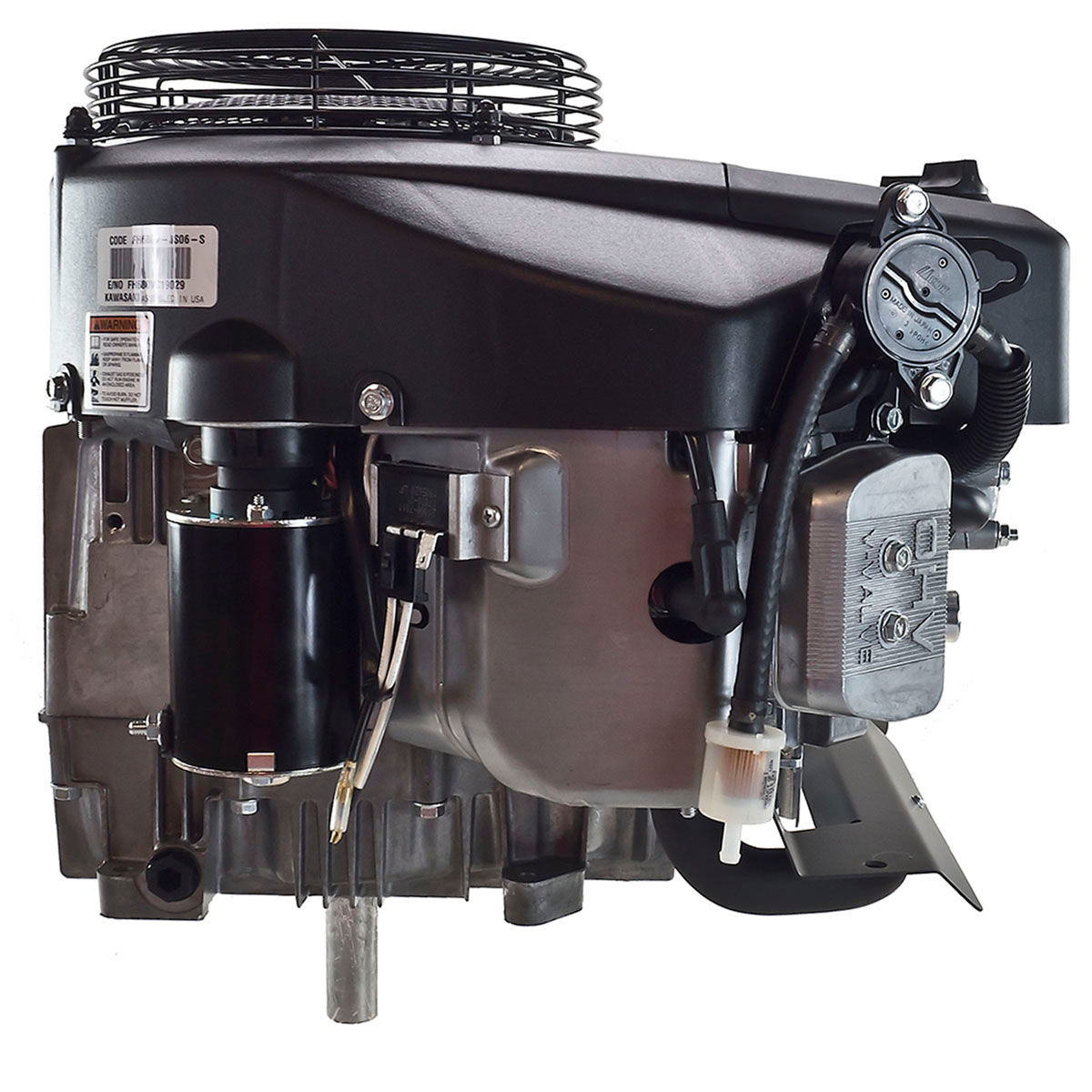

Kawasaki FH680V-S06 Engine
With 25.4mm X 80mm Vertical Shaft
Electric Start Motor
The FH680V-S06 Is one of the toughest replacement engines on the market with its wide variety of uses in zero-turn mowers, lawn and garden tractors and walk-behind mowers. It is SAE certified and built to handle the toughest terrains and the toughest conditions. The FH680V-S06 Kawasaki engine also offers a guaranteed 3 year consumer or commercial warranty on all parts and labor.
The Kawasaki 23 HP FH680V-S06 gas engine is powerful, heavy duty, and built to handle years of rugged use. Order now to take advantage of our amazing prices with fast free shipping on all orders over $100 and give us a call at 1-888-208-2088 to speak with our team of experts that are able to help you with all your Kawasaki needs.
The Kawasaki FH680V-S06 engine is a direct replacement for many brands such as Toro, Exmark, Scag, Bad Boy, Auburn Consolidated, KMC, Ariens, Excel, MTD, Dixie Chopper, Husqvarna, CHP, Little Wonder, Ferris and many others. This Kawasaki small motor is built with quality components and is ready to outlast the competition. Call if you have questions! 888-208-2088, 248-628-4638
Specifications | |
---|---|
Make | Kawasaki |
Model | FH680V-S06 |
Type | Small Engine |
Fuel | Gas Unleaded 86 Octane or Higher |
Engine Type | 4 Stroke OHV Twin Cylinder |
Bore/Stroke | 3.0 X 3.0 in |
Displacement | 675 cc |
Max Torque | 41.3 FT. Lbs |
Starting Type | Electric Start |
Charging Coil | 15 Amp |
Starting System | Electric Starter |
Dimensions (L x W x H) | 19.25 x 18.25 x 24.75 in. |
Exhaust Included | Yes |
Fuel Tank | No |
Dry Engine Weight | 105lbs. |

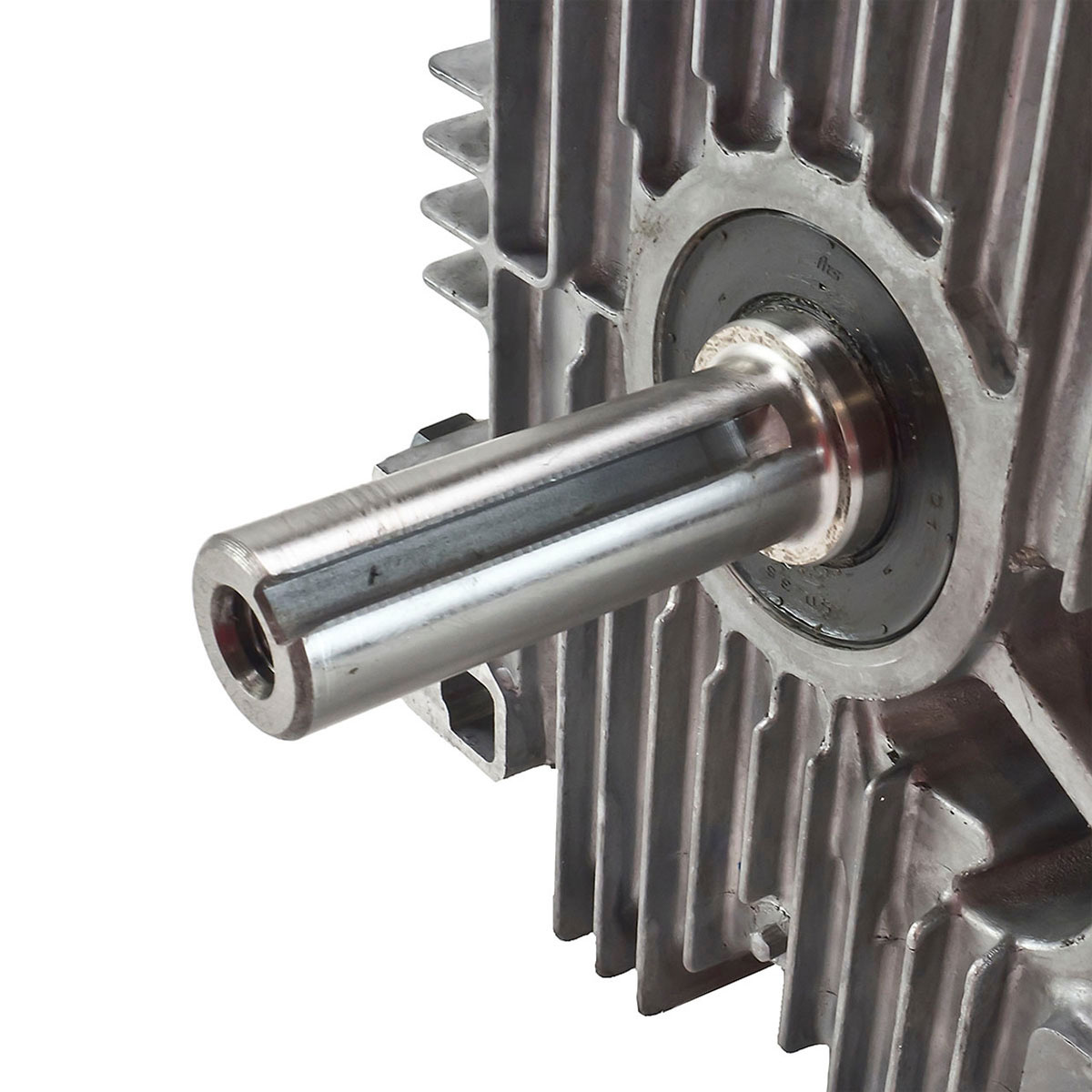

Shaft Type | Keyed - Straight |
Shaft Diameter | 1 Diameter, 1/4" Keyway |
Shaft Length | 3-5/32"" Total |
Shaft I.D. Thread Size | 7/16"-20 Drilled and Tapped |
Bolt Pattern | 4 Bolt |
Oil System | Pressurized with oil filter |
Oil Capacity | 2.0 Qts |
Oil Cooler | High Efficiency |
Reduction Type | None |
Engine Cooling Type | Forced Air Cooling |
Features | |
3 Year Consumer Warranty | |
3 Year Commercial Warranty | |
Mechanical Governor | |
4 Stroke OHV Small Engine | |
Standard Air Filter | |
Dipstick in Crankcase | |
Cross Reference Guide | |
Kohler: CV750 | |
Accessories | |
User Manual |
Use to Replace Model Numbers:
Please call for questions about what engines this replaces. (888-208-2088, 248-628-4638)
Any cross-reference is provided as a courtesy. You will be responsible for making sure the part number we are providing will fit your application. If you are unsure, please contact us before purchasing for help. Please have your model and serial number available.
The Kawasaki FH680V-S06 engine is distinguished in the realm of small engines for its sturdy build and dependable operation. Tailored to suit various uses, this engine is ideal for zero-turn mowers, lawn and garden tractors, and walk-behind mowers, making it a flexible option for residential and commercial purposes. With a 23 HP V-twin design, it delivers robust performance, able to tackle challenging tasks effortlessly. Its 25.4mm X 80mm vertical shaft and electric start motor provide convenience and efficiency, minimizing downtime and enhancing productivity.
The FH680V-S06 is constructed using top-notch components, showcasing its commitment to meeting rigorous industry benchmarks as evidenced by its SAE certification. This powerful engine is specifically designed to outperform in rugged landscapes and demanding environments, guaranteeing both resilience and longevity. With a comprehensive three-year warranty covering all parts and labor for both consumer and commercial use, you can rest assured that your investment is safeguarded, offering you peace of mind.
The Kawasaki FH680V-S06 boasts impressive power and exceptional user-friendliness, featuring simple maintenance processes that enhance efficiency. Its fuel-efficient structure aids in cost reduction without compromising performance quality. Whether utilized as a replacement engine in Toro, Exmark, Scag, Bad Boy, or other compatible brands, the FH680V-S06 stands as a dependable upgrade that ensures longevity over competitors.
