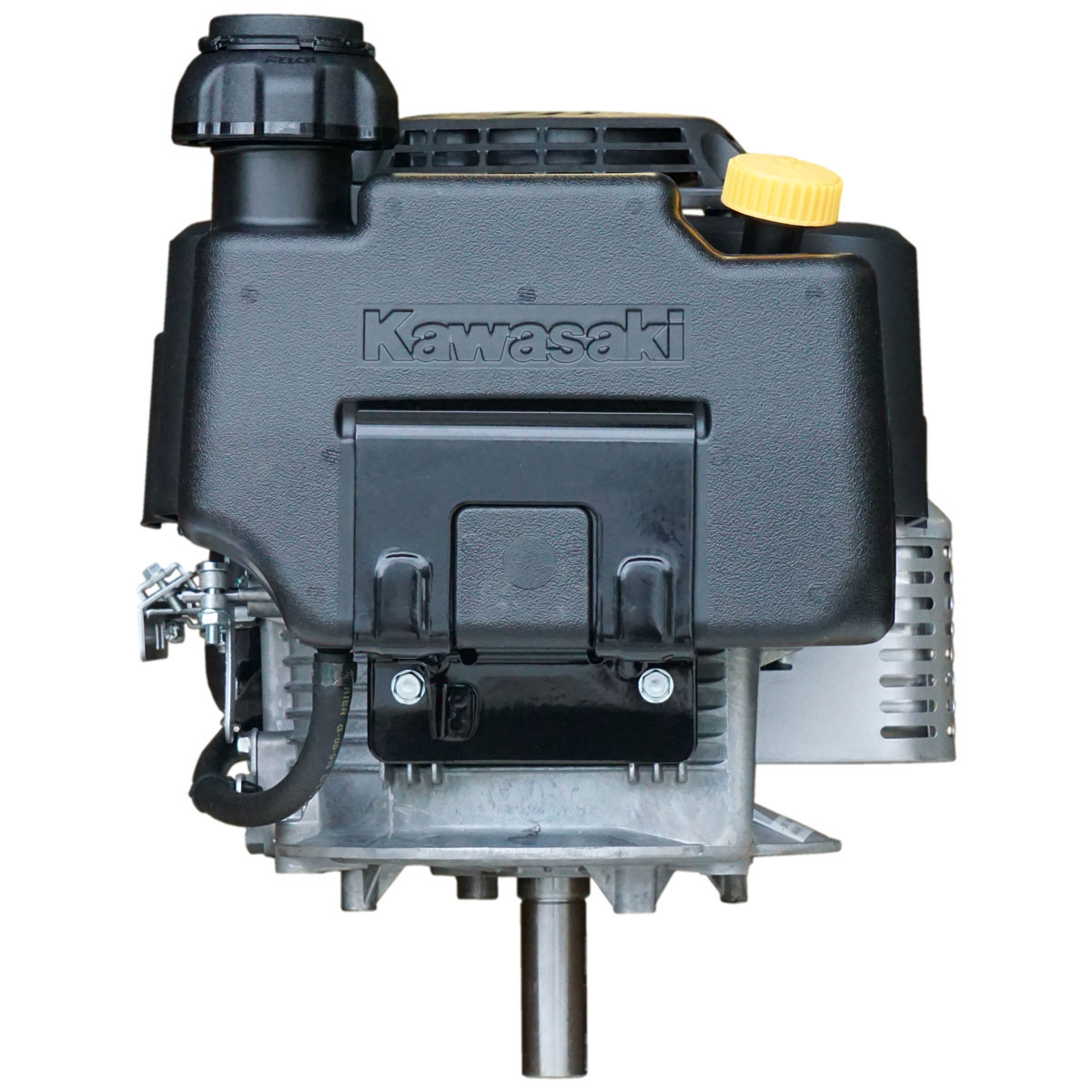

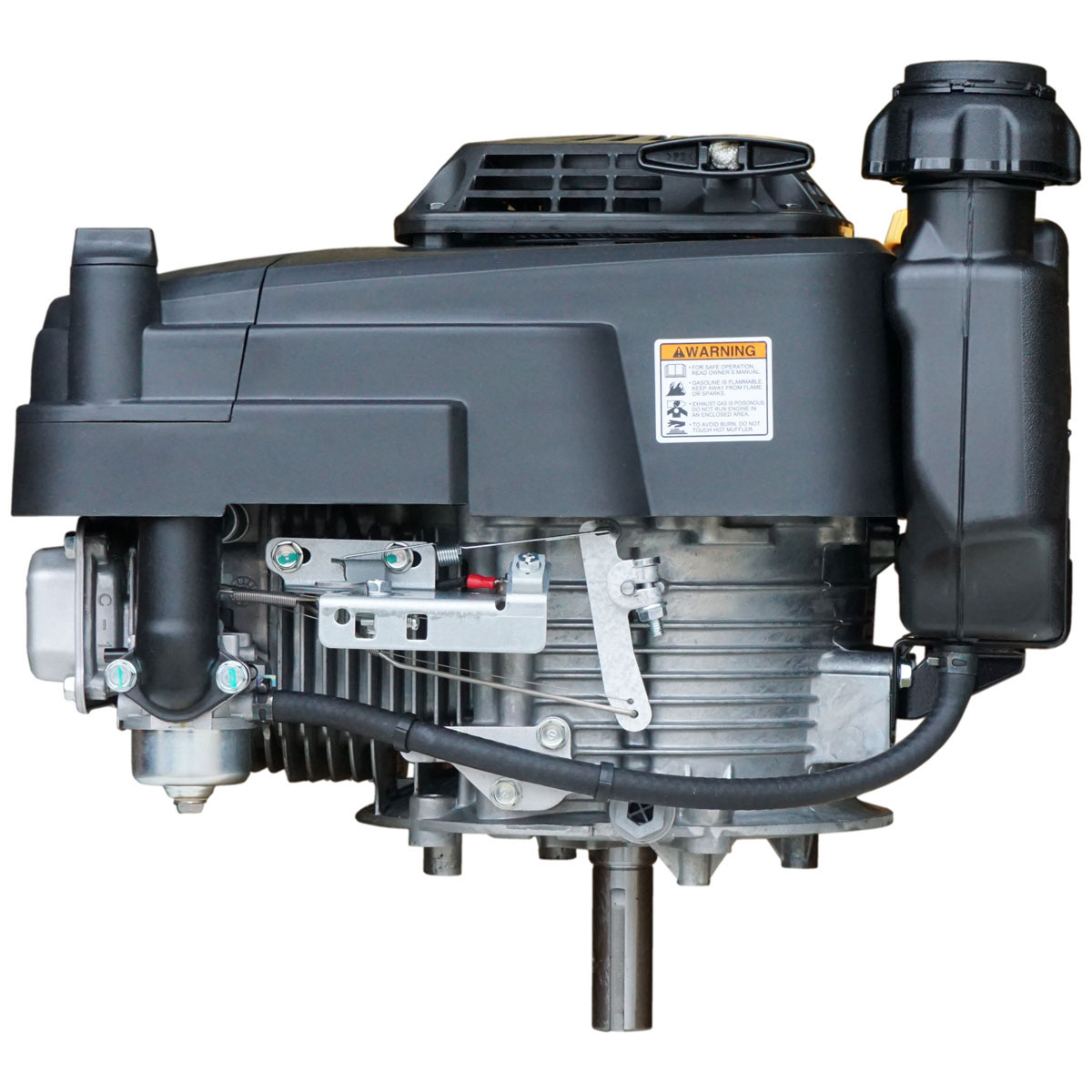

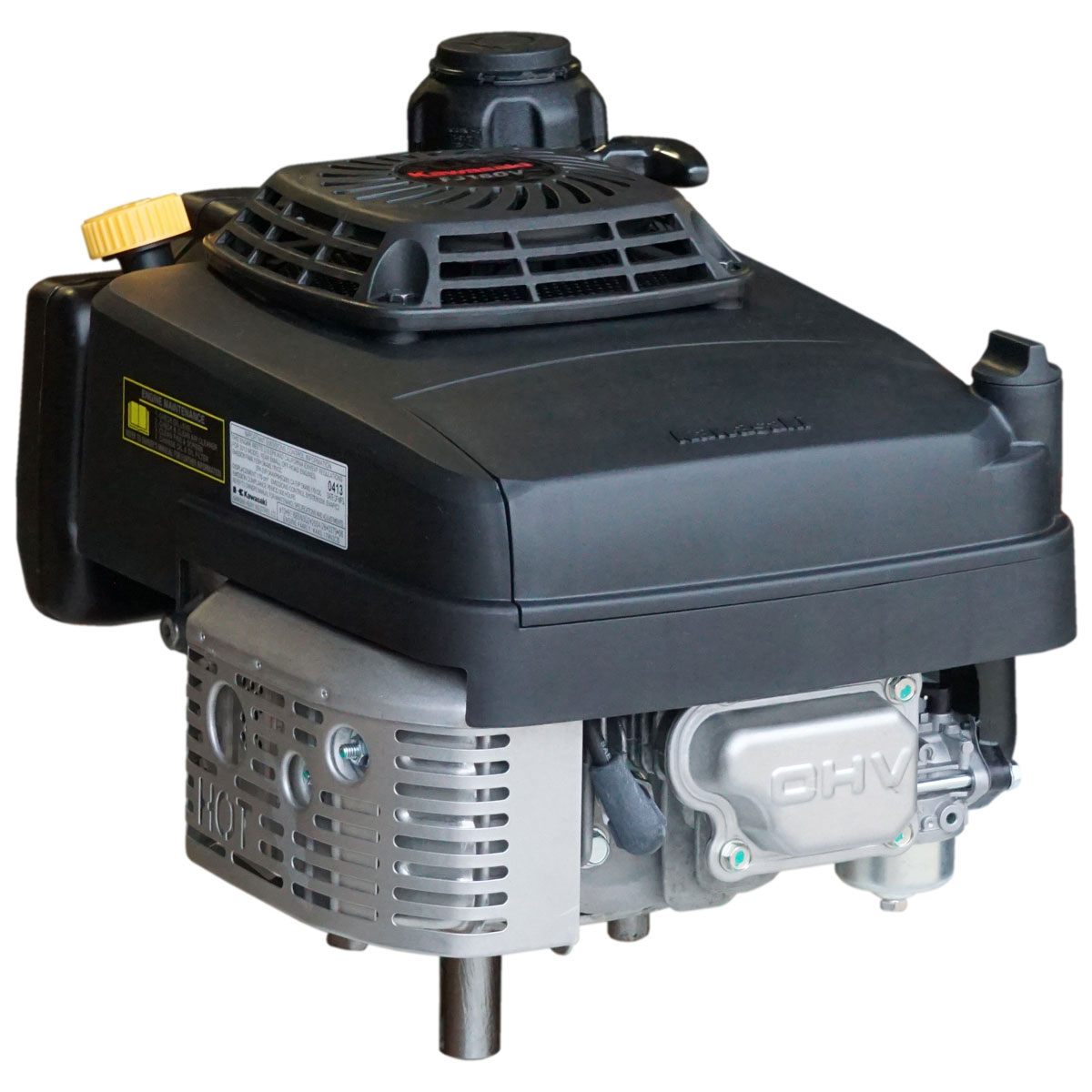

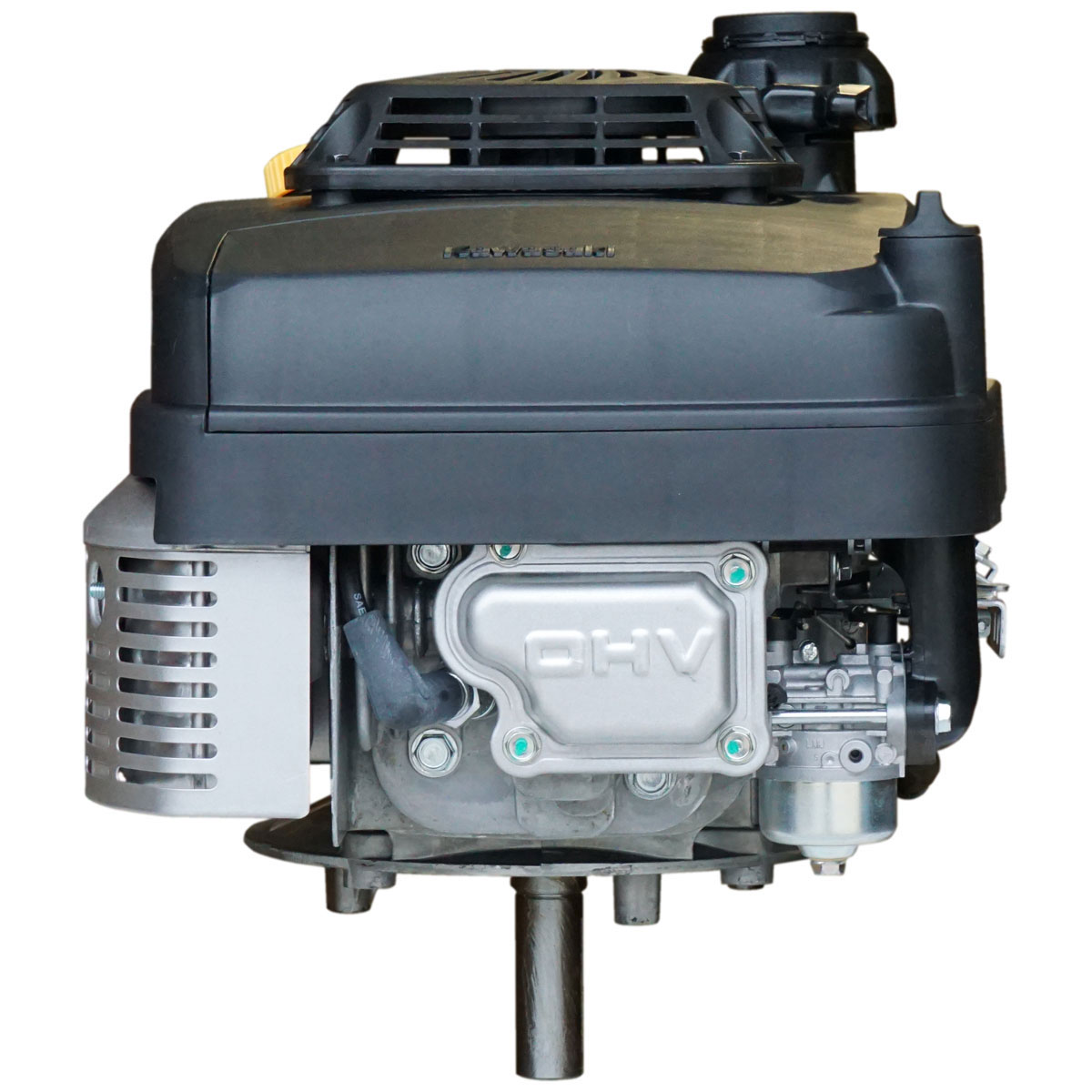

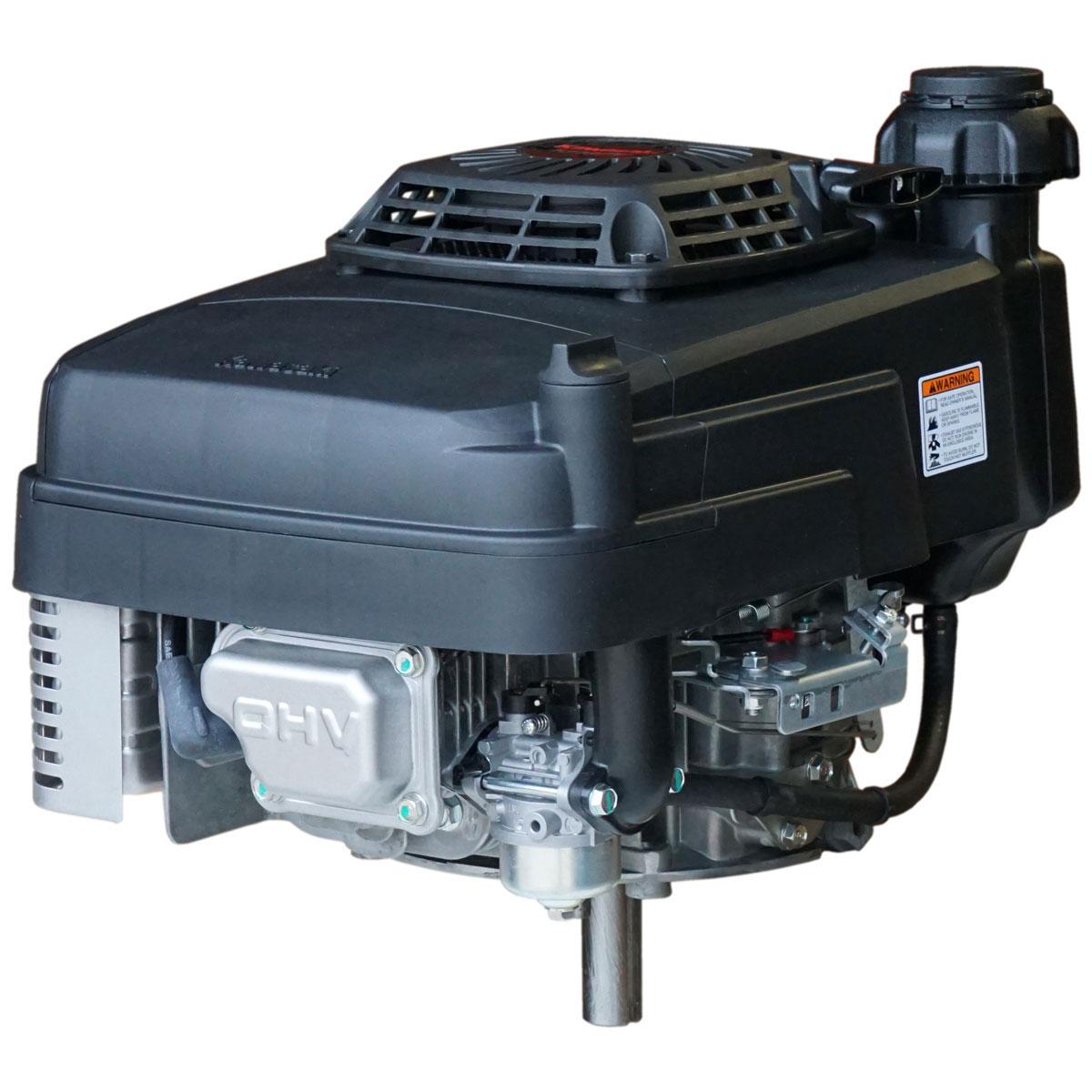

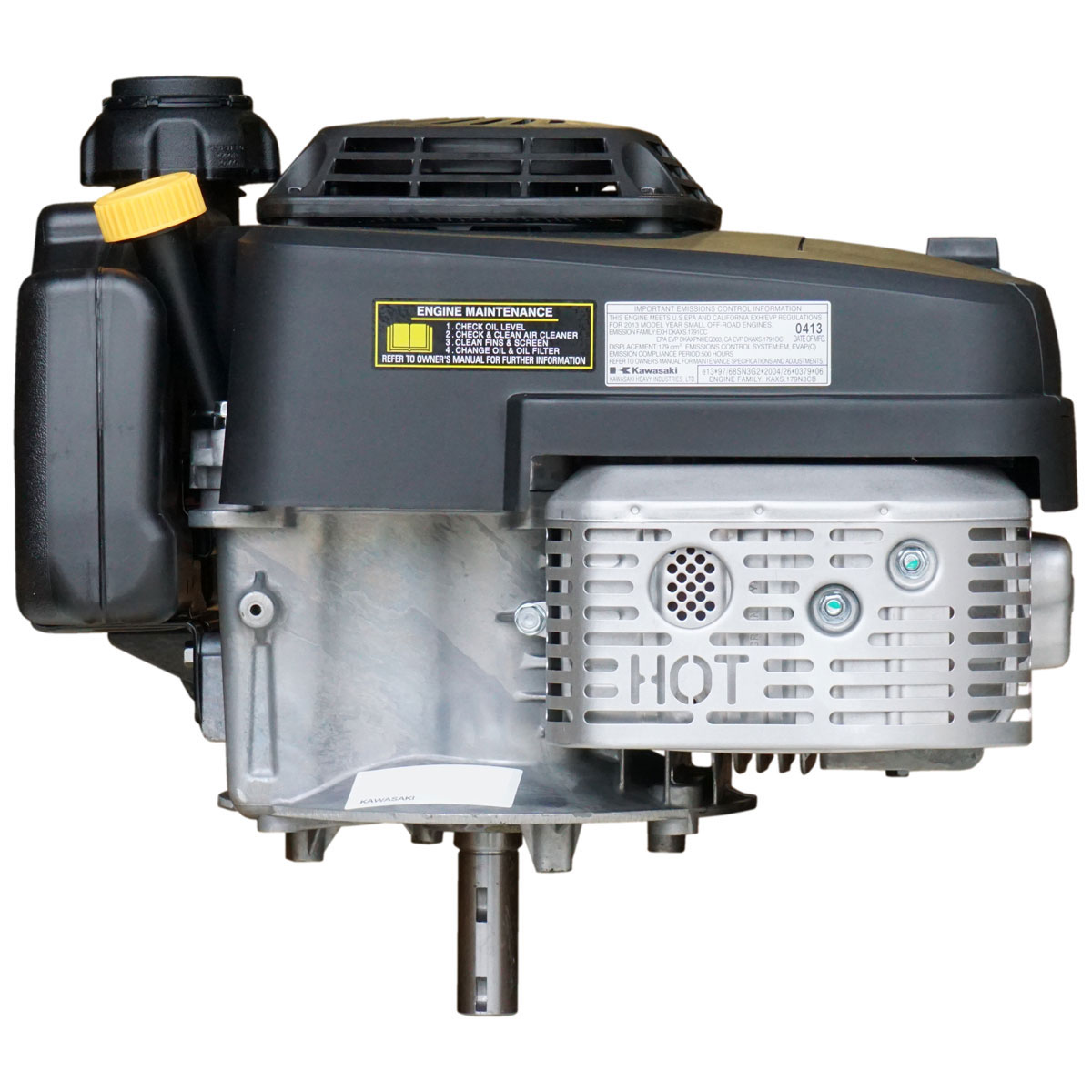

Kawasaki FJ180V-M01 Small Gas Engine Recoil Pull Start
With 25mm X 3-5/32" Vertical Shaft
179cc 6hp FJ Series Engine
Commonly used on Ariens, Billy Goat, Eastman, MTD, and Kawasaki power products. The highest quality guaranteed! We have been in business since 2005, and our engines are fully rebuildable with all parts available. The perfect Kawasaki motor to replace FJ180V.The Kawasaki FJ180V-M01 is perfect for industrial, commercial and residential applications. These premium residential motors have low tone mufflers, mechanical governors and duel element air filters. This convenient, heavy duty and reliable 4 stroke OHV single cylinder engine does the job for many applications. Also, offering a 3-year commercial warranty on these motors. Your order ships quickly with expert turnaround time in our fully stocked warehouse. Packaged with care, Carroll Stream Motor Company provides free shipping. This forced air-cooled 4-cycle engine features an internally vented carburetor, dual element air cleaner, zone start, 1.8L fuel tank, primer, fixed throttle, engine brake and a ball bearing supported crankshaft.
Kawasaki FJ180V-M01 engine is a 4 Stroke OHV single cylinder, which is a 2.6 X 2.1 in stroke. It is a 179cc, 8.7 Ft lbs. gross torque. This Kawasaki small motor is built with quality components and is ready to outlast the competition. Purchase now to take advantage of our free shipping and quick turnaround time. Or, call if you have questions! 888-208-2088, 248-628-4638.
Specifications | |
---|---|
Make | Kawasaki |
Model | FJ180V-M01 |
Type | Small Engine |
Fuel | Gas Unleaded 86 Octane or Higher |
Engine Type | 4 Stroke OHV Single Cylinder |
Bore/Stroke | 2.6 X 2.1 in |
Displacement | 179 cc |
Max Power | 8.7 Ft Lbs. Gross Torque |
Starting Type | Recoil Start |
Starting System | Recoil |
Dimensions (L x W x H) | 11.75 x 13 x 9.75 in. |
Exhaust Included | Yes |
Fuel Tank | Yes |
Dry Engine Weight | 30 lbs. |
Shaft Type | Straight |
Shaft Diameter | 25mm |
Shaft Length | 3-5/32" Total |
Shaft I.D. Thread Size | 3/8"-24 Drilled and Tapped |
Bolt Pattern | 4 Bolt |
Oil System | Pressure Lubrication |
Oil Capacity | 20 Fl. oz |
Reduction Type | None |
Engine Cooling Type | Forced Air Cooling |
Features | |
3 Year Commercial Warranty | |
Super Low Tone Muffler | |
Mechanical Governor | |
4 Stroke OHV Small Engine | |
Duel Element Air Filter | |
Dipstick in Crankcase | |
Cross Reference Guide | |
Kohler: XT800 | |
Accessories | |
User Manual |
Please call for questions about what engines this replaces. (888-208-2088, 248-628-4638)
Summary of the FJ180V-M01
The Kawasaki FJ180V-M01 stands out as a top-notch 179cc small gas engine, celebrated for its adaptability and strong performance. Equipped with a recoil pull start and a 25mm x 3-5/32" vertical shaft, this engine is commonly found in a range of machinery, including models from Ariens, Billy Goat, Eastman, MTD, and Kawasaki power products. Boasting a power output of 6 HP, this engine is perfect for a wide array of tasks in industrial, commercial, and residential settings, guaranteeing dependable and effective operation.
This single-cylinder engine with 4-stroke OHV design is built to last and simple to maintain. Equipped with a low-tone muffler for reduced noise, a mechanical governor for steady performance, and a dual-element air filter for engine protection. The FJ180V-M01 also boasts an internally vented carburetor, zone start, 1.8L fuel tank, primer, fixed throttle, engine brake, and ball-bearing-supported crankshaft, all enhancing its efficiency and durability.
The FJ180V-M01 engine from Kawasaki is designed to endure, just like all their engines. It is constructed with strong materials and high-quality components, ensuring its reliability. This engine is an excellent option for replacing the FJ180V engine, thanks to its durability and performance. With a stroke of 2.6 x 2.1 inches and a gross torque of 8.7 ft-lbs, it is engineered to provide consistent power and optimal performance. Customers can also benefit from free shipping and quick turnaround times, as the fully stocked warehouse ensures prompt delivery.
Kawasaki FS Engines: Find Your Perfect Match
The FS Kawasaki engine lineup offers a range of options from 14.5hp to 24hp. These engines are known for their dependable performance, durability, and impressive power. They are equipped with a 4-stroke, overhead valve system and forced air-cooling, ensuring optimal functioning.- Kawasaki FS481V-S01 14.5HP Vertical 1"
- Kawasaki FS481V-S26 14.5HP Vertical 1", Includes Muffler
- Kawasaki FS541V-S28 15HP Vertical 1-1/8"
- Kawasaki FS600V-S16 18.5HP Electric Start Vertical 1"
- Kawasaki FS600V-S00 18.5HP Electric Start Vertical 1"
- Kawasaki FS600V-S01 19HP Vertical 1"
- Kawasaki FS651V-S07 22HP Vertical 1"
- Kawasaki FS651V-S00 22HP Vertical 1-1/8"
- Kawasaki FS600V-S25 19HP Vertical 1"
- Kawasaki FS730V-S00 24HP Vertical 1-1/8"
- Kawasaki FS730V-S09 24HP Vertical 1"
Harness the Strength of Kawasaki FH Engines
Explore our range of Kawasaki FH engines. The Kawasaki FH series offers superior power and compact design compared to residential models, featuring forced air cooling and cutting-edge technologies.
- Kawasaki FH430V-S21 19HP Vertical 1"
- Kawasaki FH601D-S01 19HP Horizontal 1-1/8"
- Kawasaki FH580V-S35 19HP Vertical 1-1/8"
- Kawasaki FH580V-S20 19HP Vertical 1"
- Kawasaki FH580V-S29 19HP Vertical 1"
- Kawasaki FH580V-S01 19HP Electric Start, Vertical 1"
- Kawasaki FH580V-S21 19HP Vertical 1"
- Kawasaki FH680V-S06 23HP Vertical 1"
- Kawasaki FH680V-S01 23HP Vertical 1-1/8"
- Kawasaki FH680V-S32 23HP Vertical 1-1/8"
- Kawasaki FH680V-S28 23HP Vertical 1"
- Kawasaki FH721V-S09 25HP Vertical 1-1/8"
- Kawasaki FH721V-S01 25HP Vertical 1-1/8"
- Kawasaki FH721V-S24 25HP Vertical 1-1/8"
- Kawasaki FH721V-S13 25HP Vertical 1"
- Kawasaki FH721D-S08 25HP Horizontal 1-1/8"
- Kawasaki FH721D-S01 25HP Horizontal 1-1/8"
- Kawasaki FH770D-S01 28HP Horizontal 1-1/8"
Redefine Efficiency: Kawasaki FX Engines
Are you interested in exploring our range of vertical shaft FX Kawasaki engines? The engines in this series have a power range of 19hp to 35hp. The FX series is known for its durability, reliability, and high-performance capabilities, making it ideal for heavy-duty machinery. These commercial-grade vertical engines are suitable for a wide range of applications.- Kawasaki FX600V-S00 19HP Vertical 1"
- Kawasaki FX600V-S01 19HP Vertical 1"
- Kawasaki FX600V-S02 19HP Vertical 1-1/8"
- Kawasaki FX651V-S00 20.5HP Vertical 1-1/8"
- Kawasaki FX691V-S00 22HP Vertical 1-1/8"
- Kawasaki FX691V-S14 22HP Vertical 1"
- Kawasaki FX691V-S06 22HP Vertical 1-1/8"
- Kawasaki FX730V-S12 23.5HP Vertical 1"
- Kawasaki FX730V-S00 23.5HP Vertical 1-1/8"
- Kawasaki FX730V-S09 23.5HP Vertical 1-1/8"
- Kawasaki FX730V-S01 25.5HP Vertical 1-1/8"
- Kawasaki FX801V-S00 25.5HP Vertical 1-1/8"
- Kawasaki FX850V-S00 27HP Vertical 1-1/8"
- Kawasaki FX850V-S12 27HP Vertical 1-1/8"
- Kawasaki FX850V-S42 EFI 29.5HP Vertical 1-1/8"
- Kawasaki FX921V-S04 31HP Vertical 1-1/8"
- Kawasaki FXT00V-S08 35HP Vertical 1-1/8"
Discover the Precision of Kawasaki FR Engines
Our range of Kawasaki FR series provides a variety of compact yet robust engines that are suitable for a wide range of applications. These engines are equipped with liquid cooling technology, which guarantees efficient and dependable performance even in challenging conditions. Discover the ideal combination of power, durability, and compact size to meet your equipment requirements.
Kawasaki FD Liquid Cooled Engines
We offer a range of Kawasaki FD lawn mower engines with horizontal shafts, available in either 25HP or 26HP. These engines are compact, V-twin, and equipped with liquid cooling. They are ideal for various commercial lawn mower applications.
Unleash the Power of Kawasaki FJ Vertical Engines
Our range of Kawasaki FJ engines varies from 4.5hp to 6hp. The FJ series provides an excellent solution for industrial, agricultural, and manufacturing needs. Equipped with 4-stroke OHV, dual-element air filters, and a mechanical governor.
- Kawasaki FJ180V-M00 6HP Vertical 7/8"
- Kawasaki FJ180V-M01 6HP Vertical 25mm
- Kawasaki FJ180V-M07 6HP Tapered BBC Shaft
- Kawasaki FJ180V-M08 6HP Vertical 25mm
- Kawasaki FJ180V-M09 6HP Vertical 25mm
- Kawasaki FJ180V-M11 6HP Vertical 25mm
- Kawasaki FJ180V-M12 6HP Tapered BBC Shaft
- Kawasaki FJ180V-M17 6HP Vertical 25mm

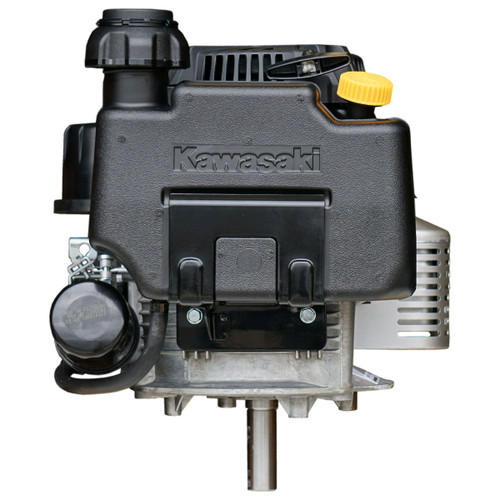

- Kawasaki FJ180V-M22 6HP Vertical 25mm
- Kawasaki FJ180V-M24 6HP Vertical 7/8"
- Kawasaki FJ180V-M25 6HP Vertical 25mm
